Dracal USB-RTD223 USB adapter with 3 screw connection block for a 2/3-wire RTD probe

PB Tech price
PB Tech price
AUD $ 229 .07
$ 229 .07
$229.07  +GST
$229.07

Dracal USB-RTD223 USB adapter with 3 screw connection block for a 2/3-wire RTD probe

  • Brand: Dracal
  • MPN: USB-RTD223
  • Part #: IPCDAL20009
  • UPC:
PB Tech price
AUD $ 229 .07 $ 229 .07


Delivery: Order now and it ships on 09 Jul
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$229.07  +GST
$229.07

Features

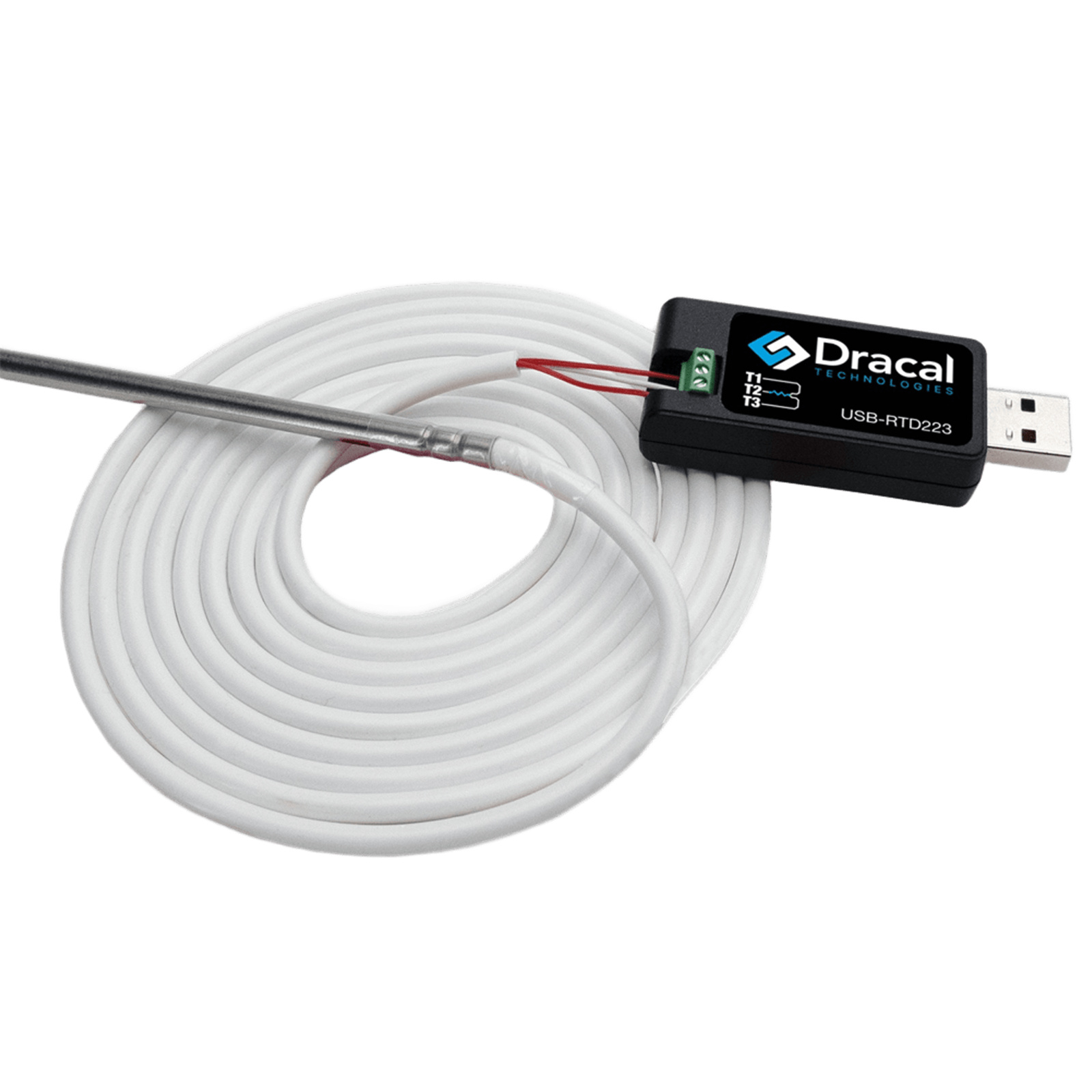

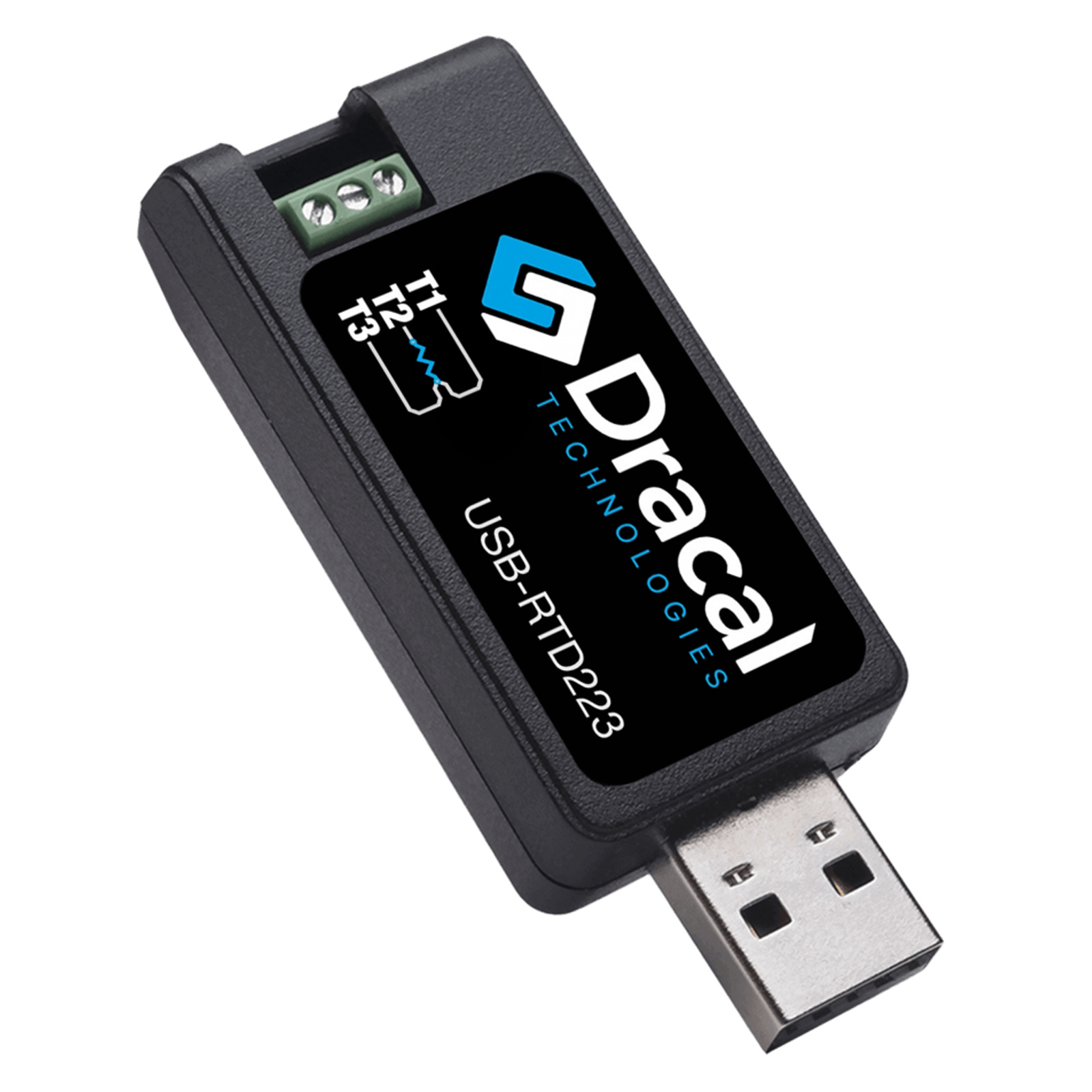

RTD223: Connect an RTD Pt100 sensor to a USB port for precise and extensive temperature measurement.

All instruments of the RTD series are resistance temperature detectors (RTD) connected to USB, which support all 2-wire and 3-wire Pt100 probes, such as the one offered by Dracal. The sensor wires are secured using the RTD223's screw connections for a robust installation. With its 18-bit precision electronics, small temperature variations can be detected. The RTD223 is, therefore, suitable for a wide range of applications. The RTD223 is designed in a compact key format for easy integration, even in applications where space is limited. The unique serial number assigned to each unit allows for data traceability and certification. Multiple units can be simultaneously connected and operational on the same USB HUB or computer. Additionally, the RTD223 is equipped with calibration options and a virtual COM port mode for direct data integration without third-party software.

Easy to use in your applications

- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate

Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Application examples

- Aerospace
- Biomedical
- Food processing
- Robotics
- Materials engineering
- Engineering
- R&D
- Monitoring of environmental conditions at the CERN

Free data monitoring and calibration software

Like all Dracal measuring instruments, the RTD223 is compatible with free software tools, making it an essential component of a DAQ solution. For those looking to integrate the RTD223 into their system, two options are available: command-line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.

Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software

- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user

Dimensions and Wiring

Specifications

General

Temperature Range

-200°C to 800°C

ADC resolution

18-bit

Temperature resolution

0.02°C

Accuracy

±0.06°C or better

Drift

<1% per year

Sensing Element Type

2 or 3-wire RTD 100 Ω sensors (Pt100 type)

Connector

3-screw terminal, robust connection

Maximum wire size

26 AWG to 20 AWG

Long-term stability

Yes

Miscellaneous

Enclosure operating temperature

-20°C to 70°C

Enclosure

ABS Plastic, USB-key form factor

Communication

USB 2.0

Certification

RoHS3 and CE compliant

Manufacturer Part No:
USB-RTD223
Brand:
Dracal
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.01 kg
PB Part No:
IPCDAL20009
Product Model:
USB-RTD223
Warranty: 12 months *
