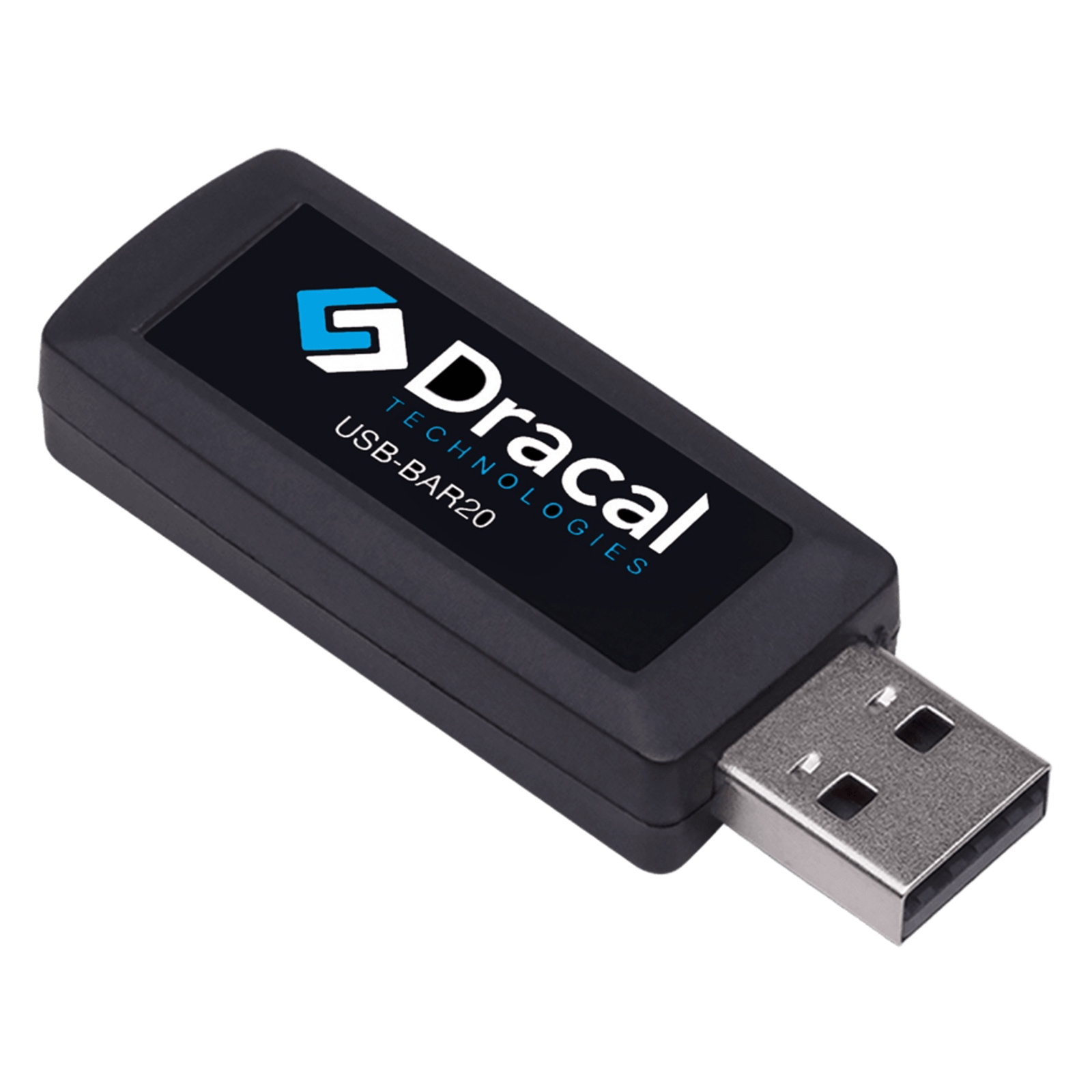

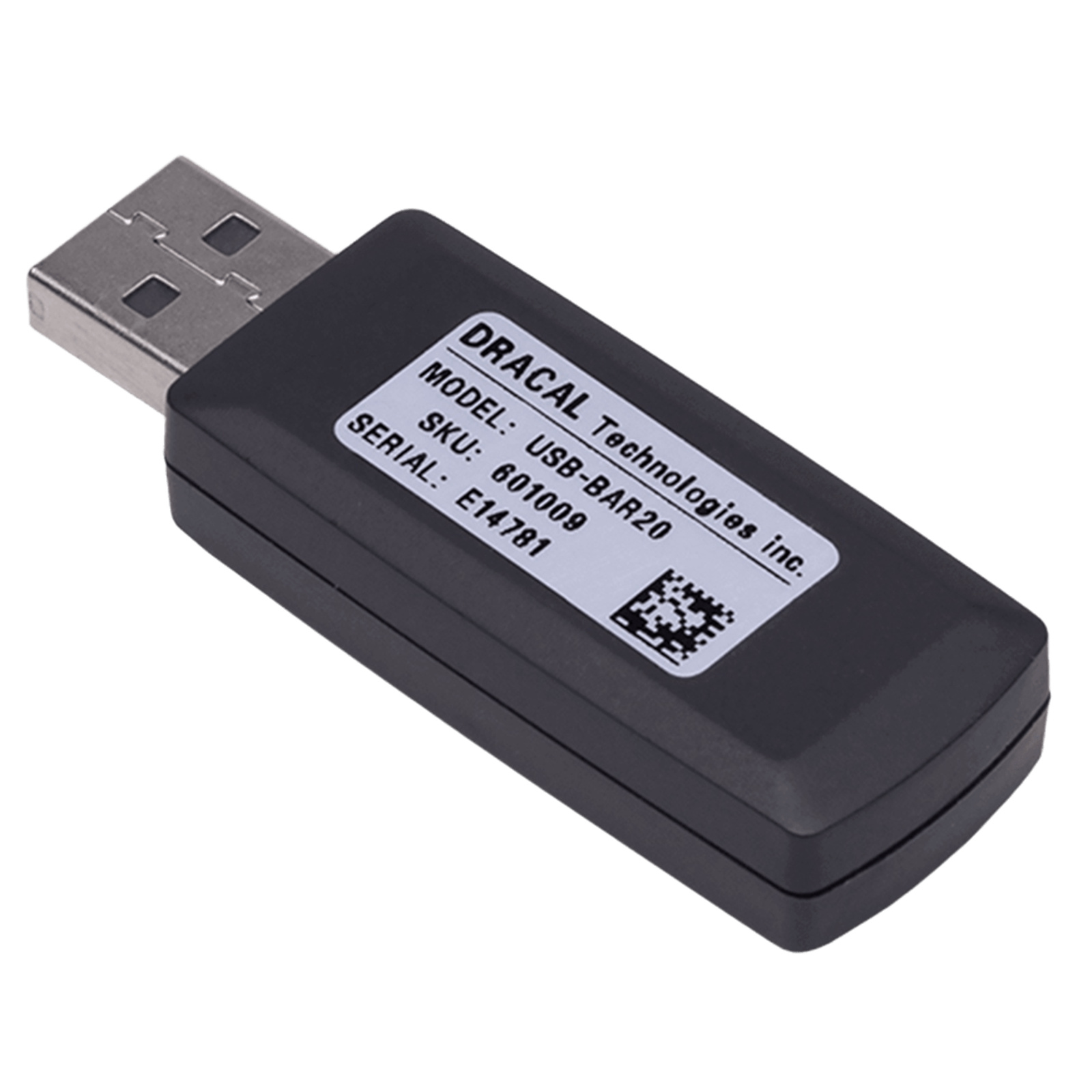

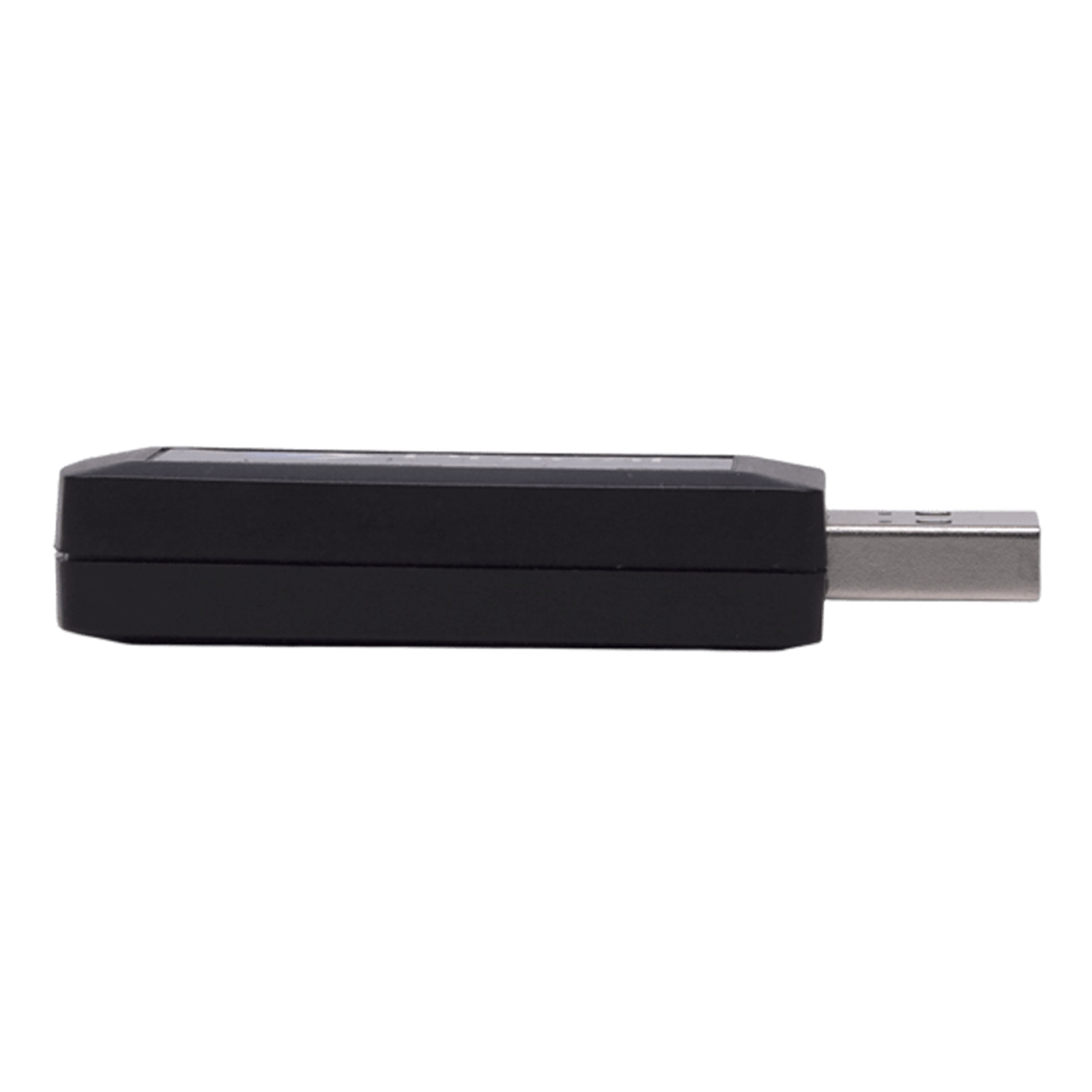

Dracal USB-BAR20 USB precision barometer

PB Tech price

AUD $ 222 .88

$ 222 .88

Dracal USB-BAR20 USB precision barometer

Brand: Dracal
MPN: USB-BAR20
Part #: IPCDAL20011
UPC:

PB Tech price

AUD $ 222 .88

In stock at Supplier

Delivery: Order now and it ships on 27 Jul

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Dracal
MPN: USB-BAR20
Part #: IPCDAL20011
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

BAR20: USB sensor for accurate measurement of atmospheric pressure and altitude.

The BAR20, a member of the BAR series, is a digital barometer operating within a range of 1 kPa to 120 kPa with high precision. Its unique USB key-like design allows seamless integration into various systems.

Easy to use in your applications

- Virtual COM option (VCP)
- dracal-usb-get: command-line data integration tool
- dracal-sensgate-get: command-line tool for wireless access to sensors connected to a SensGate
- RVCP: REST API for wireless access to VCP instruments connected to a SensGate

Multiple integration and code examples, including Python, C, C++, Java, Node.js, C#, Grafana and LabVIEW.

Application examples

- Altimeter
- Navigation system

Free data monitoring and calibration software

Like all Dracal measuring instruments, the BAR20 is compatible with free software tools, making it an essential component of a DAQ solution. For those looking to integrate the BAR20 into their system, two options are available: command-line tools and VCP mode. If you prefer a graphical interface, DracalView is the appropriate choice.

Be instantly operational with DracalView: Dracal's free data visualization, logging and calibration software

- Works under Windows (Win7/8/10/11 64&32-bit), Mac OS X and Linux
- Simultaneous visualization and logging of an unlimited number of sensors
- Automatic synchronization with Dracal's Wi-Fi gateway
- Easy calibration mechanism open to the end-user

Typical tolerance in pressure at 450, 800 and 1000 mbar

Dimensions

Specifications

Atmospheric Pressure

Operating range

45 to 110 kPa

Accuracy at 25°C

±0.15 kPa

Extended pressure range

1 to 120 kPa

Overpressure

600 kPa

Resolution

0.0065 kPa

Internal calibration

Factory-calibrated coefficients

ADC resolution

24 bits

Altitude resolution

Approx. 10 cm

Long-term drift

±0.1 kPa/year

Sensor IC

MS5611

Internal Temperature

Operating range

-40°C to 70°C

Accuracy

<0.8°C

Difference int. vs ext. at 25°C

+3°C (typical)

Resolution

±0.01°C (typical)

Miscellaneous

Operating temperature range

-20°C to 70°C

Power

Powered through USB

Communication

USB 2.0

Enclosure

ABS Plastic, USB-key form factor

Weight

6 g

IP rating

IP60

Overall dimension

H 2.295″ (58 mm) x W 0.759″ (19 mm) x D 0.425″ (11 mm)

Certifications

RoHS3 and CE compliant

Manufacturer Part No:

USB-BAR20

Brand:

Dracal

Product Type:

UPC

Product Family:

Shipping Weight:

0.01 kg

PB Part No:

IPCDAL20011

Product Model:

USB-BAR20

Warranty: 12 months *
