Giada DN73 Android10 RK3328 CPU, 2G Ram, 32G Storage, WIFI&BT, 1xHDMI, Fanless, 4K Display

Normally $144.88
Normally $144.88
You save $7
You save $7
AUD $ 137 .88
$ 137 .88
$137.88  +GST
$137.88

Giada DN73 Android10 RK3328 CPU, 2G Ram, 32G Storage, WIFI&BT, 1xHDMI, Fanless, 4K Display

  • Brand: Giada
  • MPN: DN73
  • Part #: IPCGDA20001
  • UPC:
Normally $144.88
Normally $144.88
You save $7
You save $7
PB Tech price
AUD $ 137 .88 $ 137 .88
Hurry, only 2 units left!


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$137.88  +GST
$137.88

Features

DN73 (Android) Android 10 Player RK3328 Inside Support 4K Display

RK3328 Quad-core Processor
Competitive Price
The ultra compact Android player is equipped with Quad-core Cortex-A53 processor. It supports onboard dual channels LPDDR4 memory, onboard eMMC5.1 storage and onboard dual band WiFi, Bluetooth 4.2


Single Display Output
The player adopts Rockchip integrated Mali-450MP2 GPU and supports 1 x HDMI 2.0 (Max. 3840 x 2160 @60 Hz).

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

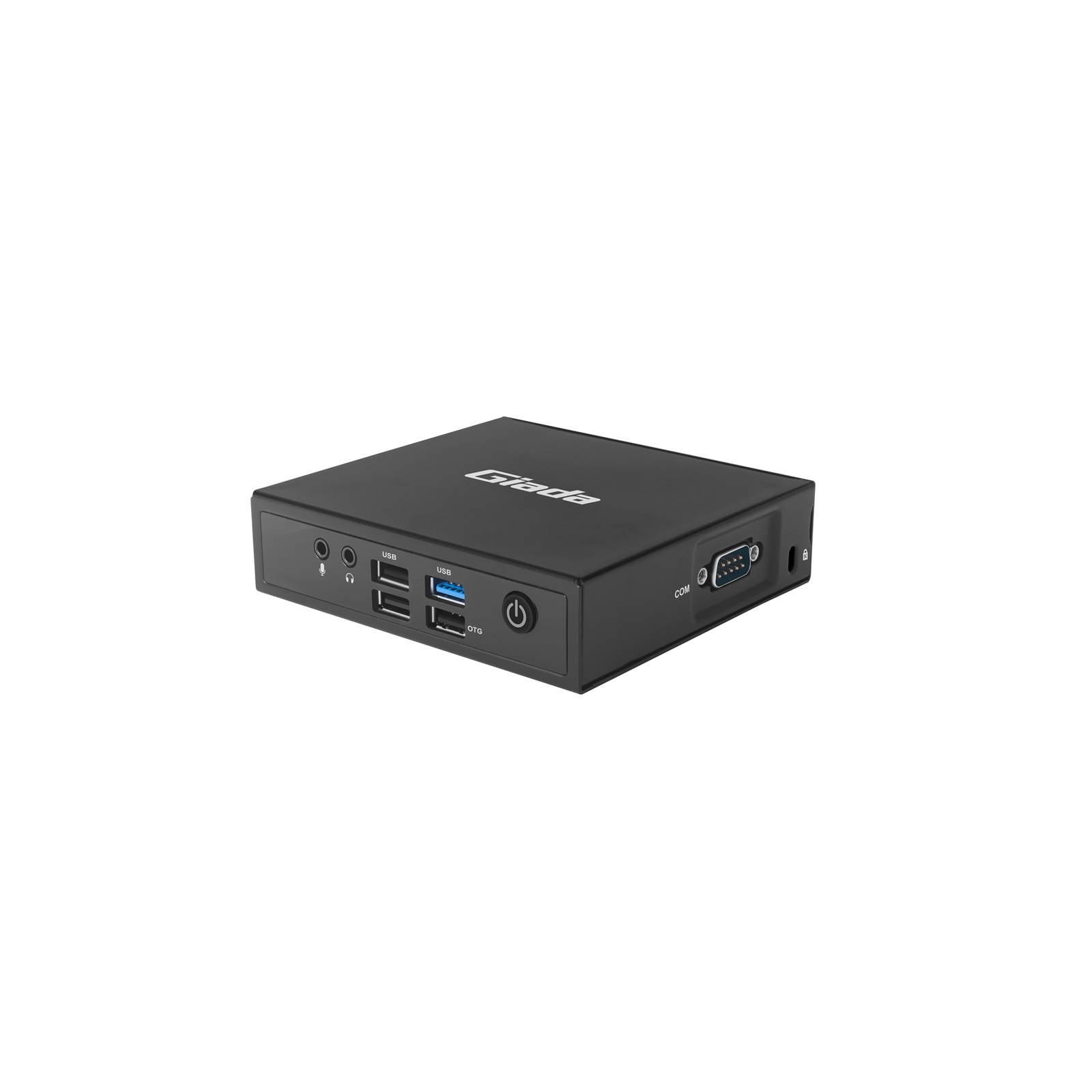

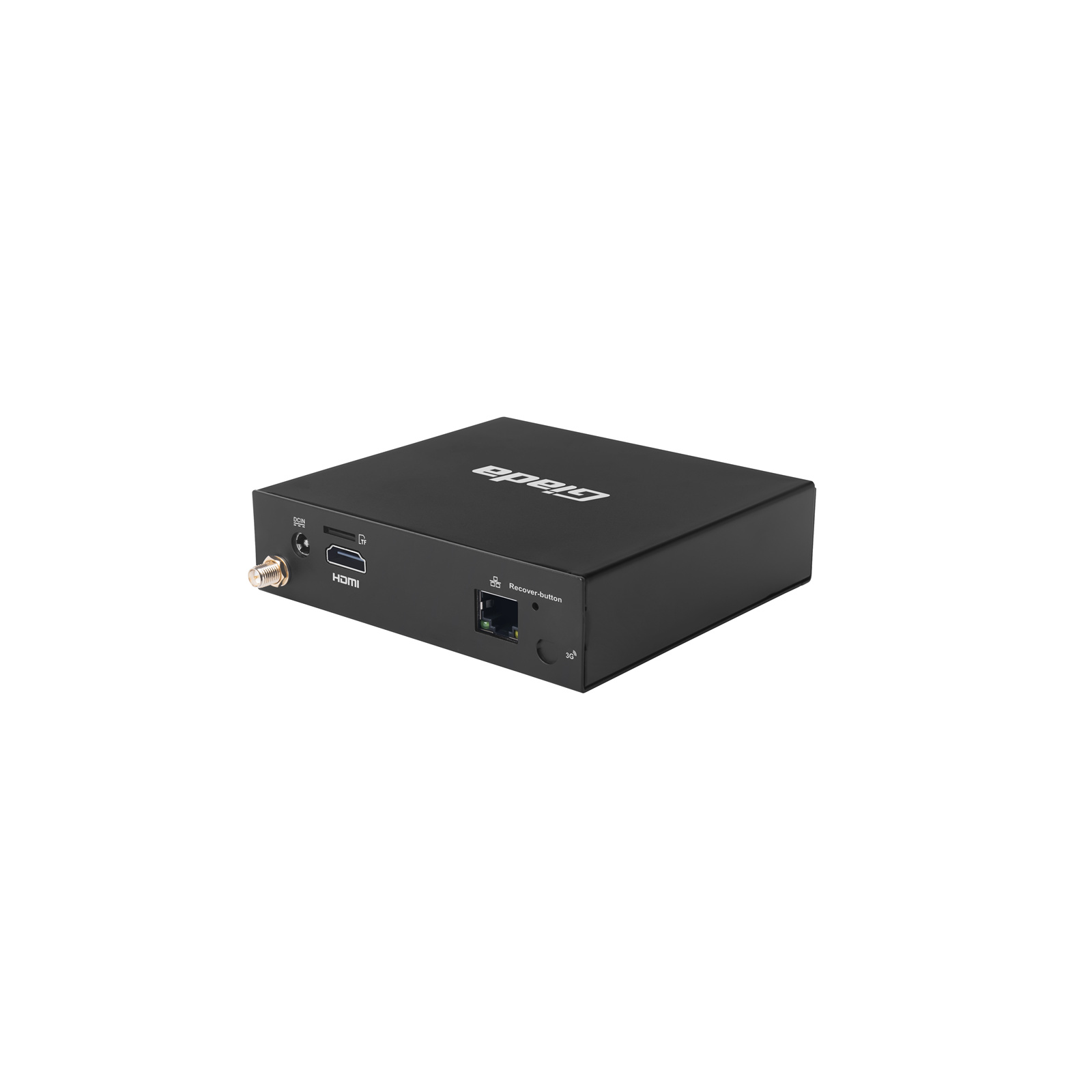

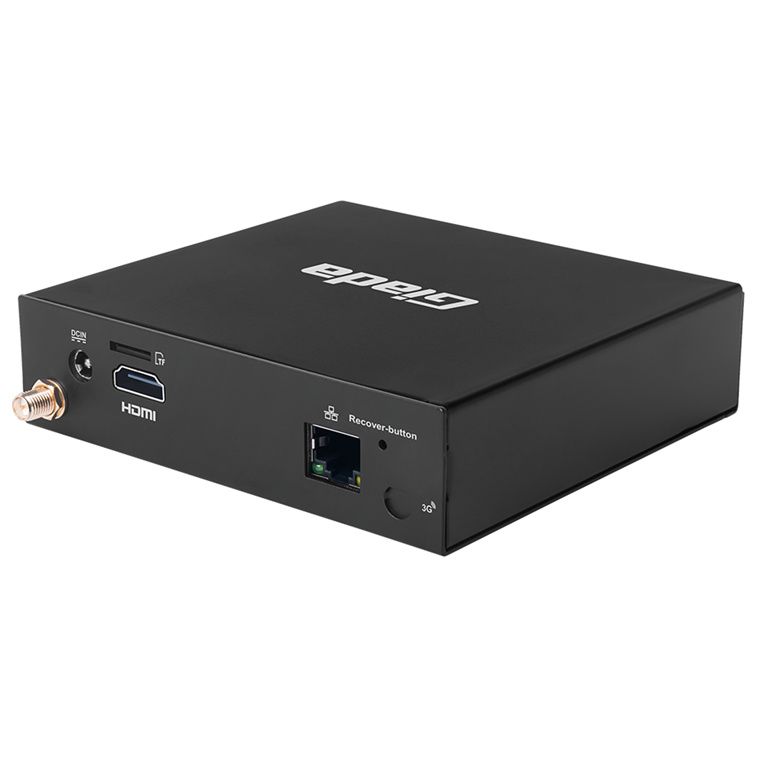

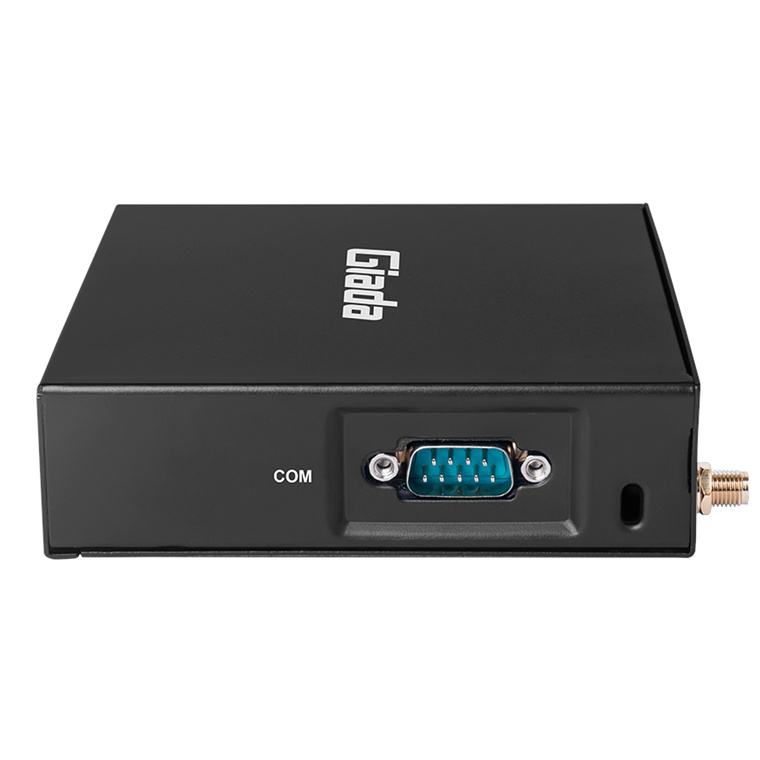

                       I/O port introduction

Specifications

CPU

CPU

Rockchip RK3328

Frequency

1.50 GHz

Processing Units

4 Cores

TDP

6 W

Memory

Size

2 GB

Tpye

Onboard DDR4-2133 MHz

Storage

Onboard

32 GB, Onboard eMMC (Optional: 64 GB)

Socket

1 x TF Card reader

Display

GPU

Mali-450MP2

Graphic Engine

OpenGL ES1.1/2.0

Multi-Media

4K VP9 decoders
4K 10bits H.265 decoders
1080P VC-1, MPEG-1/2/4, VP8 video decoders
Support HDR10 ,HLG HDR

Display Interface

1 x HDMI (Max.3840 x 2160 @60 Hz)

Network

Network Controller

1 x Realtek RTL8211E PHY

Ethernet Interface

1 x RJ45

Wi-Fi/BT

Onboard Wi-Fi/BT module

Mobile Network

1 x Full-size Mini-PCIe for 3G/4G
1 x SIM Slot

I/O interface

USB

1 x USB3.2 Gen1,
1 x USB2.0 OTG, 2 x USB2.0

Serial Port

1 x RS232

Audio

1 x MIC-IN, 1 x AUDIO-OUT

Button

1 x Power on, 1 x Recovery

Antenna

1 x Connector for Wi-Fi/BT,
1 x Connector for 3G/4G (Reserved)

System

Watchdog Timer

NA

Auto Power On

Yes

RTC

Set up independently every day, a week as a cycle

Power Requirement

DC-IN, 12 V/2.08 A

Dimensions

116 mm x 106 mm x 30 mm (4.57" x 4.17" x 1.18")

Construction

Metal, Black

Operating System

Android 7.1/Android 10

Operating Temperature

0°C ~40°C (32°F~104°F) @0.7m/s Air Flow

Humidity

95% @ 40°C (non-condensing)

Certifications

CE, FCC Class B, UKCA

Manufacturer Part No:
DN73
Brand:
Giada
Product Type:
Android10
UPC
-
Product Family:
-
Shipping Weight:
1.5 kg
PB Part No:
IPCGDA20001
Product Model:
DN73
Warranty: 12 months *
