Giada VM23-4G Celeron N3350, 4G Onboard Ram, 64G Storage eMMC, 1xDP+1xHDMI, Fanless, Dual 1080p Display
Out of stock
Giada VM23-4G Celeron N3350, 4G Onboard Ram, 64G Storage eMMC, 1xDP+1xHDMI, Fanless, Dual 1080p Display
- Brand: Giada
- MPN: VM23-4G
- Part #: IPCGDA20005
- UPC:
- Brand: Giada
- MPN: VM23-4G
- Part #: IPCGDA20005
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
Giada VM23-4G Celeron N3350, 4G Onboard Ram, 64G Storage eMMC, 1xDP+1xHDMI, Fanless, Dual 1080p Display
- Brand: Giada
- MPN: VM23-4G
- Part #: IPCGDA20005
Product URL: https://www.pbtech.com/product/IPCGDA20005/Giada-VM23-4G-Celeron-N3350-4G-Onboard-Ram-64G-Sto
Features
Low Power Consumption
The ultra-compact player is equipped with Apollo Lake Celeron® processors N3350/N3450 (TDP ≤6W). It's Giada's top selling model, with best price-performance ratio. It supports onboard LPDDR4 memory and eMMC5.1 storage.

Supporting Dual 1080p Display
The player adopts Intel® HD Graphics 500. It supports vivid dual 1080p video decoding. The HDMI 1.4a supports resolutions up to 4096 x 2160 @ 24Hz, while DisplayPort 1.2 port supports 4096 x 2160 @ 60Hz.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

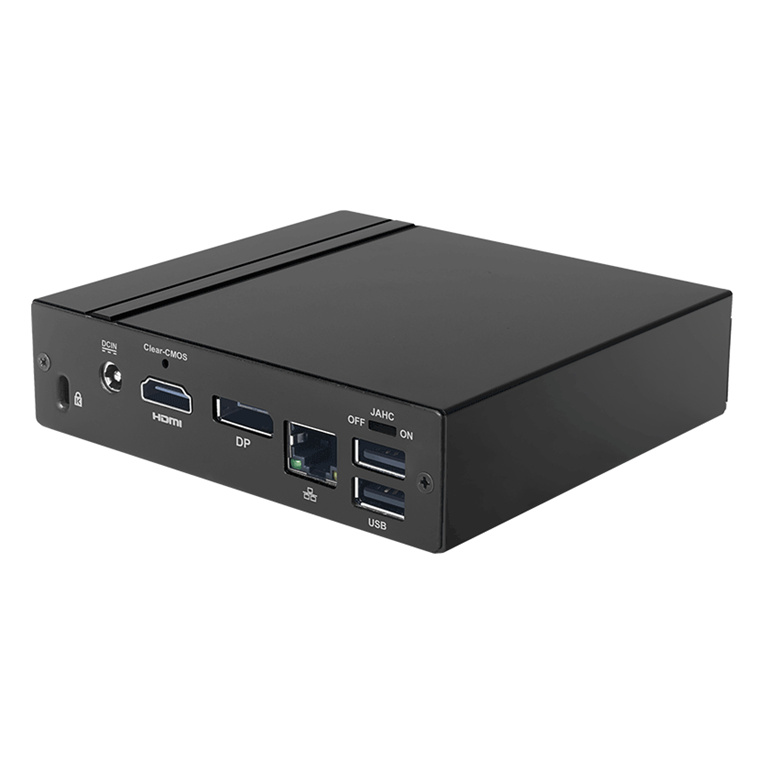

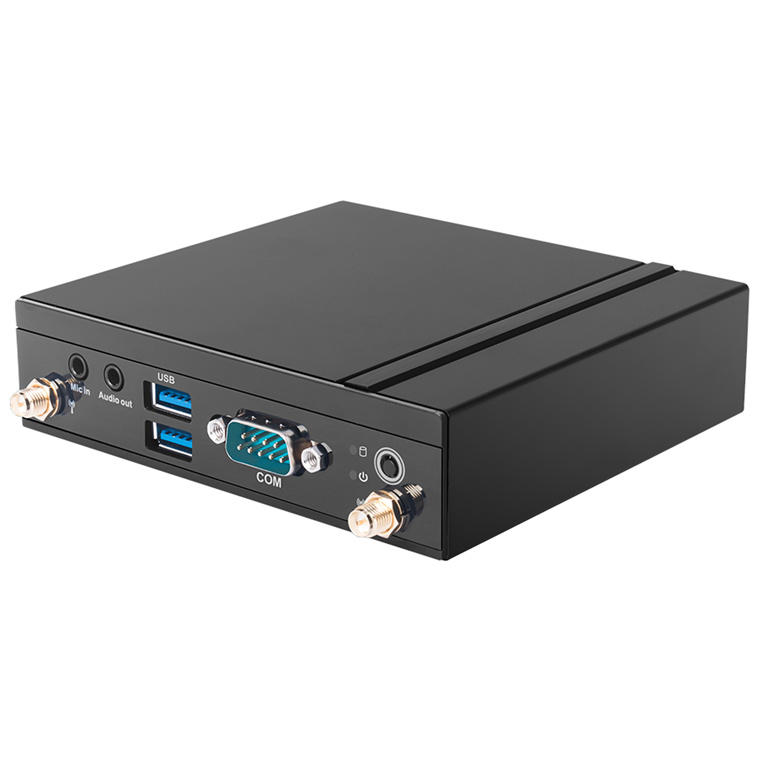

I/O port introduction

Specifications
CPU
CPU
Intel® Celeron® N3350 processor
Chipset
SoC
Processing Units
2 Cores
TDP
6 W
Memory
Size
4 GB
Type
Onboard LPDDR4-2133 MHz
Storage
Socket
1 x Full-size Mini-PCIe for MSATA
Onboard
32 GB/64 GB, Onboard eMMC
Display
GPU
Intel® HD Graphics 500
Graphic Engine
DirectX 12, OpenGL 4.3, OpenCL 2.0
Display Interface
1 x DP (Max.4096 x 2304 @ 60 Hz)
1 x HDMI (Max.3840 x 2160 @ 30 Hz)
Network
Network Controller
1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface
1 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT
Mobile Network
N/A
I/O interface
USB
2 x USB3.2 Gen1, 2 x USB2.0
Serial Port
1 x RS232
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
1 x Connector for Wi-Fi/BT
System
TPM
N/A
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Remo on
Yes
Power Requirement
DC-IN, 12 V/2 A
Dimensions
116.6 mm x 107.4 mm x 30 mm (4.59" x 4.23" x 1.18")
Construction
Metal, Black
Operating System
support Windows 10 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
Humidity
95% @ 40°C (non-condensing)
Certifications
CE, FCC Class B, UKCA
