Giada DF612-i3 Core i3-1215U CPU, Barebone, 1xDP+2xHDMI, Fanless,8K Display,
- Brand: Giada
- MPN: DF612-i3
- Part #: IPCGDA20011
Product URL: https://www.pbtech.com/product/IPCGDA20011/Giada-DF612-i3-Core-i3-1215U-CPU-Barebone-1xDP2xHD
Features
High Computing Performance
Powered by Intel® 12th Gen. CPU
Giada DF612 adopts Intel 12th-Gen processors of i3-1215U, i5-1235U, i7-1255U which deliver 19 percent more performance than today's 11th-gen "Rocket Lake". DF612 has the Intel vPro and TPM 2.0 features to deliver increased productivity, remote manageability and data security.

Three Display Outputs
Supporting 8K Display
DF612 supports Intel® integrated Iris® Xe GPU (Core i5/i7). It can deliver up to 1 x 8K (7680 x 4320 @ 60 Hz) display via DP1.4 port, or 2 x 4K displays (4096 x 2304 @ 60Hz) via 2 x HDMI2.0 ports. It's an ideal choice for large-format displays and Kiosk in 24/7 use.

Intel® vPro Technology
Intel® Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

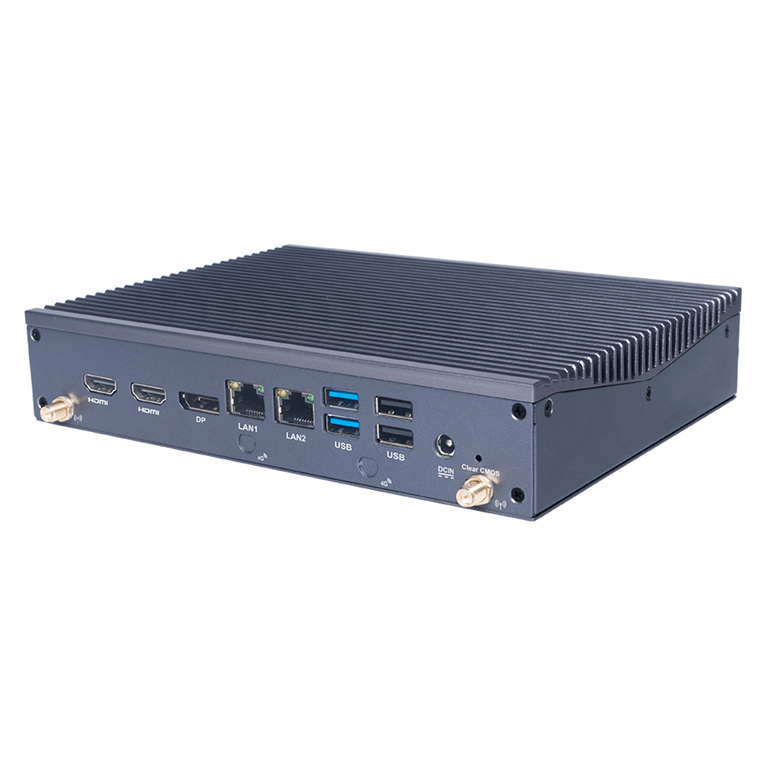

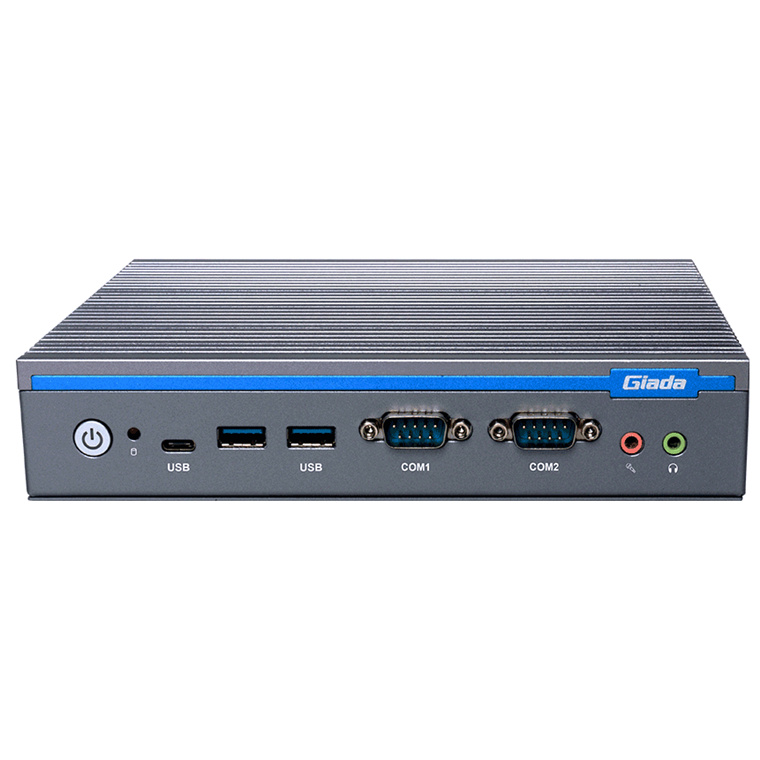

I/O port introduction

Specifications
CPU
CPU
Intel® Core™ i3-1215U processor
Chipset
SoC
Processing Units
6 Cores /10 Cores /10 Cores
Configurable TDP-up
15 W /15 W /15 W
Memory
Size
Up to 64 GB
Type
2 x SO-DIMM DDR4-3200 MHz
Storage Socket 1
1 x M-Key M.2 (2242/2280) for PCIe SSD
Display
GPU
Intel® UHD Graphics (Core™ Core i3)
Intel® IRIS® Xe Graphics (Core™ Core i5/i7)
Graphic Engine
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
Display Interface
1 x DP (Max.7680 x 4320 @60 Hz)
2 x HDMI (Max.4096 x 2304 @60 Hz)
Network
Network Controller
1 x Intel i219-LM Gigabit Ethernet
1 x Realtek RTL8111H Gigabit Ethernet
Ethernet Interface
2 x RJ45
Wi-Fi/BT
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
Mobile Network
1 x B-Key M.2 (3042) for 3G/4G
1 x SIM Slot
I/O interface
USB
1 x USB Type-C3.2 Gen2 (10 Gbps)
4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
Serial Port
1 x RS232, 1 x RS232/422/485
Audio
1 x MIC-IN, 1 x AUDIO-OUT
Button
1 x Power on, 1 x CLR-CMOS
Antenna
2 x Connector for Wi-Fi/BT
2 x Connector for 3G/4G (Reserved)
System
TPM
Optional: TPM2.0
Watchdog Timer
Yes
Auto Power On
Yes
RTC
Set up independently every day, a week as a cycle
Power Requirement
DC-IN, 19 V/3.42 A
Dimensions
200 mm x 150 mm x 40 mm (7.87" x 5.90" x 1.57")
Construction
Metal, Grey
Operating System
support Windows 11 (64bit) /Linux Ubuntu (64bit)
Operating Temperature
0°C ~45°C (32°F~113°F) @ 0.7m/s Air Flow
Humidity
95% @ 45°C (non-condensing)
Certifications
CE, FCC Class B, UKCA
