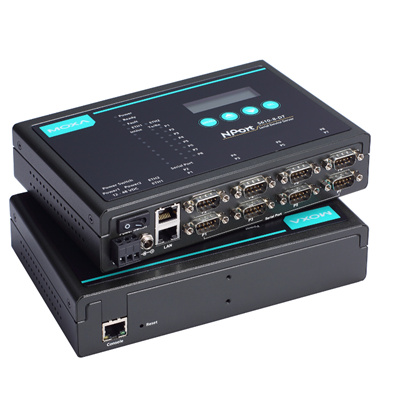

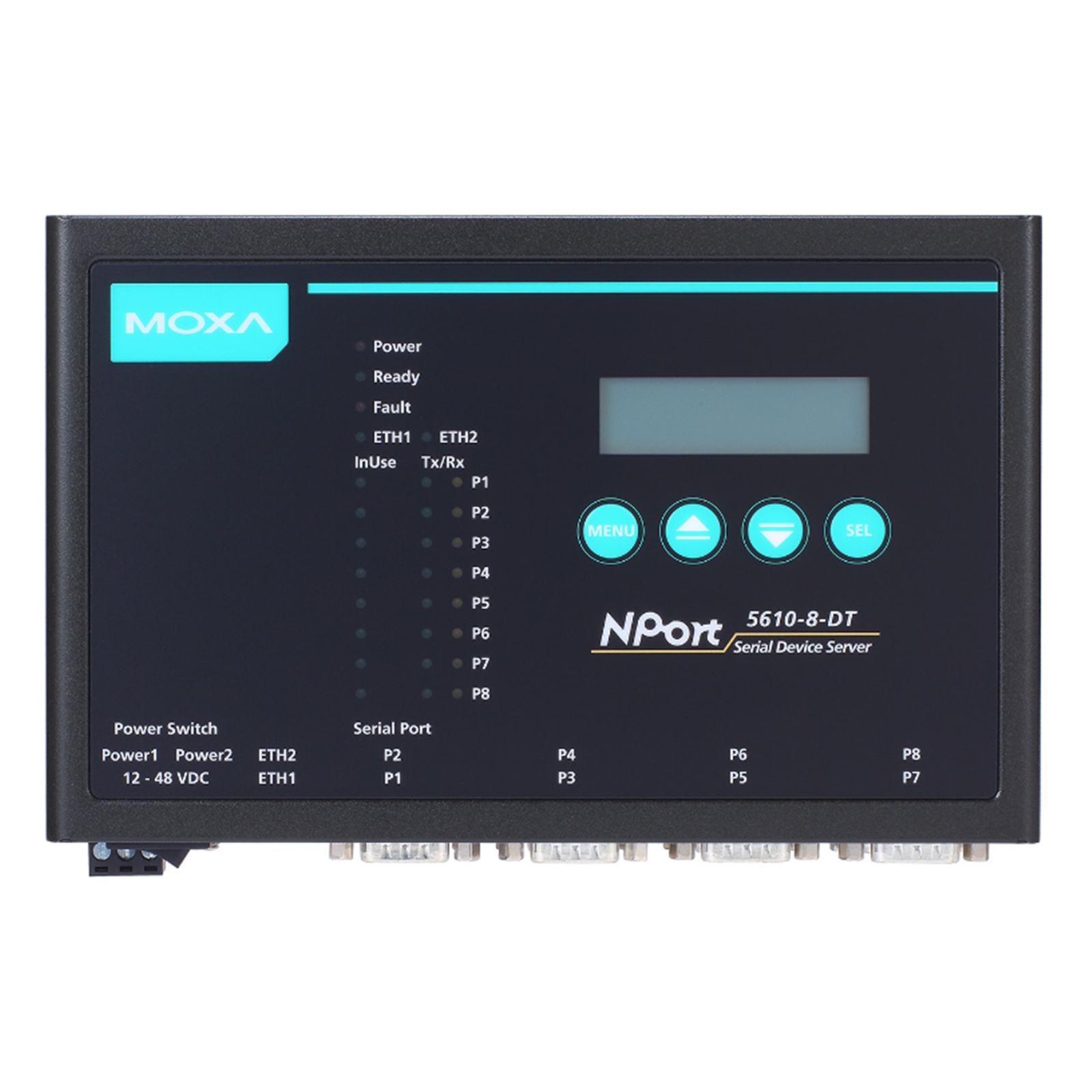

MOXA NPort 5610-8-DT-J 8-port RS-232 8-port RS-232 desktop device server with RJ45 connectors and 48 VDC power input

Normally $1,579.22
Normally $1,579.22
You save $180
You save $180
AUD $ 1,398 .52
$ 1,398 .52
$1,398.52  +GST
$1,398.52

MOXA NPort 5610-8-DT-J 8-port RS-232 8-port RS-232 desktop device server with RJ45 connectors and 48 VDC power input

Stock available
  • Brand: MOXA
  • MPN: NPort 5610-8-DT-J/SAA V1.5.0
  • Part #: IPCMXANPOT52011
  • UPC:
Normally $1,579.22
Normally $1,579.22
You save $180
You save $180
PB Tech price
AUD $ 1,398 .52 $ 1,398 .52
In stock at Supplier
Delivery: Order now and it ships on 25 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,398.52  +GST
$1,398.52
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: MOXA
  • MPN: NPort 5610-8-DT-J/SAA V1.5.0
  • Part #: IPCMXANPOT52011
  • UPC:
Returns & Warranty Bulk Quote Print Page

Features

Convenient Design for RS-485 Applications

The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

Convenient Power Inputs

The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.

LED Indicators to Ease Your Maintenance Tasks

The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600's LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.

Two Ethernet Ports for Convenient Cascade Wiring

The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Configuration Options

Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

Management

ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

Filter

IGMP v1/v2

MIB

RFC1213, RFC1317

Time Management

SNTP

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

Linux Real TTY Drivers

Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

Fixed TTY Drivers

SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15

Android API

Android 3.1.x and later

Security Functions

Authentication

Local database

Encryption

HTTPS, AES-128, RSA-1024, SHA-1, SHA-256

Security Protocols

HTTPS (TLS 1.2)
SNMPv3

Serial Interface

Connector

8-pin RJ45

No. of Ports

8

Serial Standards

RS-232

Baudrate

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, DTR/DSR, XON/XOFF

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

120 ohms

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Isolation

-I models: 2 kV

Surge

0.5 kV

Console Port

RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

Power Parameters

Input Current

611 mA @ 12 VDC

No. of Power Inputs

2

Input Voltage

12 to 48 VDC

Reverse Polarity Protection

Supported

Source of Input Power

TB, Power input jack

Reliability

Automatic Reboot Trigger

Built-in WDT

Alert Tools

Built-in buzzer and RTC (real-time clock)

Physical Characteristics

Housing

Metal

Dimensions (with ears)

229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)

Dimensions (without ears)

197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)

Dimensions (with DIN-rail kit on bottom panel)

197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)

Weight

1,520 g (3.35 lb)

Installation

Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Interactive Interface

LCD panel display
Push buttons for configuration

Environmental Limits

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Manufacturer Part No:
NPort 5610-8-DT-J/SAA V1.5.0
Brand:
MOXA
Product Type:
8-port RS-232
UPC
-
Product Family:
-
Shipping Weight:
1.1 kg
PB Part No:
IPCMXANPOT52011
Product Model:
NPort 5610-8-DT-J
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
