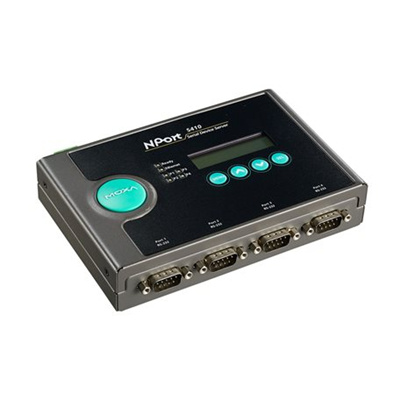

MOXA NPort 5410 4-port device server 10/100M ethernet, RS-232 DB9 male, 12~48 VDC, 0~55°C, w/o adapter
MOXA NPort 5410 4-port device server 10/100M ethernet, RS-232 DB9 male, 12~48 VDC, 0~55°C, w/o adapter
- Brand: MOXA
- MPN: NPort 5410
- Part #: IPCMXANPOT54002
- UPC:
- Brand: MOXA
- MPN: NPort 5410
- Part #: IPCMXANPOT54002
- UPC:
Features
NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.
- User-friendly LCD panel for easy installation
- Adjustable termination and pull high/low resistors
- Socket modes: TCP server, TCP client, UDP
- Configure by Telnet, web browser, or Windows utility
- SNMP MIB-II for network management
- 2 kV isolation protection for NPort 5430I/5450I/5450I-T
- -40 to 75°C operating temperature range (-T model)
Network Readiness for up to 4 Serial Devices
NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.
Independent Operation Mode for Each Serial Port
NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.
User-friendly LCD Panel for Easy Installation
An LCD panel is built into the NPort® 5400's top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)
Dual DC Power Inputs
NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.
Adjustable Termination and Pull High/Low Resistors
The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
MINIX Fanless MiniPC Z150-0dB Intel N150 8G/256GB, WiFi 6, Win 11...
MINIX MiniPC Z95 Intel N95, 16GB LPDDR5X, 512GB NVMe Dual...
MINIX NEO C1 1080P 60Hz USB-C to HDMI Wireless Display Dongle...
MINIX Fanless MiniPC Z150-0dB Intel N150 16G/512GB, WiFi 6, Win...
MINIX Mini PC NGC NR660LP AMD Ryzen 5 6600H/16GB LPDDR5/512GBSSD/...
MOXA NPort 5410 4-port device server 10/100M ethernet, RS-232 DB9 male, 12~48 VDC, 0~55°C, w/o adapter
- Brand: MOXA
- MPN: NPort 5410
- Part #: IPCMXANPOT54002
Product URL: https://www.pbtech.com/product/IPCMXANPOT54002/MOXA-NPort-5410-4-port-device-server-10100M-ethern
Features
NPort® 5400 device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.
- User-friendly LCD panel for easy installation
- Adjustable termination and pull high/low resistors
- Socket modes: TCP server, TCP client, UDP
- Configure by Telnet, web browser, or Windows utility
- SNMP MIB-II for network management
- 2 kV isolation protection for NPort 5430I/5450I/5450I-T
- -40 to 75°C operating temperature range (-T model)
Network Readiness for up to 4 Serial Devices
NPort® 5400 device servers can conveniently and transparently connect up to four serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. Data transmission between the serial and Ethernet interfaces is bidirectional. By using NPort® device servers, you not only protect your current hardware investment, but also allow for future network expansion. You can both centralize the management of your serial devices and distribute management hosts over the network.
Independent Operation Mode for Each Serial Port
NPort® 5400 device servers can be used to connect different devices for remote data polling or event handling over a TCP/IP network. Each serial port on the NPort® 5400 operates independently to provide maximum versatility. For example, port 1 can operate in Driver mode, port 2 in TCP Server mode, and ports 3 and 4 in TCP Client mode.
User-friendly LCD Panel for Easy Installation
An LCD panel is built into the NPort® 5400's top panel, with four buttons for data input, configuration, and operation mode selection. The LCD panel displays the server name, serial number, and IP address, and it can be used to enter or modify parameters such as IP address, netmask, and gateway. (The LCD panel is not available on wide-temperature models.)
Dual DC Power Inputs
NPort® 5400 device servers support dual power sources by providing both a DC terminal block input and a DC power jack input. Providing two types of power inputs gives users greater flexibility for use with different applications.
Adjustable Termination and Pull High/Low Resistors
The NPort 5400 Series provides adjustable termination and pull high/low resistors for RS-485 applications. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high/low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values is universally compatible with all environments, the NPort® 5400 has four sets of DIP switches on the bottom panel to set the termination and pull high/low resistor values.
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
1
Magnetic Isolation Protection
1.5 kV (built-in)
Ethernet Software Features
Configuration Options
Telnet Console
Windows Utility
Web Console (HTTP/HTTPS)
Management
ARP
BOOTP
DHCP Client
DNS
HTTP
HTTPS
ICMP
IPv4
LLDP
Rtelnet
SMTP
SNMPv1/v2c
TCP/IP
Telnet
UDP
Filter
IGMP v1/v2
Windows Real COM Drivers
Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
macOS Versions: 10.12 to 10.15, 11.x
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
Linux Kernel 5.x/4.x
Virtual Machine
VMWare ESXi (Windows 11 / 10)
VMware Fusion (Windows on macOS 10.12 to 11.x)
Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
Android 3.1.x and later
Time Management
SNTP
Security Functions
Authentication
Local database
Encryption
HTTPS
AES-128
RSA-1024
SHA-1
SHA-256
Security Protocols
HTTPS (TLS 1.2)
SNMPv3
Serial Interface
Connector
DB9 male
No. of Ports
4
Serial Standards
RS-232
Operation Modes
Real COM
TCP Server
TCP Client
UDP
Ethernet Modem
Pair Connection
Reverse Telnet
Disabled
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS (RS-232 only)
DTR/DSR (RS-232 only)
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
Input Current
365 mA @ 12 VDC
No. of Power Inputs
2
Power Connector
1 removable 3-contact terminal block(s)
Power input jack
Input Voltage
12 to 48 VDC, 24 VDC for DNV
Reliability
Automatic Reboot Trigger
Built-in WDT
Alert Tools
Built-in buzzer and RTC (real-time clock)
Physical Characteristics
Housing
Metal
Dimensions (with ears)
181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
Dimensions (without ears)
158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
Weight
740 g (1.63 lb)
Interactive Interface
LCD panel display
Push buttons for configuration
Installation
Desktop
DIN-rail mounting (with optional kit)
Wall mounting
Environmental Limits
Operating Temperature
0 to 55°C (32 to 131°F)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Safety
UL 62368-1
Maritime
DNV
Medical
EN 60601-1-2 Class B, EN 55011
MTBF
Time
880,274 hrs
Standards
Telcordia (Bellcore) Standard TR/SR
