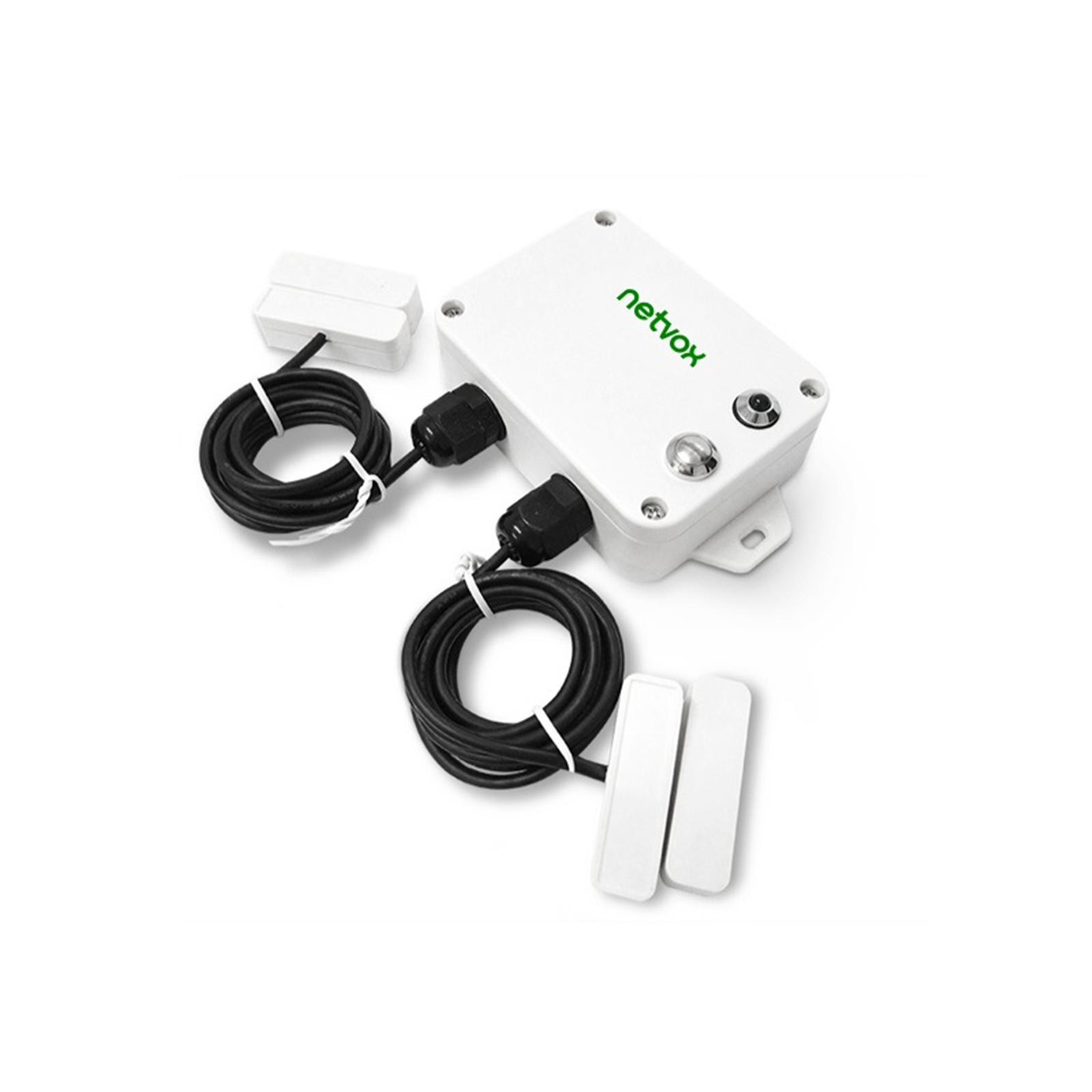

Netvox LoRa module Wireless 2-gang Hall Type Open/Close Detection Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
Out of stock
Netvox LoRa module Wireless 2-gang Hall Type Open/Close Detection Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718LB2
- Part #: IPCNVX4808878
- UPC:
- Brand: Netvox
- MPN: R718LB2
- Part #: IPCNVX4808878
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Netvox LoRa module Wireless 2-gang Hall Type Open/Close Detection Sensor (Powered by 2 X ER14505 3.6V Lithium AA Battery)
- Brand: Netvox
- MPN: R718LB2
- Part #: IPCNVX4808878

Product URL: https://www.pbtech.com/product/IPCNVX4808878/Netvox-LoRa-module-Wireless-2-gang-Hall-Type-OpenC
Features
R718LB2 -Wireless 2-Gang Hall Type Open/Close Detection Sensor
This device is equipped with two way Hall sensors, which can be used for door and window switch state detection. It can realize wireless alarm and other functions through the built-in wireless module. It applys SX1276 wireless communication module.
- Apply SX1276 wireless communication module
- 2 ER14505 battery (3.6V/section) in parallel power supply
- The base is attached with a magnet that can be attached to a ferromagnetic material object
- Hall sensor detection
- LoRaWANTM Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- Improved power management for longer battery life
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
At this website, users can find battery lifetime for various models at different configurations.
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables
Download data sheet: http://www.netvox.com.tw/um/R718LB2/R718LB2datasheet.pdf
Specifications
Electric:
Input Power
2 x 3.6V ER14505 AA lithium batteries
(3.6V 2400mah/section)
Battery Life Time
Battery life is 5 years (condition: ambient temperature 25C , report once every 15 minutes, txpower = 20 dBm, LoRa spreading factor SF = 10)
Sleeping Mode
26uA
Wake up Mode
Receiving Current (max)
11mA @3.3V
Transmitting Current (max)
120mA/3.3V
Battery Voltage Measurement Accuracy
±0.1V
Frequency:
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Rx Sensitivity
-136dBm (LoRa,Spreading Factor=12, Bit Rate=293bps )
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Build-in antenna
Communication Range
10 km (line-of-sight, the actual transmission distance depends on the environment)
Data Transfer Rate
0.3kbps~50kbps (LoRa)
1.2kbps~300kbps (FSK)
Spread Technique
LoRa/FSK
Available Frequency
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,
AS923-3,IN865-867,CN470-510
(Note: optional, to be done in the factory configuration)
Physical:
Dimension
L: 112mm*W: 65mm*H: 32mm
Weight
150g
Environment Temperature Range
-20 ~ 55C
Environment Humidity Range
<90% RH (No condensation)
Storage Temperature
-40 ~ 85C
