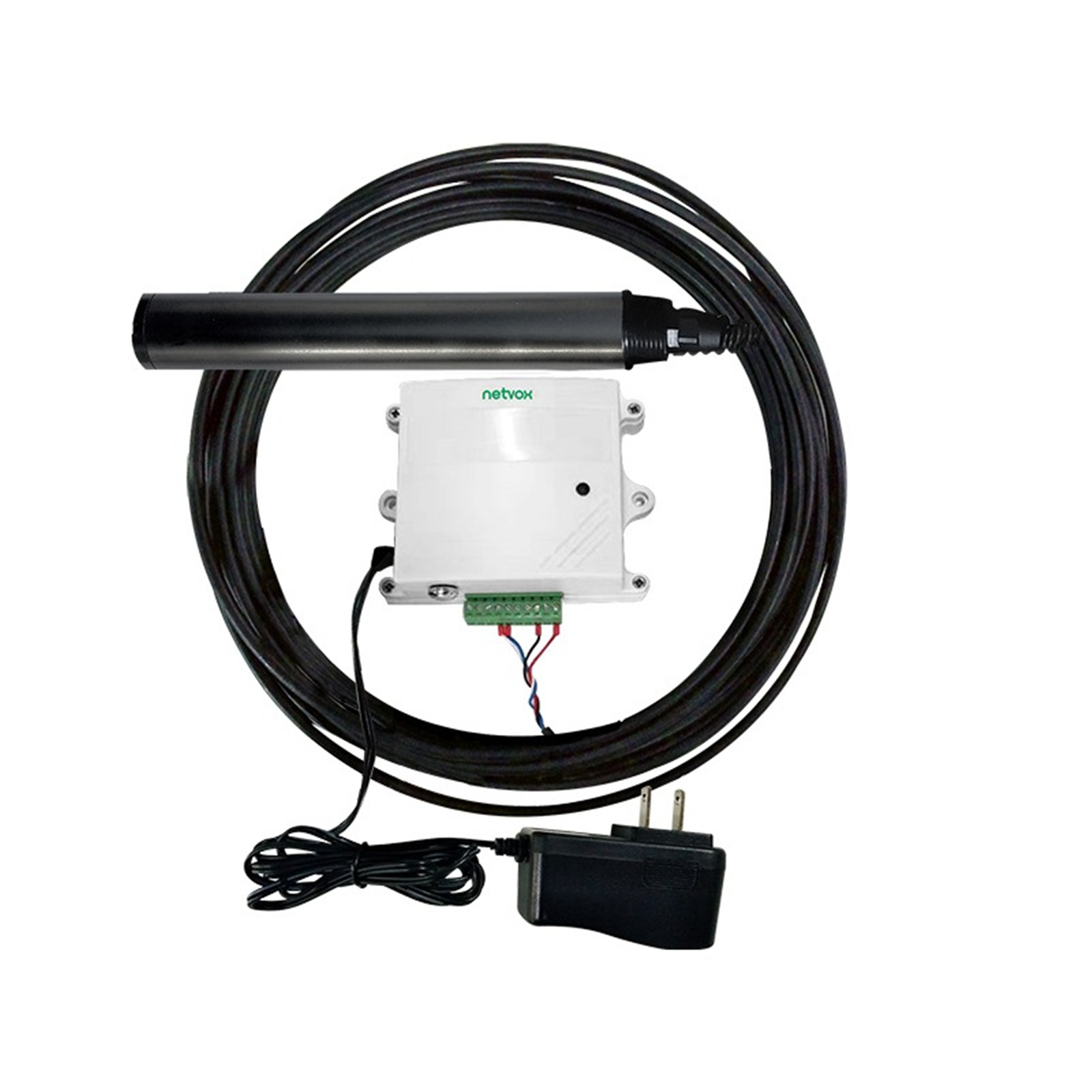

Netvox LoRa module Wireless Turbidity Sensor (DC-Powered)
- Brand: Netvox
- MPN: RA0710
- Part #: IPCNVX4808916

Product URL: https://www.pbtech.com/product/IPCNVX4808916/Netvox-LoRa-module-Wireless-Turbidity-Sensor-DC-Po
Features
RA0710-Wireless Turbidity Sensor
The RA0710 is connected to the ZS-206 integrated online turbidity sensor, and the ZS-206 is designed and manufactured using the principle of scattered light turbidity measurement. The LoRa module of the RA0710 communicates with the turbidity sensor in the form of RS485 communication to obtain the current turbidity signal value and display it through the wireless gateway.
- Apply SX1276 wireless communication module
- DC 12V adapter power supply
- Turbidity detection
- LoRaWAN™ Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Configuration parameters can be configured through a third-party software platform
- Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Specifications
Electric:
Power Supply
DC12V/1A
Operating Current 1
50mA (no RF signal emission)
Operating Current 2
90mA (with RF signal emission)
Measuring principle
Scattered light method
Turbidity Sensor Measurement Range
0-1000NTU
Resolution
Turbidity:0.1NTU,
Temperature:0.1°C
Accuracy
Turbidity:±5% F.S.,
Temperature:±0.5°C
Installation Method
3/4" NPT thread, immersion installation
Cable Length
5 meters, other lengths can be customized
Frequency:
Frequency Range
863MHz-928MHz 470MHz-510MHz
TX Power
US915 20dbm;
AS923 16dbm;
AU915 20dbm;
CN470 19.15dbm;
EU868 16dbm;
KR920 14dbm;
IN865 20dbm;
Receiving Sensitivity
-136dBm(LoRa,Spreading Factor=12,Bit Rate=293bps );
-121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type
Built-in antenna
Communication Distance
Up to 10 km
(visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate
0.3kbps~50kbps
Modulation
LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band
EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
IN865-867,CN470-510
(Note: The frequency band is optional and needs to be configured before shipment)
Physical:
Dimension
111mm*86mm*41mm
Working Temperature
-20°C ~ +55°C
Storage Temperature
-40°C ~ +85°C
Ambient Humidity Range
<90%RH
