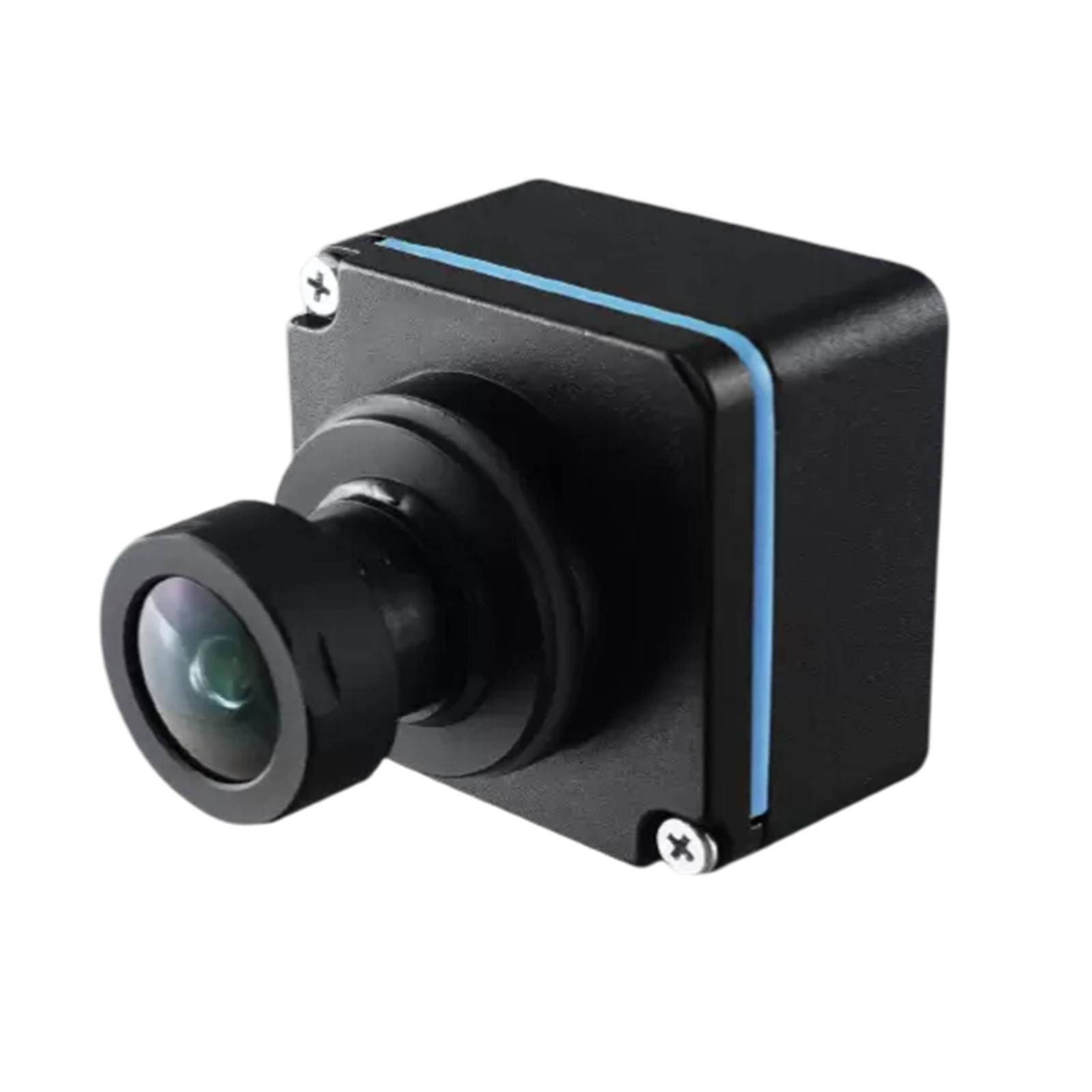

oToBrite Automotive Camera oToCAM223-C120M GMSL2 Sony ISX031 CMOS Image sensor, MAX9295 Serializer, 2.95M (1920 (H) x1536 (V)), HFOV 120, -40°C ~ +85°C, IP67/IP69K

PB Tech price

AUD $ 744 .82

$ 744 .82

Out of stock

oToBrite Automotive Camera oToCAM223-C120M GMSL2 Sony ISX031 CMOS Image sensor, MAX9295 Serializer, 2.95M (1920 (H) x1536 (V)), HFOV 120, -40°C ~ +85°C, IP67/IP69K

Brand: oToBrite
MPN: oToCAM223-C120M
Part #: IPCOTO0004
UPC:

PB Tech price

AUD $ 744 .82

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: oToBrite
MPN: oToCAM223-C120M
Part #: IPCOTO0004
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

ISX031_GMSL2™ oToCAM223-C120M

The oToCAM 2MP/3MP resolution series is an automotive-grade camera for the application of autonomous driving system. It uses a high-sensitive CMOS sensor to perform good image quality for the detection purpose of the system product.

Robust and durable to withstand extreme environments

oToBrite's camera modules are built through specialized production processes and rigorously tested to meet IP67 and IP69K standards, ensuring excellent dust and water resistance. These camera modules undergo vibration tests to ensure durability in harsh conditions and feature defogging capabilities to maintain clear vision in humid or rapidly changing environments. These features make the cameras highly reliable in extreme environments, capable of operating at temperatures ranging from -40°C to +85°C. Whether used in desert, mountainous, or wet, humid climates, oToBrite's camera modules consistently provide stable and clear image output.

Cutting-edge active alignment technology for image precision

oToBrite's proprietary 5/6-axis active alignment technology significantly enhances optical precision by minimizing the optical axis deviation to just 1 pixel. This ensures that every pixel in the image maintains optimal clarity, delivering superior image quality. By integrating advanced optical design with automated manufacturing processes, this technology achieves unprecedented alignment accuracy, allowing the system to produce sharp and clear images.

Excellent performance with Sony image sensor technology

The ISX031 sensor offers a 1920 x 1536 resolution with 120 dB HDR (high dynamic range), delivering smooth up to 60 fps output. Equipped with Sub-Pixel HDR Technology, it produces sharper and more detailed images of moving objects compared to traditional methods. With built-in LED Flicker Mitigation (LFM) and System-On-Chip (SoC) design, ISX031 is ideal for automotive imaging and monitoring.

Specifications

Model No.

oToCAM223-C120M

View angle (H)

120.6°

Lens F No

F1.4

IR cut edge

650nm

DOF/ Object distance

1.0M~inf.@inf

Resolution

TV line Center ≧ 1000、Corner ≧ 900

Dimensions

28*28*32.7 mm (exclude FAKRA connector)

Weight

27.6g

Image sensor

CMOS (Sony ISX031)

HDR

Supported

LFM

Supported

Optical format

1/2.42"

Pixel size

3.0 μm (H) × 3.0 μm (V)

ISP

Supported (SoC sensor)

Camera output pixel number

2.95M (1920 (H) × 1536 (V))

Color filter array

RGGB

Output interface

GMSL2 with POC

Output formats

MIPI 4lane YUV422 8bits

S/N ratio

51.35dB

Power source (POC)/ Typical

DC 6 ~ 12V/6V

Startup time of power in

Within 200ms

Frame rate

30 fps (By setting)

Serializer

MAX9295

Camera current consumption

≦ 120mA @12V

Connector

Amphenol SMB1251Y3-002-TT5GP-50

Operating temperature

-40℃ ~ +85℃

Storage temperature

-40℃ ~ +95℃

Dust/ Waterproof

IP67/ IP69K

Manufacturer Part No:

oToCAM223-C120M

Brand:

oToBrite

Product Type:

GMSL2

UPC

Product Family:

Automotive Camera

Shipping Weight:

0.2 kg

PB Part No:

IPCOTO0004

Product Model:

oToCAM223-C120M

Warranty: 12 months *
