Fanvil FAN-GA10 SIP ATA gateway with FXS port, supports G.722 & Opus audio codec, 2 SIP lines,3-wayconference with advanced VoIP functionalities. Allows IP voice on analogue phones
Fanvil FAN-GA10 SIP ATA gateway with FXS port, supports G.722 & Opus audio codec, 2 SIP lines,3-wayconference with advanced VoIP functionalities. Allows IP voice on analogue phones
- Brand: Fanvil
- MPN: FAN-GA10
- Part #: IPHFAN1096
- UPC:
- Brand: Fanvil
- MPN: FAN-GA10
- Part #: IPHFAN1096
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular IP Gateways





Fanvil FAN-GA10 SIP ATA gateway with FXS port, supports G.722 & Opus audio codec, 2 SIP lines,3-wayconference with advanced VoIP functionalities. Allows IP voice on analogue phones
- Brand: Fanvil
- MPN: FAN-GA10
- Part #: IPHFAN1096

Product URL: https://www.pbtech.com/product/IPHFAN1096/Fanvil-FAN-GA10-SIP-ATA-gateway-with-FXS-port-supp
Features
GA10 SIP ATA Gateway
This is a SIP ATA gateway with an easy-to-use FXS port. It supports G.722 and Opus audio codec, 2 SIP lines, 3-way conference advanced VoIP functionalities. By migrating to IP voice with easy-to-install ATA, GA10 enables users to take advantage of VoIP on analog phones. It provides convenient, stable and cost-effective communication solutions for individual, enterprise and operator to realize the deployment of VoIP.
Specifications
Generic
2 SIP lines
HD voice
Desktop / wall-mounted
Support USB port or power adapter for power supply
Phone Functions
Caller ID display
Direct IP Dialing
Anonymous call (hide caller ID)
Call hold / resume
Call waiting
Call forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Do-Not-Disturb
Voice message waiting indication (MWI)
Blocked list / allowed list
3-way conference
Hot line
Audio
Narrowband codec: G.711a/u, G.726, G.729A/B, iLBC
Wideband codec: G.722, Opus
Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Noise Reduction (NR) / Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic adaptive jitter buffer
DTMF: In-band
Support the signal tone of different countries or regions
FXS features
Response detection
Busy tone detection
Incoming call detection
Polarity detection
Hang up detection
Disconnect Methods: Busy Tone, Polarity Reversal
Signalling: Kewl Start, Loop Start
Network
Physical: 10/100Mbps Ethernet
IP Mode: IPv4/IPv6/IPv4 & IPv6
IP Configuration: Static IP / DHCP / PPPoE
Firewall
VLAN
Gift box dimensions: 150x125x55 mm
QoS
Wifi: NA
Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
CDP
PPPoE
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Deployment & Management
Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
Voice menu for basic configuration
Web management portal
Web-based packet dump
Configuration export / import
Phonebook import/export
Backup and recovery
Firmware upgrade
Syslog
Physical Specifications
Power adapter x1
1.5M CAT.5E ethernet cable x1
Reset key x1
Status indicator light x4: power/network/SIP state/call

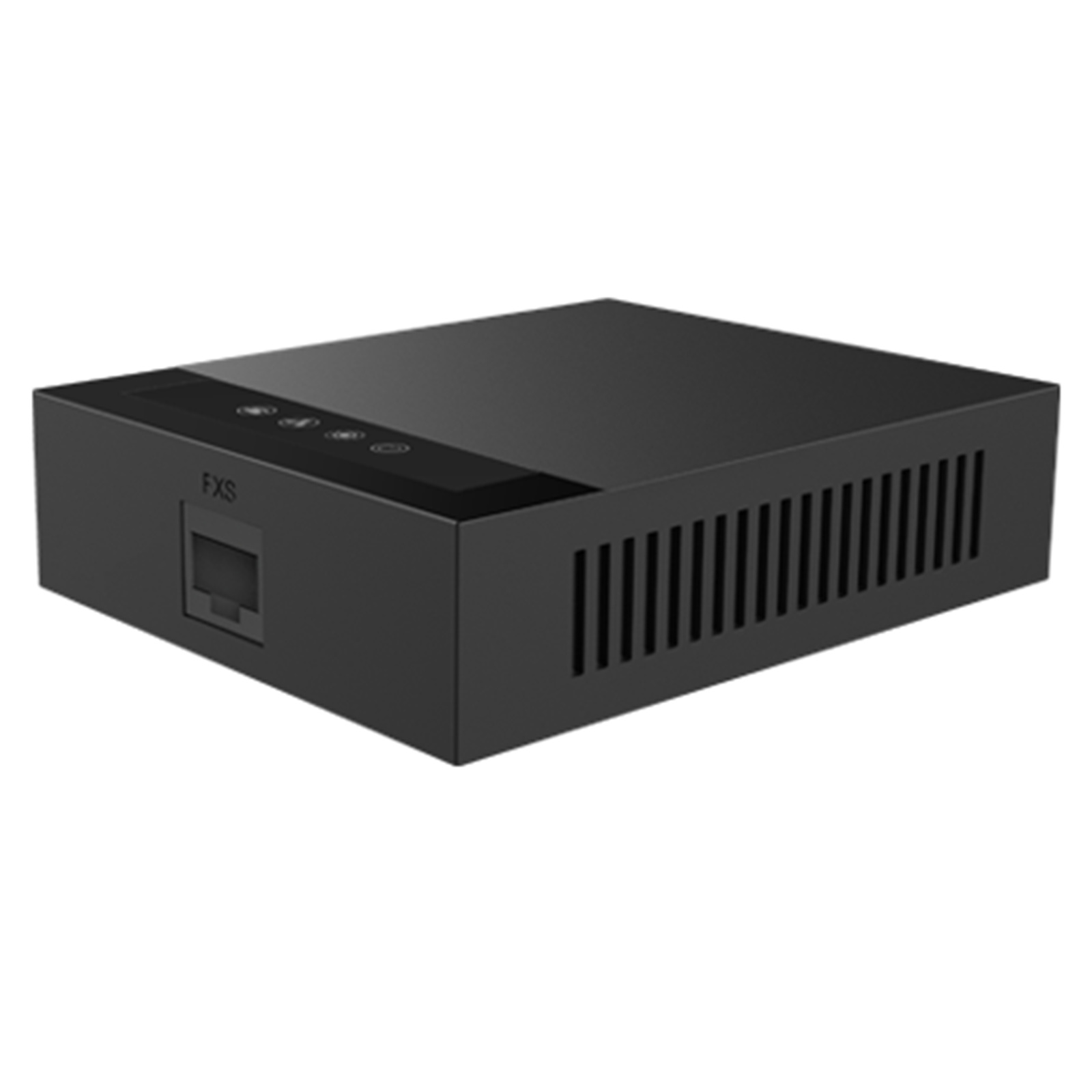

FXS port x1: RJ11 x1

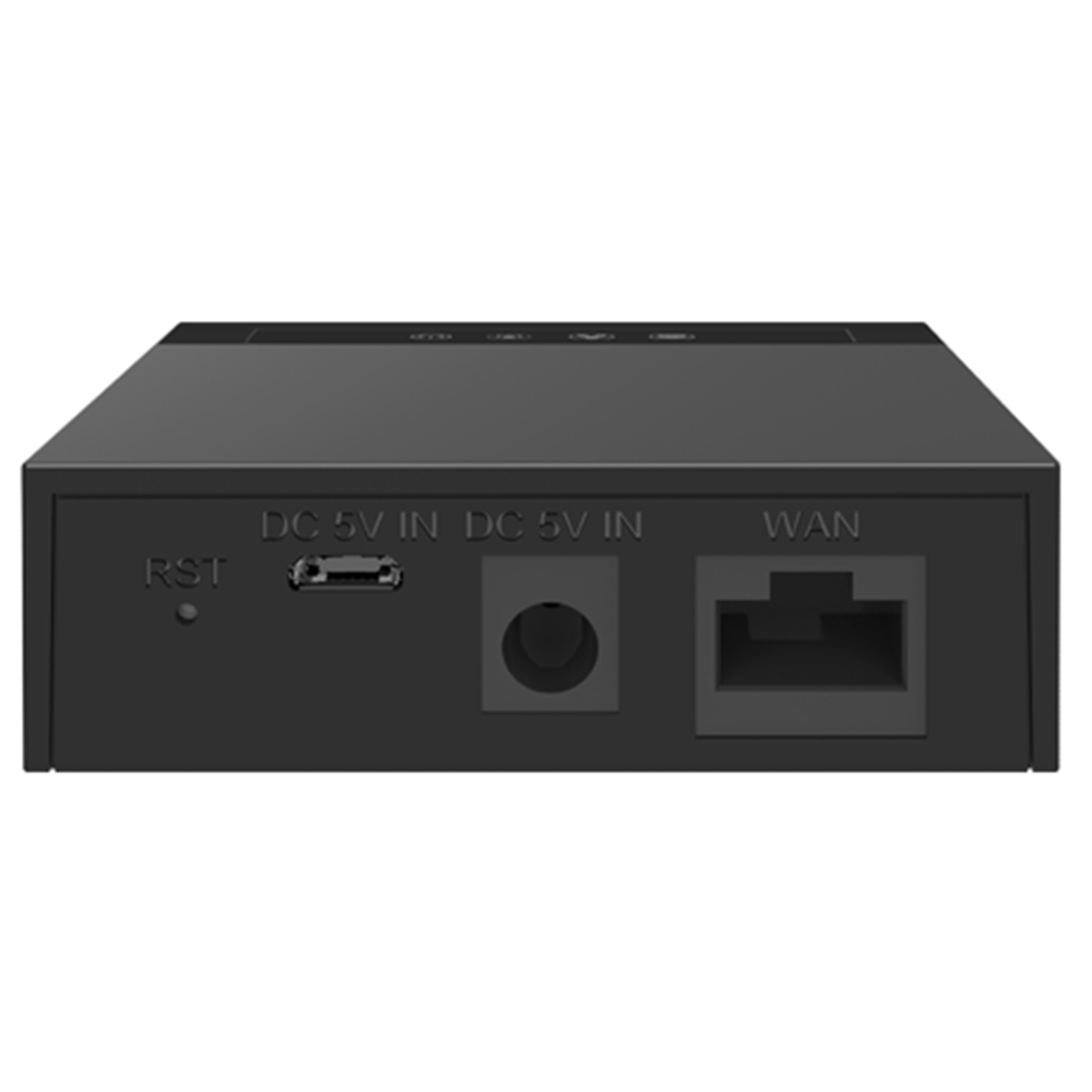

Network port x1: RJ45 x1
USB port x1: Micro USB x1 (Only power input is supported)
DC port x1: F5.5 x 2.1 x 10mm
DC power input: DC5V/1A
Working temperature: 0~45?
Working humidity: 10~95%

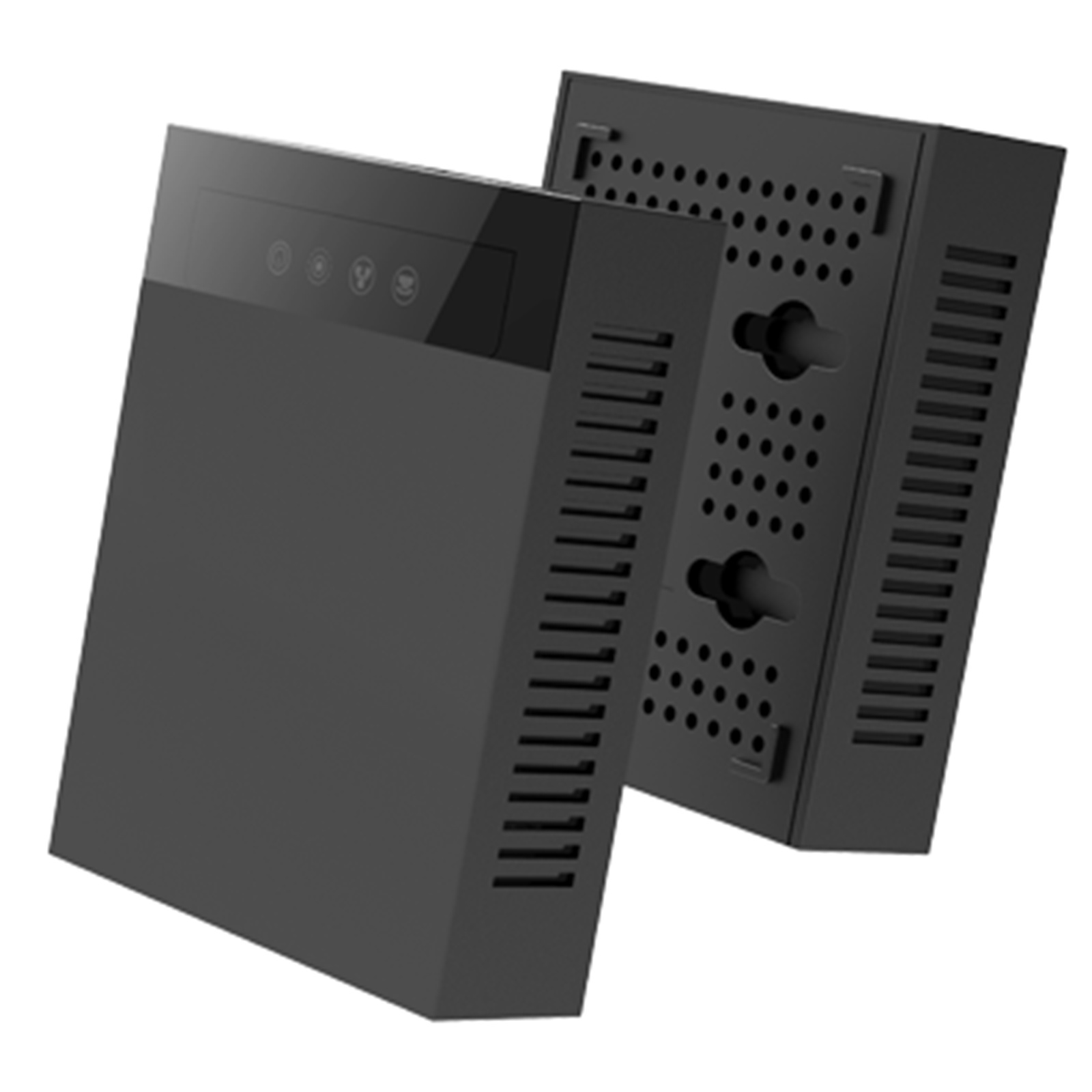

Installation: Desktop or Wall-mounted
Power Consumption(Adapter): 0.84~5.71W
Color: black
Device dimensions: 85 x 68 x 22.7 mm
