Fanvil i505W Android Indoor Station
- Brand: Fanvil
- MPN: FAN-i505W
- Part #: IPHFAN1114

Product URL: https://www.pbtech.com/product/IPHFAN1114/Fanvil-i505W-Android-Indoor-Station
Features

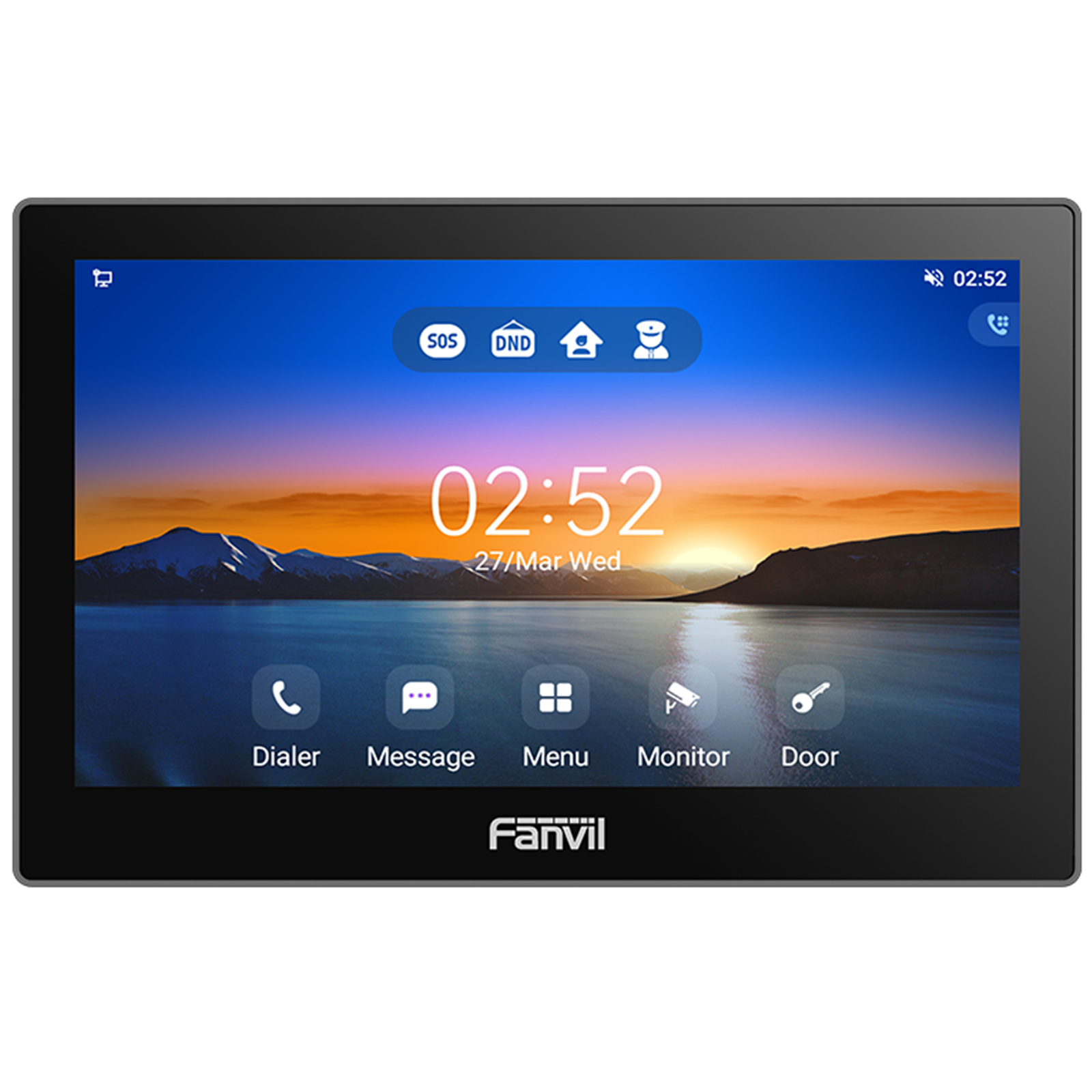

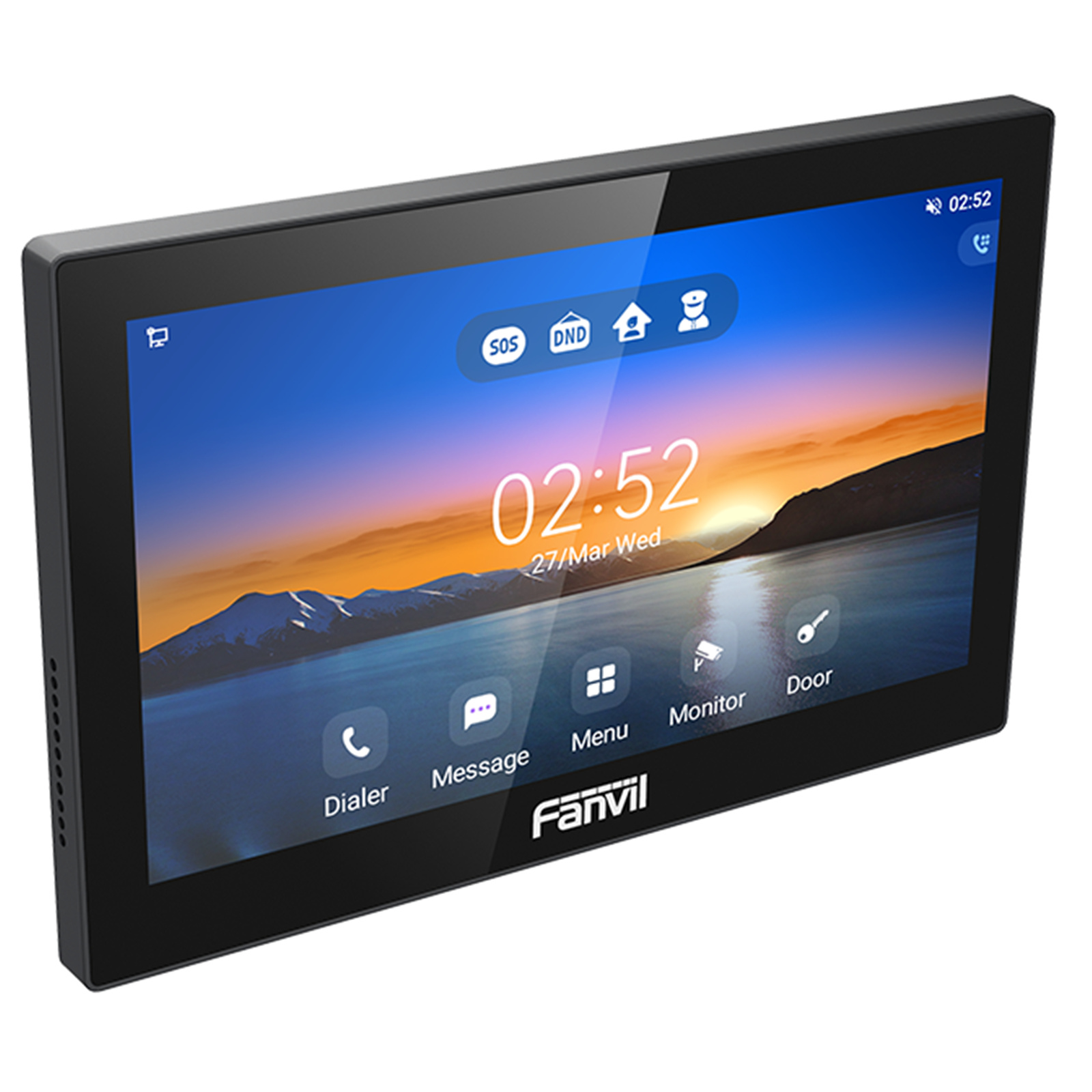

The i505W is a 7-inch touch screen indoor station, featuring a stylish design and intuitive UI. Running on Android 9.0, it seamlessly integrates with third-party apps. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.

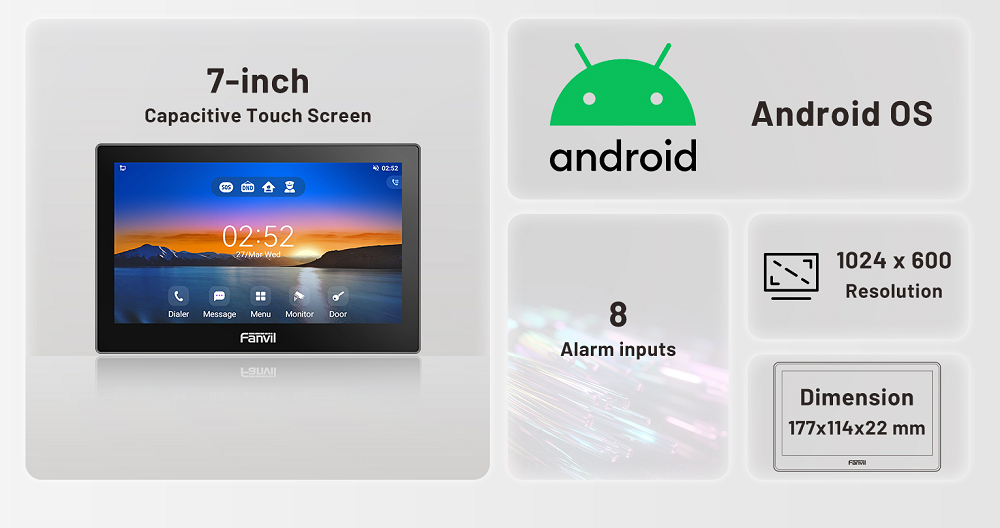

- 7-inch(1024 x 600) capacitive touch screen
- Support 2.4G/5G Wi-Fi
- Android 9.0 operating system, meeting the customization needs of industrial applications and secondary development
- Support video codec 1080p@ 30fps
- Check real-time video of third-party IP cameras and door phone to ensure security
- Built-in 2W speaker and AEC to achieve high-quality hands-free call
- Support 8 alarm input interfaces, 1 short circuit output interface, 1 doorbell input interface, and 1 RS485(Reserved)
- Powered by PoE or external source
Easy Integration with Android Applications
The high openness of Android 9.0 OS allows 1505W to be integrated with smart home systems, meeting the customization needs of industry applications and secondary development.

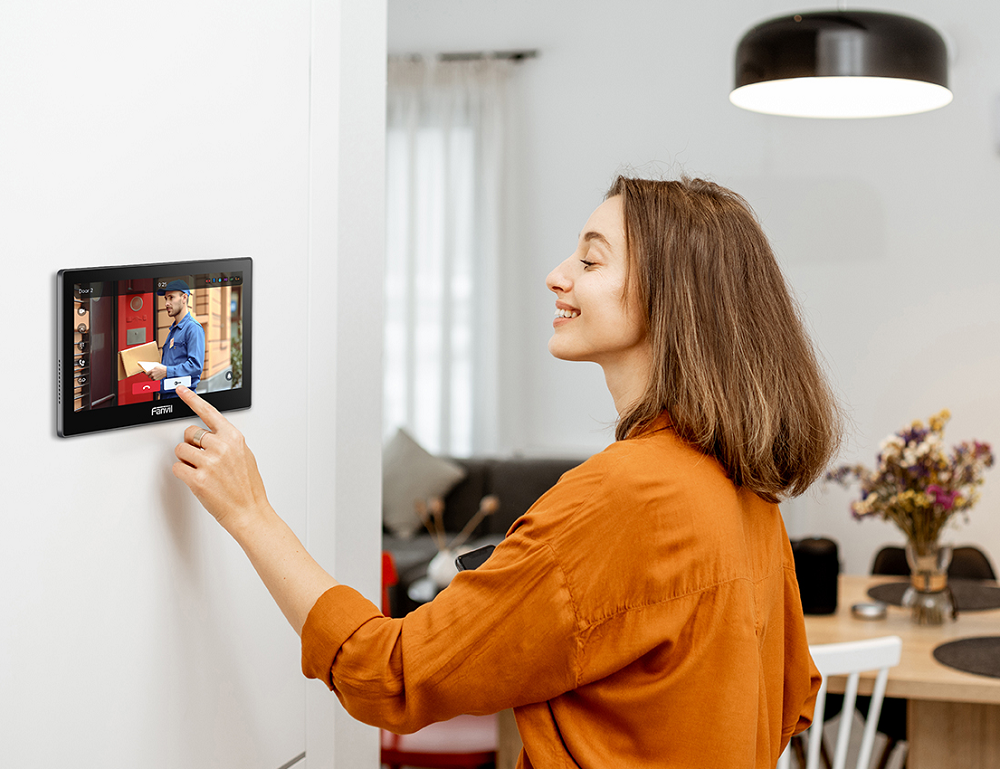

HD Video Call Remote Door-opening
1505W supports 1080p video codec, delivering premium HD video calls. Users can preview video to confirm visitors' identities and open the door remotely with just one click.
Built-in 2.4G/5G Wi-Fi
Equipped with dual-band Wi-Fi, the i505W facilitates deployment while providing users with more internet connectivity options.

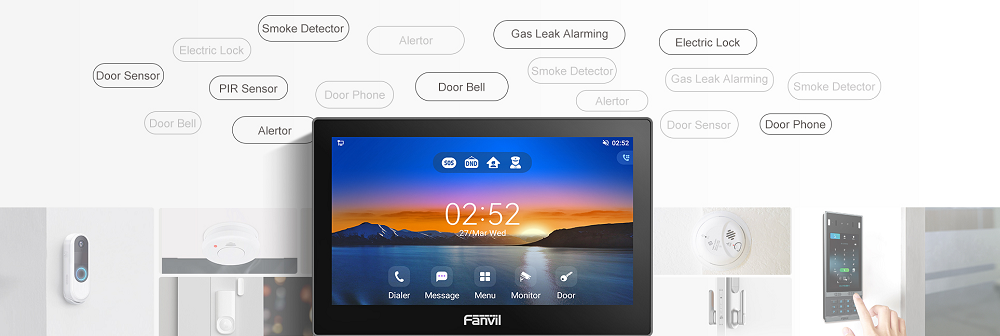

High-scalability with Rich Interfaces
1505W features rich input and output interfaces, which are easy to connect with other security devices and customize into various solutions.
Specifications
Model No.
i505W
Panel type
Community, Hotel, Villa
Screen
7-inch color capacitive touch screen 1024×600
Body
ABS
Speaker
2W
Wi-Fi
2.4G/5G(i505W Supported)
Interface
8×Alarm input, 1×Short circuit output, 1×Doorbell input, 1×RS485(Reserved)
Network
10/100 Mbps adaptive
Power Supply
DC 12V / 1A
PoE 802.3af
Power Consumption
PoE: 2.83~7.64W
Adapter: 2.46~6.51W
Working Temperature
-10°C~50°C
Storage Temperature
-40°C~80°C
Working Humidity
10%~90%
Size (LWH)
177.38x113.99x22.5mm
Installation
Wall-mounted
Supported Protocols
SIP 2.0 over UDP/TCP/TLS
Audio
Narrowband audio codec: G.711A/U,G.729AB, iLBC
Broadband audio codec: G.722, OPUS
Full-duplex hands-free calling, supports Acoustic Echo Cancellation (AEC)
Video
Hardware video decoding: H.264,H.265 (Opention)
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
DTMF
In-band, out-of-band DTMF (RFC2833), SIP Info
Do Not Disturb (DND)
Supported, and the time can be user-defined
Additionally
Supports viewing video from third-party IP cameras
Supports customizing incoming call ringtones
Supports remote door unlocking
Supports sending/receiving messages
Supports the installation of third-party app
