Chief LVS1U ConnexSys Video Wall Landscape Mounting System with Rails, Black

Normally $753.04
Normally $753.04
You save $41
You save $41
AUD $ 711 .27
$ 711 .27
$711.27  +GST
$711.27  inc GST

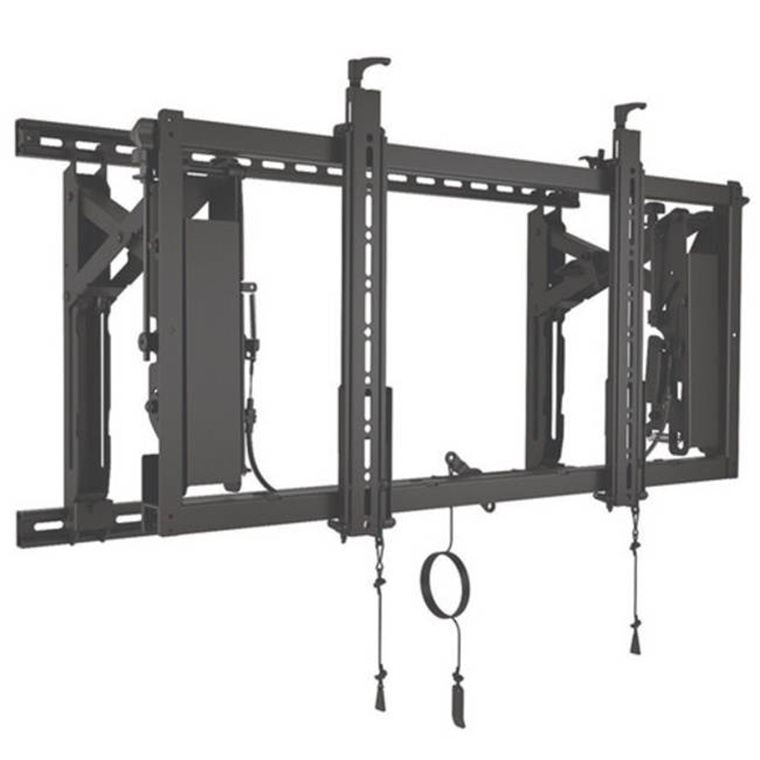

Chief LVS1U ConnexSys Video Wall Landscape Mounting System with Rails, Black

  • Brand: Chief
  • MPN: LVS1U
  • Part #: KVMCHI1008
  • UPC:
Normally $753.04
Normally $753.04
You save $41
You save $41
PB Tech price
AUD $ 711 .27 $ 711 .27


Delivery: Order now and it ships on 10 Apr
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$711.27  +GST
$711.27  inc GST
  • Brand: Chief
  • MPN: LVS1U
  • Part #: KVMCHI1008
  • UPC:

Max Screen Size Supported

80 inches

Max Weight Supported

68kg

Min Screen Size Supported

42 inches

Features

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements
The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.

Speed

- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect latching secures displays
- PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount

Alignment

- PowerZone™ Adjustments
- Height adjustment ±1" on each interface
- Tilt adjustment at single pivot point, protects displays from twisting
- Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2" (horizontally)
- 3 levels of lateral adjustment
- Mount left/right along rail
- Interface left/right along mount
- Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions

Serviceability

- RapidDraw™ Display Release
- Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- Cord can be set up to pull for release from any 90 degree angle
- Kickstand provides 20 degrees of bottom tilt access

Rigidity

- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Miscellaneous

- Security - pad lock �" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position

Specifications

Certifications:

UL Listed

Color:

Black

Manual Height Adjustment:

± 1"

Maximum Extension:

13.4" (34.0 cm)

Minimum Depth:

4"

Mounting Pattern Compatibility (Universal Versions):

200 x 100 - 700 x 400 mm

Orientation:

Landscape

Overall Dimensions (H x W x D):

21.8 x 35.5 x 4.0" (554 x 902 x 102 mm)

Shipping Weight:

20 kg

Solution Type:

Universal

Tilt:

+ 4.0°, -2.5°

Typical Screen Sizes:

42 - 80"

Weight Capacity:

150 lbs (68 kg)

Manufacturer Part No:
LVS1U
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
KVMCHI1008
Product Model:
LVS1U
