LENKENG LKV671KVM-RX RX Unit ONLY. 4K HDMI Extender with KVM Support Over Single CAT6/6A/7 Cable Mouse & Keyboard Extension via USB Extends up to 100m. Supports Max Res 4K60Hz UHD. 1 to Many Connect.
Out of stock
LENKENG LKV671KVM-RX RX Unit ONLY. 4K HDMI Extender with KVM Support Over Single CAT6/6A/7 Cable Mouse & Keyboard Extension via USB Extends up to 100m. Supports Max Res 4K60Hz UHD. 1 to Many Connect.
- Brand: LENKENG
- MPN: LKV671KVM-RX
- Part #: KVMLNK1177
- UPC:
Cheaper options available
- Brand: LENKENG
- MPN: LKV671KVM-RX
- Part #: KVMLNK1177
- UPC:
Looking for a bargain? Shop Ex-demo stock for this item
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders





LENKENG LKV671KVM-RX RX Unit ONLY. 4K HDMI Extender with KVM Support Over Single CAT6/6A/7 Cable Mouse & Keyboard Extension via USB Extends up to 100m. Supports Max Res 4K60Hz UHD. 1 to Many Connect.
- Brand: LENKENG
- MPN: LKV671KVM-RX
- Part #: KVMLNK1177

Product URL: https://www.pbtech.com/product/KVMLNK1177/LENKENG-LKV671KVM-RX-RX-Unit-ONLY-4K-HDMI-Extender
Features

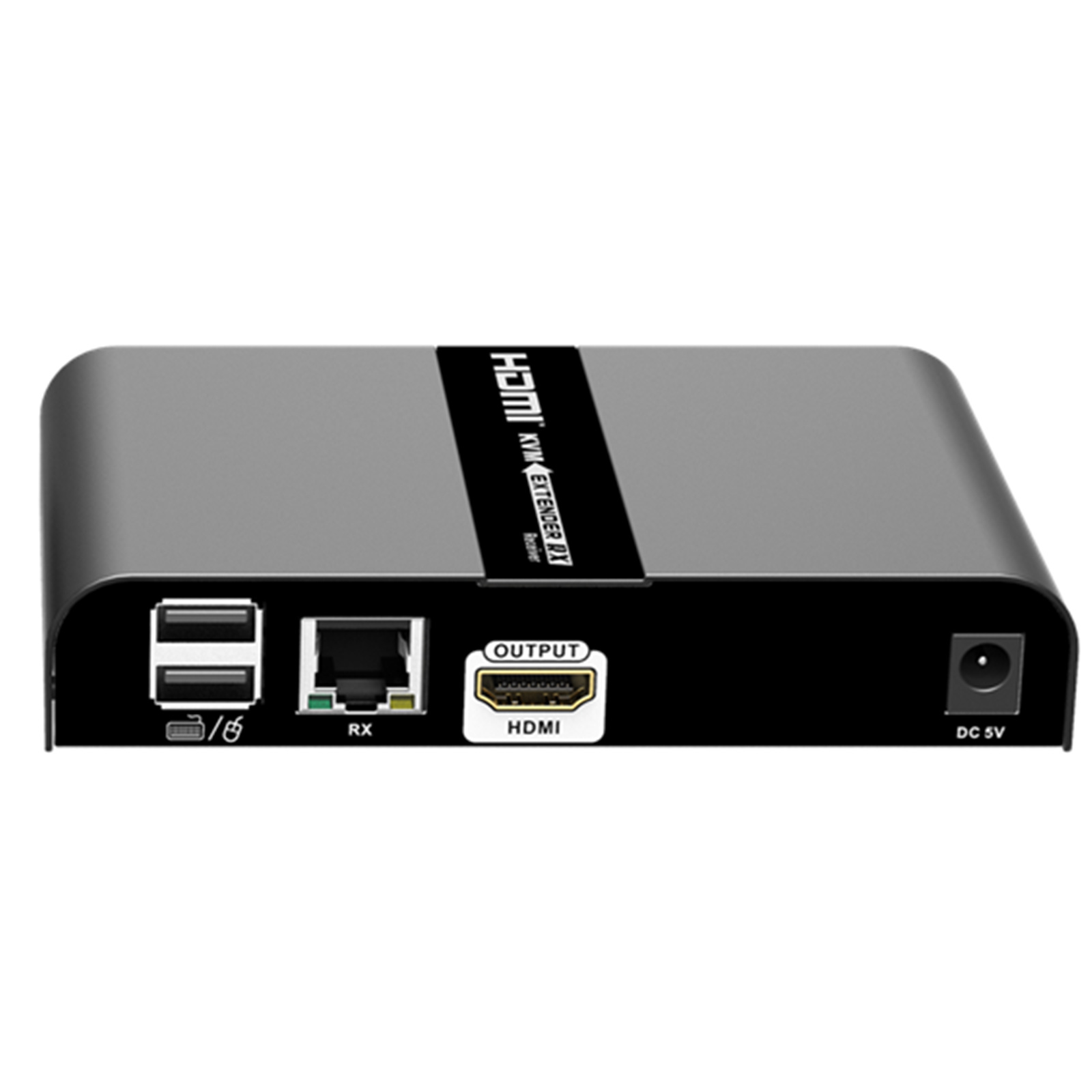

**Receiver Unit Only (RX)**
Using advanced video processing technology, the signal can be extended up to 100m over CAT6/6A/7 cable without compression and nearly zero latency. It supports EDID pass back through the gigabit switch. The resolution supported is up to 4K@30Hz. It supports KVM function which allows access to a computer system from a remote console with a USB mouse and keyboard. Works well with control and security purposes and is widely used in command centres, data control centres, banks and more.
- Uncompressed and nearly zero latency transmission
- Support distance of up to 100m via CAT6/6A
- Support one-to-many connection
- Support KVM function
- Support HDCP 2.2
- Support EDID passback
- Resolution supported is up to 4K@30Hz
- Support wireless keyboard/mouse to control from the receiver end
- Plug and play, easy installation
Specifications
HDMI compliance
1.4
HDCP compliance
2.2
Video bandwidth
334MHz
Transmission distance
100m (CAT6)
Video support
720x480@ 60Hz,800x600@ 60Hz,1024x768@60Hz,1280x720@ 60Hz,1280x800@ 60Hz, 1280x1024@ 60Hz,1440x900@60Hz,1680x1050@ 60Hz,1920x1080@ 60Hz, 2560x1080@ 60Hz, 3840x2160@ 30Hz, 4096x2160@ 30Hz
Audio support
PCM
InputTMDS signal
1.2V p-p
loop-out on TX
yes
IR passback
no
Input
1× RJ45, DC2.1
Output
1× HDMI, 3×USB
HDMI conector
Type A, Female, 19-pin
RJ-45 connector
RJ-45
Power supply
5V 1A
Operation temperaure
0°C~60°C
Storage temperature
-10°C~70°C
Relative humidity
0~90%(non-condensing)
Dimensions(L×W×H mm)
132.37×89.70×24.90mm
