LENKENG 4K Mini Wireless HDMI to HDMI Extender up to 4K 60Hz for 20m. LowLatency,SwitchableChanneland SSID Paring.
- Brand: LENKENG
- MPN: LKV488MINI
- Part #: KVMLNK1191

Product URL: https://www.pbtech.com/product/KVMLNK1191/LENKENG-4K-Mini-Wireless-HDMI-to-HDMI-Extender-up
Features

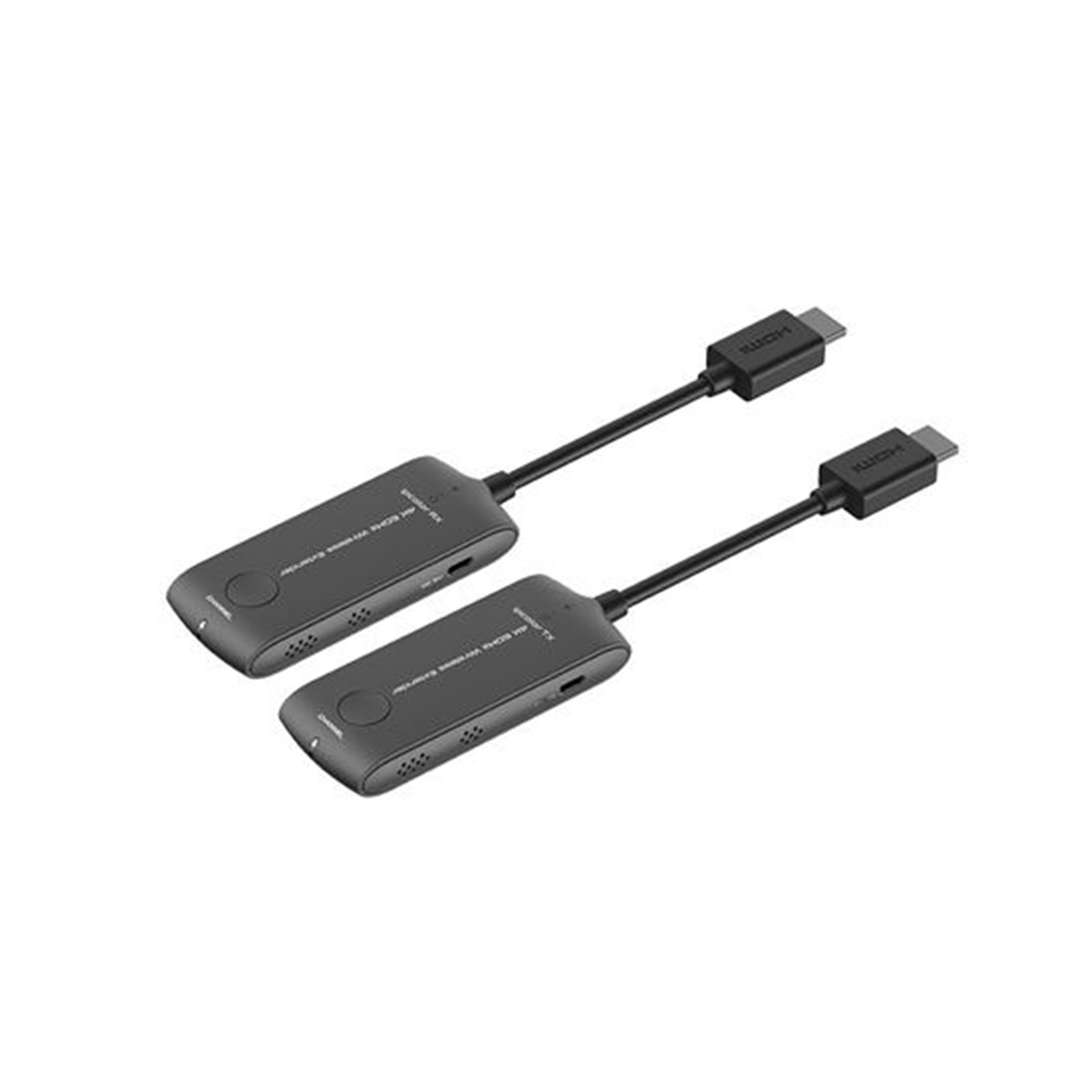

This is a 4K @ 60Hz HDMI™ wireless extender, including a transmitter and a receiver. Adopting ipcolor STREAM technology can realize high definition and low-latency transmission. Based on the 5G wireless frequency band, with stable anti-interference and safety performance. It supports 1-to-1 wireless transmission, and the transmission distance can reach 20 meters, effectively solving problems caused by complicated wiring. It's an ideal wireless video transmission solution for video conferences, home entertainment, multimedia education, etc.
Specifications
Voltage/Current
Micro USB power supply (5V/1A)
Power consumption
TX < 4.5W, RX < 3.5W
HDMI version
HDMI 2.0
HDCP version
HDCP 1.4/HDCP 2.2
Max transmission rate
18Gbps
Resolution supported
3840x2160 @ 24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB),1080P@50/60Hz, 720P @ 50/60Hz, 1920x1200 @ 60Hz
Input and output TMDS signal
0.7~1.2Vp-p(TMDS)
Input and output DDC signal
5Vp-p(TTL)
Wi-Fi Frequency bands
5.18-5.24 GHz
Transmission distance
= 20m
Latency
100~250ms
Connection types
One to one
SSID pairing
Supported
ESD protection
1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2
Working temperature
-20~50?
Storage temperature
-30~70?
Humidity (no condensation)
0~90% RH
Dimension
TX: 40.2(W) * 230(L) * 15.0(H)mm
RX: 40.2(W) * 230(L) * 15.0(H)mm
Colour
Black
Material
ABS
Net weight
TX: 58g; RX: 54g
