StarTech.com SV831DVIU 8 Port 1U Rackmount DVI USB KVM Switch USB DVI KVM Switch - DVIKVM Switch - USB KVM Switch

PB Tech price
PB Tech price
AUD $ 1,223 .33
$ 1,223 .33
$1,223.33  +GST
$1,223.33

StarTech.com SV831DVIU 8 Port 1U Rackmount DVI USB KVM Switch USB DVI KVM Switch - DVIKVM Switch - USB KVM Switch

PB Tech price
AUD $ 1,223 .33 $ 1,223 .33


Delivery: Order now and it ships on 26 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,223.33  +GST
$1,223.33

Features

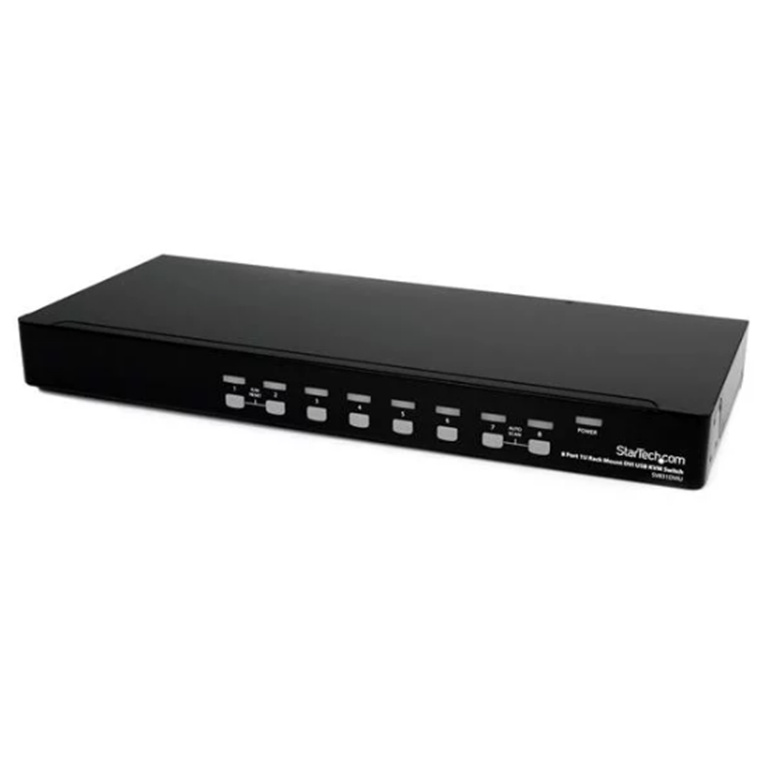

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.

A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.

Specifications

HARDWARE

Audio

No

Cables Included

No

Daisy-Chain

No

KVM Ports

8

Number of Monitors Supported

1

PC Interface

USB

PC Video Type

DVI

Rack-Mountable

Yes

U Height

1U

PERFORMANCE

DVI Support

Yes - Single Link

Hot-Key Selection

Yes

IP Control

No

Maximum Cable Length

15 ft [4.6 m]

Maximum Digital Resolutions

1920 x 1200

Maximum Number of Users

1

MTBF

134000 hours

On-Screen Display

No

Port Selection Support

Push Button and Hotkeys

CONNECTOR(S)

Console Interface(s)

1 - DVI-I (29 pin) Female
2 - USB Type-A (4 pin) USB 2.0 Female

Host Connectors

8 - DVI-I (29 pin) Female
8 - USB B (4 pin) Female

SOFTWARE

OS Compatibility

OS independent; No software or drivers required

SPECIAL NOTES / REQUIREMENTS

Note

Supports SUN keyboard emulation

POWER

Center Tip Polarity

Positive

Input Current

1.8A

Input Voltage

100 - 240 AC

Output Current

4A

Output Voltage

12V DC

Plug Type

M

Power Consumption (In Watts)

48

Power Source

AC Adapter Included

ENVIRONMENTAL

Humidity

0~80%RH

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

PHYSICAL CHARACTERISTICS

Color

Black

Material

Steel

Dimensions

1.7 in [4.4 cm]
Length 7.1 in [18 cm]
Width 17.2 in [43.8 cm]

Weight

5.5 lb [2.5 kg]

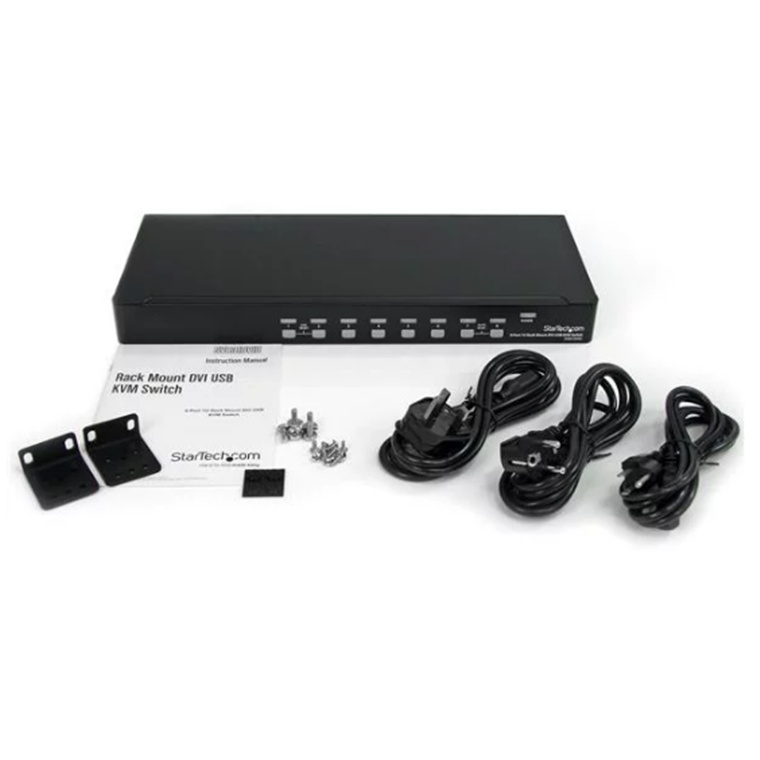

WHAT'S IN THE BOX

Included in Package

1 - 8 Port DVI USB KVM Switch
1 - Set Rack-mount brackets
3 - Power adapter:
1 - User Manual

Manufacturer Part No:
SV831DVIU
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
KVMSTT1861421
Product Model:
SV831DVIU
Warranty: 12 months *
