StarTech.com PEX20000SFPI 2-Port 10G Fiber Network Card- Open SFP+

PB Tech price

AUD $ 618 .65

$ 618 .65

StarTech.com PEX20000SFPI 2-Port 10G Fiber Network Card- Open SFP+

Brand: StarTech.com
MPN: PEX20000SFPI
Part #: KVMSTT3016732
UPC: 065030860604

PB Tech price

AUD $ 618 .65

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: PEX20000SFPI
Part #: KVMSTT3016732
UPC: 065030860604

Be the first to review this product

Number of Ports

Port Type

Returns & Warranty Bulk Quote Print Page

Features

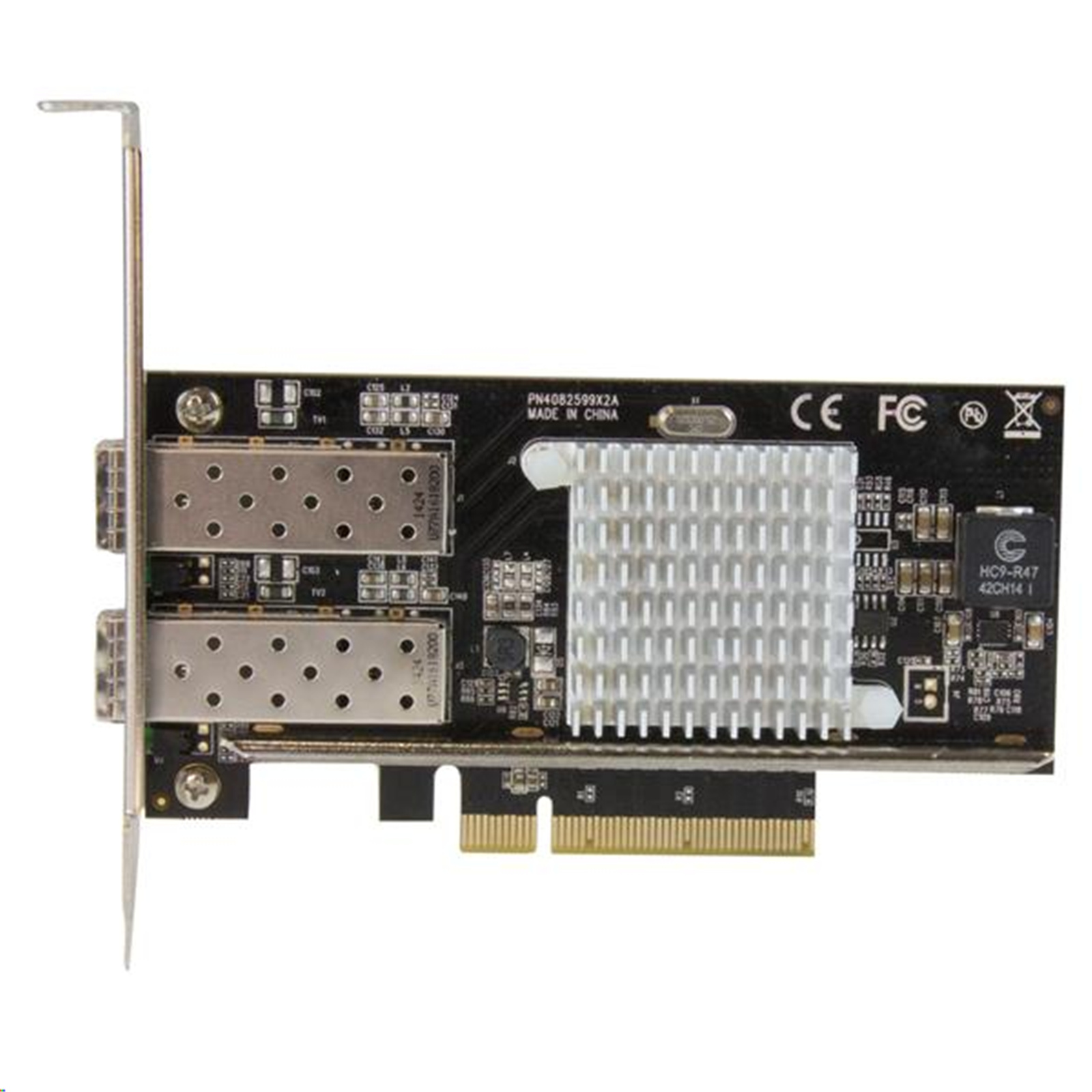

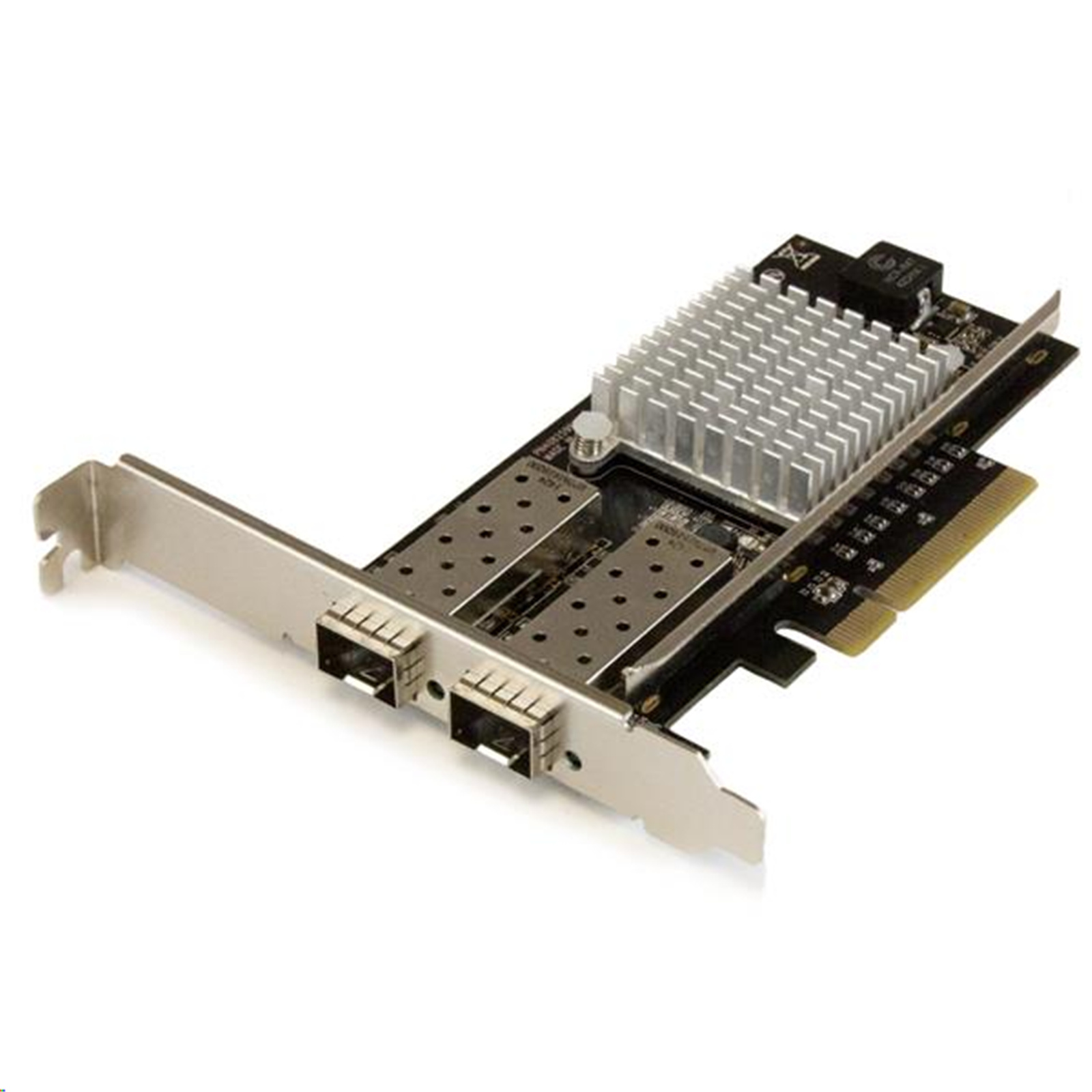

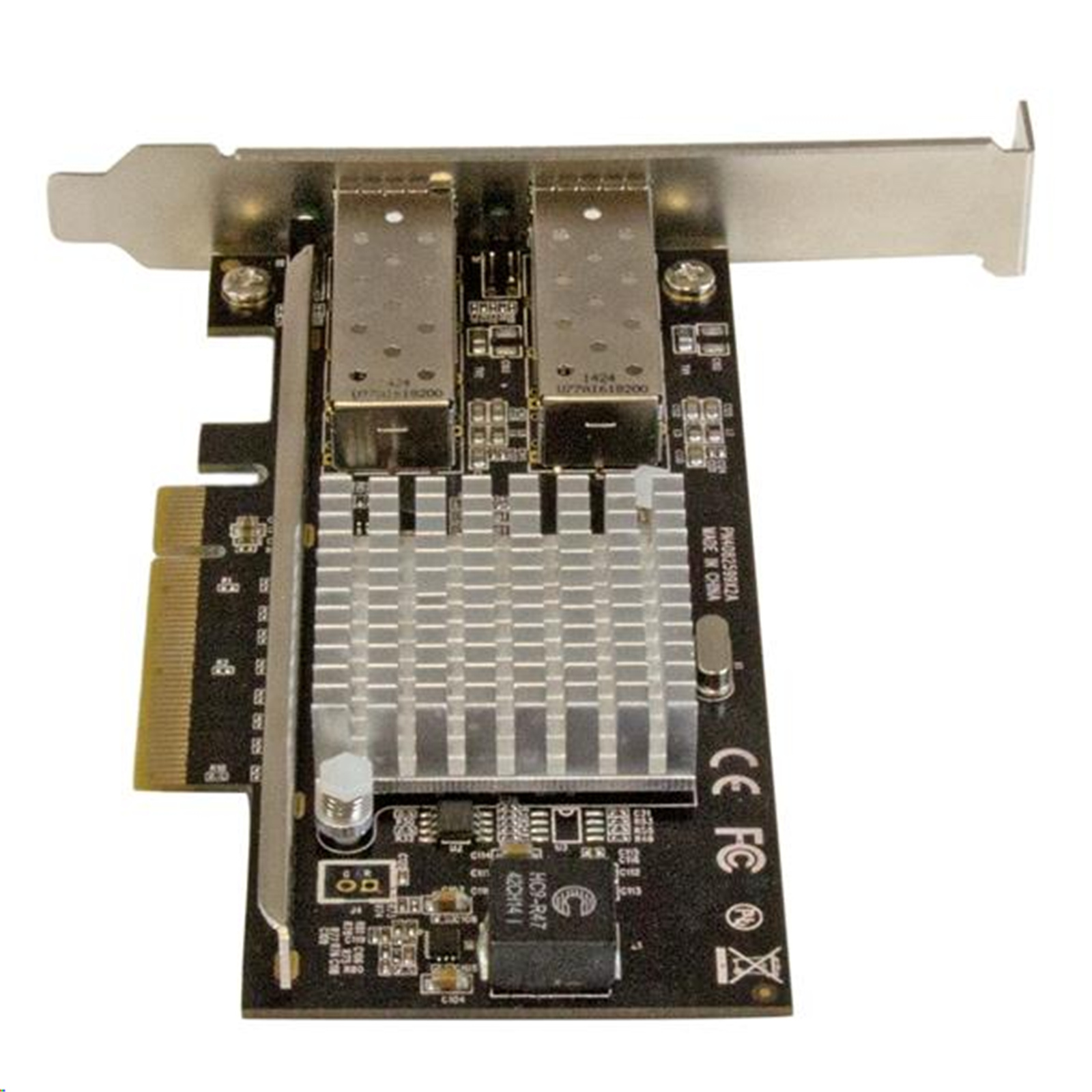

Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.

Transfer files at faster speeds

Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.

Add scalable network connections to your server or workstation

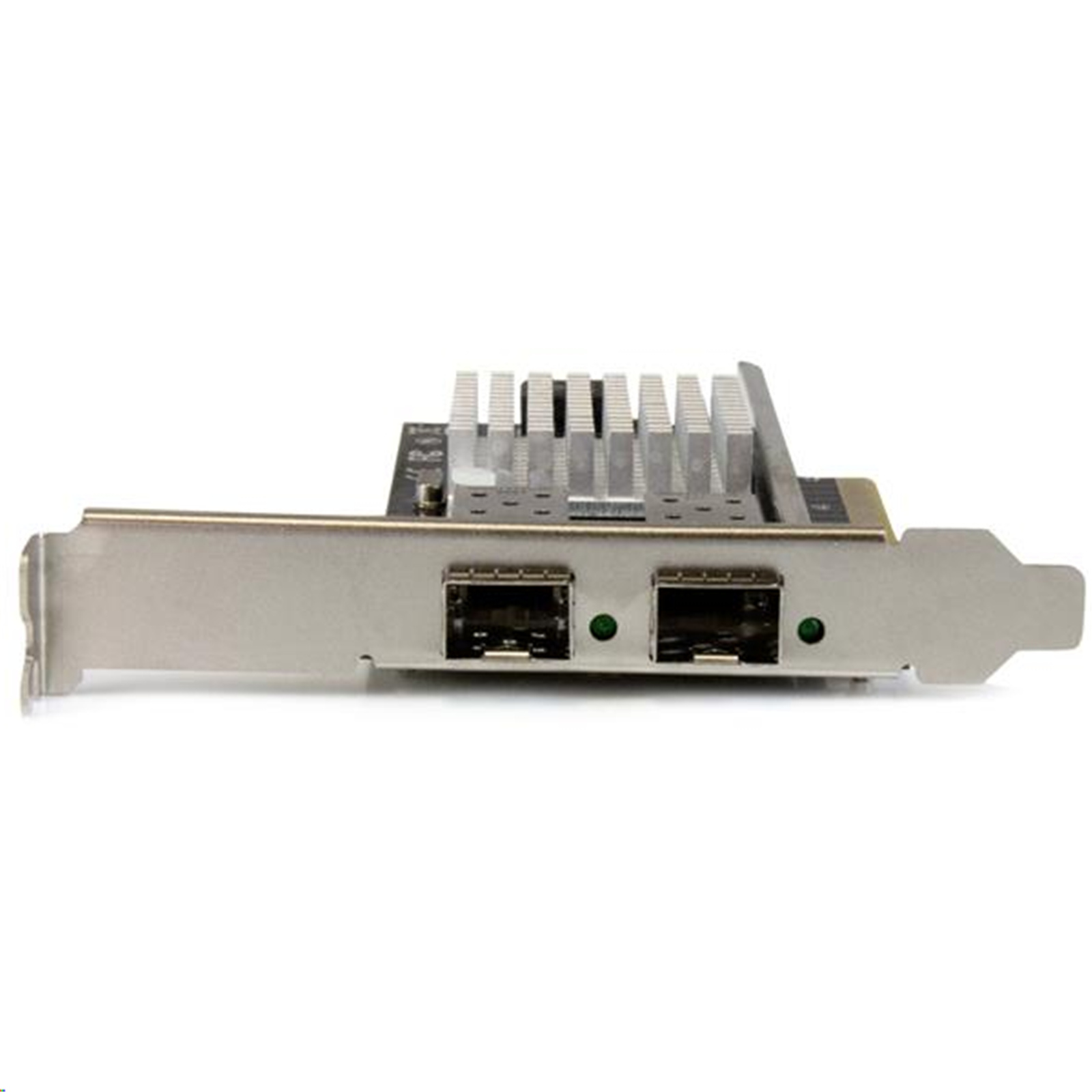

The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances. The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support. The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Hardware

Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Intel 82599
Industry Standards IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM)
PCI Express Rev 2.0, using PCIe x8 (or higher) slot
Interface Fiber (10 Gigabit Ethernet)
Ports 2

Performance

Compatible Networks
10 Gbps
Full Duplex Support
Yes
Jumbo Frame Support
15K max.
Maximum Data Transfer Rate
20000 Mbps (20 Gbps) - Full-Duplex
Promiscuous Mode
Yes
Supported Protocols
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (2005 Flow Control Support)
IEEE 802.1Q (VLAN tagging)

Connector(s)

Connector Type(s)
1 - PCI Express x8 Male
Internal Ports
2 - SFP+ Slot Female

Software

OS Compatibility
Windows® 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.24 to 4.4.x LTS Versions only

Environmental

Humidity
20% ~ 80% RH
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)

Included in Package
1 - PCIe 10GBase Fiber Card
1 - Low-profile bracket
1 - Quick install guide

Manufacturer Part No:

PEX20000SFPI

Brand:

StarTech.com

Product Type:

UPC

065030860604

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

KVMSTT3016732

Product Model:

PEX20000SFPI

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
