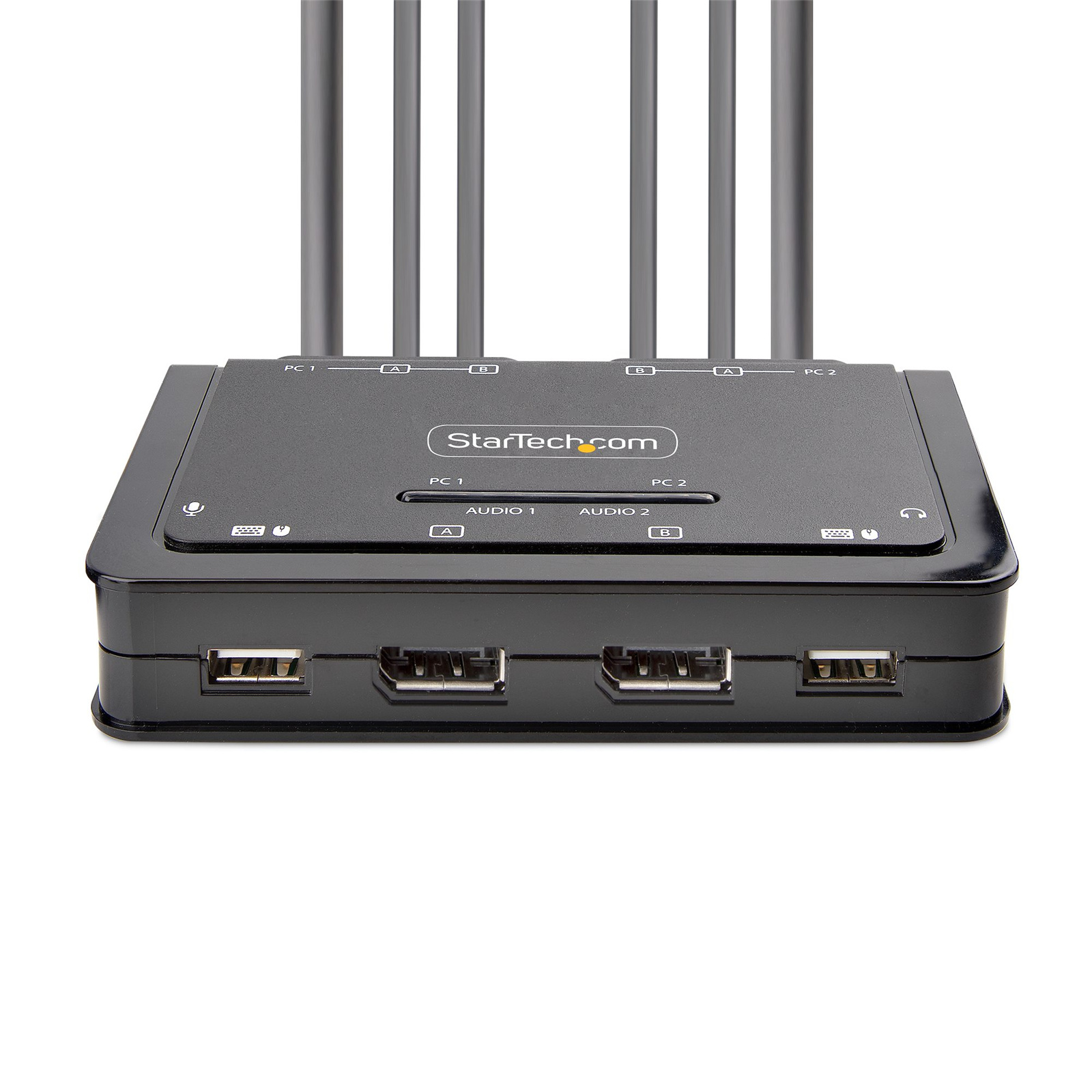

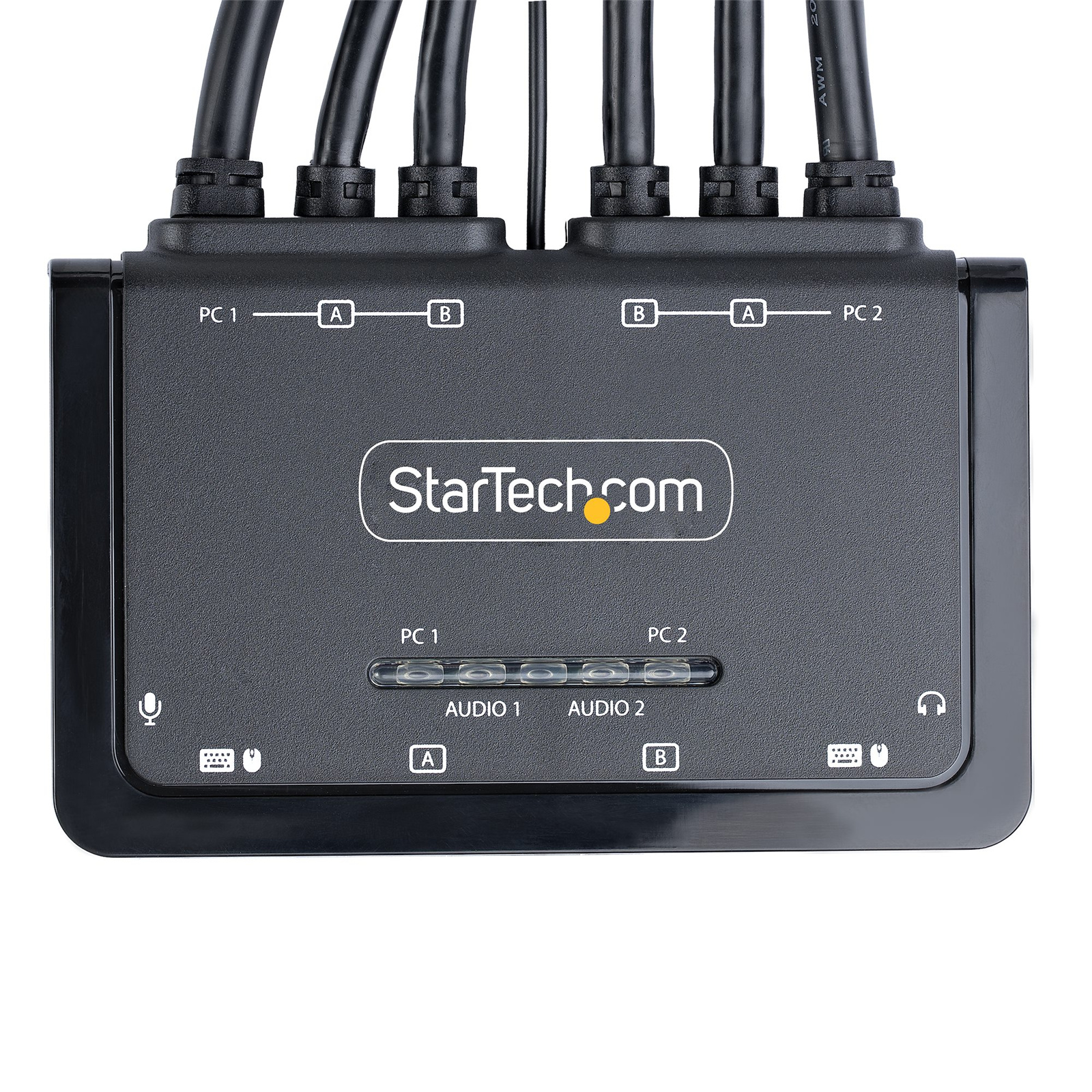

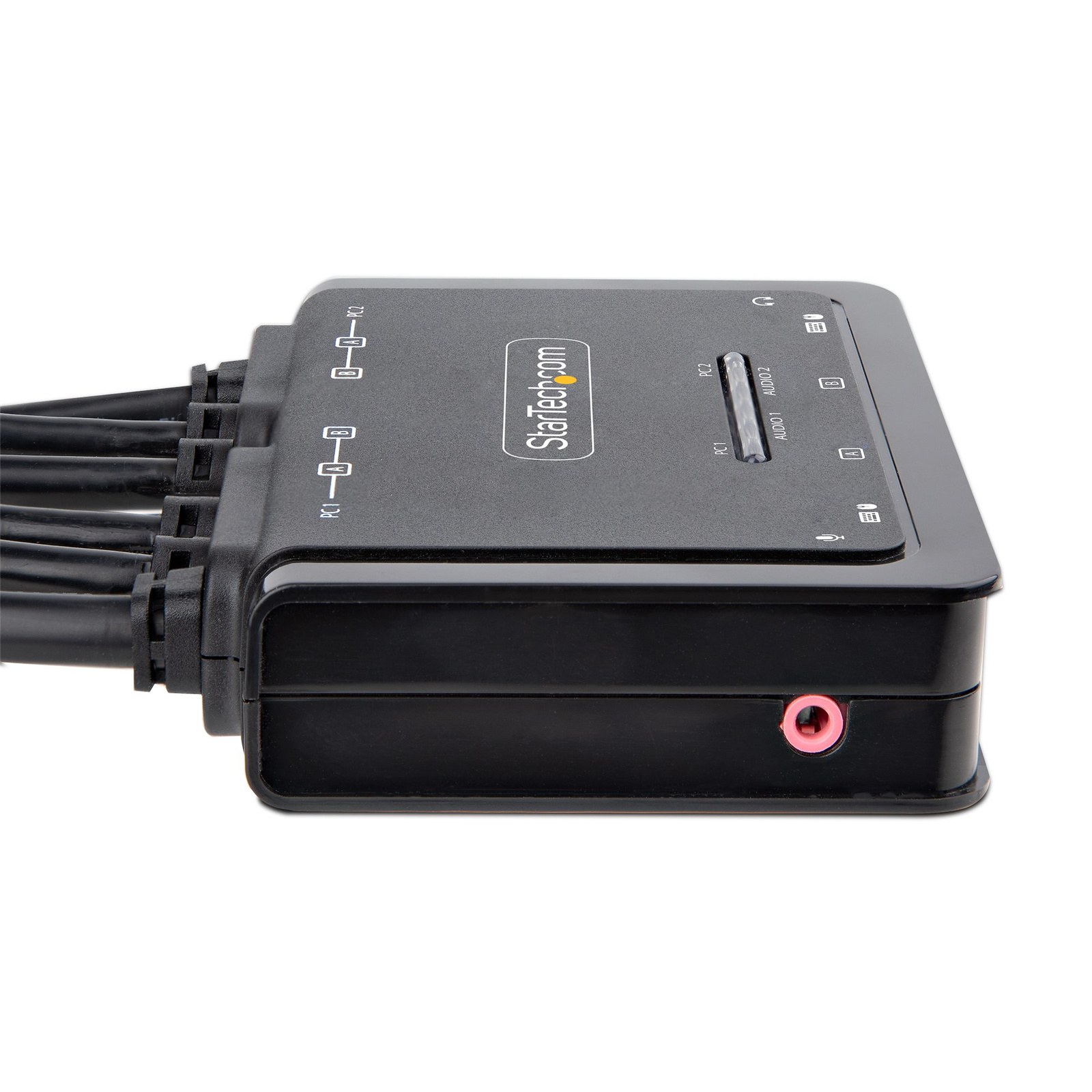

StarTech.com C2-DD46-UA2-CBL-KVM 2-Port Dual-Monitor Cable KVM Switch
StarTech.com C2-DD46-UA2-CBL-KVM 2-Port Dual-Monitor Cable KVM Switch
- Brand: StarTech.com
- MPN: C2-DD46-UA2-CBL-KVM
- Part #: KVMSTT5863128
- UPC: 065030899215
- Brand: StarTech.com
- MPN: C2-DD46-UA2-CBL-KVM
- Part #: KVMSTT5863128
- UPC: 065030899215
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM LCD Switches





StarTech.com C2-DD46-UA2-CBL-KVM 2-Port Dual-Monitor Cable KVM Switch
- Brand: StarTech.com
- MPN: C2-DD46-UA2-CBL-KVM
- Part #: KVMSTT5863128
- UPC:065030899215

Product URL: https://www.pbtech.com/product/KVMSTT5863128/StarTechcom-C2-DD46-UA2-CBL-KVM-2-Port-Dual-Monito
Features

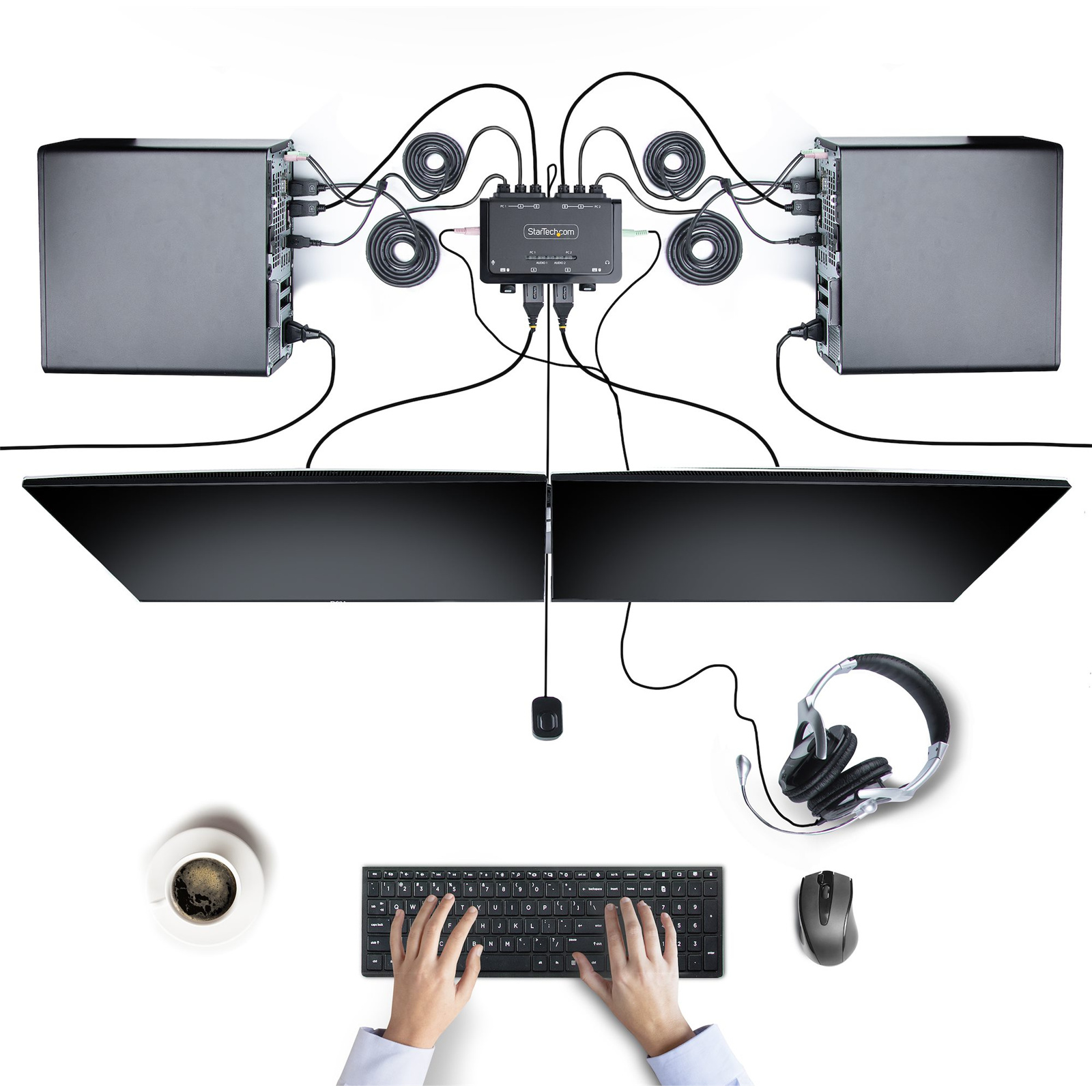

This Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.
Hassle-Free Setup

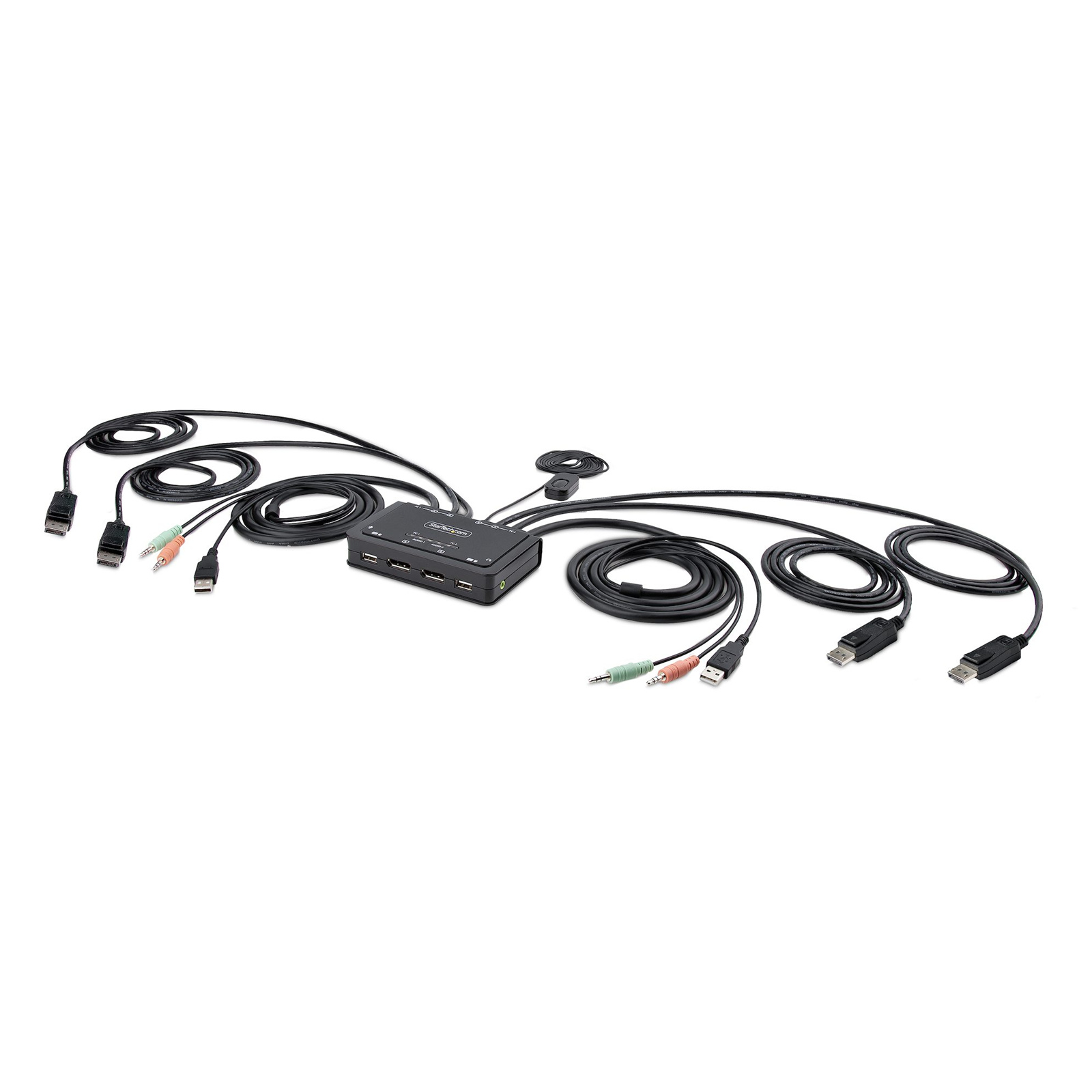

The KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
- DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and DisplayPort-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz DisplayPort displays
- READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain
- SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
- COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Specifications
Connector(s)
Console Interface(s)
1 - 3.5mm Stereo Female 3 pos
1 - 3.5mm Stereo Female 3 pos
2 - DisplayPort
2 - USB 2.0 Type-A (4 pin, 480Mbps)
Host Connectors
4 - DisplayPort
2 - USB 2.0 Type-A (4 pin, 480Mbps)
4 - 3.5mm Stereo Female 3 pos
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 90% RH (non-condensing)
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB
PC Video Type
DisplayPort
Number of Monitors Supported
2
Rack-Mountable
No
Cables Included
Yes
Chipset ID
SN8P2202SG
Indicators
LED Indicators
1 - Solid Green: Selected PC is Connected
1 - Blinking Green: Selected PC is Not Detected
1 - Amber LED: Selected Audio Source
Packaging Information
Package Quantity
1
Package Length
6.3 in [16.0 cm]
Package Width
3.9 in [10.0 cm]
Package Height
8.3 in [21.0 cm]
Shipping (Package) Weight
2.0 lb [0.9 kg]
Performance
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Maximum Data Transfer Rate
480Mbps (USB 2.0)
Supported Resolutions
4096x2160 @60Hz
3840x2160 @60Hz
5120x1440 @60Hz
3440x1440 @60Hz
2560x1440 @60Hz
2560x1080 @60Hz
1920x1200 @60Hz
1920x1080 @60Hz
Other resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 2 Channel Audio
Analog Stereo - 2 Channel Audio
Auto Scan
10, 20, 30, 40, 50, and 60 seconds
Port Selection Support
Push Button and Hotkeys/Software
MTBF
419,293 Hours
Physical Characteristics
Color
Black
Product Length
4.9 in [12.5 cm]
Product Width
3.5 in [9.0 cm]
Product Height
1.0 in [2.5 cm]
Weight of Product
1.3 lb [0.6 kg]
Material
ABS
Cable Length
4.9 ft [1.5 m]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows 7, 8/8.1, 10, 11
macOS 10.12 - 10.15, 11, 12
ChromeOS
What's in the Box
Included in Package
1 - KVM Switch
1 - Quick-Start Guide
