StarTech.com SV211HDUA 2 Port USB HDMI Cable KVM Switch with Audio and Remote Switch USB Powered
- Brand: StarTech.com
- MPN: SV211HDUA
- Part #: KVMSTT690121
- UPC:065030851060
Product URL: https://www.pbtech.com/product/KVMSTT690121/StarTechcom-SV211HDUA-2-Port-USB-HDMI-Cable-KVM-Sw
Features
Control two HDMI®, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set
- Supports HD resolutions (1080p - 1920x1200)
- Switch PCs via push-button, hot-keys or switching software
- Space-saving design, minimal footprint
- Integrated KVM cables and remote switch
- Switching software supports PC and Mac® platforms
- USB Powered - No external power adapter required
- Analog (3.5mm) and HDMI audio supported
- Independent audio/mic switching for uninterrupted audio
- Supports hot-plugging
- Remote switch on 1.5m (5ft.) cable

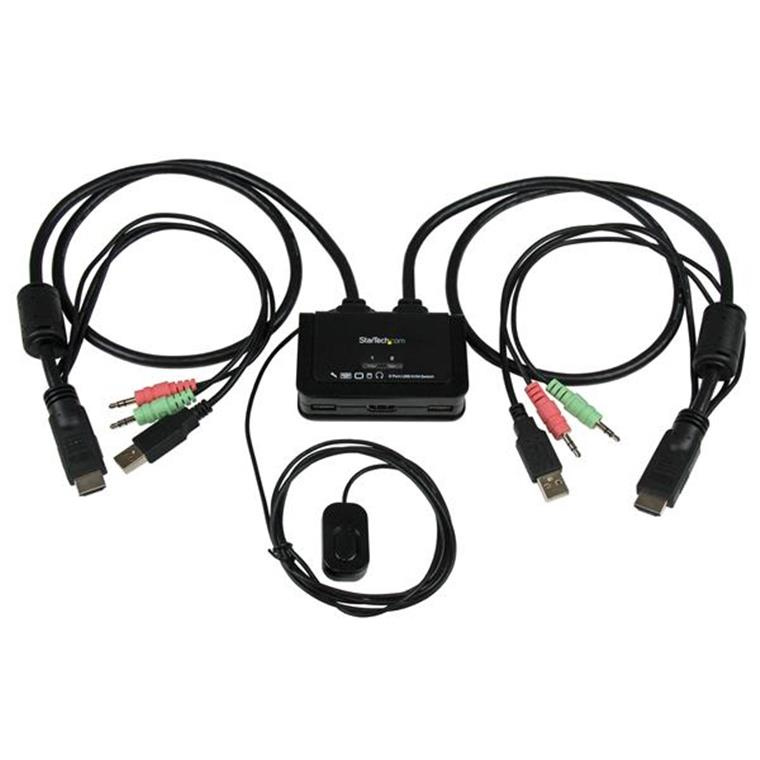

The SV211HDUA 2-Port HDMI® Cable KVM Switch with Audio and Remote Switching Control lets you control two HDMI, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set.
To help organize your desk without sacrificing work space, this compact HDMI USB KVM features integrated cables that can be connected directly to your system, while leaving a minimal footprint. The switch features a remote push-button on a 1.5 meter (5ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems. To eliminate the need for a bulky external power adapter and wall outlet, the HDMI KVM switch is USB-powered.
This KVM with HDMI video capability offers support for 1080p HD resolutions (up to 1920x1200) for the ability to drive a large HDMI display for applications that require high graphical output.
Applications
- Great for PC test/burn-in computer control, saving the desk space required for two monitors, keyboards and mice
- Perfect for sharing computers and attached peripherals in the home or home office
- Dual system control for single user workstations increasing user productivity in the office
The StarTech.com Advantage
- Avoid cabling hassles with integrated KVM and remote switch cables
- Save desk space with a compact design
- Switch between systems easily using the included remote switch
Specifications
Connector(s)
Console Interface(s)
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - 3.5 mm Mini-Jack (3 Position)
1 - HDMI (19 pin)
Host Connectors
2 - 3.5 mm Mini-Jack (3 Position)
1 - HDMI (19 pin)
1 - USB 2.0 Type-A (4 pin, 480Mbps)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (4°F to 140°F)
Humidity
0~90% RH Non-Condensing
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB
PC Video Type
HDMI
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
Yes
Industry Standards
HDCP
Daisy-Chain
No
Indicators
LED Indicators
1 - PC Selection indictor
Packaging Information
Package Height
2.6 in [6.5 cm]
Package Length
9.9 in [25.1 cm]
Shipping (Package) Weight
16.0 oz [452.0 g]
Package Width
6.4 in [16.2 cm]
Package Quantity
1
Performance
On-Screen Display
No
IP Control
No
Hot-Key Selection
Yes
Audio Specifications
Port Selection Support
Push Button, Hotkeys, and Software
Physical Characteristics
Weight of Product
12.4 oz [350.0 g]
Color
Black
Material
Plastic
Cable Length
33.5 in [850 mm]
Product Length
3.5 in [8.8 cm]
Product Width
2.6 in [6.6 cm]
Product Height
0.9 in [2.3 cm]
Power
Power Source
USB-Powered
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022
Mac OS 10.6 to 10.12
Special Notes / Requirements
Note
OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform
What's in the Box
Included in Package
1 - KVM Switch
1 - Software CD
1 - Instruction Manual
