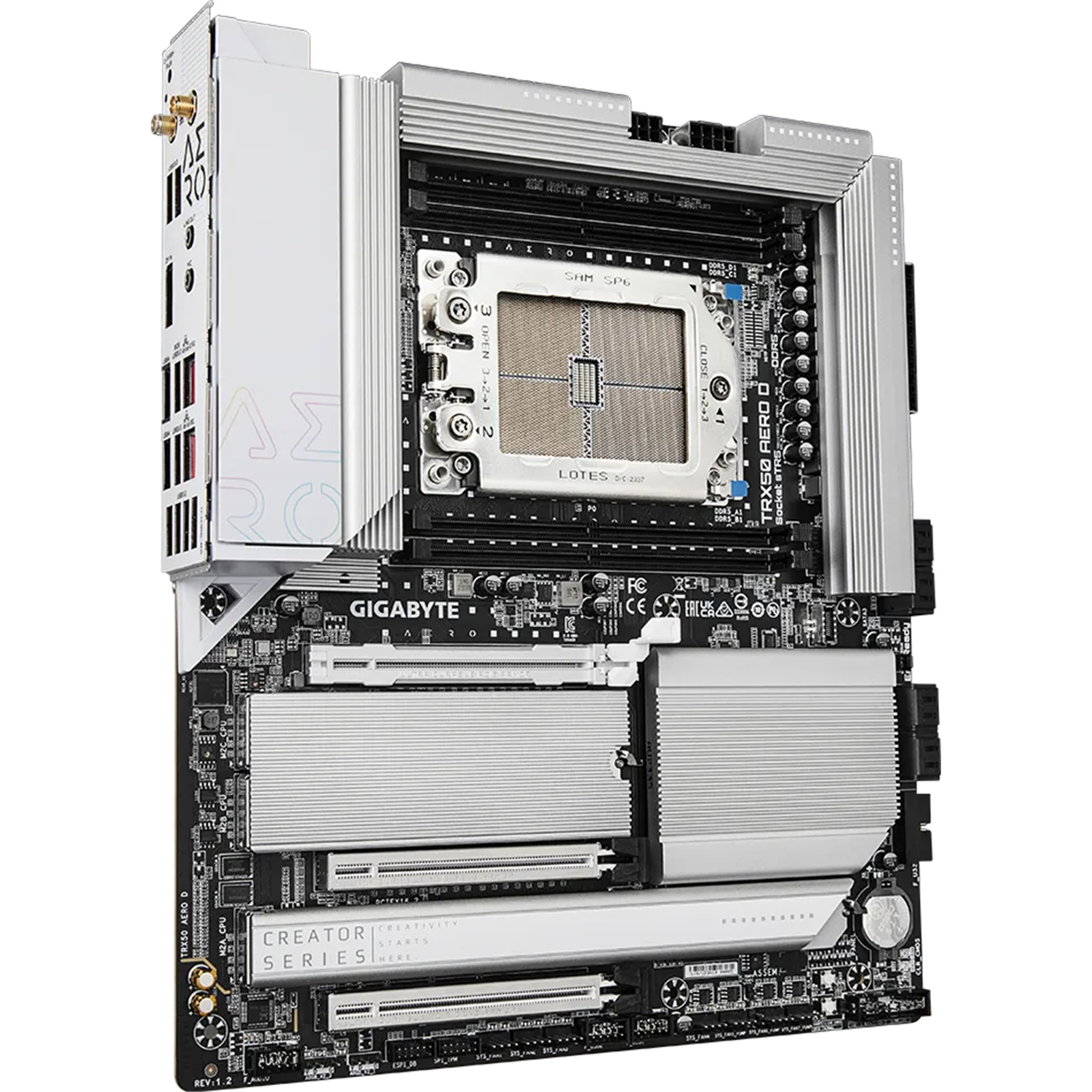

Gigabyte TRX50 AERO D ATX Motherboard For AMD Ryzen Threadripper Pro 9000 / 7000 WX Series AMD Ryzen Threadripper 9000 / 7000 Series, TRX50 Chipset, PCIE 5.0, 4x DDR5 RDimm,10GbE + 2.5 GbE Dual LAN and Wi-Fi 7

TRX50 AERO D (rev. 1.2)

Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors?
Breakthrough Performance: 16+8+4 Phases Digital VRM Solution
Quad Channel DDR5: 4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
Next-gen Connectivity: Dual USB4® Type-C ports
Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click: M.2 heatsinks with screwless design
EZ-Latch Plus: M.2 slots with quick release design
Hi-Fi Audio with DTS:X® Ultra: ALC4080+ALC897 CODEC
UC BIOS: User-Centred intuitive UX with Quick Access function

TRX50 AERO D - AI ERA MOTHERBOARD

HEDT motherboard designed for AI, content creation scientific computing

Performance

Thermal

Connectivity

DIY Friendly

VRM - Breakthrough performance, more possibility - Revolutionary Power Design

The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen™ Threadripper™ CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.

Digital VRM Design

Ensures stable high-power delivery for exceptional performance.

- 16 VCORE Phases 108A SPS to unleash the full potential of multi-core CPU performance.
- 8 SOC Phase SPS + DrMOS for CPU integrated GPU performance and memory control.
- 4 MISC Phases 108A SPS provide stable power for CPU-connected PCIe lanes.

THERMAL - Advanced thermal

With enlarged full metal thermal design, TRX50 AERO D motherboard birngs you exceptional performance while keep the system cool and solid.

VRM Thermal Armor Advanced

High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.

4X Large Surface
The surface area has been increased up to 4X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.

Real One-piece Build
The TRUE single-piece heatsink offers superior cooling performance compared to competitors' multi-piece designs, thanks to its one-piece construction and larger surface area.

Multi-Cut Design
With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.

8mm Heatpipe
8mm Mega-Heatpipe with refined manufacturing minimizes the gap between the heatpipe and heatsink, ensuring efficient MOSFET heat transfer and enhancing thermal performance.

7 W/mK Thermal Pad
Optimize hardware performance with our advanced 7 W/mK thermal pad for efficient heat dissipation.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support
Each fan header supports PWM and DC fans and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control
Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode
Slope/Stair dual mode for different user scenarios.

Fan Stop
Fan can stop completely below users' specified temperature point.

Noise Detection
Monitor device noise levels in real time using our accurate sound pressure measurement and privacy-respecting Noise Detection cable, allowing you to adjust fan speeds accordingly for optimal noise control.

Smart Fan 6 BIOS UI

Note: The image shown is for reference purposes and may vary depending on the specific model.

Enhance Fan Curve UI
Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode
Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input
For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning
Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile
Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Memory - Leading DDR5 Performance

Maximum Capacity
TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc..

- DDR5 Overclocking Up to 7800 MT/s

DDR5 - BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster
one click to boost native DDR5-4800 to 5000

High Bandwidth
one click to increase DDR5 bandwidth

Low Latency
one click to shorten DDR5 latency

AMD EXPO™/ Intel® XMP 3.0 User Profile
optimizes memory settings and achieve the best performance for the system

Maximize DDR5 performance with your memory settings

AMD EXPO™/ Intel® XMP 3.0 User Profile empowers you to optimize your memory settings and commit the leading DDR5 performance up to 7800MT/s.

SPD Re-defined or retrieve from database
Users can define two empty SPD profiles and transfer them to another computer.

Performance Simulation
Simulate memory performance quickly by inputting clock and timing parameters.

Save/Load Profile
Save and load memory profiles for online sharing.

Boost non-overclockable DDR5 memory frequency
Increase the frequency of non-overclockable DDR5 memory.

SCALABILITY - Ultimate scalability

Brings you the future-proofing capatiblity

Triple PCIe x 16 slots for Multi-GPU
TRX50 AERO D features three PCIe 5.0/ 4.0 x16 slots to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.

Triple slot width design
The Tripple slot width design of PCIex16 slot enables users to install huge high-end graphics cards on motherboards without any hassles.

4X M.2 slots
With four onboard PCIe 5.0/ 4.0 M.2 slots, TRX50 AERO D is perfect for creators, enthusiasts, AI operation to RAID multiple NVMe devices for demanding workloads

Back drilling for both PCIe and M.2 slot
Enhances signal integrity in both PCIe and M.2 slot designs by reducing signal reflections and timing issues, thereby improving system performance and reliability.

Dual USB4 Type-C

The latest USB4 Type-C dual ports provide significantly faster data transfer speeds up to 40 Gbps of each, which is particularly beneficial to video editing, large file transfers, and data-intensive tasks.

Wi-Fi 7 brings you the Ultimate VR experience

Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.

320/160 MHz channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.

Multi-link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.

4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.

Deterministic low latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.

GIGABYTE Ultra-high Gain Antenna

Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

- Direction signal Up to 5dBi
- Omnidirectional signal Up to 4dBi
- Magnetic Base

Dual LAN 10G+2.5G

The Dual LAN design of 10GbE+2.5 GbE LAN is perfectly designed for content creation, media centers, workstations, and AI operation. Besides providing ultra-fast network speed, the dual LAN design can ensure constant network availability, load balancing, and smoother high-resolution video streaming.

True Hi-Fi Music

Paired with Realtek's latest ALC4080 Codec, playback for surround sound audio and DSD enabled music are easier than ever.

DTS :X® Ultra

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound

*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.

DIY-friendly - Build effortless

Building your own PC is meant to be joyful and effortless. TRX50 AERO D, the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

*For reference only; actual appearance may vary.

M.2 EZ-Latch Click
screwless installation for M.2 heatsink

M.2 EZ-Latch Plus
screwless installation for M.2 SSDs

PCIe EZ-Latch
easy detachment for graphics cards

Multi-key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

RGB Switch
Turn off all lighting effect on motherboard.

Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.

Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.

Q-FLASH PLUS

Update the BIOS easily without installing the CPU, memory and graphics card.

STEP 1
Plug 24pin & 8pin power supply cable on motherboard.

STEP 2
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-FLASH PLUS USB port.

STEP 3
Press Q-FLASH PLUS button, and motherboard will start updating BIOS automatically.

Ultra Durable™ - Get everythingUD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.

PCIe UD Slot X

The latest PCIe UD Slot X offers unprecedented strength, providing enhanced protection for your graphics card.

10X load-bearing capacity
Featuring a seamless, one-piece design that is screwed onto a dedicated backplate, the PCIe UD Slot X provides 10 times the load-bearing strength.

Inner Lining Rubber Strip
This rubber strip safeguards your graphics card's PCB from potential scratches.

Zinc Alloy
The use of zinc alloy ensures effective electromagnetic shielding for high-speed signals.

M.2 UD Slot PG5

The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizes signal integrity.

1.3X
stronger in X-Axis Strength Test

1.5X
stronger in Y-Axis Strength Test

Reduced Signal Degradation with SMD Technology

UD Power Connector

The unique design provides better conductivity for power and better dissipation for the heat generated from it.

Solid Pins
provides superior conductivity & signal transmission, reducing metal loss from repeated plugging.

Customization - Elevating Performance Together

TRX50 AERO D signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

UC BIOS

UC BIOS
Redesigned as user-centered and provides intuitive performance tweakers.

Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.

Quick Access
customizable option slots for effortless access in Easy Mode.

Enhanced Intuitive UX

GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.

Quick Access Function

GIGABYTE UC BIOS' Quick Access function selects several? practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

HWiNFO - Exclusive Partnership

introduces innovative features for computer enthusiasts and professionals

Default AORUS skin

*AORUS skin auto-applies when detecting a GIGABYTE motherboard.

When running HWiNFO on a GIGABYTE motherboard, a unique, AORUS-themed skin will be automatically applied as default that is available in bright or dark mode. This AORUS skin can also be manually applied on non-GIGABYTE motherboards.

Memory Timings Monitor

As a result of the great efforts of expert developers from GIGABYTE and HWiNFO, this advanced readout application shows the most detailed memory timing settings ever, and help users monitor their memory performance and gain valuable insights.

Detailed BIOS information

GIGABYTE motherboard users can now check out the detailed BIOS information in real time via HWiNFO, such as status of toggles or tweakers, and the BIOS versions. No more reboot for BIOS check!

GIGABYTE Control Center

a unified software platform across a variety of GIGABYTE products.

RGB Fusion
customize the RGB lighting on the motherboard or devices that connect to it.

Showcase your style

Unleash your creativity with GCC's customizable lighting effects for your motherboard. Personalize your system with stunning visuals that reflect your individuality and style.

Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.

Supercharge your lighting options

Addressable RGB LED headers allow you to customize each LED individually (for ARGB GEN2 devices), and you can easily accomplish this using GCC.

*The information provided is for reference; please prioritize your specific setup and specifications.

- 1x RGB LED header
- 3x ARGB LED headers
