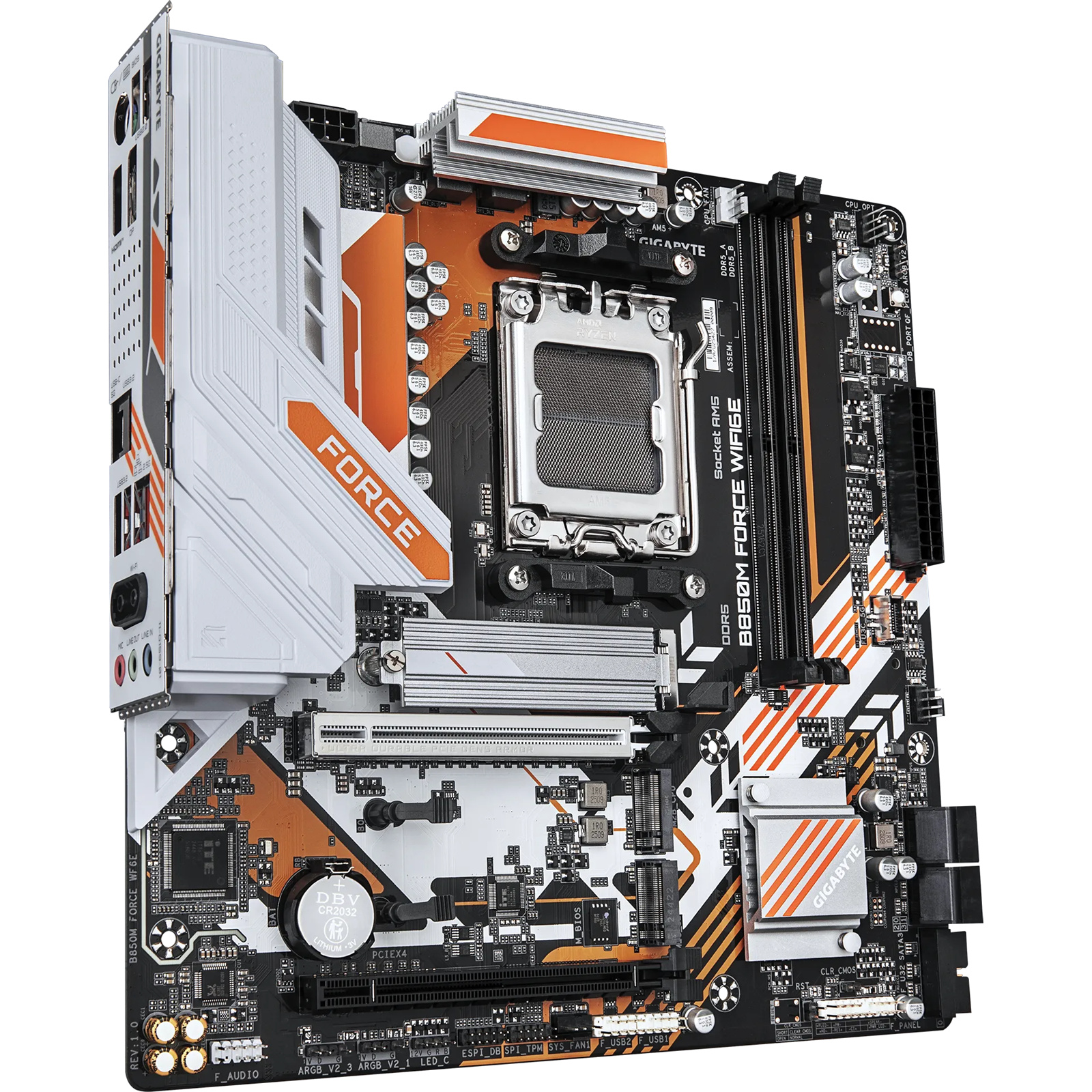

Gigabyte B850M FORCE WF6E MATX Motherboard AMD Socket AM5 - B850 Chipset - Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor - PCIE 5.0 - 3x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Heade

B850M FORCE WIFI6E

- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
- Extended Connectivity : DP, HDMI

Performance

Thermal

Connectivity

DIY Friendly

Brand New Gaming Experience - X3D Turbo Mode

Unleash New Era Gaming Performance with One-Click Activation.

X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

One-Click Acceleration:
Enhance Gaming FPS Performance with a single click.

- Enhance Up to 18%

* Differences in performance enhancement depending on the game.

Auto-Overclocking Software by AI model

Unleash Ultimate Performance with One-Click Activation.

Auto CPU & DDR5 Memory Boost

With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.

One-Click Acceleration:

Enhance CPU & DDR5 speeds with a single click.

- Real time Analyze
- OC accuracy UP
- EZ to Pro

- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage

Fast AI Performance

Accelerate AI processing for greater performance

- Up to 8% AI Performance*

- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing

*Tested by GeekBench AI PRO

Boost CPU & Memory Performance

Raise system speed and performance.

- Up to 9% CPU & Memory Performance Boost*

- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimized overall system performance

*Tested by AIDA64 Memory
**Tested by R23 Multi Core

Maximize performance in a snap

Enable users to easily become overclocking experts through a simple interface.

- EZ to Peak

Smart & Safe overclocking

Protect your motherboard through multiple over-temperature and over-current safeguards.

- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection

Less Power Usage Optimal power-efficiency

- Enhance Up to 9% CP/Per Watt*

With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

AI-Driven PCB Technology -Redefining PCB Design with Artificial Intelligence

AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

AI-ViaFusion Technology
Optimized vias & pads for signal integrity

AI-Trace Technology
Smart routing for peak performance

AI-Layer Technology
Tailored stackups for enhanced functionality

Key Features:
AI-Generated Design Recipes
AI-Driven Simulation
AI-Powered Signal Verification
Single and cross-layer signal optimization

AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity

Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

Best-in-class Signal Quality

- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance

AI-ViaFusion Technology - AI-Engineered Via Design Formula

AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

Optimized Via Design
Varied via sizes for optimized signal and power paths

Driven Pad Optimization
Custom pad sizes for performance and production balance

Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance

Unlock AI-Powered Performance with AI-ViaFusion Technology

Minimized Insertion Loss
Optimized vias reduce signal loss

Enhanced Return Loss
Precision impedance matching reduces reflections

Optimized Eye Diagram
Wider eye opening improves signal integrity

*Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.

AI-ViaFusion Technology - AI-Driven Revolution in PCB Design

Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.

AI-ViaFusion Technology optimizes PCB performance through:

Strategic Via Sizing
Optimized for varied signals across PCB

Enhanced Impedance Matching
Precise control via machine learning

Space Optimization
Maximized layout efficiency with signal integrity

AI-Trace Technology -Revolutionizing PCB Routing with AI

AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.

Fiber Weave Effect Mitigation
Optimized signal synchronization

Shielded Memory Routing
Optimized signal shielding and precision

Impedance-Optimized Topology
Refined traces with minimal resistance

Isolated Memory Routing
Optimized trace layout and layer separation

Daisy-Chained Routing
Innovative design eliminates signal bottlenecks

Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.

Mitigating Fiber Weave Effect with AI-Trace Technology

Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.

Benefits of Mitigation:

- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability

AI-Layer Technology -Next-Generation Multi-Layer PCB Design

AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.

Core Innovation:
AI-Optimized Layer Customized Design

- AI-optimized layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance

Key Features:
AI-optimized PCB layer and design material
Server-Grade Low Loss PCB*
Enhanced 2X Copper Technology

(* Low Loss for 8-layer PCB model only)

HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology - BIOS Efficiency Boost Up to 95%+

HyperTune BIOS uses AI to optimize MRC and adapt to signals. Z890 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.

AI-Enhanced Performance Optimization
- AI-driven MRC parameter optimization
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits

Experience GIGABYTE's AI-Enhanced HyperTune - Unleashing next-gen BIOS performance.

Infinite Memory Performance

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

- DDR5 Overclocking Up to 9600 MT/s

Exclusive BIOS Design

Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

AMD EXPO™ Settings
Optimize memory with AMD's user-friendly profiles.

Boost Performance
Boost Performance: Get the most out of your system's memory.

Supercharge DDR5 Performance with Custom Settings

AMD EXPO™ User Profile
Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.

Custom SPD Profiles
Create and manage two unique SPD profiles, ready to transfer between machines.

Fast Performance Simulation
Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.

Profile Management
Save and load your preferred memory settings, and share them with ease.

Enhance non-overclockable DDR5 Speeds
Push the limits of your non-overclockable DDR5 memory with boosted frequencies.

Instant Reset
One-click to clear and restore memory settings for quick adjustments.

Unmatched Hardware Excellence

Elevate your gaming with our state-of-the-art technology for a superior experience.

Shielded Memory Routing
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.

Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.

Express to PCIE5 Performance

The new GIGABYTE motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

- 8+2+2 Phases digital PWM + DrMOS
- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

* Photo for reference only

Fully Covered MOSFET Heatsink

3X Large Surface
Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection

Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance

Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences

Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads

Smart Fan 6 BIOS UI

Note: Images are for illustrative purposes and may differ based on your model.

Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes

Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts

EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve

Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

* Photo for reference only.

Benefit of Wi-Fi 6E

- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience

Wi-Fi 6E bring you the Ultimate VR experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

- Wi-Fi 6E compared to Wi-Fi 5 provide…
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.

2.5G LAN

design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

Hi-Fi Audio

High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ Debug Zone

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

* Photo for reference only.

Multi-key

A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.

RGB Switch
Disable all light displays on the motherboard.

Direct-To-BIOS
Access the BIOS settings directly without keyboard inputs.

Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.

DRAM Installtion Optimization Indicators​

The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

PCIe EZ-Latch
Easy ejection with single click for graphics cards

Multi-Theme

The newly exclusive grayscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.

AIO Fan Control

Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

* Support for AORUS WATERFORCE X II series only.

Refined BIOS Interface

GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access Function

GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

* Photo for reference only.

WIFI Compass

Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.

4D Mode (4 Detection Mode)

Built for everyday use.

*Images for reference only and may vary by model.

CD Mode (Continuous Detection Mode)

Designed for technical enthusiasts.

*Images for reference only and may vary by model.

Q-FLASH Auto Scan

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS

Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

STEP 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.

STEP 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.

STEP 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

AORUS & HWiNFO Co-branded OSD

AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

*Images for reference only and may vary by model.

Default AORUS skin

When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
*Images for reference only and may vary by model.

Memory Timings Monitor

Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

*Images for reference only and may vary by model.

Detailed BIOS information

GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

*Images for reference only and may vary by model.

RGB Fusion - Varnish your shine

Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

*The information provided is for reference; please prioritize your specific setup and specifications.

- 1x RGB LED header
- 3x ARGB LED headers
