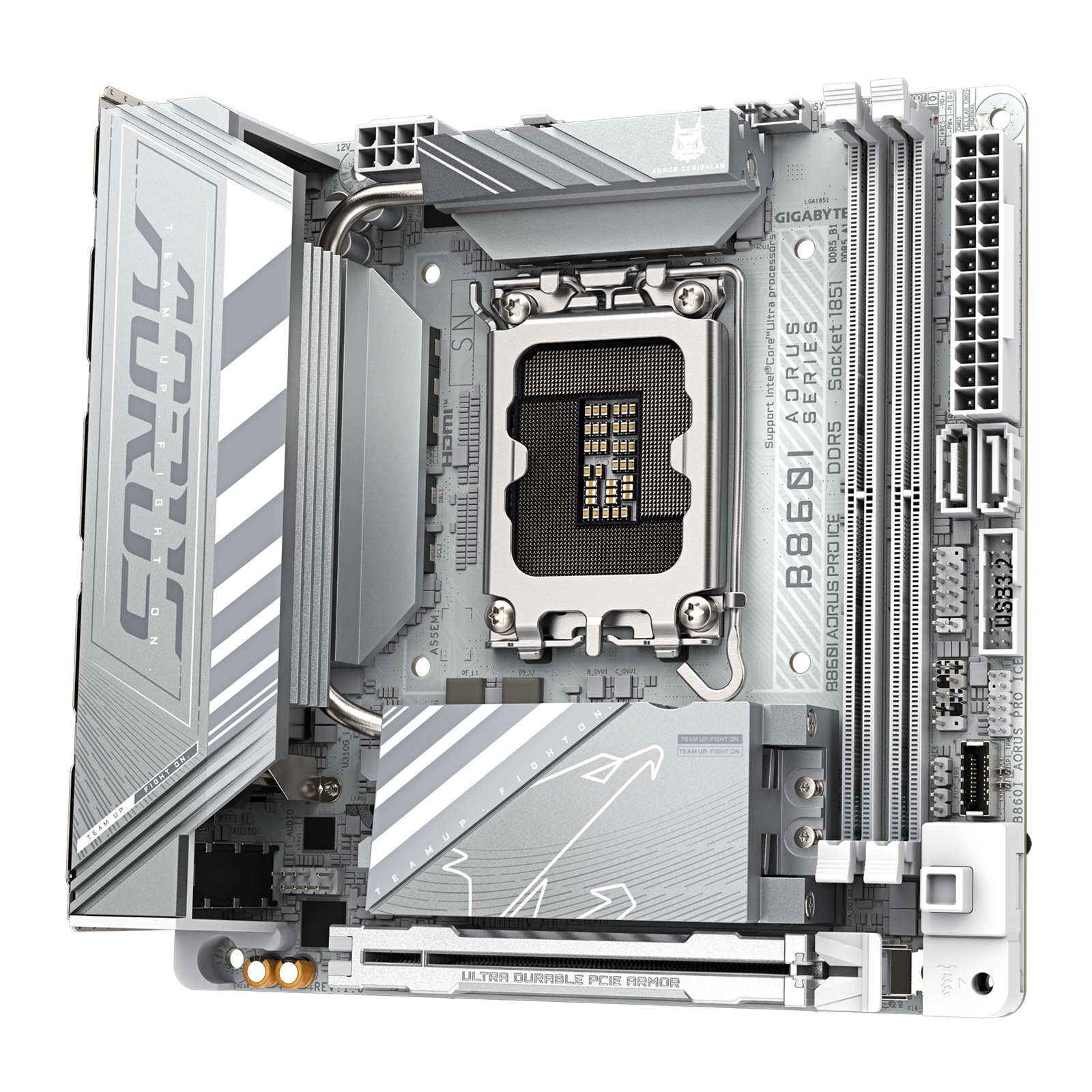

Gigabyte B860I AORUS PRO ICE ITX Motherboard For Intel Core Ultra LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7 + BT

Normally $396.90
Normally $396.90
You save $31
You save $31
AUD $ 365 .00
$ 365 .00
$365.00  +GST
$365.00

Gigabyte B860I AORUS PRO ICE ITX Motherboard For Intel Core Ultra LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7 + BT

PCIE 5.0 For The Latest Graphics Cards
  • Brand: Gigabyte
  • MPN: B860I AORUS PRO ICE
  • Part #: MBDGBM62400
  • UPC: 889523046722
1
Normally $396.90
Normally $396.90
You save $31
You save $31
PB Tech price
AUD $ 365 .00 $ 365 .00
Hurry, while stocks last!
In stock
Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$365.00  +GST
$365.00
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Gigabyte
  • MPN: B860I AORUS PRO ICE
  • Part #: MBDGBM62400
  • UPC: 889523046722

MB Socket

Intel LGA 1851

Chipset

B860

Form Factor

mini-ITX

Wireless Connectivity

WiFi 7 (802.11be) + Bluetooth

M.2 Connectors

2 Connectors

SATA Connectors

2 Connectors

LAN Ports

1x 2.5GbE Port

RAM Slots

2 Slots

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Building my new PC and I was wanting a functional motherboard but I didn't need all of the bells and whistles of a higher end board.

This motherboard had all of the features I nee ...view more"

By: ChrisB98 23/03/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Gigabyte B860I AORUS PRO ICE ITX Motherboard For Intel Core Ultra...
Gigabyte B860I AORUS PRO ICE ITX Motherboard For Intel Core Ultra LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 1x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 7 + BT
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K
Total:
AUD $ 986 .54
AUD $ 986 .54
Buy together and save $8.03 $8.03
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included

Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series...

Ships today
$476.03 $476.03
AUD

$468.00

$468.00

G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V - 36-36-36-96 - F5-6000J3636F16GX2-RS5K

G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V...

Ships on 23 Sep
AUD

$153.54

$153.54

You save $10 You save $10

Features

Infinite Memory Performance

Elite motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play Elite Series, steady power keeps your gaming smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Comprehensive Thermal

Elite motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

4X larger surface area for enhanced heat dissipation

- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.

True one-piece heatsink design

- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance

Multi-cut design with channels for improved airflow

- More grooves, more airflow.
- Better airflow, cooler system.

5 W/mK thermal pad for efficient thermal conductivity

- High-performance thermal pad
- Keeps your system cool and running at peak efficiency

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

RL-ILM design

The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.

Future Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Specifications

CPU

LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset

Intel ® B860 Express Chipset

Memory

Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices

USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

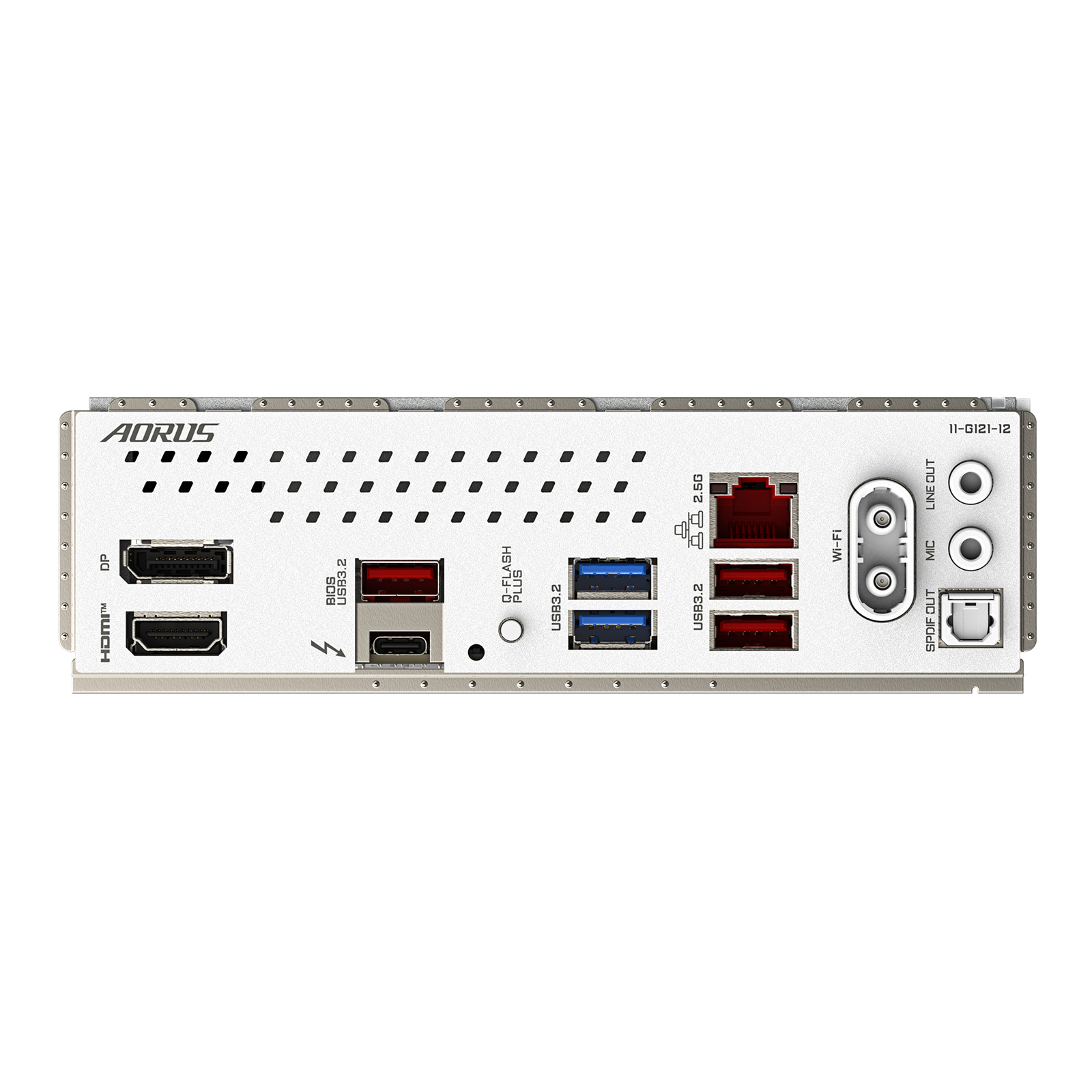

Back Panel Connectors

1 x DisplayPort*
1 x HDMI port*
1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
* Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Operating System

Support for Windows 11 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm

Manufacturer Part No:
B860I AORUS PRO ICE
Brand:
Gigabyte
Product Type:
ITX Motherboard
UPC
889523046722
Product Family:
-
Shipping Weight:
1.3 kg
PB Part No:
MBDGBM62400
Product Model:
B860I AORUS PRO ICE
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
