GigaIPC Intel Smart Display Module SDM-1135G7L Intel 11th i5-1135G7 CPU

PB Tech price
PB Tech price
AUD $ 870 .49
$ 870 .49
$870.49  +GST
$870.49

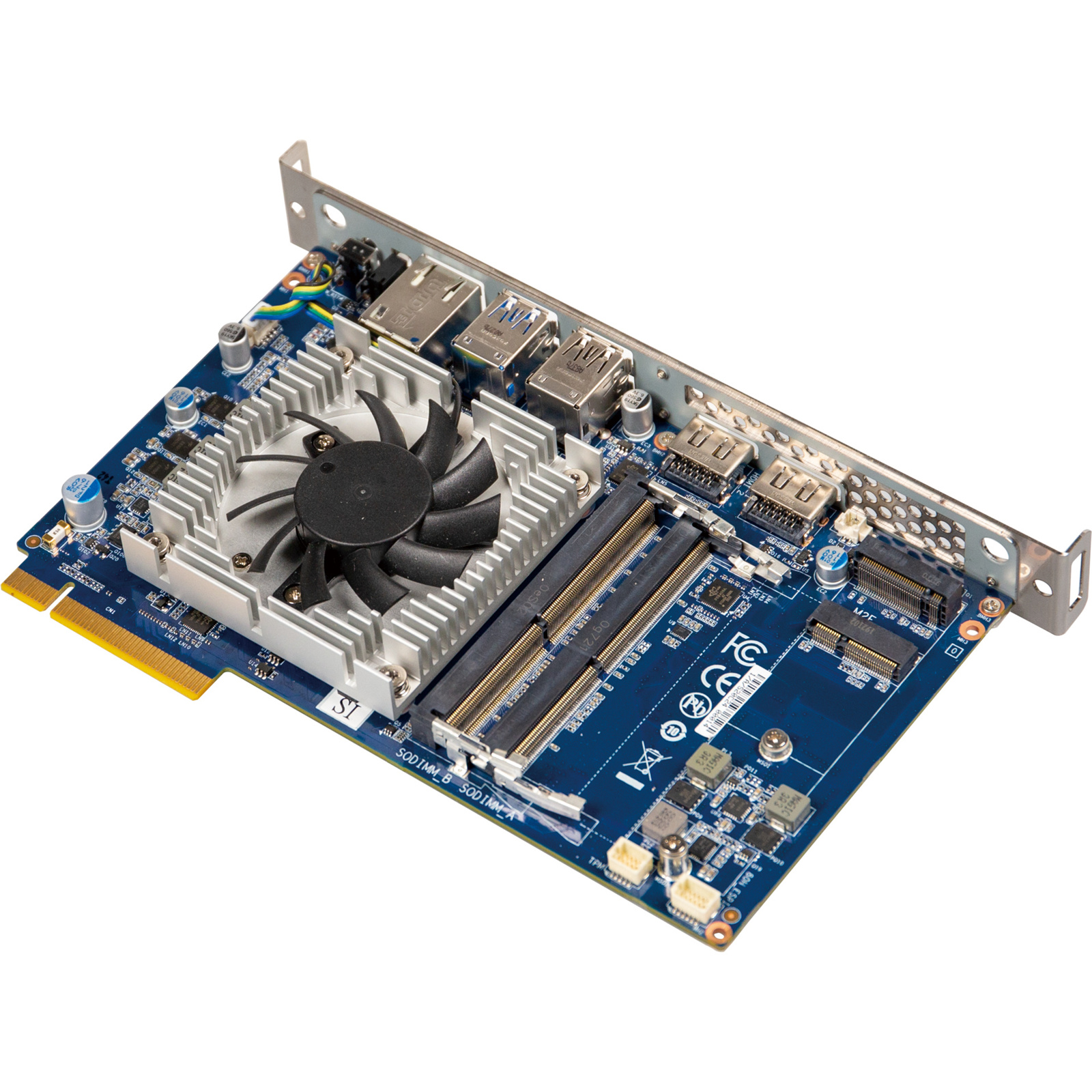

GigaIPC Intel Smart Display Module SDM-1135G7L Intel 11th i5-1135G7 CPU

  • Brand: GigaIPC
  • MPN: 9MTGU5ALMR-SI
  • Part #: MBDGICM10006
  • UPC:
NEW ARRIVAL
PB Tech price
AUD $ 870 .49 $ 870 .49


Delivery: Order now and it ships on 07 Jul
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$870.49  +GST
$870.49

Features

GigaIPC Intel® Smart Display Module with Intel® 11th Generation Core™ i5-1135G7 Processor

SDM-1135G7L is the latest Intel® Smart Display Module (SDM) powered by 11th generation Intel® Core™ i5-1135G7 processor and Intel® Iris Xe Graphics to support 4 x display outputs up to 4K solutions on Interactive Whiteboard, digital signage, menu board, broadcasting display system...etc in smart retail market.

It provides adequate I/O ports of 1 x GbE LAN Port, 3 x USB 3.2 Gen 1, 1 x USB 2.0 port, and enable choices of optional memory speed and capacity, various storage and WiFi module through M.2 connectors, and mostly important, 4 x 4K display outputs via 1 x HDMI, 1 x DP, and 2 x HDMI ports in the rear I/O.  This all-in-one display module is perfect for SDM-complaint display monitor for space-limited environment, all you need to do is plug and play, easy installation as it is!!!  In case any hardware failure or upgrade request, it can be easily removed or replaced without any complicated process.  Users can also update media contents or software through Internet connectivity remotely to save time and costs.

- Intel® Core™ i5-1135G7 Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 1 x GbE LAN Port
- 3 x USB 3.2 Gen 1
- 1 x USB 2.0
- Environment : Operation 0°C to 55°C
- Support 4K/60Hz, HDCP v2.2

Specifications

Form Factor

SDM-Large
175W x 100D(mm)

CPU

Intel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.20 GHz
TDP 28W

Socket

1 x FCBGA1449

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)

Video

Integrated Graphics Processor - Intel® Iris X? Graphics:
1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
(4 independent display outputs)

Audio

Intel® Integrated Audio

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key

Rear l/O

2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button

TPM

1 x TPM header

OS Compatibility

Windows® 10 (x64)

Operating Properties

Operating temperature: 0°C to 55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Packing Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)

Order Information

9MTGU5ALMR-SI (Box packing)

Optional Kit

TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1
External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2
External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2
Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:
DIMM2 PAD P/N: 25ST3-200086-T5R*1
M.2 Standoff P/N: 12KSF-F10303-20R*1
M.2 Screw P/N: 25KSG-130048-S0R*1
M.2 Bracket P/N: 25ST1-1231Z0-S7R*1

Manufacturer Part No:
9MTGU5ALMR-SI
Brand:
Product Type:
-
UPC
-
Product Family:
Intel Smart Display Module
Shipping Weight:
1 kg
PB Part No:
MBDGICM10006
Product Model:
SDM-1135G7L
