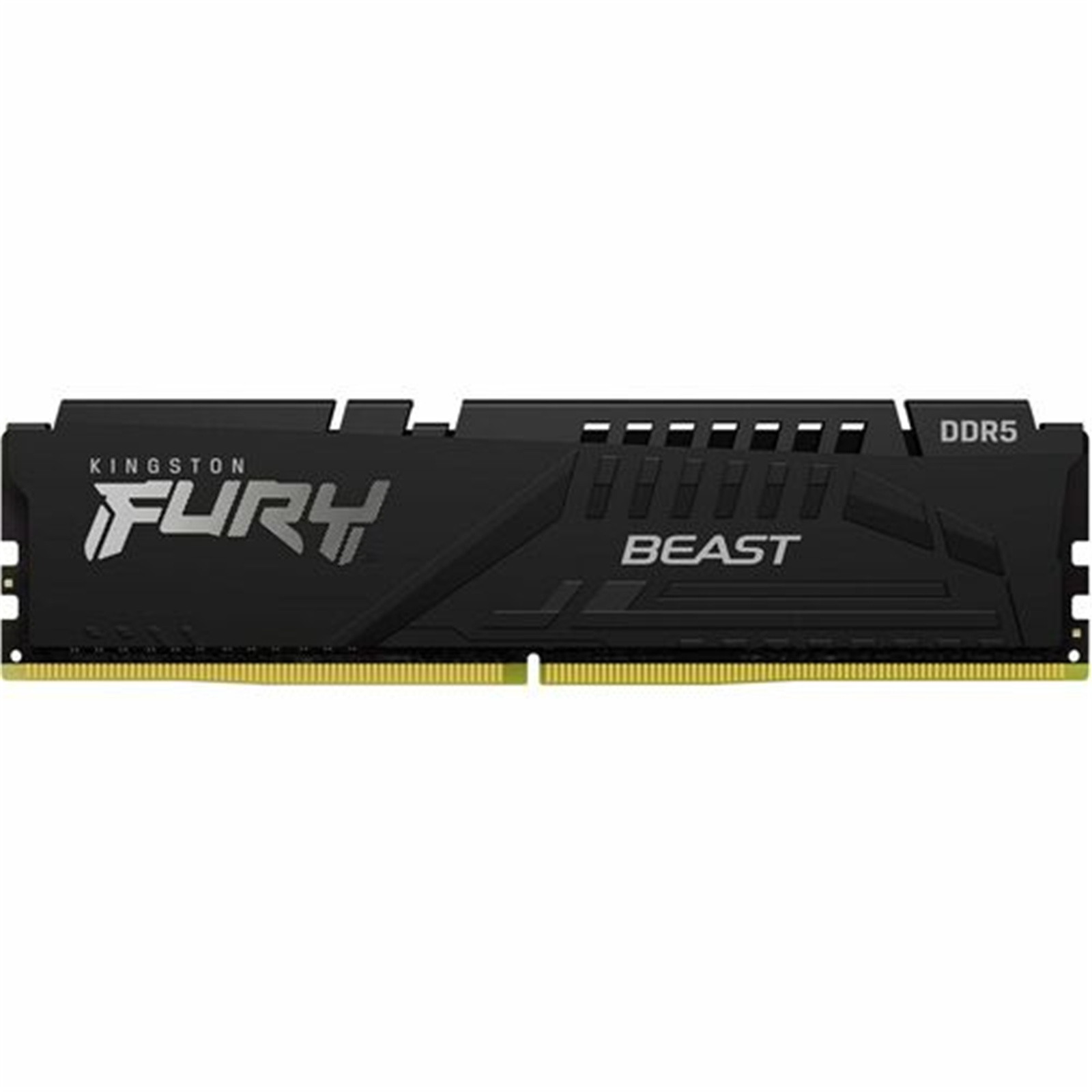

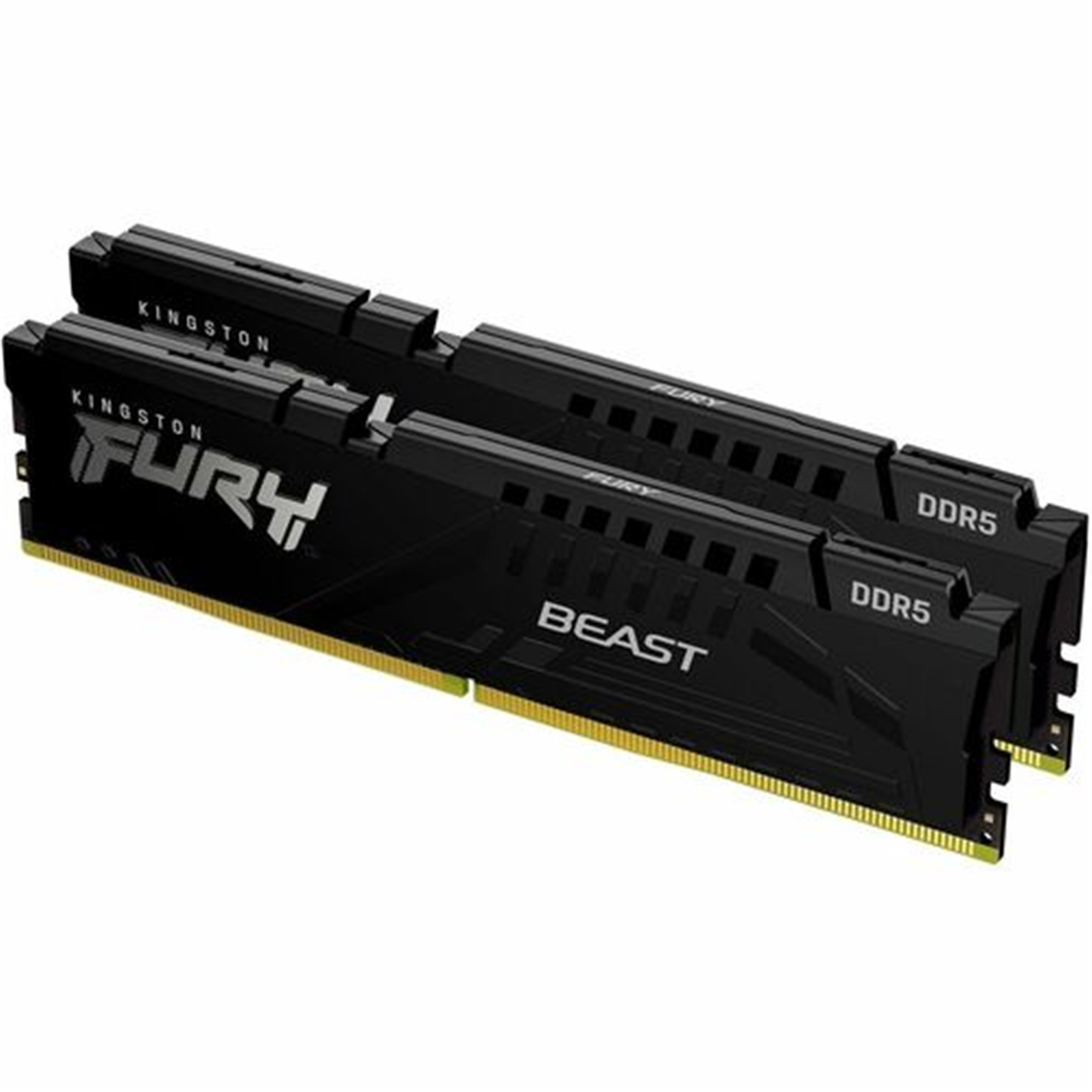

Kingston FURY KF560C30BBK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37" (34.9mm), w/heatsink
No matter how heavy and numerous the applications that you are using, 6000 MHz memory speed will run them smoothly
DIMM 32 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Up to 6000 MHz speed with CL30 latency for playing the latest games and using heavy software
32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
Specifications
Physical Characteristics
Number of Pins
288-pin
Thickness
6.6 mm
Form Factor
DIMM
Length
133.4 mm
Width
34.9 mm
General Information
Product Type
RAM Module
Manufacturer Part Number
KF560C30BBK2-32
Manufacturer Website Address
http://www.kingston.com
Manufacturer
Kingston Technology Company
Product Name
32GB (2x16GB) DDR5 6000MT/s CL30 FURY Beast Black XMP
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Reviews
There are currently no reviews for this product
Do you own this product?
Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au
Returns & Warranty
7 day right of exchange
If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.
To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.
If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.
Please note, items purchased on finance cannot be exchanged for a gift card.
Hassle free warranty service
If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.
If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.
Date Created: 17:29, 04-09-2025 Product URL: https://www.pbtech.com/product/MEMKIN6198818
Features
Kingston FURY KF560C30BBK2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
FEATURES
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37" (34.9mm), w/heatsink
No matter how heavy and numerous the applications that you are using, 6000 MHz memory speed will run them smoothly
DIMM 32 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
Up to 6000 MHz speed with CL30 latency for playing the latest games and using heavy software
32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
Specifications
Physical Characteristics
Number of Pins
288-pin
Thickness
6.6 mm
Form Factor
DIMM
Length
133.4 mm
Width
34.9 mm
General Information
Product Type
RAM Module
Manufacturer Part Number
KF560C30BBK2-32
Manufacturer Website Address
http://www.kingston.com
Manufacturer
Kingston Technology Company
Product Name
32GB (2x16GB) DDR5 6000MT/s CL30 FURY Beast Black XMP
Product Line
FURY Beast
Brand Name
Kingston
Technical Information
CAS Latency
CL30
Error Checking
Non-ECC
Number of Modules
2 x 16GB
Signal Processing
Unbuffered
Memory Speed
6000 MHz
Memory Size
32 GB
Memory Technology
DDR5 SDRAM
Memory Standard
DDR5-6000/PC5-48000
Memory Voltage
1.40 V
Memory Rank
Single-rank
