Insta360 Mic Pro 1 TX + 1 RX
Insta360 Mic Pro 1 TX + 1 RX
- Brand: Insta360
- MPN: 6942590200788
- Part #: MICINS1001
- UPC: 842126120671
- Brand: Insta360
- MPN: 6942590200788
- Part #: MICINS1001
- UPC: 842126120671
Features
Capture it all.

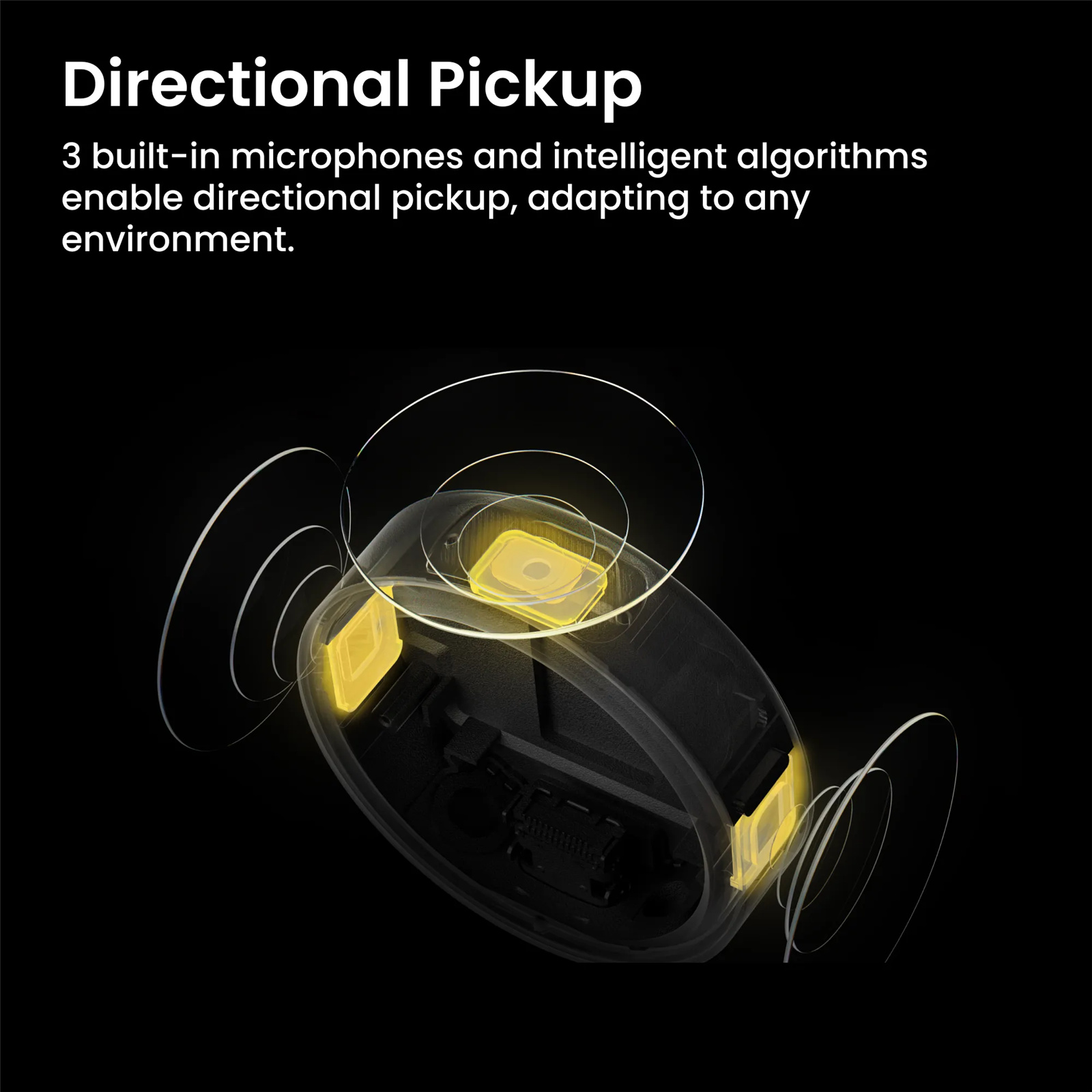

Insta360 Mic Pro comes with three microphones built in, delivering pro audio quality1. Intelligent algorithms enable directional pickup, adapting to any environment.
Truly intelligent. Truly natural.
Powered by an industry-leading NPU chip with breakthrough AI performance. Enjoy crisp, natural, high‑fidelity audio with an advanced noise canceling algorithm.
Prevent Audio Clipping (Automatic)
Automatic keeps your recordings safe from clipping and gives you a smoother sound. Ideal for scenarios with large fluctuating levels and background noise.
Auto Gain Control (Dynamic)
Dynamic automatically balances volume changes, letting your voice come through for a more natural sound. Best for controlled and quiet indoor scenarios.
Multi-cam audio, all at once.
One Transmitter pairs with up to four Receivers, delivering perfectly synced audio to four cameras simultaneously, so you can have a quick setup and edit with ease.
Multi-person interviews, fully in control.
One Receiver supports connection with up to four Transmitters at once, capturing four independent audio tracks in sync, making multi-person interviews effortlessly efficient and organized. Customize names or IDs on each transmitter's display to easily identify speakers during live monitoring, and match up internal recordings in post-production.
Four-Channel Output
Select Four-Channel Mode and connect to compatible Sony cameras via the Camera Adapter or use with computer recording software. Audio from all four Transmitters is then recorded onto separate tracks, giving more freedom and flexibility in post-production. Perfect for interviews.
Flexible Settings
Choose from Mono or Stereo Modes2. In Mono, audio from both Transmitters are mixed. In Stereo, audio from the Transmitters are provided as separate tracks, allowing for separate editing in post.Safety Track Mode records a second track at -6dB as a backup. This prevents audio distortion when your sound source gets loud unexpectedly.
Never lose a recording.
Insta360 Mic Pro Transmitter has the capability to internally record audio using its onboard memory3, working flawlessly as a backup recorder. Avoid the risk of losing footage due to wireless interference or camera failure.
Fast file export.
Connect the Transmitter to your computer or phone via USB-C to quickly export your audio files.
Adjustable Receiver
An OLED touchscreen displays real-time information such as battery level and connection status. Swipe to enter settings, where you can adjust parameters using touch or the auxiliary dial for ease of use.
Insta360 app & Firmware Updates
Also supports adjusting settings, customizing E-ink wallpapers and updating firmware through the Insta360 App, keeping your device up-to-date with the latest features.
Sync it all up.
The Receiver supports timecode input/output, simplifying synchronization with recording devices like cameras and Transmitters, making multi-camera footage alignment effortless in post-production.
Create all day long.
Enjoy up to 30 hours6 of battery life when using the Transmitter with the included Charging Case (Transmitter offers up to 10 hours, Receiver up to 11 hours7).
Charges fast and lasts.
Just a 5-minute charge gives you 1.5 hours of power8, with a full charge in only 60 minutes9. Stay energized, keep creating!
Move freely, capture clearly.
Incredibly clear and stable wireless audio with a range of up to 400 meters10 in open, interference-free spaces. No cables, no limits. Stable sound that moves with you, wherever the shot goes.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Microphones
Razer Seiren v3 Mini USB Microphone
RODE PSA1 Studio Boom Arm for Broadcast Microphones Best for...
JBL PartyBox Wireless Digital Microphone System (2nd Gen) 2-pack ...
Bracom MPS06-1 Professional Microphone Boom Arm Stand
RODE NT-USB Mini USB Microphone 3.5mm Headphone Monitoring Jack,...
Insta360 Mic Pro 1 TX + 1 RX
- Brand: Insta360
- MPN: 6942590200788
- Part #: MICINS1001
- UPC:842126120671
Product URL: https://www.pbtech.com/product/MICINS1001/Insta360-Mic-Pro-1-TX--1-RX
Features
Capture it all.
Insta360 Mic Pro comes with three microphones built in, delivering pro audio quality1. Intelligent algorithms enable directional pickup, adapting to any environment.
Truly intelligent. Truly natural.
Powered by an industry-leading NPU chip with breakthrough AI performance. Enjoy crisp, natural, high‑fidelity audio with an advanced noise canceling algorithm.
Prevent Audio Clipping (Automatic)
Automatic keeps your recordings safe from clipping and gives you a smoother sound. Ideal for scenarios with large fluctuating levels and background noise.
Auto Gain Control (Dynamic)
Dynamic automatically balances volume changes, letting your voice come through for a more natural sound. Best for controlled and quiet indoor scenarios.
Multi-cam audio, all at once.
One Transmitter pairs with up to four Receivers, delivering perfectly synced audio to four cameras simultaneously, so you can have a quick setup and edit with ease.
Multi-person interviews, fully in control.
One Receiver supports connection with up to four Transmitters at once, capturing four independent audio tracks in sync, making multi-person interviews effortlessly efficient and organized. Customize names or IDs on each transmitter's display to easily identify speakers during live monitoring, and match up internal recordings in post-production.
Four-Channel Output
Select Four-Channel Mode and connect to compatible Sony cameras via the Camera Adapter or use with computer recording software. Audio from all four Transmitters is then recorded onto separate tracks, giving more freedom and flexibility in post-production. Perfect for interviews.
Flexible Settings
Choose from Mono or Stereo Modes2. In Mono, audio from both Transmitters are mixed. In Stereo, audio from the Transmitters are provided as separate tracks, allowing for separate editing in post.Safety Track Mode records a second track at -6dB as a backup. This prevents audio distortion when your sound source gets loud unexpectedly.
Never lose a recording.
Insta360 Mic Pro Transmitter has the capability to internally record audio using its onboard memory3, working flawlessly as a backup recorder. Avoid the risk of losing footage due to wireless interference or camera failure.
Fast file export.
Connect the Transmitter to your computer or phone via USB-C to quickly export your audio files.
Adjustable Receiver
An OLED touchscreen displays real-time information such as battery level and connection status. Swipe to enter settings, where you can adjust parameters using touch or the auxiliary dial for ease of use.
Insta360 app & Firmware Updates
Also supports adjusting settings, customizing E-ink wallpapers and updating firmware through the Insta360 App, keeping your device up-to-date with the latest features.
Sync it all up.
The Receiver supports timecode input/output, simplifying synchronization with recording devices like cameras and Transmitters, making multi-camera footage alignment effortless in post-production.
Create all day long.
Enjoy up to 30 hours6 of battery life when using the Transmitter with the included Charging Case (Transmitter offers up to 10 hours, Receiver up to 11 hours7).
Charges fast and lasts.
Just a 5-minute charge gives you 1.5 hours of power8, with a full charge in only 60 minutes9. Stay energized, keep creating!
Move freely, capture clearly.
Incredibly clear and stable wireless audio with a range of up to 400 meters10 in open, interference-free spaces. No cables, no limits. Stable sound that moves with you, wherever the shot goes.
Specifications
General
Polar Pattern
Omnidirectional
Selectable Pickup Modes
Omnidirectional/Super-directional/Cardioid/Figure-8
Frequency Response
Low Cut Off: 20Hz-20kHz
Low Cut On: 100Hz-20kHz
Microphone Sensitivity
Microphone Capsule: -38±1dBV@1kHz, 94dB SPL
Signal-to-Noise Ratio (SNR)
72dB (A-weighted)
Maximum Sound Pressure Level (SPL)
130dB SPL@10% THD
Sampling Frequency
48kHz
Bit Depth
32-bit float/24-bit
*32-bit float only applies to Transmitter's internal recordings.
Maximum Input Level (3.5 mm)
-8dBV
Equivalent Noise
22dB (A-weighted)
Monitor Interface Output Power
Max Output Power: 20mW@1kHz，32 Ω
Max Transmission Range
400m
*400 meters is measured when the transmitter is connected to the receiver in an open, unobstructed, and interference-free environment. When the transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors.
Transmitter
Dimensions
38 × 12.2mm (Diameter×H)
Weight
19.7g (Without Clip)
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Wireless Mode Operating Frequency
2.400-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency
2.400-2.4835GHz
Bluetooth Transmitter Power (EIRP)
BLE: ≤ 20dBm
BR/EDR: ≤ 20dBm
Battery Type
Li-ion
Battery Capacity
240mAh
Battery Energy
0.94Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0℃ to 45℃
Operating Temperature
-10℃ to 45℃
Charging Time
Fully charged in approximately 1 hour, 80% in about 24 minutes.
*Tested in a lab environment with a 5V/3A charger.
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
*Tested in a lab environment with the Transmitter's battery below 50%, charged with a 5V/3A charger. Noise cancelation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Operating Time
10 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancelation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
Onboard Memory
32 GB
Internal Recording Available Duration
24-bit (Mono Internal Recording): 60 hours
24-bit (Stereo Internal Recording): 29.7 hours
32-bit (Mono Internal Recording): 44.8 hours
32-bit (Stereo Internal Recording): 22.2 hours
Receiver
Dimensions
55.80×27.65×21.00 mm (L×W×H)
Weight
29.8g
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400 GHz-2.4835 GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Operating Frequency
2.400GHz-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency```markdown
General
Polar Pattern
Omnidirectional
Selectable Pickup Modes
Omnidirectional/Super-directional/Cardioid/Figure-8
Frequency Response
Low Cut Off: 20Hz-20kHz
Low Cut On: 100Hz-20kHz
Microphone Sensitivity
Microphone Capsule: -38±1dBV@1kHz, 94dB SPL
Signal-to-Noise Ratio (SNR)
72dB (A-weighted)
Maximum Sound Pressure Level (SPL)
130dB SPL@10% THD
Sampling FrequencyGeneral
Polar Pattern
Omnidirectional
Selectable Pickup Modes
Omnidirectional/Super-directional/Cardioid/Figure-8
Frequency Response
Low Cut Off: 20Hz-20kHz
Low Cut On: 100Hz-20kHz
Microphone Sensitivity
Microphone Capsule: -38±1dBV@1kHz, 94dB SPL
Signal-to-Noise Ratio (SNR)
72dB (A-weighted)
Maximum Sound Pressure Level (SPL)
130dB SPL@10% THD
Sampling Frequency
48kHz
Bit Depth
32-bit float/24-bit
*32-bit float only applies to Transmitter's internal recordings.
Maximum Input Level (3.5 mm)
-8dBV
Equivalent Noise
22dB (A-weighted)
Monitor Interface Output Power
Max Output Power: 20mW@1kHz，32 Ω
Max Transmission Range
400m
*400 meters is measured when the transmitter is connected to the receiver in an open, unobstructed, and interference-free environment. When the transmitter is connected to Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range is about 100 meters, which may be affected by device orientation, camera shooting modes, and other factors.
Transmitter
Dimensions
38 × 12.2mm (Diameter×H)
Weight
19.7g (Without Clip)
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400-2.4835GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Wireless Mode Operating Frequency
2.400-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency
2.400-2.4835GHz
Bluetooth Transmitter Power (EIRP)
BLE: ≤ 20dBm
BR/EDR: ≤ 20dBm
Battery Type
Li-ion
Battery Capacity
240mAh
Battery Energy
0.94Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0℃ to 45℃
Operating Temperature
-10℃ to 45℃
Charging Time
Fully charged in approximately 1 hour, 80% in about 24 minutes.
*Tested in a lab environment with a 5V/3A charger.
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
*Tested in a lab environment with the Transmitter's battery below 50%, charged with a 5V/3A charger. Noise cancelation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Operating Time
10 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancelation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
Onboard Memory
32 GB
Internal Recording Available Duration
24-bit (Mono Internal Recording): 60 hours
24-bit (Stereo Internal Recording): 29.7 hours
32-bit (Mono Internal Recording): 44.8 hours
32-bit (Stereo Internal Recording): 22.2 hours
Receiver
Dimensions
55.80×27.65×21.00 mm (L×W×H)
Weight
29.8g
Wireless Mode
GFSK 1Mbps and 2Mbps
Equivalent Isotropic Radiated Power (EIRP)
2.400 GHz-2.4835 GHz: ≤ 20dBm (FCC/CE/SRRC/MIC)
Operating Frequency
2.400GHz-2.4835GHz
Bluetooth Protocol
Bluetooth V5.4
Bluetooth Operating Frequency
2.400GHz-2.4835GHz
Bluetooth Transmitter Power (EIRP)
BLE: ≤ 20dBm
Battery Type
Li-ion
Battery Capacity
410mAh
Battery Energy
1.60Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0℃ to 45℃
Operating Temperature
-10℃ to 45℃
Charging Time
Fully charged in approximately 60 minutes, 80% in about 30 minutes.
*Tested in a lab environment with a 5V/3A charger.
5-Minute Fast Charge
A 5-minute charge gives 1.5 hours of use.
*Tested in a lab environment with the Receiver's battery below 50%, charged with a 5V/3A charger. Noise cancelation and internal recording on Transmitter are off. Close-range recording in an interference-free environment, with the Transmitter connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Operating Time
11 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with noise cancelation and internal recording off under interference-free conditions, with both Transmitters connected to the Receiver and Receiver connected to a camera via the 3.5mm camera audio cable.
Charging Case
Dimensions
122.00×61.90×42.20 mm (L×W×H)
Weight
174g (Charging Case only, without included accessories)
Battery Type
Li-ion
Battery Capacity
2815mAh
Battery Energy
10.951Wh
Battery Voltage
3.89V
Charging Specification
Max 5V
Charging Temperature
0℃ to 45℃
Operating Temperature
-10℃ to 45℃
Operating Time with Charging Case
30 hours
*Measured using Insta360 Mic Pro (2 TX + 1 RX), with the Charging Case fully charged, noise cancelation and internal recording on the Transmitters are off. Close‑range recording in an interference‑free environment, with both Transmitters connected to the Receiver and the Receiver connected to a camera via a 3.5mm camera audio cable.
Charging Time
Approx. 2 hours
Charging Cycles for TX and RX
When charging two Transmitters and one Receiver simultaneously, a fully charged charging case can fully charge them for approx. 2 times.
Timecode
Supported Frame Rate
23.98F, 24F, 25F, 29.97F, 29.97DF, 30F, 30DF, 50F, 60F
Offset
Deviation less than 1 frame within 24 hours*
Input
LTC
Input Port
3.5 mm TRS
Input Voltage
Not greater than +6dBu
Output
LTC, Audio-TC
Output Port
3.5 mm TRS, USB-C
