Brateck LP73-69T 60"-120" Heavy Duty Tilt TV Wall Mount Bracket. Supports Max Load 120kgs, Toolless Tilt, Automatic Spring Locks with Quick Release, Open Architecture, Max VESA 900x600. Black
- Brand: Brateck
- MPN: LP73-69T
- Part #: MOABRA0496

Product URL: https://www.pbtech.com/product/MOABRA0496/Brateck-LP73-69T-60-120-Heavy-Duty-Tilt-TV-Wall-Mo
Features

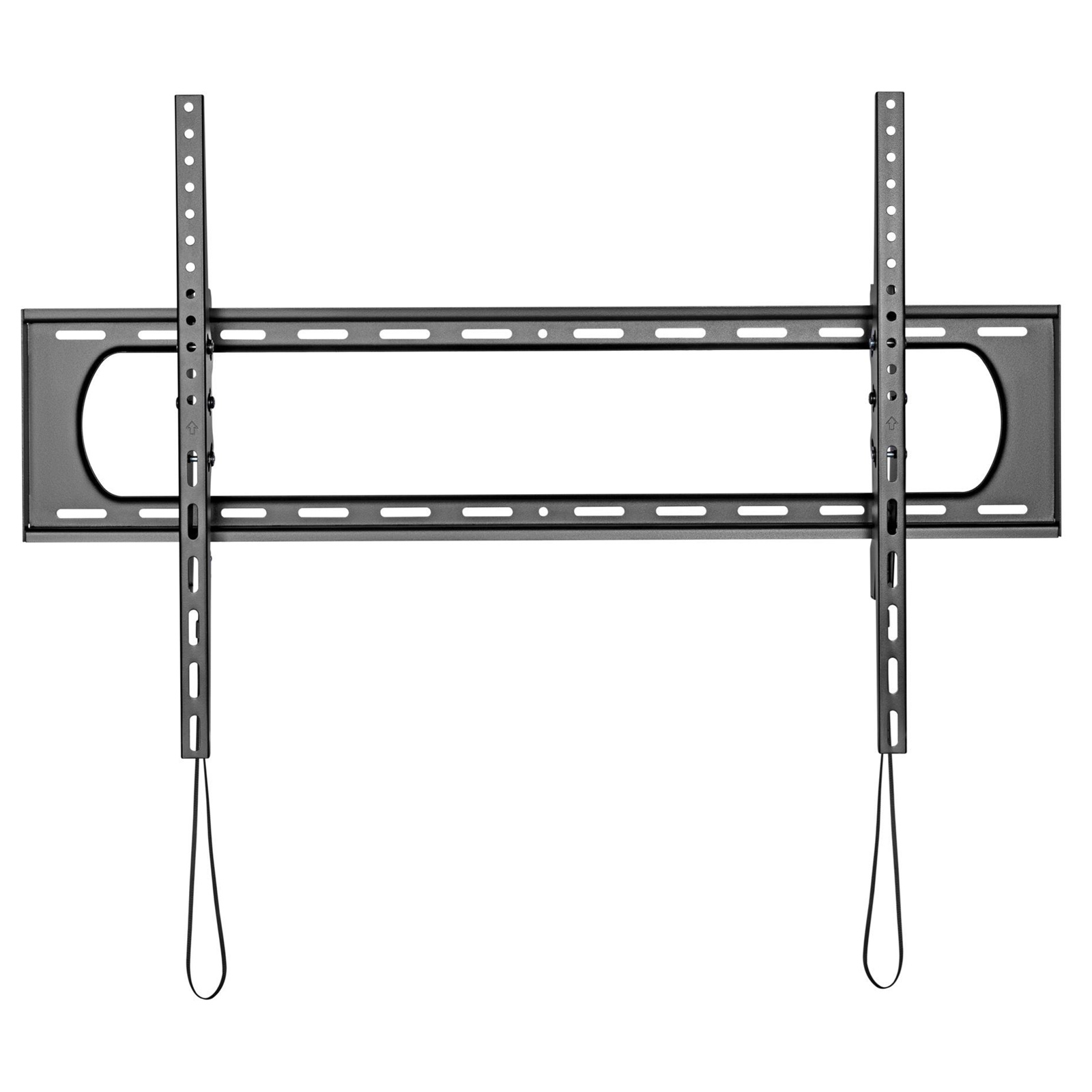

Brateck 60-120" Heavy Duty Tilt TV Wall Mount Bracket
To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-69T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 120kg to firmly hold 60"~120" TVs. Ample space in the centre is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install.
- Heavy-Duty Steel Construction: provides extra strength and durability
- Toolless Tilt: allows for effortless positioning
- Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
- Open Architecture: provides increased ventilation and easier access to wires
How to Install
Specifications
Manufacturer
Brateck
MPN
LP73-69T
Product Category
Tilt TV Wall Mount
Rank
Standard
Material
Steel
Metal Sheet Thickness
Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet)
Surface Finish
Powder Coating
Color
Fine Texture Black
Dimensions
80x1005x602mm (3.1"x39.6"x23.7")
Fit Screen Size
60"-120"
Fit Curved TV
Yes
Mounting Hole Pattern
VESA & Universal
VESA Compatible
50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,400x600,600x400,700x400,800x400,600x600,800x500,800x600,900x600
Max. Mounting Hole
965x602mm
Weight Capacity
120kg (264lbs)
Strength Tested
4 Times Approved
Profile
80mm (3.1")
Tilt Range
+10°~-10°
Screen Freely Tilting
Yes
Installation
Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type
Detachable Panel
Wall Plate Type
Fixed Wall Plate
AV Component Shelf
No
Direction Indicator
Yes
Cable Management
No
Anti-theft
No
Bubble Level
Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package
Normal/Ziplock Polybag,Compartment Polybag
Certification
UL
Silk Screen
Can be silkscreen printed
