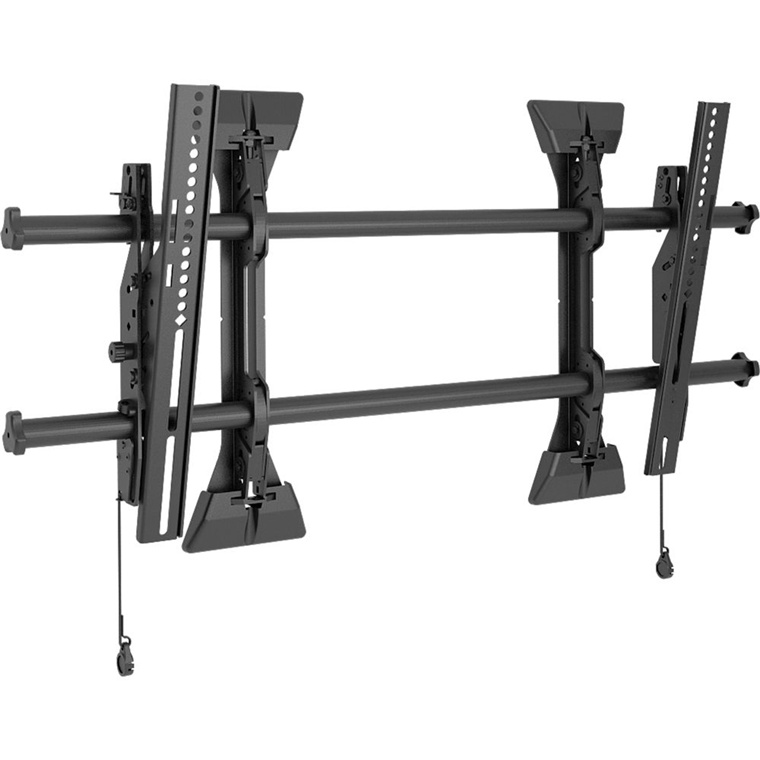

Chief LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount

Normally $566.96

You save $34

AUD $ 532 .96

$ 532 .96

This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

Chief LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount

Brand: Chief
MPN: LTM1U
Part #: MOACHI0001
UPC: 841872163277

PB Tech price

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 29 Apr

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Chief
MPN: LTM1U
Part #: MOACHI0001
UPC: 841872163277

Be the first to review this product

Max Screen Size Supported

63 inches

Max Weight Supported

Min Screen Size Supported

37 inches

Returns & Warranty Bulk Quote Print Page

Features

Chief LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favourites like Centerless shift, Centris tilt, ControlZone levelling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Features

- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Levelling for post-installation fine tuning of height and levelling
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centring
- Centris low-profile tilt uses the centre of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away

Specifications

Compatibility

Supported Screen Sizes

37 to 63" / 94.0 to 160.0 cm

Supported Weight Capacity

200 lb / 90.7 kg

Mounting-Hole Pattern

100 x 100 to 830 x 400 mm

Number of Displays Supported

Adjustments

Tilt Adjustment

-12 to +2°

Lateral Shift

17.4" / 44.1 cm

Vertical Adjustment

1.0" / 2.5 cm

Orientation

Landscape

General

Security

Padlock Supported

Stud Distance

16.0" / 40.6 cm
20.0" / 50.8 cm
24.0" / 61.0 cm
32.0" / 81.3 cm

Distance from Mounting Surface

2.0" / 5.1 cm

Dimensions

17 x 34.75 x 2" / 43.2 x 88.3 x 5.1 cm

Manufacturer Part No:

LTM1U

Brand:

Chief

Product Type:

UPC

841872163277

Product Family:

Shipping Weight:

15 kg

PB Part No:

MOACHI0001

Product Model:

Warranty: 12 months *
