Ergotron 45-296-026 HD Interactive Arm LCD Wall Mount
- Brand: Ergotron
- MPN: 45-296-026
- Part #: MOAERG1845971

Product URL: https://www.pbtech.com/product/MOAERG1845971/Ergotron-45-296-026-HD-Interactive-Arm-LCD-Wall-Mo
Features
Interactive Arm, HD

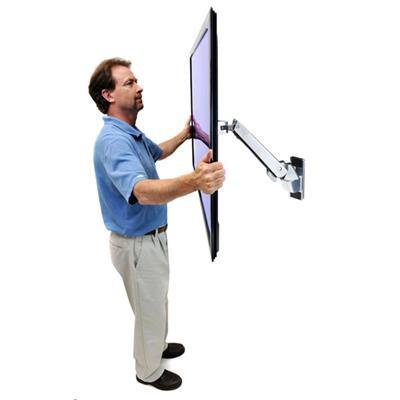

Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
- Patented Constant Force™ technology enables light-touch adjustments
- Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
- The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
- Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for TVs/displays mounted high on the wall
- Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
- Tilt and pan for maximum viewing flexibility
- Level the screen at any position with +/- 5º of post-installation rotation
- Cable management clips on the underside of the arm route and hide wires
- Passes Ergotron's 7,500-cycle motion test, which ensures a minimum of five years trouble-free height adjustment
Click here for installation guide
Specifications
Compatibility
Supported Screen Sizes 30 to 55" / 76.2 to 139.7 cm
Weight Capacity
40 lb / 18.2 kg
Mounting-Hole Pattern
200 x 100 to 600 x 200 mm
Number of Displays Supported
1
Adjustments
Rotation Adjustment -5 to +5°
Orientation Landscape, Portrait
Distance from Mounting Surface
5.5 to 24.00" / 14.00 to 61.00 cm
