StarTech VS421HDDP Video Switch - HDMI / DisplayPort - 4K60

Normally $157.39
Normally $157.39
You save $13
You save $13
AUD $ 143 .64
$ 143 .64
$143.64  +GST
$143.64  inc GST

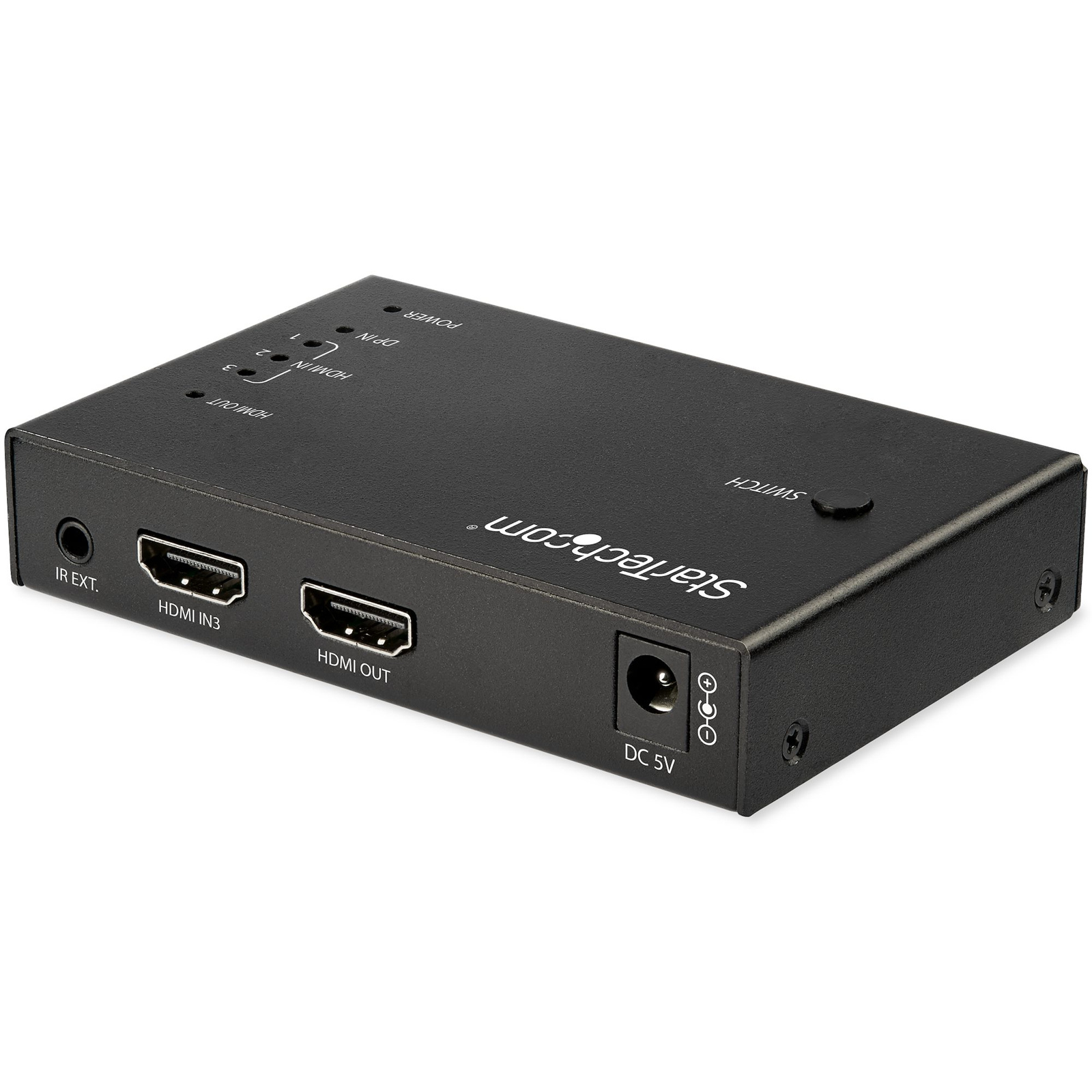

StarTech VS421HDDP Video Switch - HDMI / DisplayPort - 4K60

  • Brand: StarTech
  • MPN: VS421HDDP
  • Part #: MOASTT4618589
  • UPC: 065030881883
Normally $157.39
Normally $157.39
You save $13
You save $13
PB Tech price
AUD $ 143 .64 $ 143 .64


Delivery: Order now and it ships on 10 Apr
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$143.64  +GST
$143.64  inc GST
  • Brand: StarTech
  • MPN: VS421HDDP
  • Part #: MOASTT4618589
  • UPC: 065030881883

Maximum Supported Resolution

4096x2160

Features

This 4-input HDMI video switch lets you share an HDMI 2.0 display or projector with three HDMI video sources and one DisplayPort video source.

Enjoy Astonishing Picture Quality

The multi-port HDMI switch lets you deliver the capabilities of your HDMI 2.0 video sources to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switcher box works with HDMI 2.0 displays with output resolutions of up to 4096 x 2160 at 60Hz.

With full support for HDMI 2.0 devices and 4:4:4 chroma subsampling, this 4K HDMI video switcher supports a bandwidth up to 18Gbps. As well, the switch supports DisplayPort 1.2 with HBR2, making it ideal for high-resolution computer tasks.

Flexible Input Options

This multi-port video switcher offers four input options, including one DisplayPort and three HDMI ports, enabling you to switch from one of four sources to your HDMI video display. The mix-and-match input options provide users with a flexible solution so they are not limited to one specific input.

Hassle-Free Operation with Automatic Switching

This HDMI switcher box ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray™ player as soon as it's switched on.

This automatic HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.

Applications

- Share your projector between multiple sources for on-the-fly collaboration among colleagues
- Ideal for boardrooms, classrooms and lecture halls
- Share a 4K 60Hz display with four different video sources
- Use in digital signage applications to display multiple source devices at different times

Specifications

Hardware

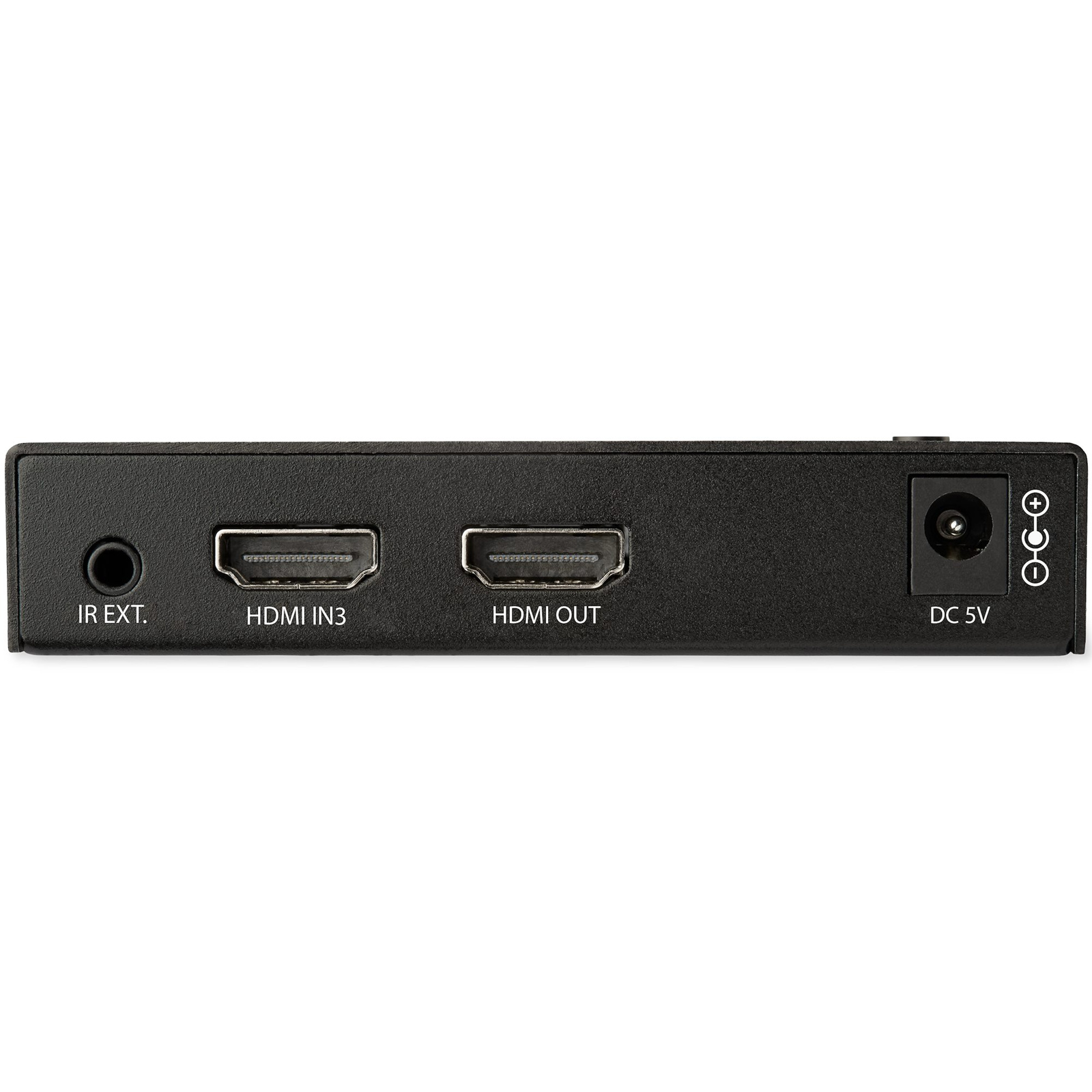

Connectors

3x - HDMI In (19 pin)
1x - HDMI Out (19 pin)
1x - DisplayPort (20 pin)
1x - 3.5 mm Mini-Jack (3 Position)

AV Input

HDMI

Ports

4

AV Output

HDMI

AV Input

DisplayPort

Audio

Yes

Industry Standards

HDMI 2.0
HDCP 2.2

Performance

Maximum Digital Resolutions

4K @ 60 Hz

Supported Resolutions

4096x2160 (DCI 4K) 60Hz
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz

Wide Screen Supported

Yes

Audio Specifications

7.1 Surround sound

General Specifications

Lower resolutions are also supported

Physical Characteristics

Indicators

4x - Input LEDs
1x - Power LED

Product Height

0.8 in [2 cm]

Product Length

3.9 in [10 cm]

Weight of Product

15.1 oz [428 g]

Product Width

2.8 in [71 mm]

Colour

Black

Material

Metal

Environmental

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90% RH

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

0.3 A

Output Voltage

5 DC

Output Current

1000 mA

Plug Type

M

What's in the Box

Included in Package

1x - 4-Port HDMI Switch
1x - Remote Control
1x - IR Receiver
2x - Mounting Brackets
2x - Mounting Screws
4x - Rubber Foot Pads
1x - Universal Power Adapter (NA/JP, UK, EU, ANZ)
1x - User Manual

Manufacturer Part No:
VS421HDDP
Brand:
Product Type:
-
UPC
065030881883
Product Family:
-
Shipping Weight:
0.6 kg
PB Part No:
MOASTT4618589
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
