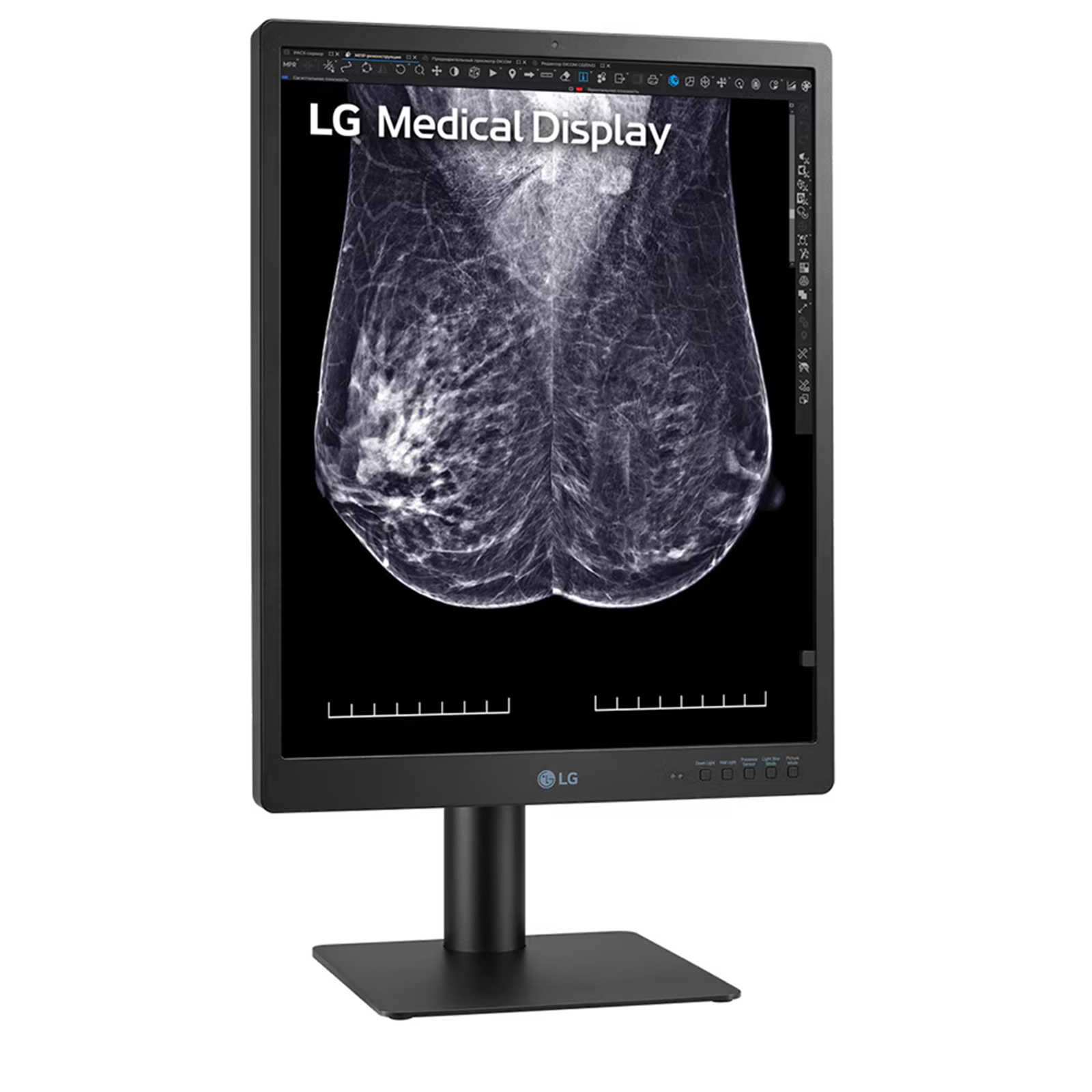

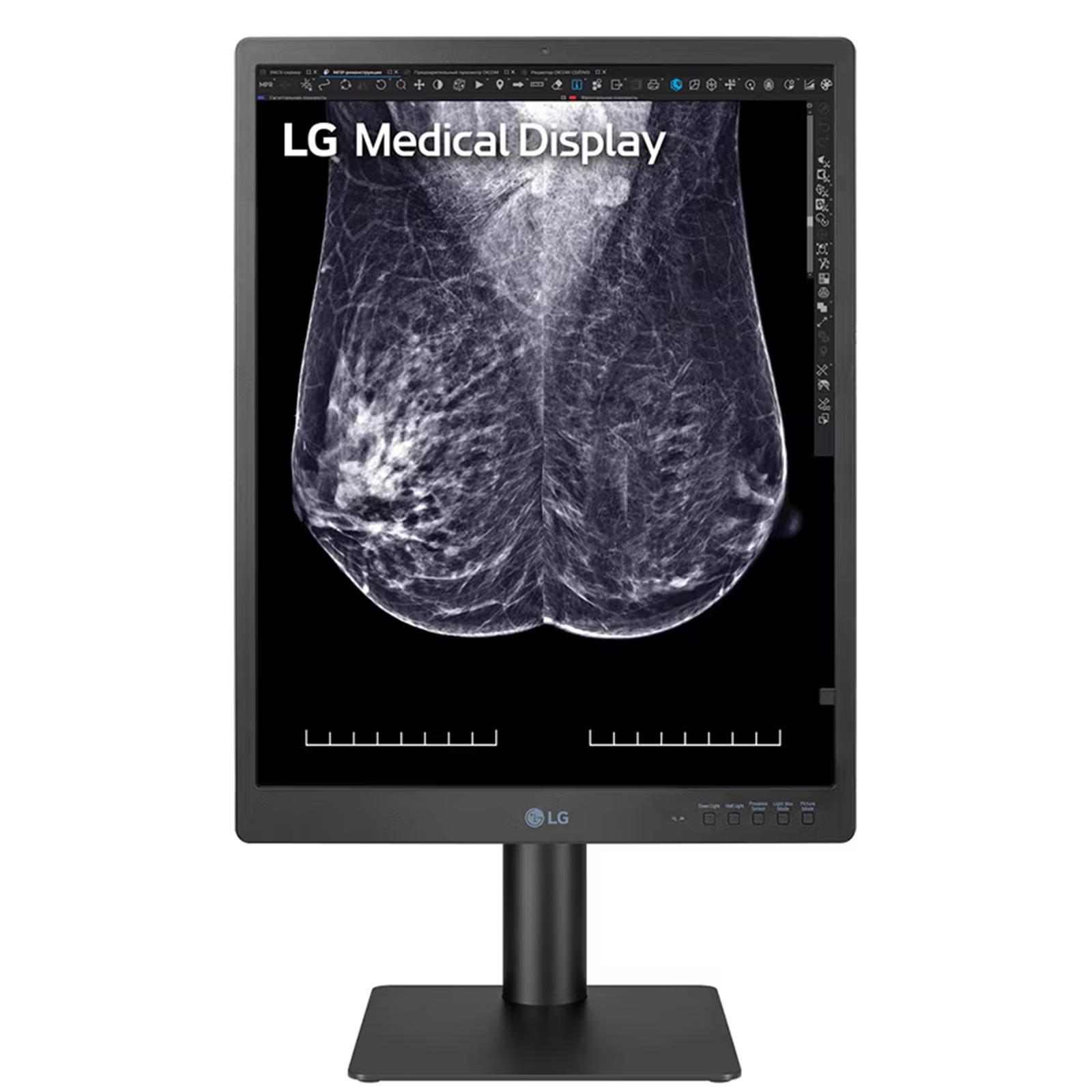

LG 21HQ613D 21.3-inch 5MP 1100nit IPS Diagnostic Monitor for Mammography

PB Tech price

AUD $ 13,889 .78

$ 13,889 .78

Out of stock

LG 21HQ613D 21.3-inch 5MP 1100nit IPS Diagnostic Monitor for Mammography

Designed for breast imaging

Brand: LG
MPN: 21HQ613D
Part #: MONLGL932613
UPC:

PB Tech price

AUD $ 13,889 .78

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: LG
MPN: 21HQ613D
Part #: MONLGL932613
UPC:

Be the first to review this product

Screen Size

21.3 inches

Refresh Rate

Not Specified

Response Time

Sync Type

Panel Type

VESA Size

100 x 100

Video Cable Included

Curved

View full specs

Returns & Warranty Bulk Quote Print Page

Features

21.3" 5MP IPS Diagnostic Monitor Designed for breast imaging

- Display for breast imaging: 21.3-inch 5MP (2048x2560) IPS Display Calibration with Front Sensor
- Efficiency: 5 Hot Keys & Daisy Chain
- Convenience: User-friendly Monitor Stand Down light & Wall light

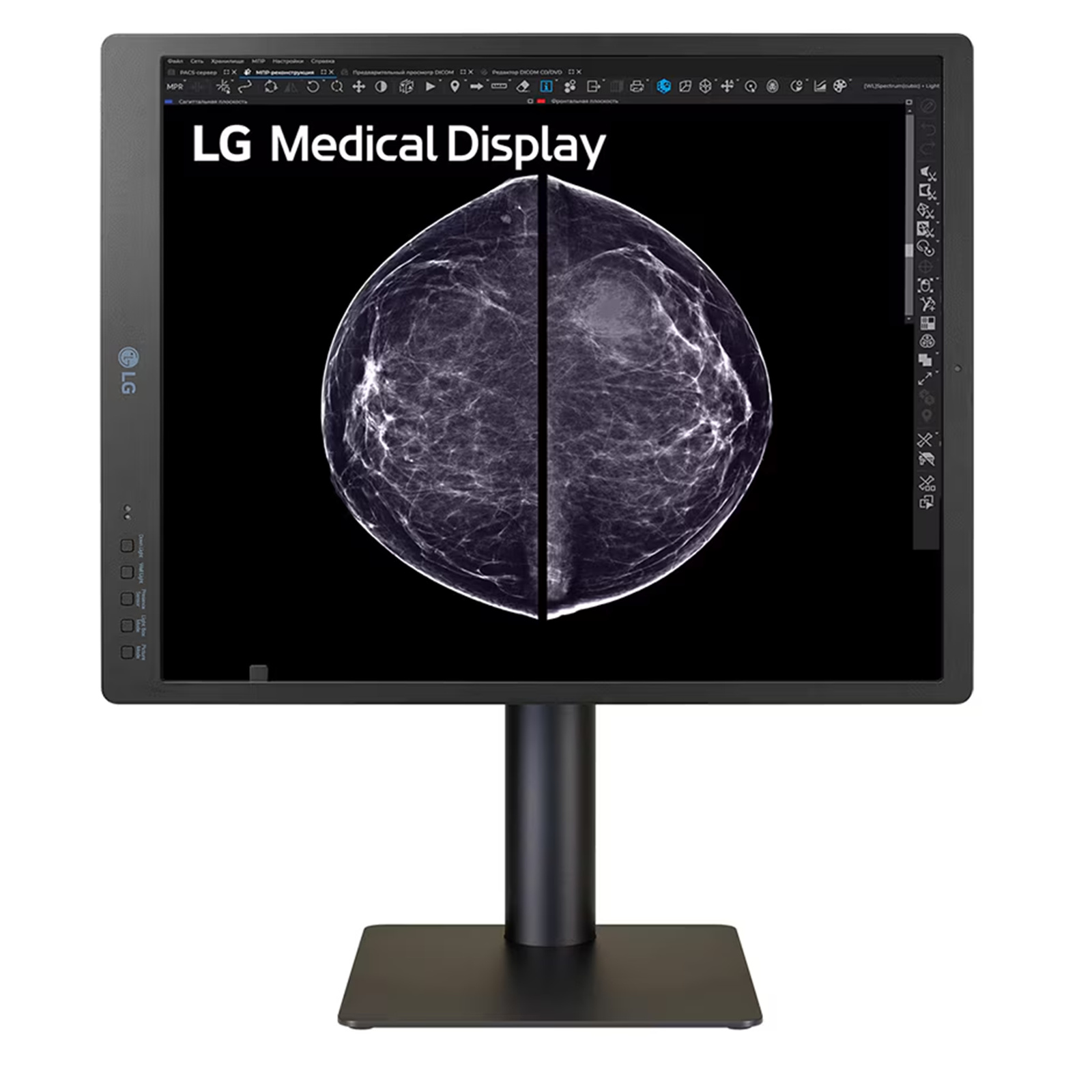

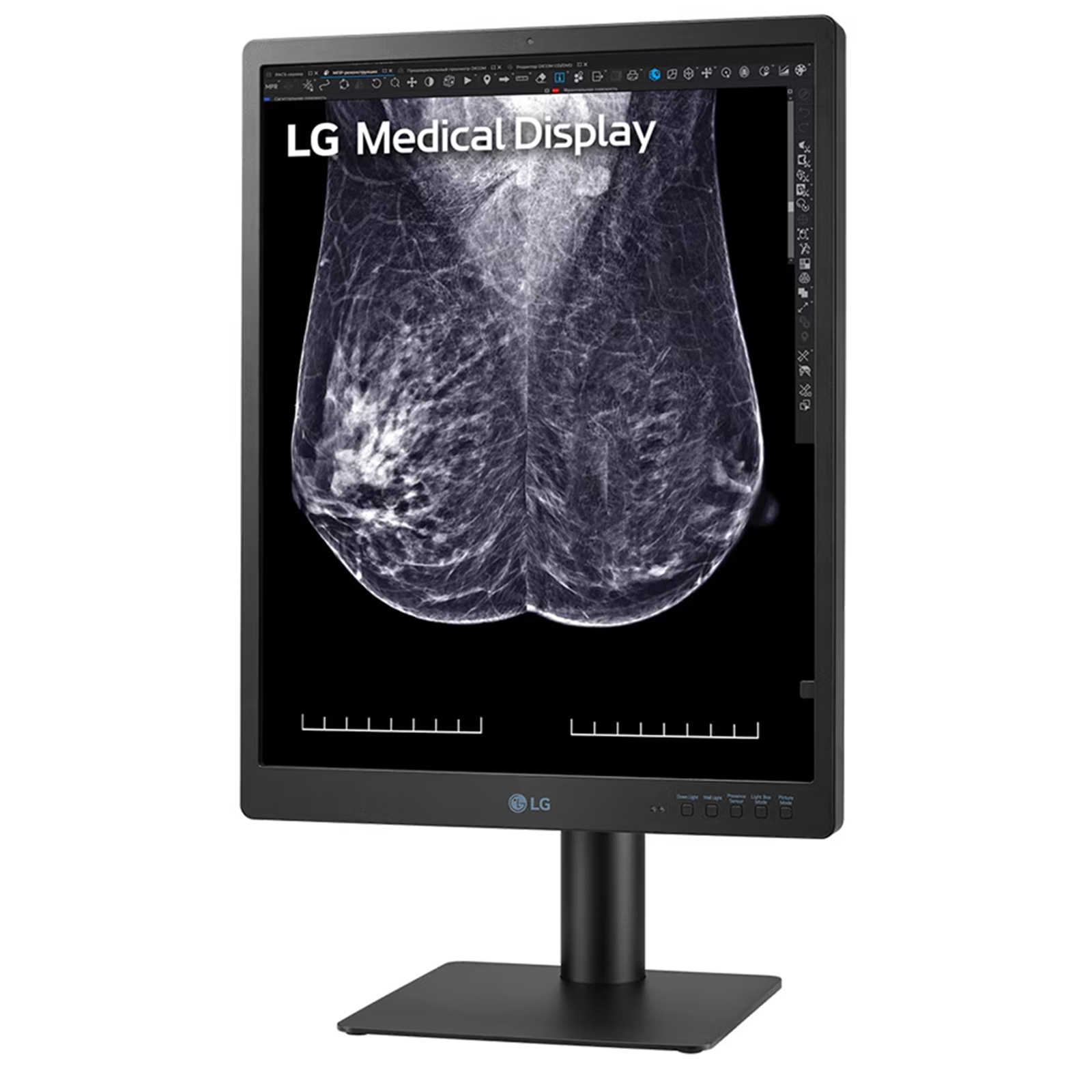

High resolution display for breast imaging

High Definition Imaging
Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Multi-resolution mode

Set the resolution mode to fit your needs
The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Internal front calibration sensor

Consistency in medical images
The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Focus view mode

Focus on the region of interest
Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Pathology mode

As if you were looking into a microscope
With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and efficient workflow

5 Hot Keys Intuitive Control
The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Presence sensor

Convenient power management
The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Daisy chain

Simple connection for a clutter-free workspace
Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

User convenience

User-friendly monitor stand

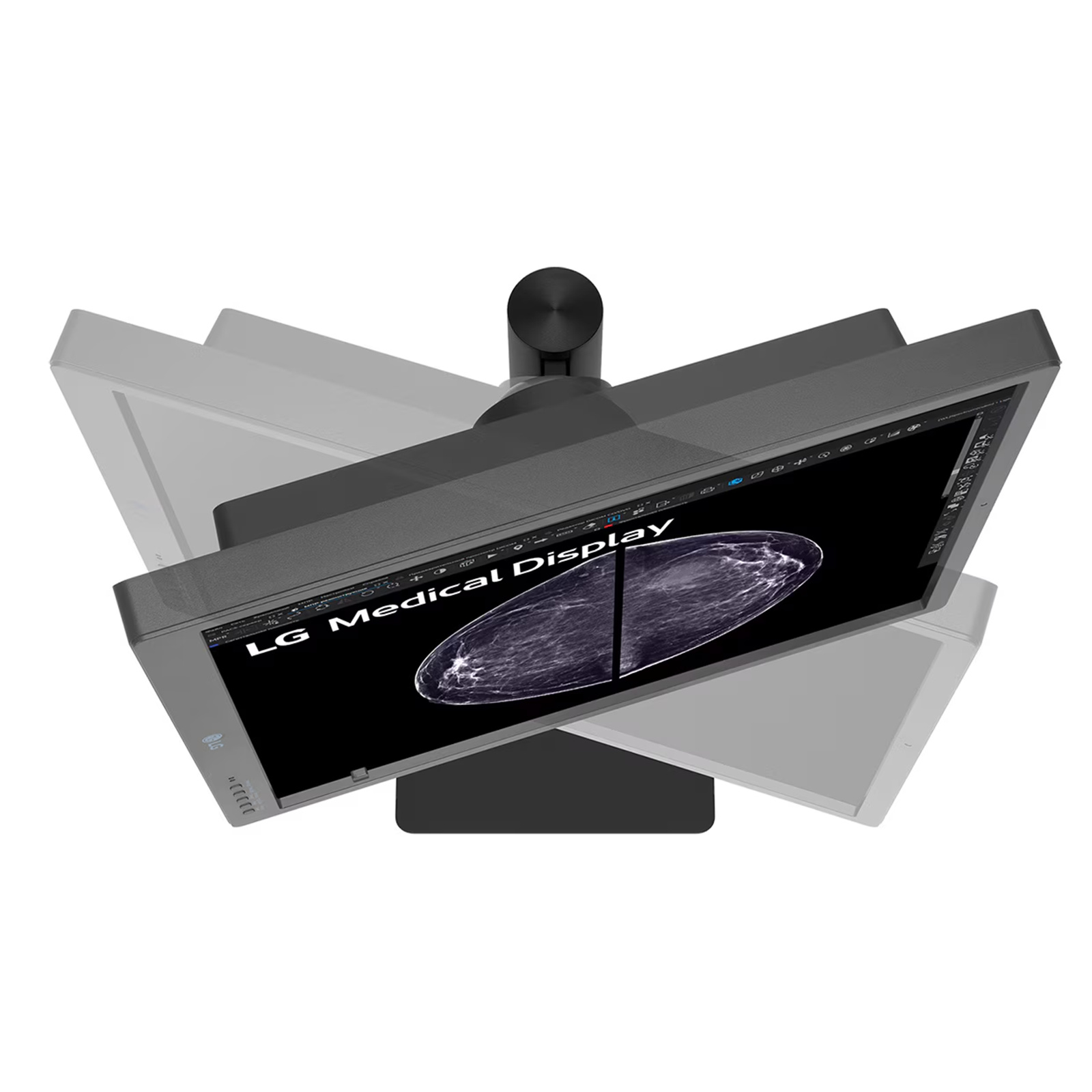

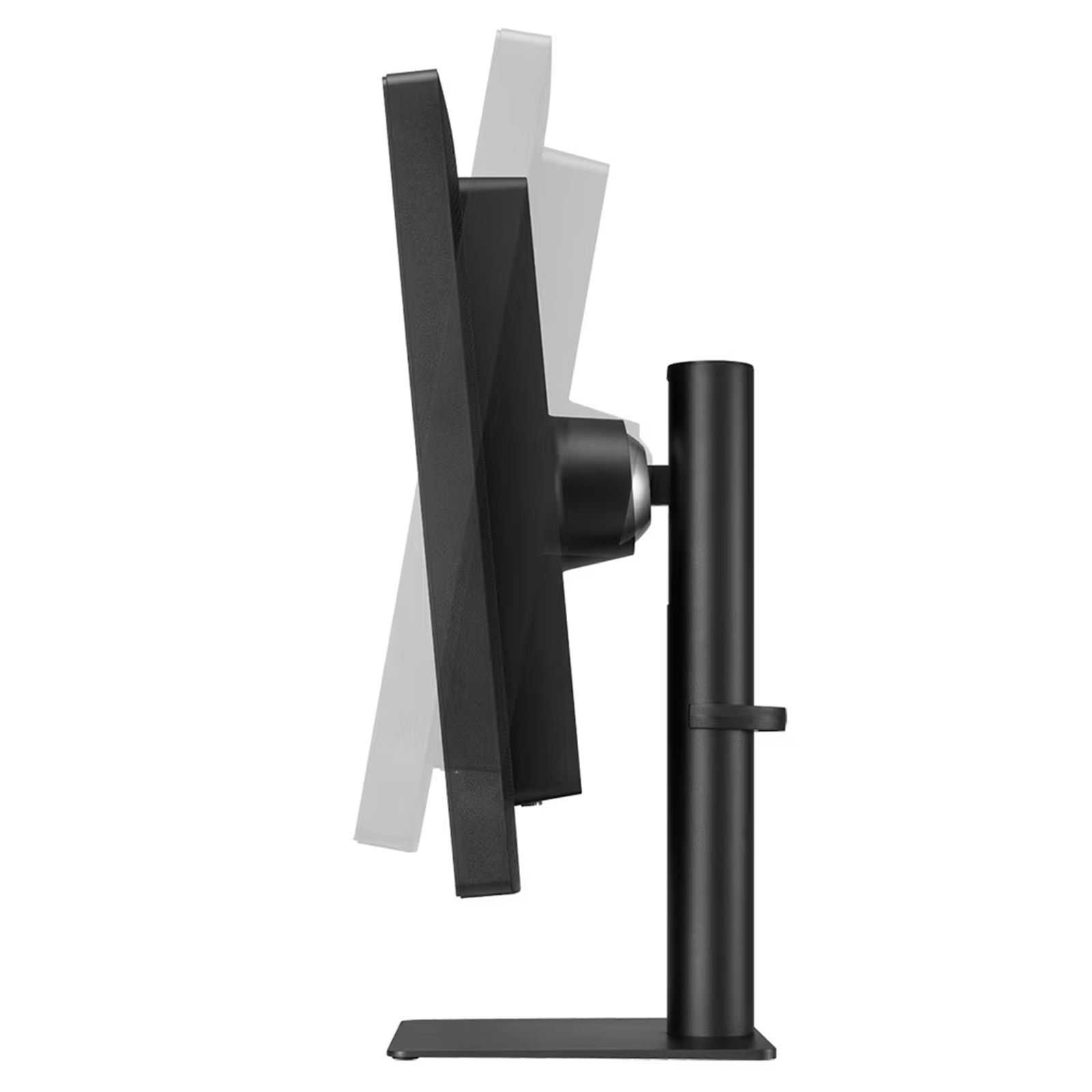

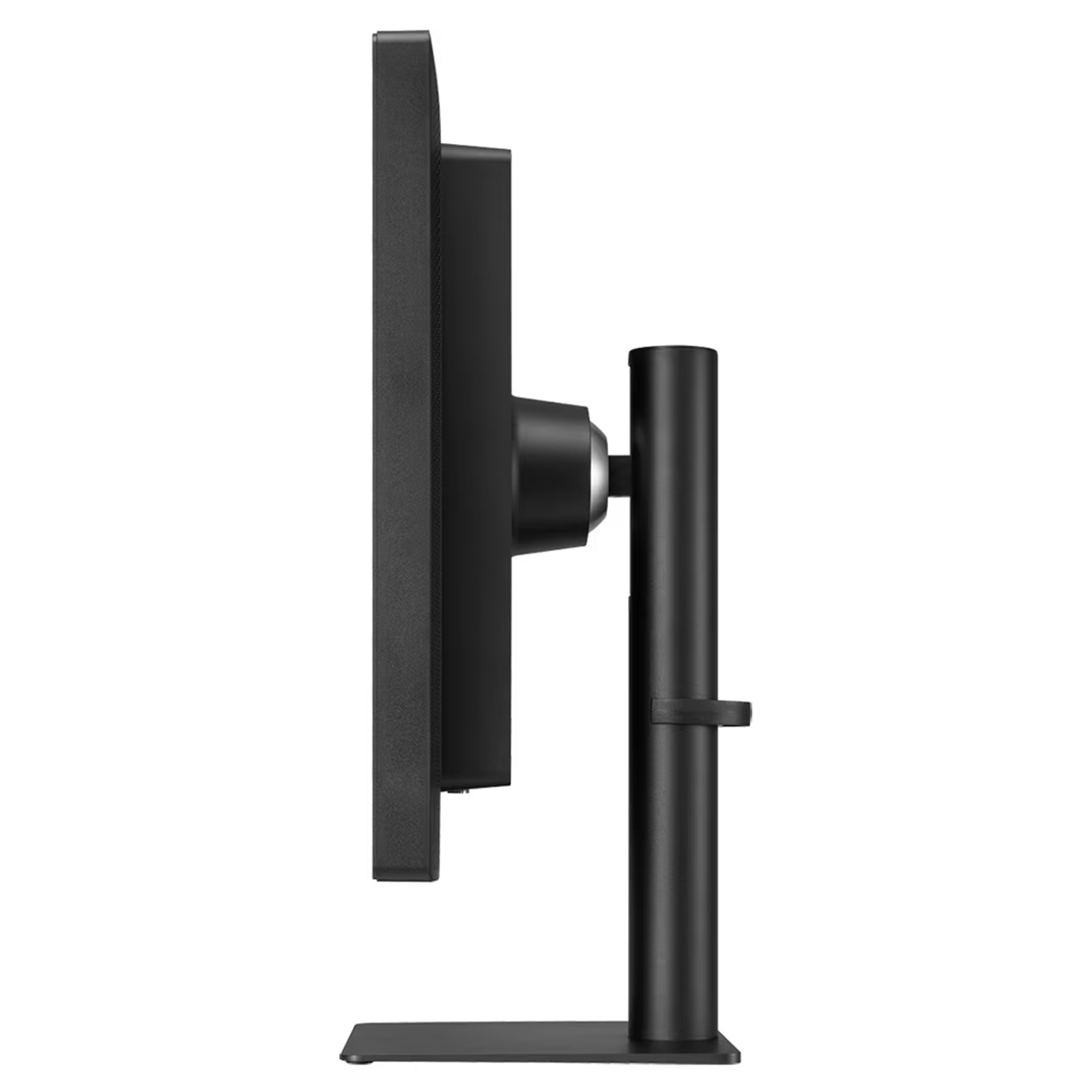

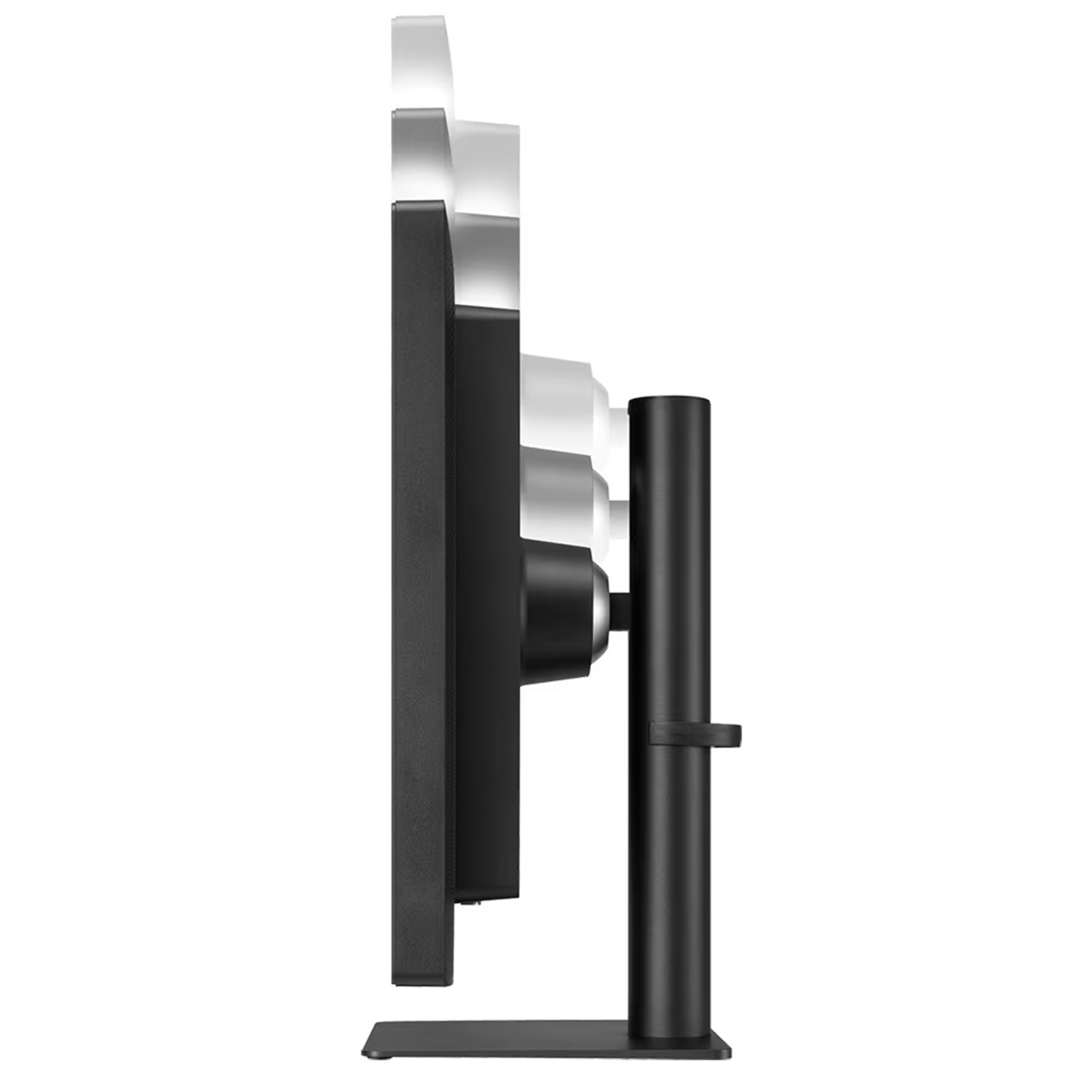

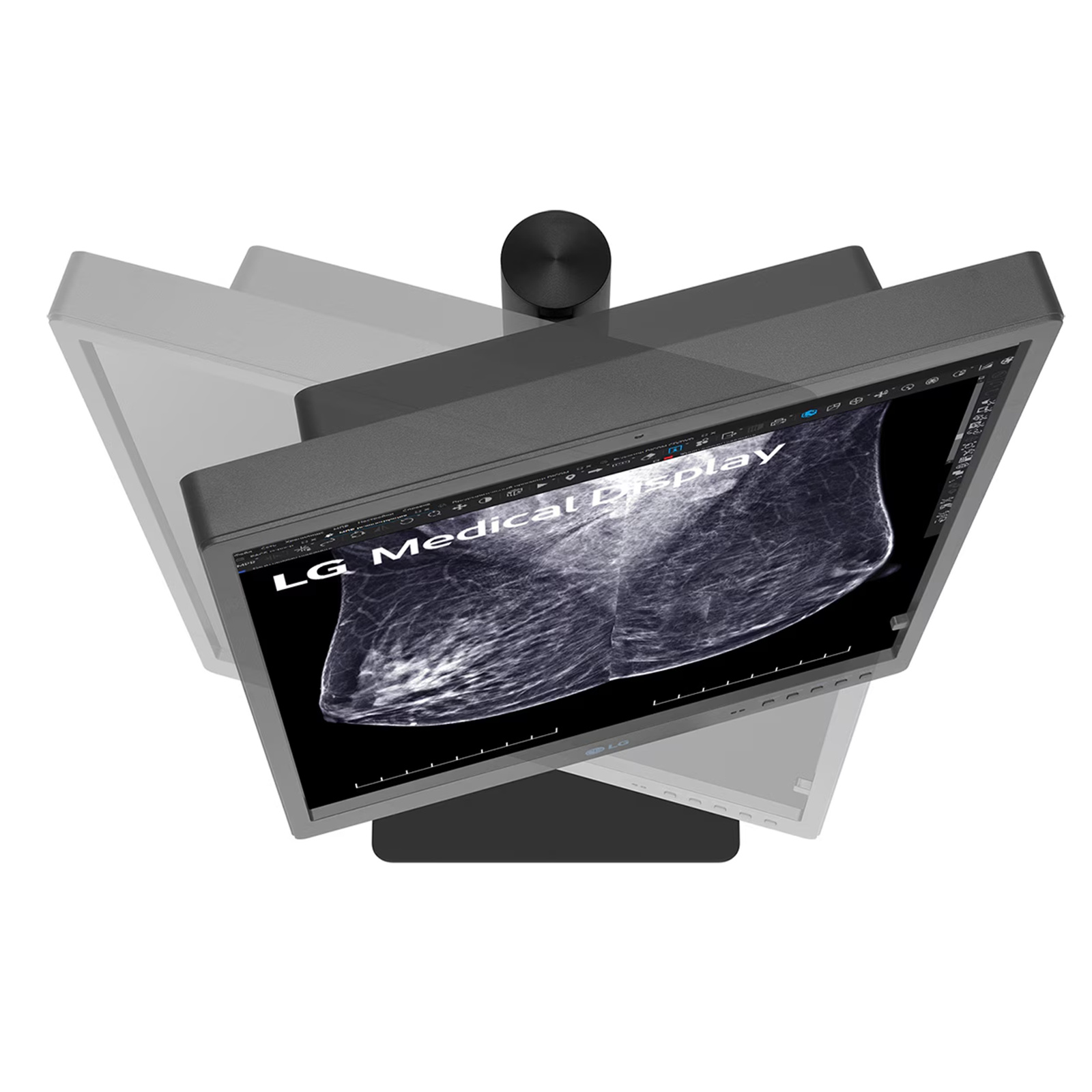

21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

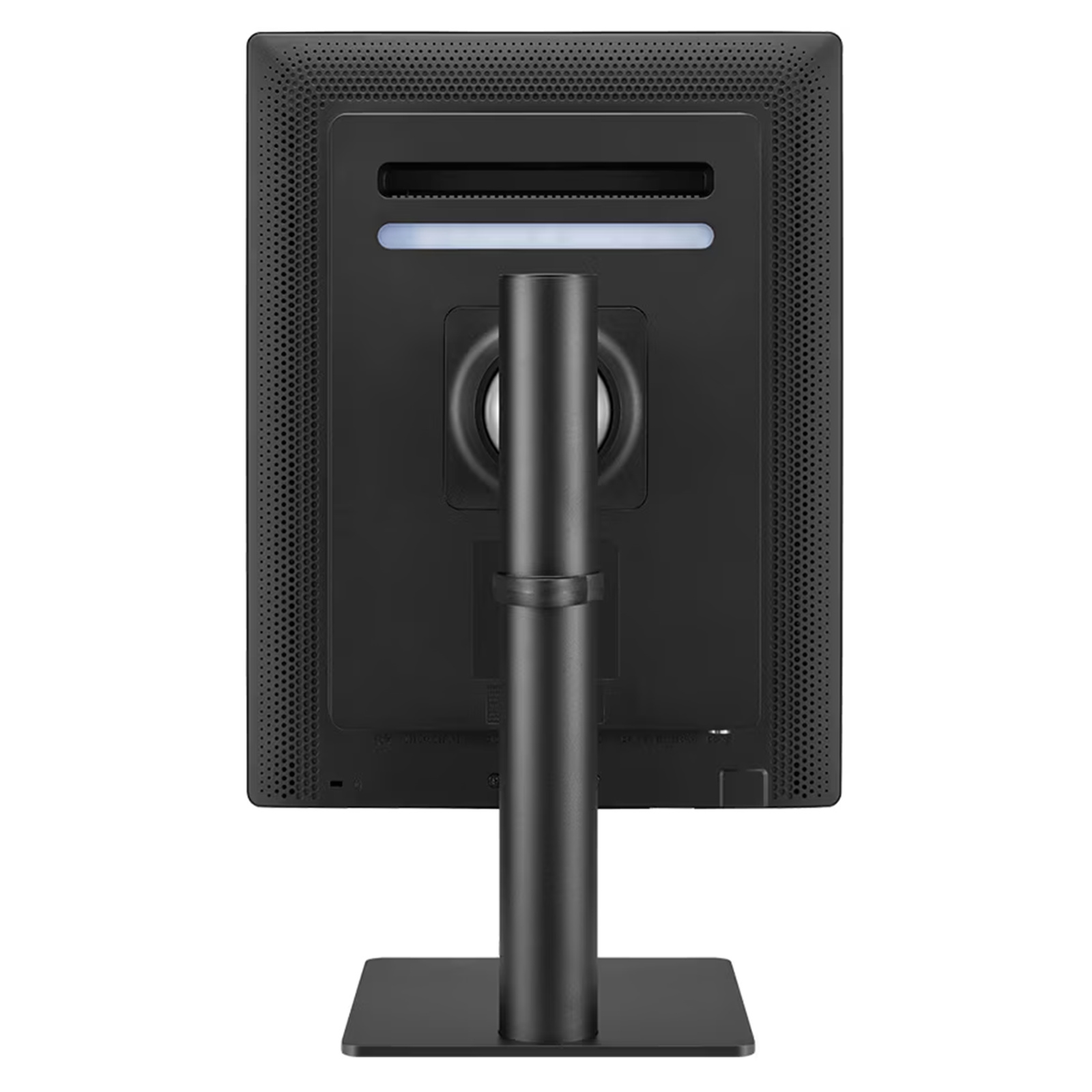

Down light & Wall light

Ideal diagnostic workspace

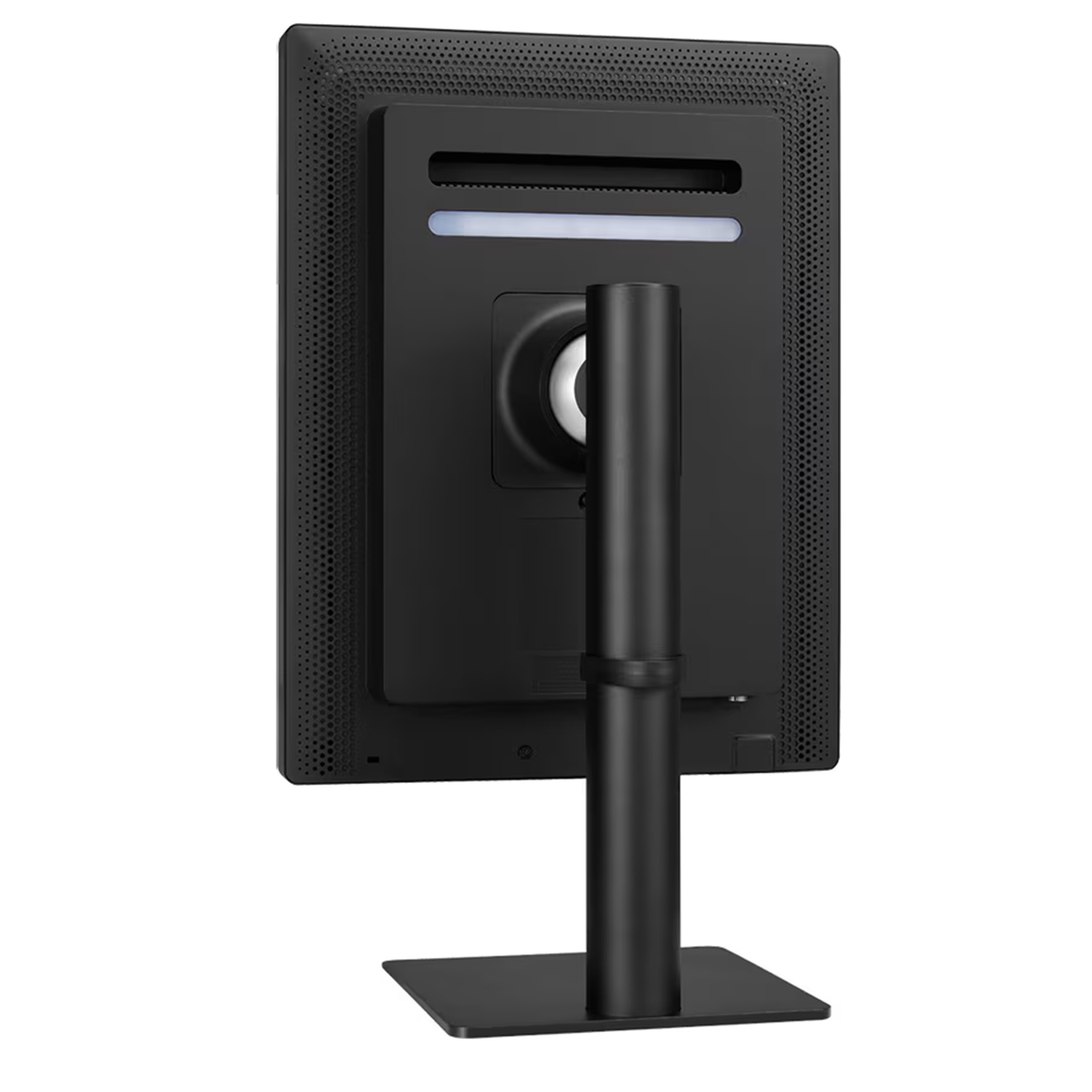

Down /Wall light mode enhances readability of documents below monitor even in low-light environments.

Wall light

Down light

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Auto luminance sensor

Automatically adjusts screen brightness
21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Specifications

Display

Aspect Ratio

4:5

Brightness (Typ.) [cd/m²]

1100cd/m²

Color Bit

10bit

Color Gamut (Typ.)

NTSC 72% (CIE1931)

Contrast Ratio (Typ.)

1800:1

Brightness (Stabilization) [cd/m²]

600 cd/m²

Pixel Pitch [mm]

0.165 X 0.165 mm

Resolution

2048 x 2560

Response Time

5ms (GtG at Faster)

Size [Inch]

21.3

Surface Treatment

Viewing Angle (CR=10)

178°(R/L), 178°(U/D)

Features

Hot Key

Yes (5 keys)

Brightness Stabilization

Yes

Auto Brightness

Yes

Presence Sensor

Yes

Front Sensor

Yes

Black Stabilizer

Yes

HW Calibration

Yes

DICOM Compliant

Yes

Color Temperature

6500K / 7500K / 9300K / Manual (5000K ~ 10000K)

Flicker safe

Yes

Multi-resolution Mode

Yes (5MP /3MP /2MP)

Pathology Mode

Yes

Reader Mode

Yes (Text Mode)

Focus View

Yes

Light Box Mode

Yes

Smart Energy Saving

Yes

Lighting

Yes (Down/ Wall)

Super Resolution+

Yes

SW Application

Dual Controller

Yes

LG Calibration Studio Medical

Yes

Connectivity

DisplayPort

Yes (In 2ea / Out 1ea)

DVI

Yes (In 1ea Dual link)

Daisy Chain

Yes (5MP/48Hz)

USB Downstream Port

YES(2ea/ver3.0)

USB Upstream Port

YES(2ea/ver3.0)

Power

AC Input

100-240Vac, 50-60Hz

DC Output

19V @6.32A

Power Consumption (DC Off)

Less than 0.3W

Type

External Power(Adapter)

Mechanical

Borderless Design

Normal

Display Position Adjustments

Tilt / Height / Swivel / Pivot

Height Range [mm]

110 mm

Mechanical Power Switch

Yes

One Click Stand YesPivot

Yes(±90°)

Swivel

Yes(±15°)

Tilt

Yes(-5°~20°)

Wall Mountable [mm]

100 x 100 mm

Dimensions/Weight

Dimension in Shipping (WxHxD) [mm]

524 x 577 x 296

Dimension with Stand (WxHxD) [mm]

364.5 x 634.4 x 233.6

Dimension without Stand (WxHxD) [mm]

364.5 x 473.4 x 78

Weight with Stand [kg]

7.85

Weight without Stand [kg]

5.45

Standard

IEC (IEC 60601-1/IEC 60601-1-2)

Yes

EN (EN 60601-1/EN 60601-1-2)

Yes

IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)

Yes

EN (EN 62368-1 / EN 55032, 55035)

Yes

cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

Yes

MDR

FDA

510(K)(Class II)

ISO13485

Yes

RoHS

Yes

REACH

Yes

WEEE

Yes

MFDS

Yes

Manufacturer Part No:

21HQ613D

Brand:

Product Type:

IPS Diagnostic Monitor

UPC

Product Family:

Shipping Weight:

10 kg

PB Part No:

MONLGL932613

Product Model:

21HQ613D

Warranty: 36 months *
