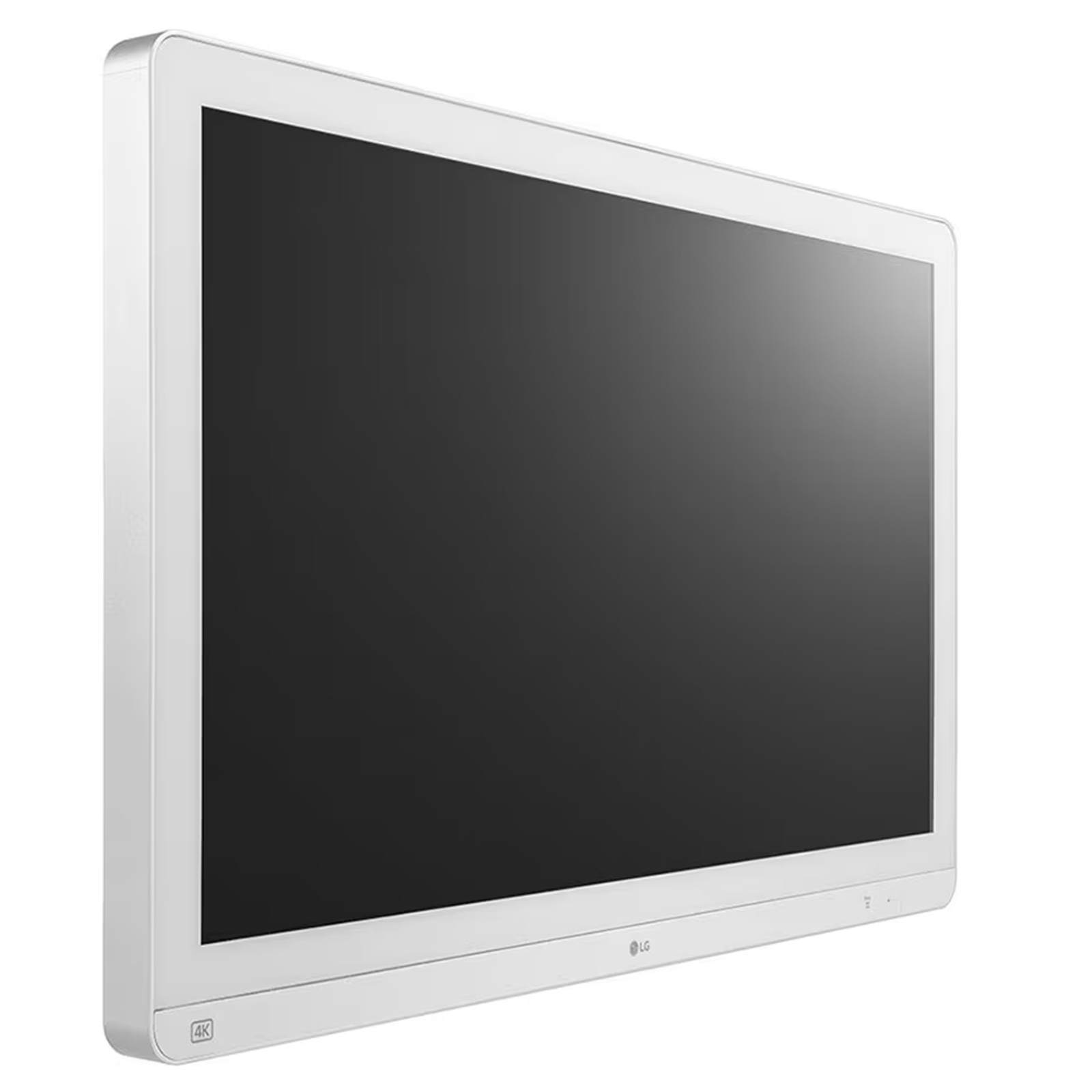

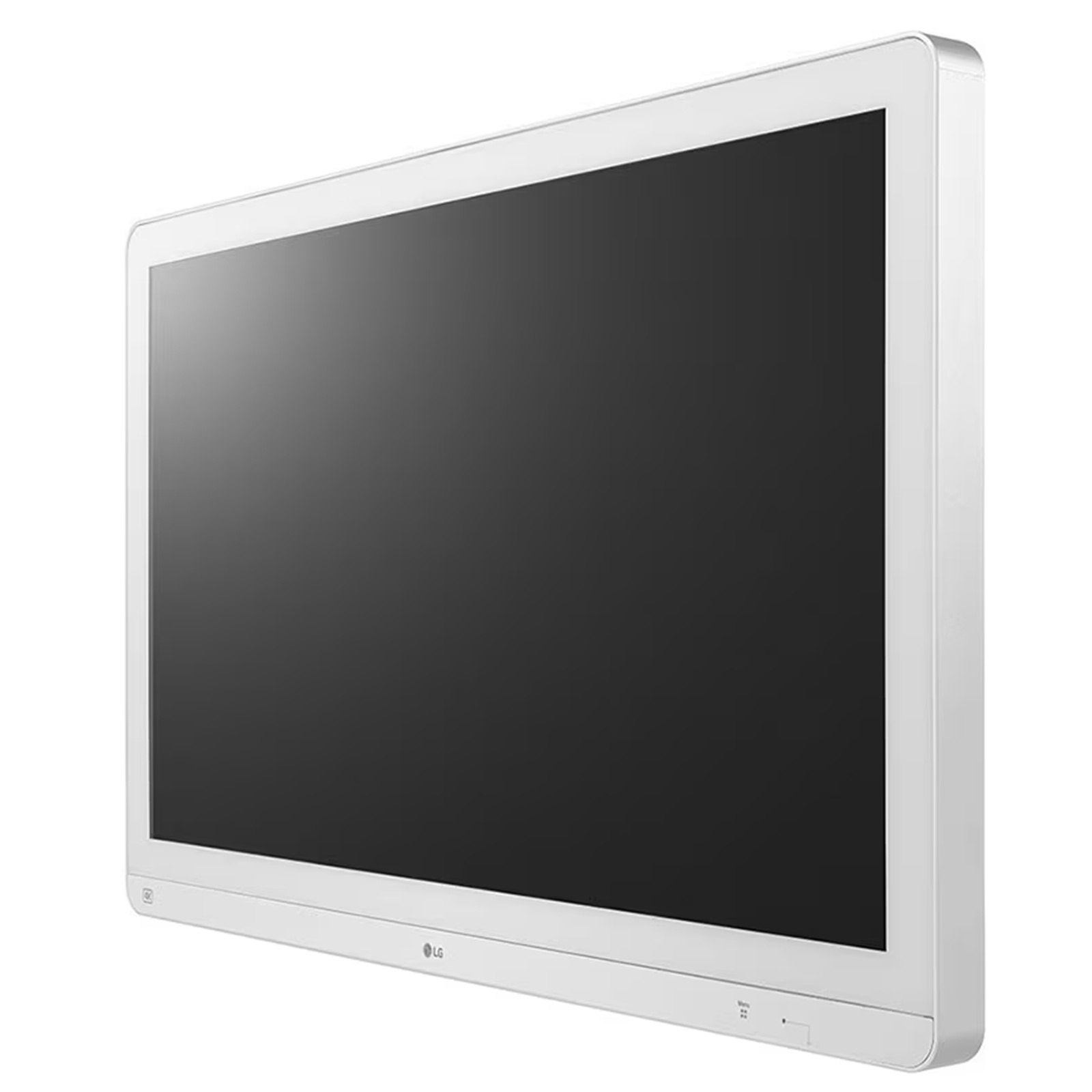

LG 32HL714S 31.5" 4K Surgical Monitor
Out of stock
- Brand: LG
- MPN: 32HL714S
- Part #: MONLGL933714
- UPC:
Features
4K Surgical Display - Large Display for Surgical Precision
LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
31.5-inch 4K IPS - Enhanced Accuracy with Wide View
With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.
sRGB 115% (Area), Over 99% (Coverage)
Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
Brightness Stabilization
LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
Support HDR10
LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

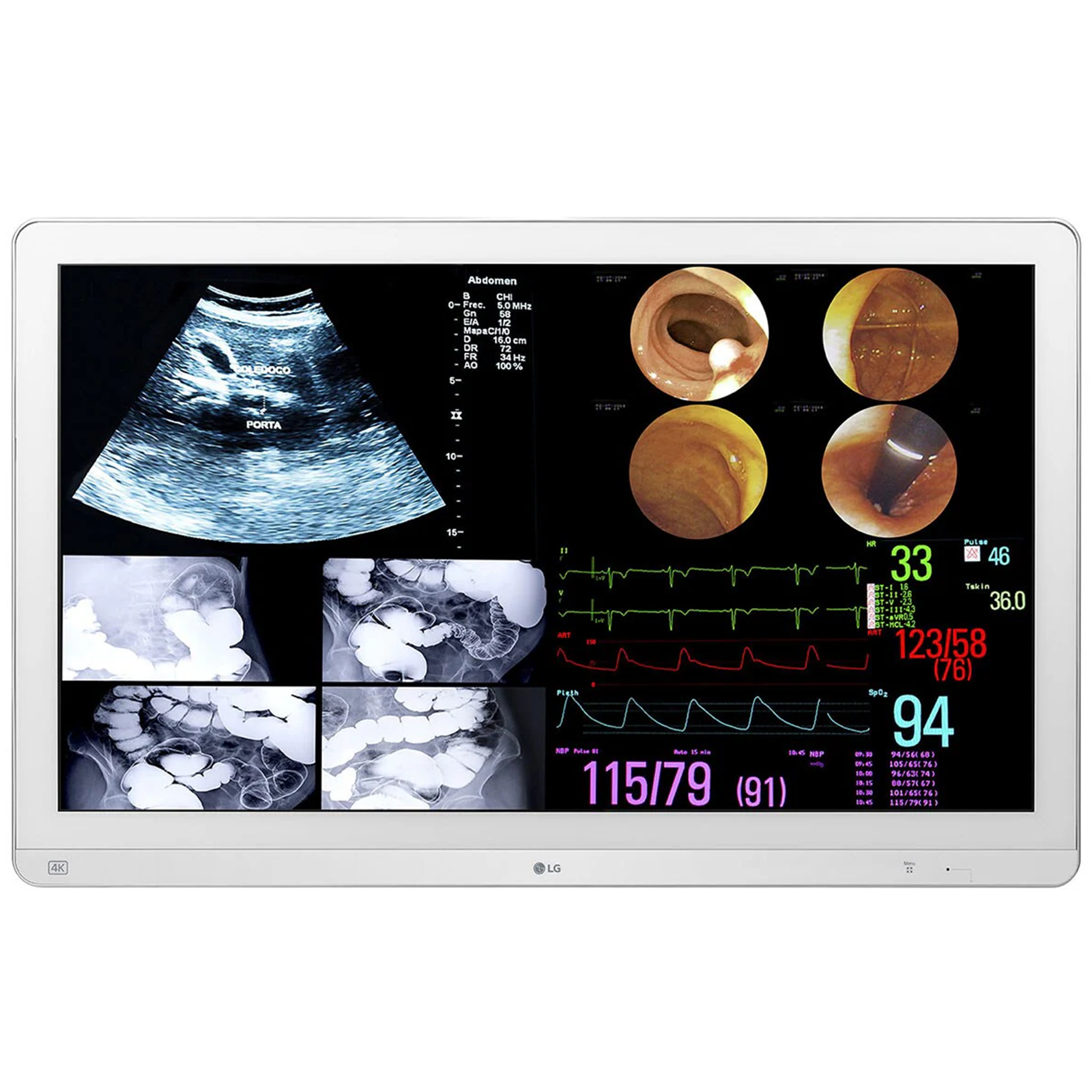

PBP, PIP & 12G-SDI Support - Multiple Signals on One Screen
The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.
12G-SDI Support
The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using
BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable).
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation - Find the Perfect Operating View
The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof & Water Resistant
To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Monitors
MSI Pro MP2412 24" FHD 100hz Business Monitor 1920x1080 - HDMI -...
LG 34WR50QK 34" WQHD Curved Ultrawide Monitor 3440x1440 -...
Samsung LS24D300G 24" FHD 100Hz IPS Monitor 1920x1080 - HDMI -...
Samsung Odyssey G5 27" QHD 165Hz Curved Gaming Monitor 2560x1440 ...
Samsung Odyssey G5 34" Ultrawide QHD 165Hz Curved Gaming Monitor...
LG 32HL714S 31.5" 4K Surgical Monitor
- Brand: LG
- MPN: 32HL714S
- Part #: MONLGL933714
Product URL: https://www.pbtech.com/product/MONLGL933714/LG-32HL714S-315-4K-Surgical-Monitor
Features
4K Surgical Display - Large Display for Surgical Precision
LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
31.5-inch 4K IPS - Enhanced Accuracy with Wide View
With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.
sRGB 115% (Area), Over 99% (Coverage)
Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
Brightness Stabilization
LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
Support HDR10
LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
PBP, PIP & 12G-SDI Support - Multiple Signals on One Screen
The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.
12G-SDI Support
The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using
BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable).
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation - Find the Perfect Operating View
The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof & Water Resistant
To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Specifications
Display
Aspect Ratio
16:9
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Brightness (Typ.)
800cd/m²
Brightness (Stabilization)
500 cd/m²
Color Bit
10bit
Color Gamut (Typ.)
sRGB 115% (Area), sRGB Over 99% (Coverage)
Contrast Ratio (Typ.)
1000:1
Pixel Pitch(H x V)
0.18159mm x 0.18159mm
Resolution
3840 x 2160
Response Time (GTG)
14ms(Off-setting), 5ms(Faster-setting)
Size (Diagonal, Inch)
31.5
Size (H x V)
697.31 x 392.23 mm (27.45 x 15.44")
Surface Treatment
Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Viewing Angle (CR=10)
178° (Right/Left), 178° (Up/Down)
Feature
Hot Key
Yes (2keys)
Brightness stabilization
Yes
Black Stabilizer
Yes
HW Calibration
Yes(LG Calibration Studio)
DICOM Compliant
Yes
Color Temperature
6500K / 7500K / 9300K
Manual (5000K ~ 10000K)
Flicker safe
Yes
HDR10 Support
Yes
HDR Effect
Yes
PBP
Yes (2PBP/3PBP/4PBP)
PIP
Yes
Rotation & Mirror Mode
Yes
Failover Input Switch
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
SW Application
LG Calibration Studio (True Color Pro)
Yes

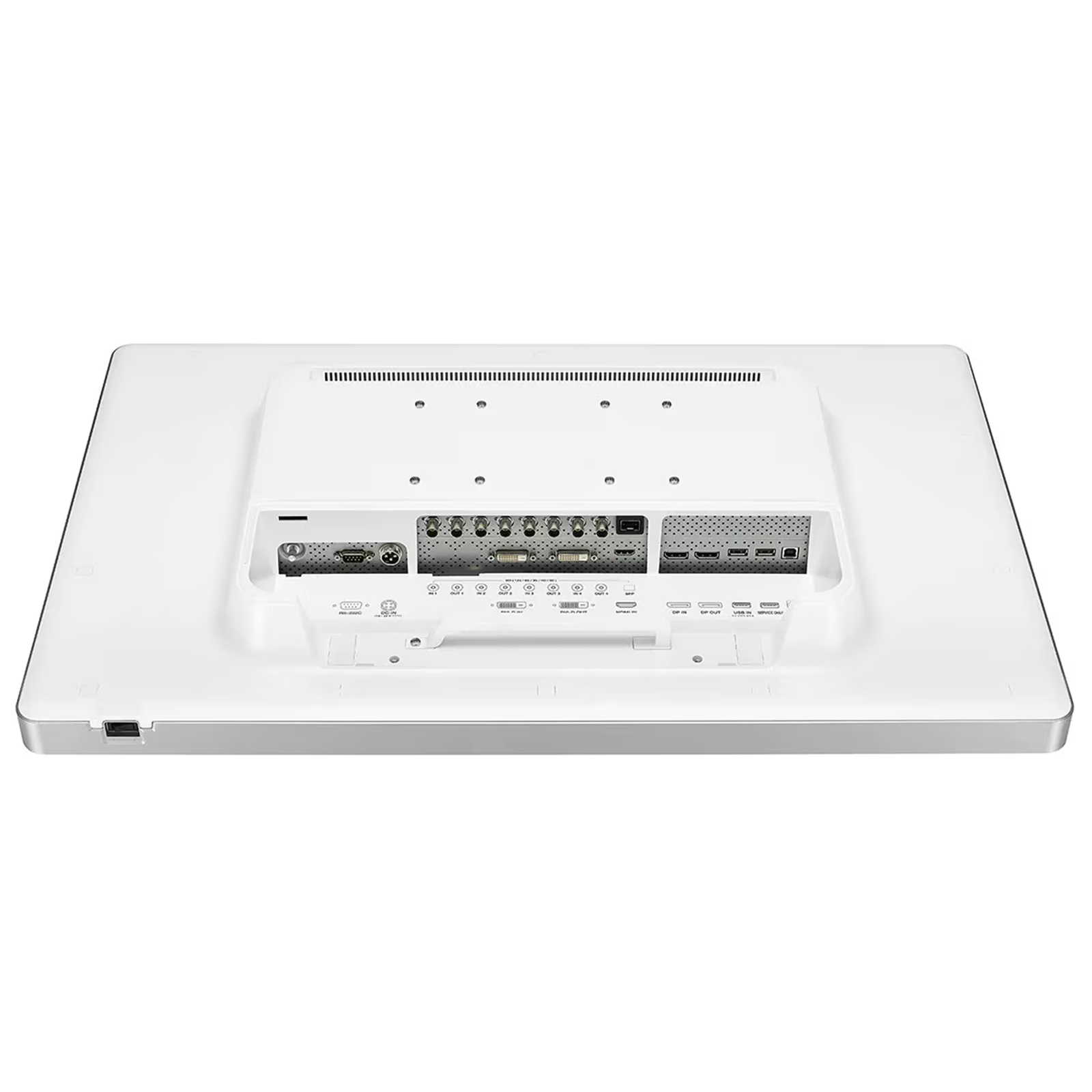

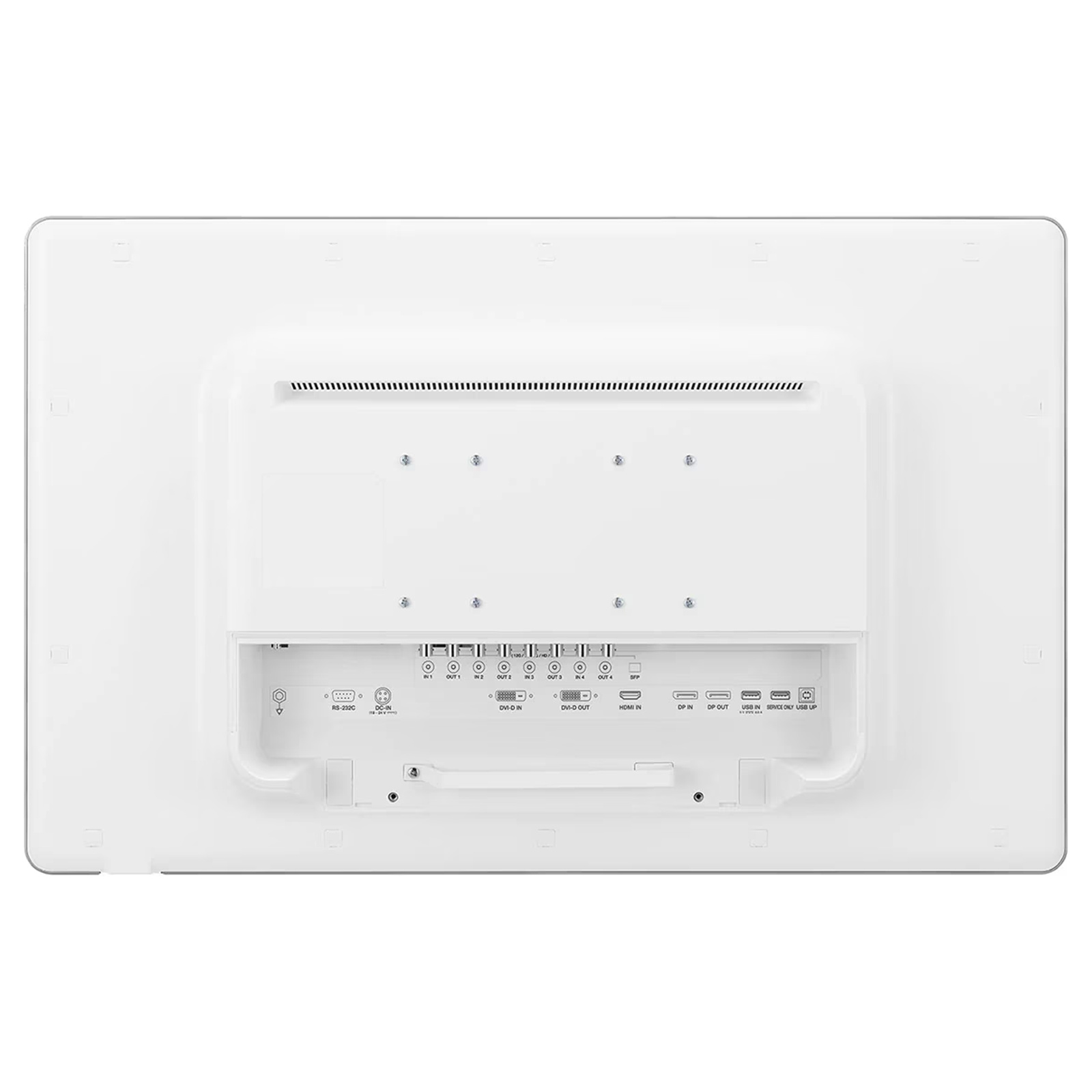

Connectivity
3G-SDI
Yes
12G-SDI
Yes(In 4ea/out 4ea, SFP, 3Gx4)
DisplayPort
Yes(in 1ea/out 1ea)
DVI
YES(1In / 1Out)
HDMI
Yes (1ea)
RS-232
Yes (1ea)
USB Downstream Port
YES(1ea/ver2.0)
USB Upstream Port
Yes (1ea/ver2.0)
Power
AC Input
100-240Vac, 50/60Hz
DC Output
24V, 7.5A
DC Input (Monitor)
24V, 7.5A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
180W
Type
External Power (Adapter)
Mechanical
Borderless Design
Normal
Display Position Adjustments
No Stand
Down Height
No Stand
Height Range
No Stand
Machanical Power Switch
Yes
OneClick Stand
No Stand
Pivot
No Stand
Swivel
No Stand
Tilt
No Stand

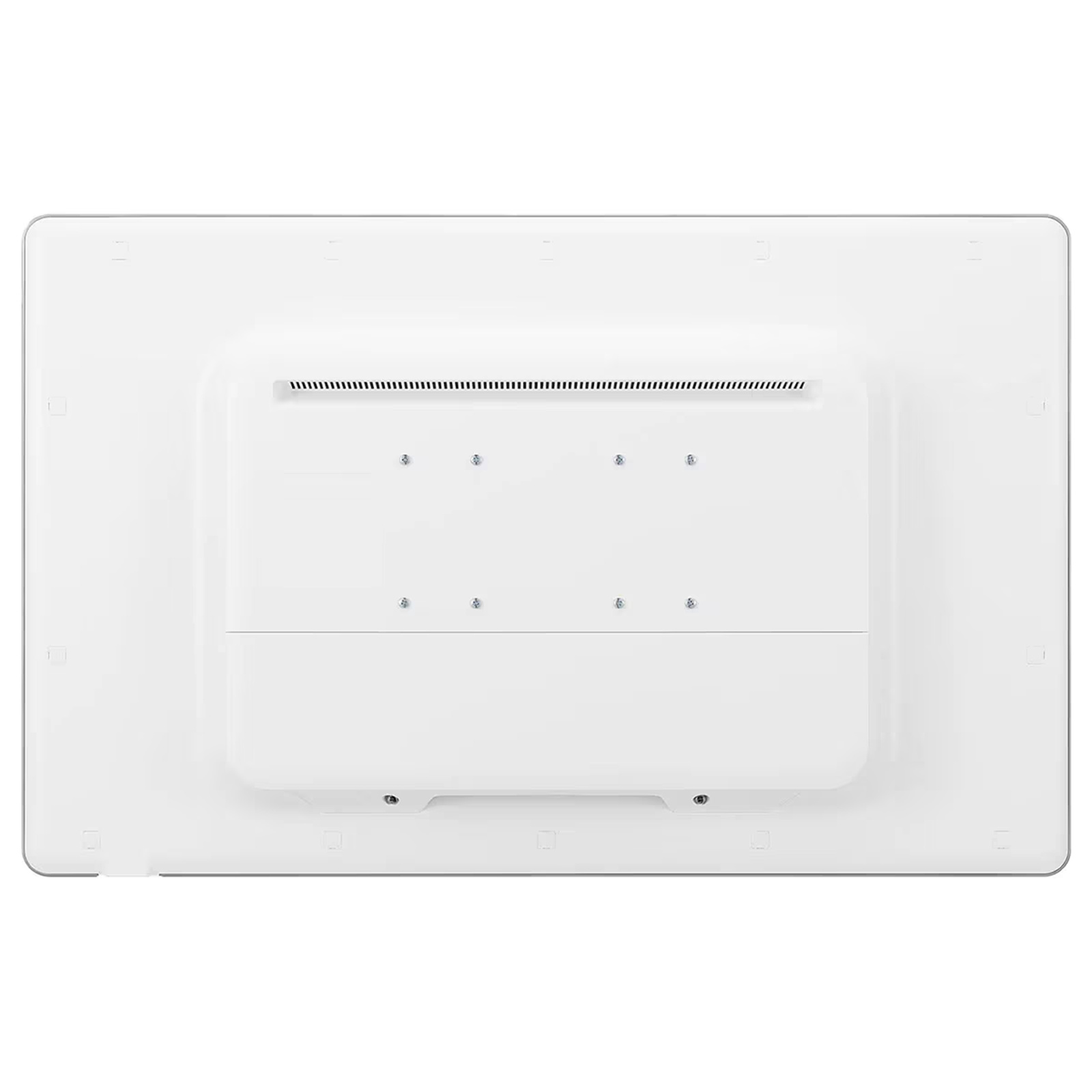

Wall Mount Size
200x100mm/100x100mm
Dimensions/Weight
Dimension with Stand (W x H x D)
No Stand
Dimension without Stand (W x H x D)
764.6 x 480.8 x 94.4 mm
Weight with Stand
No Stand
Weight without Stand
13.5kg (29.8lb)
Standard
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
Yes
EN (EN 62368-1 / EN 55032, 55035)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
CE
MDR
FDA
Registration (Class I)
ISO13485
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
IP(front/except for front)
IP35/IP32
Vandal-proof
IK06
