Samsung OH46B 46" Outdoor Signage Display - 3500nit , 24x7 , IP56 , Weather Proof
- Brand: Samsung
- MPN: LH46OHBESGBXXY
- Part #: MONSSM75460
Product URL: https://www.pbtech.com/product/MONSSM75460/Samsung-OH46B-46-Outdoor-Signage-Display---3500nit
Features

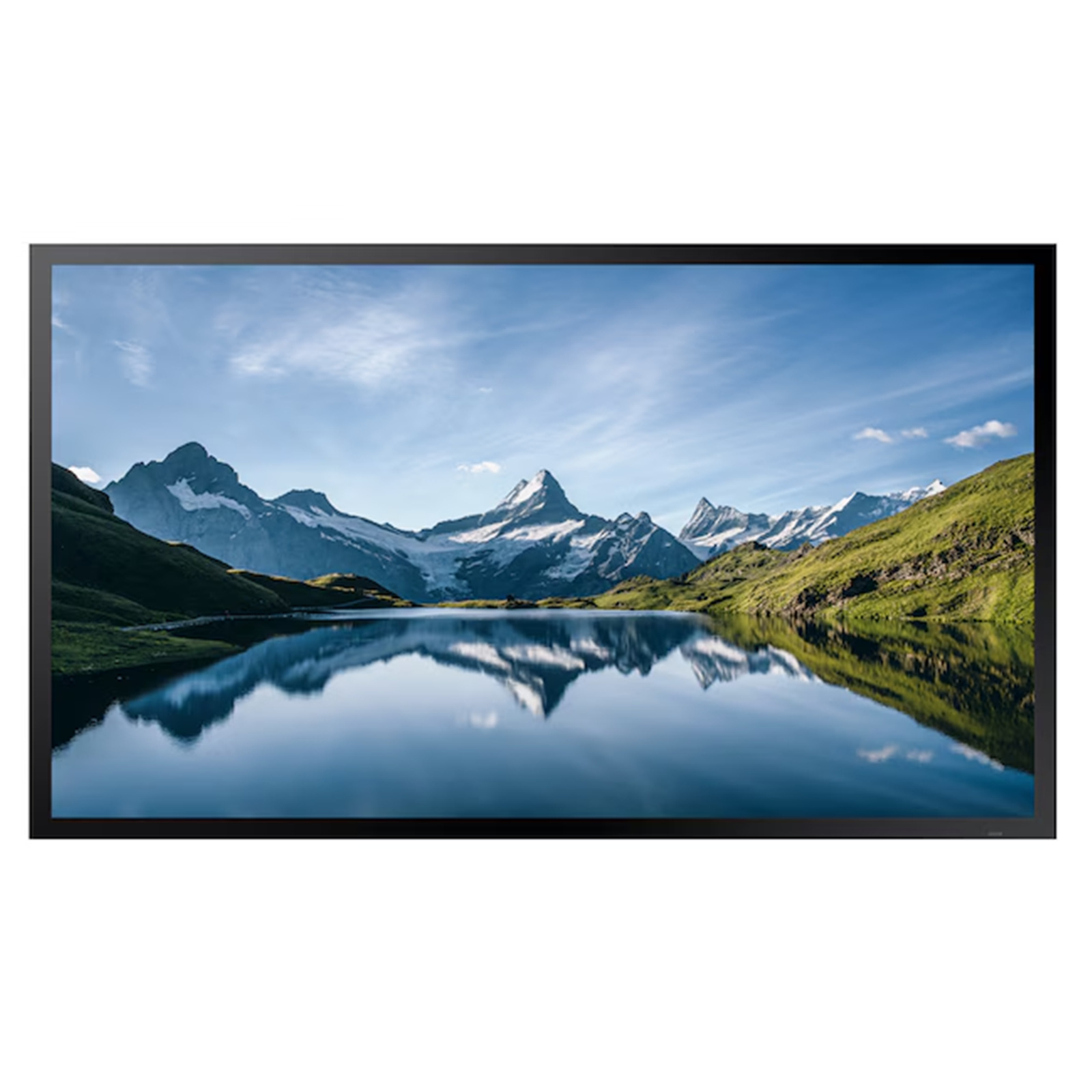

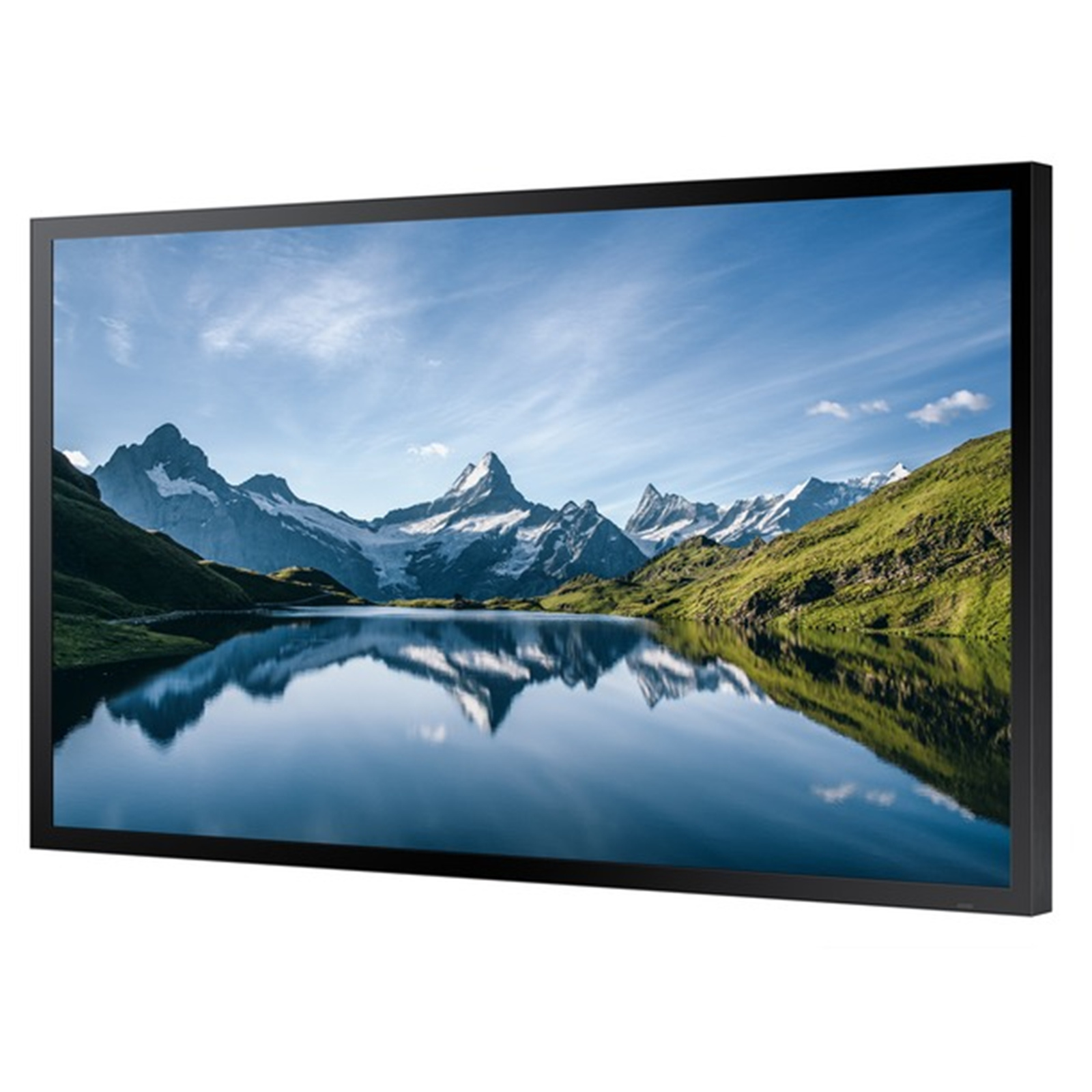

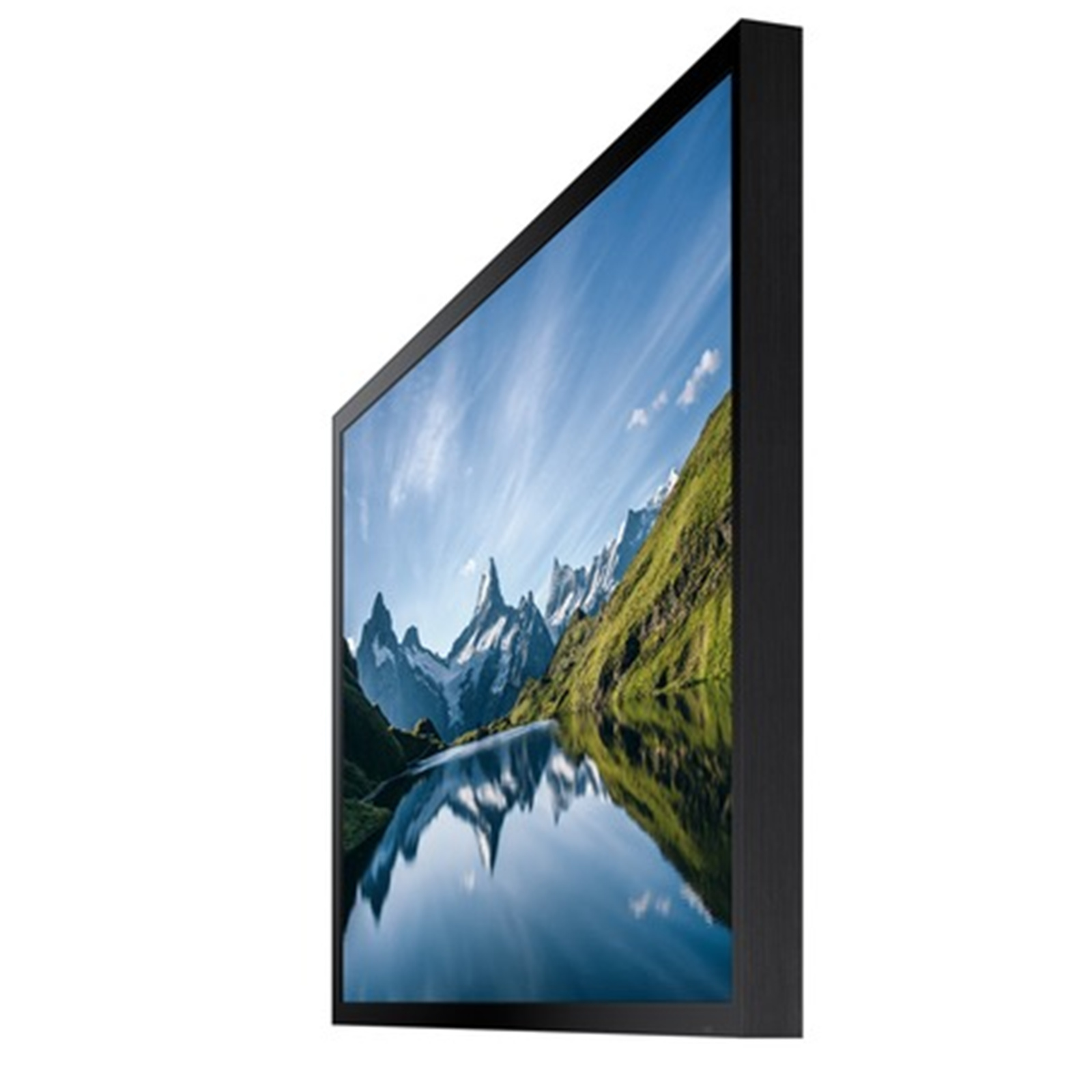

Deliver bright and brilliant messages, built for the outdoors
When it comes to providing concise communication for customers, Samsung's OH46B-S features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH46B-S is packed with robust hardware, ensuring longevity and flexibility.

Clear and vivid anytime, anywhere
The OH46B-S is UL-verified for outdoor visibility with brightness levels over 3,500nits. Its 24/7 performance and polarization technology eliminate display blindness from polarized lenses and delivers continuously crisp content with a built-in auto brightness sensor that adapts to external lighting.

* Images and enclosure are simulated and for illustration purpose only.
Bright and vivid colours for accurate communication and delivery
The OH46B-S delivers advanced colour accuracy and brightness, creating vivid content through enhanced colour reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OH46B-S's uncompromised picture quality will be sure to capture customer attention.

* The max brightness of each colour is based on internal measurements conducted by Samsung.
Enhanced visibility with anti-reflection technology
Samsung OH46B-S is enhanced by Magic Protection Glass, which utilizes advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer.

* The total reflection rate is based on internal measurements conducted by Samsung.
Optimized protection in a variety of outdoor conditions
With certified IP56-rated protection, OH46B-S delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance.

* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).* Images and enclosure are simulated and for illustration purpose only.
Robust durability for screen safety
Fitted with tempered Magic Protection Glass, the Samsung OH46B-S provides durability that is IK10-rated, ensuring advanced safety and protection against external impact. This ensures the product is safe against unexpected damage, giving store managers better peace of mind.

* The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.

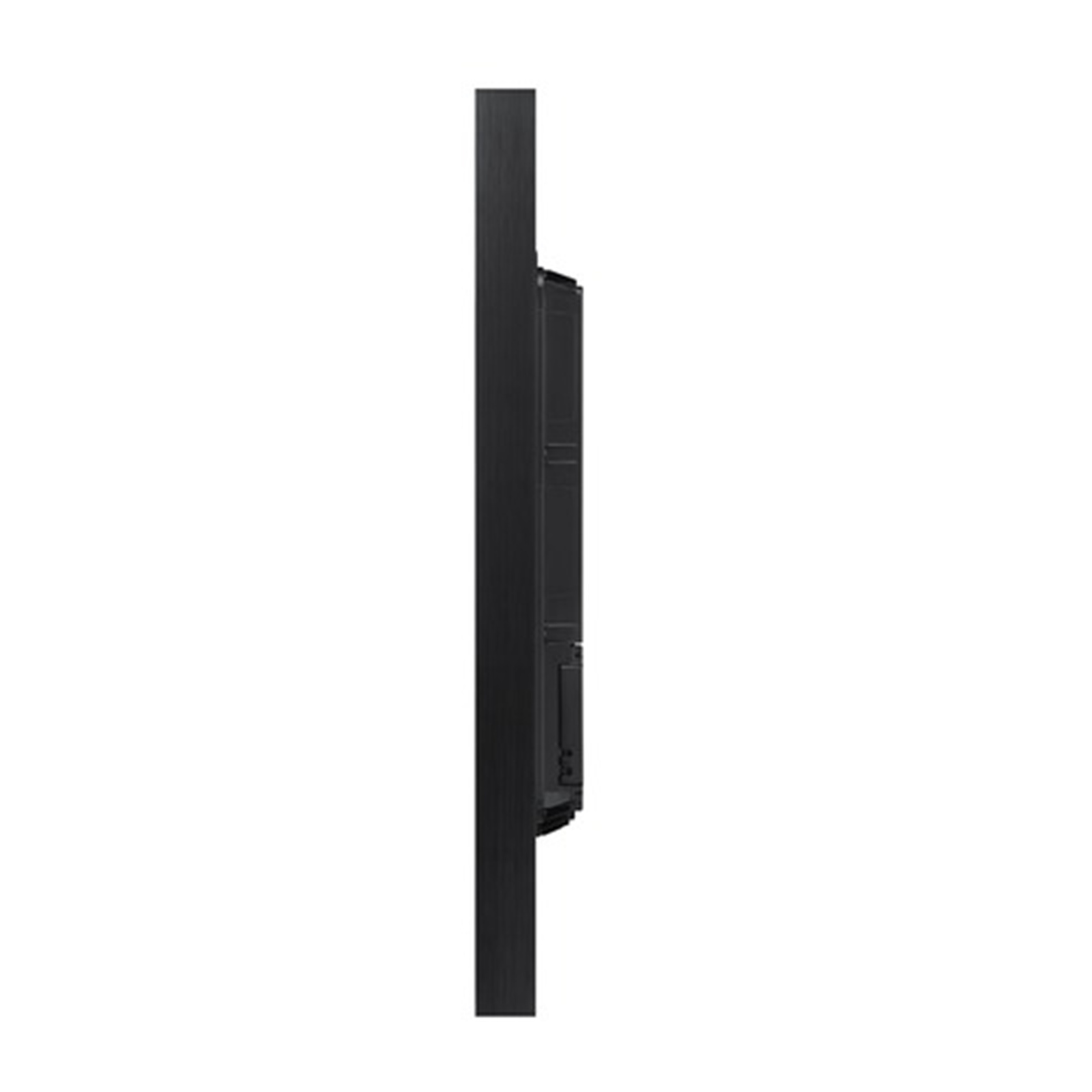

Powerful performance with slim design

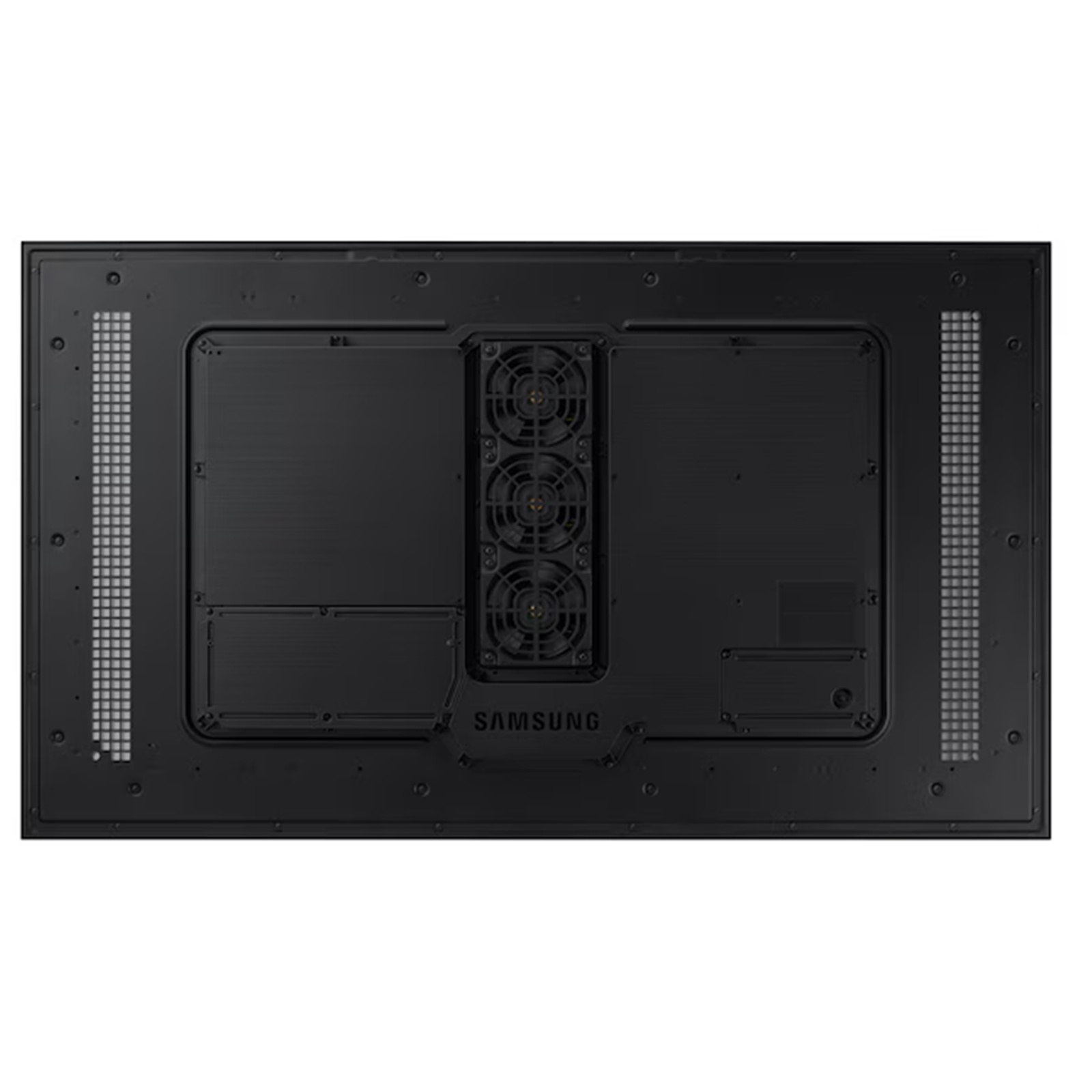

A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.

* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).* The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.* "Conventional" refers to Samsung's OHD series.* Images and enclosure are simulated and for illustration purpose only.
Smooth and seamless content playback
The embedded MagicINFO Player S10, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers.

* MagicINFO license must be purchased separately.
Powerful, protective security
The OH46B-S uses comprehensive three-layer security protection, powered by Samsung's proprietary Knox technology, supporting application development on the secured platform and minimization of security attacks.



Specifications
Display
Diagonal Size
46"
Panel Type
VA
Resolution
1,920 x 1,080
Pixel Pitch (HxV)
0.53x0.53mm
Brightness (Typ)
3,500 (Peak 4,000 )
Contrast Ratio
6,000:1
Viewing Angle (H/V)
178/178
Response Time
6ms
Colour Gamut
NTSC 72%
Glass Haze
0%
H-Scanning Frequency
15~135kHz(HDMI)
Maximum Pixel Frequency
594MHz(HDMI)
V-Scanning Frequency
24~75Hz(HDMI)
Contrast Ratio (Dynamic)
Mega
Operation Time Support
24/7

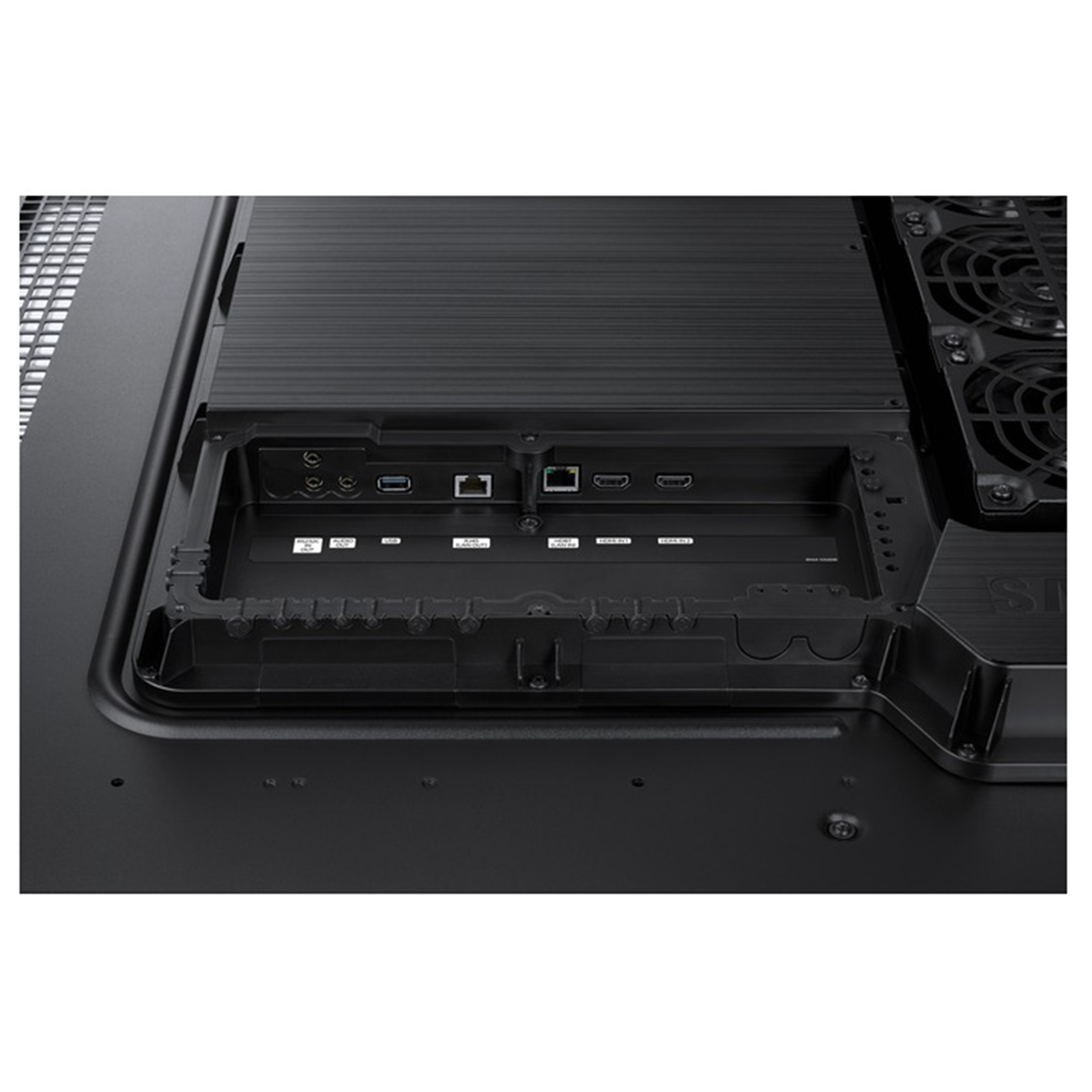

Connectivity
HDMI In
2
Version of HDMI
2
Version of HDCP
2.2
USB
1
HDBaseT In
Yes
Audio Out
Stereo Mini Jack
Power Out
No
RS232 In
Yes
RS232 Out
Yes
RJ45 In
Yes
RJ45 Out
Yes
Power
Power Supply
AC100-240V 50/60Hz
Power Consumption (On Mode)
430W
Power Consumption (Sleep Mode)
0.5W
Dimension
Set Dimension (WxHxD)
1069 x 623.6 x 85 mm
Package Dimension (WxHxD)
1156 x 713 x 200 mm
Weight
Set Weight
36 kg
Package Weight
40.5 kg
Operation Conditions
Temperature
-30℃~ 50℃
Humidity
10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount
995 x 500 mm
Bezel Width
24.9mm (T/B/L/R)
Bezel Colour
Black
Glass Thickness
5T
Glass Film
AG, AR, 4/λ
Optional Feature
Protection Glass
Yes
Mount
Sold Separately
SoC
OS Version
Tizen 6.5
Flash Memory Size
8GB
Certification and Compliance
EMC
Class A
Safety
60950-1, 62368-1
