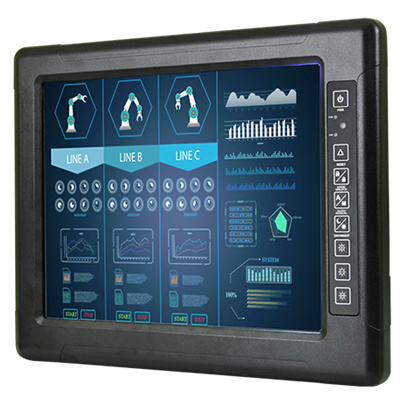

Winmate Front IP65 Display R15L100 15" G-WIN VM Series Display 1024 x 768, Resistive touch, 1x VGA,1x HDMI input (Optional, 9~36V Input

Winmate Front IP65 Display R15L100 15" G-WIN VM Series Display 1024 x 768, Resistive touch, 1x VGA,1x HDMI input (Optional, 9~36V Input

  • Brand: Winmate
  • MPN: R15L100-VMC3HB
  • Part #: MONWMAR15L10003
  • UPC:

Features

Winmate 15" G-WIN VM Series Display

- High Quality 15'' XGA panel, 1024 x 768 resolution
- 5 Wire resistive touch screen
- -10 ~ +55°C Wide Range Operating Temperature
- Anti-Corrosion housing with Fanless Design
- Built-in ambient Light sensor
- Front IP65 Dust & Waterproof Protection (Except I/O ports)
- 9~ 36V DC Isolation Wide Range Power Input.

Easy-to-Clean Flat Surface

Winmate's Flat aluminum display goes beyond that of the standard industrial panel computers with its elegant, edge-to-edge design. The display is easy to clean, plus the screen is resistant to water and liquid droplets.



Dust and Water Protection

The dust and waterproof display comply with IP65 standards. Plus, the M12 connectors are waterproof for varying industrial environments.



Fanless Cooling System

The fanless design eliminates dust circulation for improved product longevity - especially in heavy-duty applications where dusty conditions are prevalent.



Full Power Input Range

Since panel display and computers were not designed to be carried around, they rely on DC power via conventional external AC adapters. Winmate offers 9 to 36 Volt input power range options to fulfill a wide range of applications.



Anti-Shock and Vibration

The G-Win VM series is as tough as it gets. The displays are compliant with MIL-STD-810G, and the aluminum die-casting is rock solid. Plus, optical bonding technology with anti-moisture treatment and resistive coating ensure the screen and housing are both rugged to the max.

Specifications

Display

Touch / Glass

Resistive Touch Screen (Optional)
Protection Glass Without Touch Function (Optional)

Optional function

High brightness Panel for sunlight readable (Optional)

Size

15.0 inches

Resolution

1024x768

Panel Brightness

300 nits
1000 nits (Optional)

Contrast Ratio

2000:1

View Angles

88,88,88,88

Display Color

16.2M Colors

Active Area

304.1x228.1 mm

Mechanical

Dimension

398 x 308 x 58 mm

Weight

4.2 kg

Mounting

VESA Mount
Yoke Mount

Enclosure

Aluminum Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

-10°C to 55°C

Storage Temperature

-30°C to 70°C

Shock

MIL-STD-810G Method 516.6 Procedure I (Optional)

Vibration

MIL-STD-810G Method 514.6 Procedure I

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1x USB type-A for touch screen control (Optional)

Serial Port

1 x RS232 D-sub9 for touch screen control (Optional)

Video

1x VGA input
1x HDMI input (Optional)

Indicator

1 x LED Indicator for power
1 x LED Indicator for status

Power Input

1 x 9~36V DC, 3-Pin Terminal Block

Control

Button

1 x Power Button
1 x Adjust up button
1 x Adjust down button
1 x ESC (Auto) button
1 x Menu button

Manufacturer Part No:
R15L100-VMC3HB
Brand:
Product Type:
-
UPC
-
Product Family:
Front IP65 Display
Shipping Weight:
1 kg
PB Part No:
MONWMAR15L10003
Product Model:
R15L100
Warranty: 12 months *
