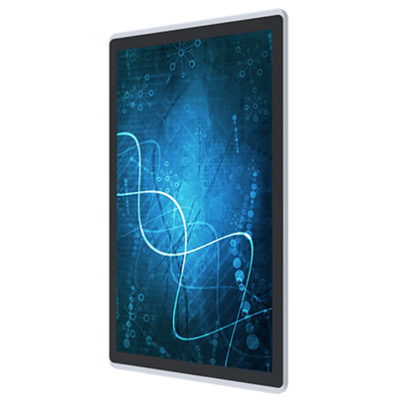

Winmate W15L100 PPA4HB Panel Mount Display 15.6" FHD 1920x1080 - HDMI - VGA - USB for Touch Screen - IP65 Water and Dust Proof - Aluminum Housing - PCAP - High Bright

Normally $1,928.58
Normally $1,928.58
You save $305
You save $305
AUD $ 1,623 .46
$ 1,623 .46
$1,623.46  +GST
$1,623.46  inc GST

Winmate W15L100 PPA4HB Panel Mount Display 15.6" FHD 1920x1080 - HDMI - VGA - USB for Touch Screen - IP65 Water and Dust Proof - Aluminum Housing - PCAP - High Bright

  • Brand: Winmate
  • MPN: W15L100-PPA4HB
  • Part #: MONWMAW15002
  • UPC:
Normally $1,928.58
Normally $1,928.58
You save $305
You save $305
PB Tech price
AUD $ 1,623 .46 $ 1,623 .46


Delivery: Order now and it ships on 18 Jul
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,623.46  +GST
$1,623.46  inc GST

Features

Healthcare Approved

Winmate's Healthcare Display complies with several international healthcare and patient safety standards UL60601/ISO13485. These displays can be found in health centers, clinical research laboratories, and patient care units. Plus, the antimicrobial housing helps to prevent the spread of bacteria and contaminants.

Easy-to-clean Surface

The flat surface simplifies the disinfection process. Cleaning liquids can be used on the screen to maximize safety and hygiene. Plus, white-colored housing makes it easy for users to detect and remove dust or other foreign substances.

Perfect Medical Image Reproduction

The high-resolution LCD screen with wide-viewing angles offers sharp and bright images to deliver spectacular contrast and colors for surgical operations, diagnosis, and clinical review applications.

Ergonomic Design and Easy Installation

The display features a sleek, lightweight design that is compatible with VESA mounting options. The low-cost installation of these displays can be used in a broad range of applications. The display can be installed vertically or horizontally to suit any environment.

Intuitive User Controls

The PCAP multi-touch technology allows the use of multiple fingers at the same time. Take full advantage of the multi-touch screen and scroll, tap, zoom in or zoom out of medical images for precise diagnostics and better prevention measures.

Specifications

Display

Touch / Glass

Projected Capacitive Multi Touch Screen

Size

15.6 inches

Resolution

1920x1080

Panel Brightness

400 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Display Color

262K Colors

Active Area

344.16 ×193.59 mm

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

0°C to 40°C

Storage Temperature

-20 °C to 60 °C

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)

Audio

1 x Audio In
2 x Speaker (Optional)

Mechanical

Dimension

388 x 233 x 40 mm

Mounting

VESA Mount

Enclosure

Plastic

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Power

Power Rating

12V DC input

Control

Button

7 Keys: Enter, Exit, Right, Left, Up, Down, Power

Manufacturer Part No:
W15L100-PPA4HB
Brand:
Product Type:
Panel Mount Display
UPC
-
Product Family:
W15L100
Shipping Weight:
6.9 kg
PB Part No:
MONWMAW15002
Product Model:
PPA4HB
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews
