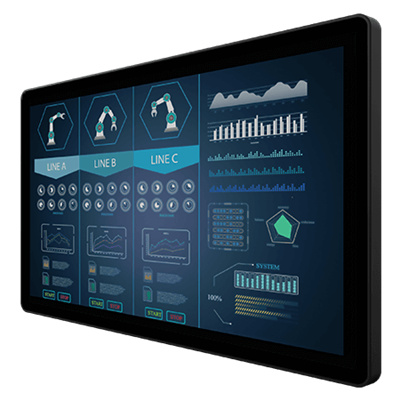

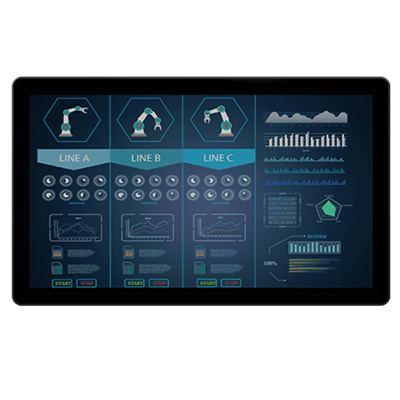

Winmate W22L100PTA3 21.5" Multi-ouch Chassis Display 1920 x 1080, 250 nits, VGA, 24v inputt, VESA mount

Winmate W22L100PTA3 21.5" Multi-ouch Chassis Display 1920 x 1080, 250 nits, VGA, 24v inputt, VESA mount

  • Brand: Winmate
  • MPN: W22L100-PTA3
  • Part #: MONWMAW22001
  • UPC:

Features

Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.



Easy Mounting

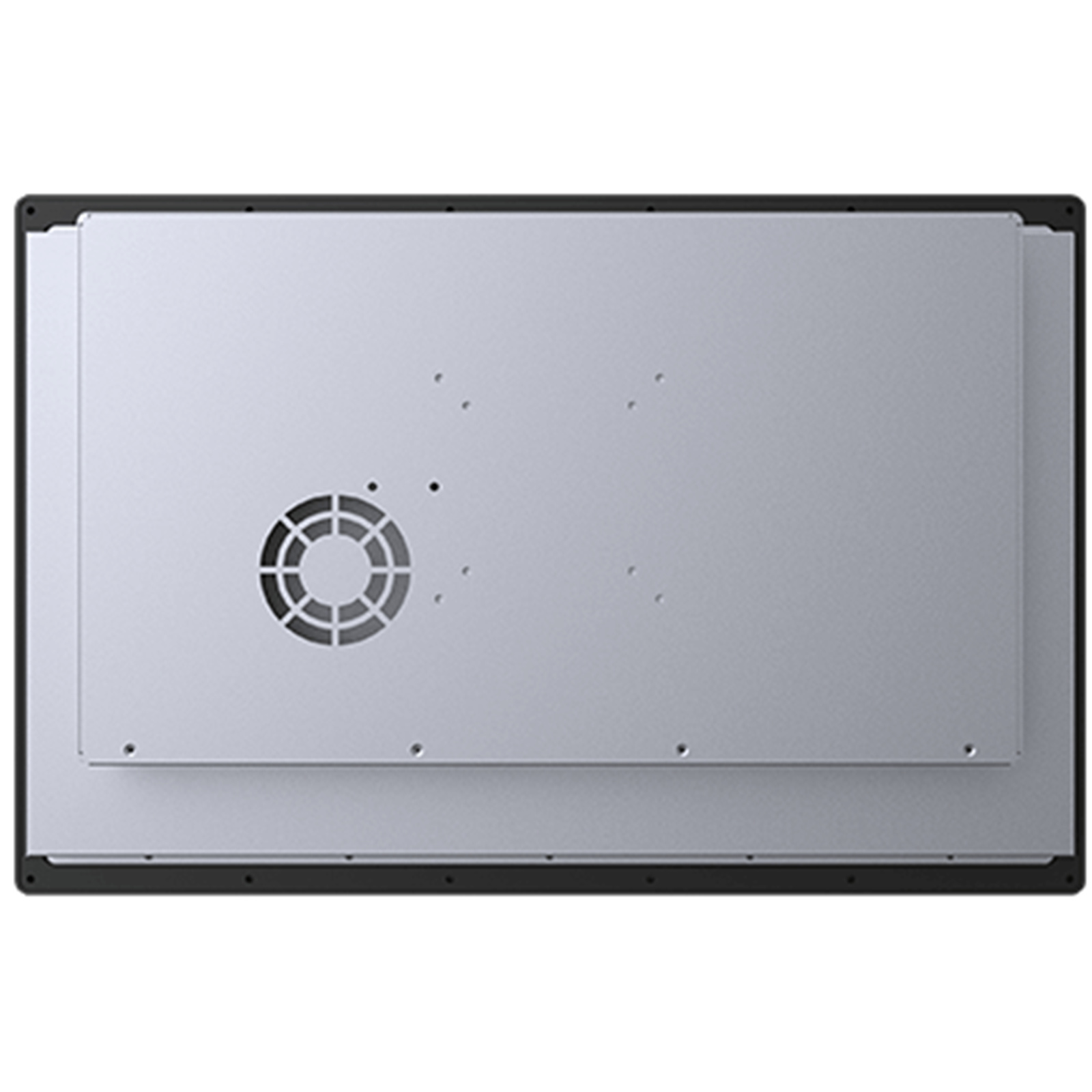

This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.



High Reliability for Various Industrial Applications

Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.



Outstanding Image Quality

Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.



Display Ports and Customization

Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.

Specifications

Display

Size

21.5 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

250.0 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

Display Color

16.7M Colors

Active Area

476.64 x 268.11 mm

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)

Audio

2 x Speaker (Optional)

Mechanical

Dimension

530 x 322 x 56 mm

Mounting

VESA Mount

Enclosure

Plastic

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC in
24V DC in (optional)

Control

Button

5 Keys: - , + , Power , Esc , Enter

Manufacturer Part No:
W22L100-PTA3
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
MONWMAW22001
Product Model:
W22L100PTA3
Warranty: 12 months *
