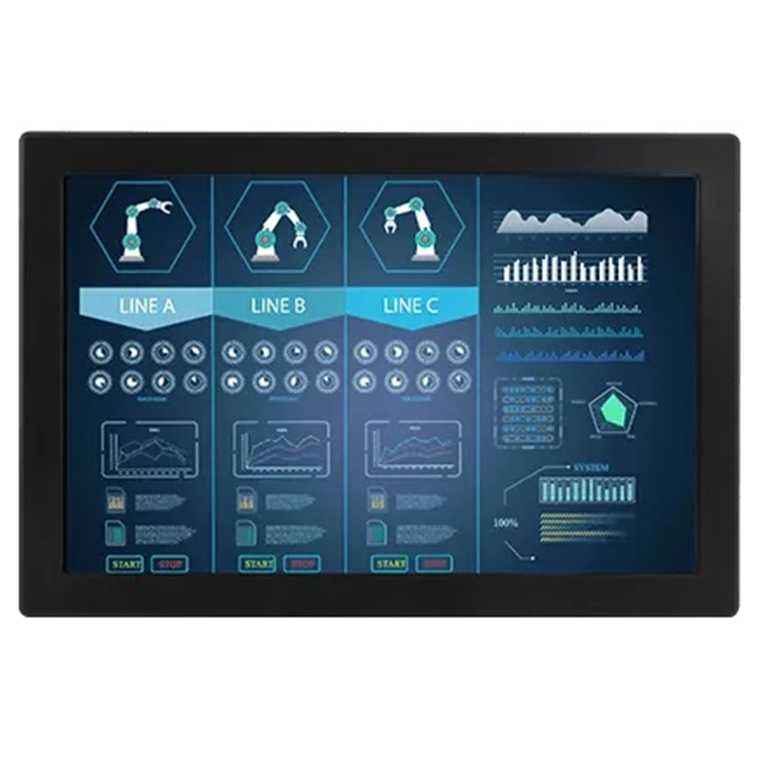

Winmate W22L100-PMA3 21.5" Panel Mount industrial panel display 1920 x 1080 industrial panel display,Panel mount, VESA mount

Winmate W22L100-PMA3 21.5" Panel Mount industrial panel display 1920 x 1080 industrial panel display,Panel mount, VESA mount

  • Brand: Winmate
  • MPN: W22L100-PMA3
  • Part #: MONWMAW22003
  • UPC:

Features

21.5" Panel Mount industrial panel display

- 21.5", 1920 x 1080 industrial panel display
- VGA and HDMI input
- Panel mount
- VESA mount

Low Power Consumption

This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.

Easy Mounting

This industrial display comes with a universal mounting options for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.

HDMI, VGA Signal Interfaces

For easy integration to all embedded boards and systems, the Winmate Panel Mount Display comes with VGA, HDMI signal interfaces. Both interfaces are easy to use and support most of the industrial and commercial applications.

High Reliability for Various Industrial Applications

Winmate industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.

Outstanding Image Quality

Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.

Specifications

Display

Size

21.5 inches

Touch / Glass

Resistive Touch Screen (Default)
Protection Glass w/o Touch Function (Optional)
SAW Touch (Surface Acoustic Wave) (Optional)

Resolution

1920x1080

Panel Brightness

250.0 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

Display Color

16.7M Colors

Active Area

476.64x268.11 mm

Environment

Operating Humidity

10% to 90% RH, Non-Condensing

Operating Temperature

0°C to 50°C

Storage Temperature

-10°C to 60°C

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB for Touch Screen

Video

1 x VGA (Default)
1 x HDMI (Optional)
1 x DVI (Optional)

Audio

Audio line in (3.5mm) (Optional)
2 x Speaker (Optional)

Mechanical

Dimension

534 x 349 x 62 mm

Cut out

510 x 322mm

Weight

6.3 kg

Mounting

VESA mount (Default)
Panel mount (Optional)

Enclosure

Metal Housing with Aluminum Bezel

Cooling System

Fanless Design

Accessory

Accessory

1 x VGA cable
1 x HDMI cable
100~240V AC to DC Adapter
Power Cord
Manual
VESA screws(Varies by product)

Optional Accessory

Remote Controller (Optional,Varies by product)

Power

Power Rating

12V DC in
24V DC in (optional)

Control

Button

5 Keys: - , + , Power , Esc , Enter

Manufacturer Part No:
W22L100-PMA3
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
7.94 kg
PB Part No:
MONWMAW22003
Product Model:
W22L100-PMA3
Warranty: 12 months *
