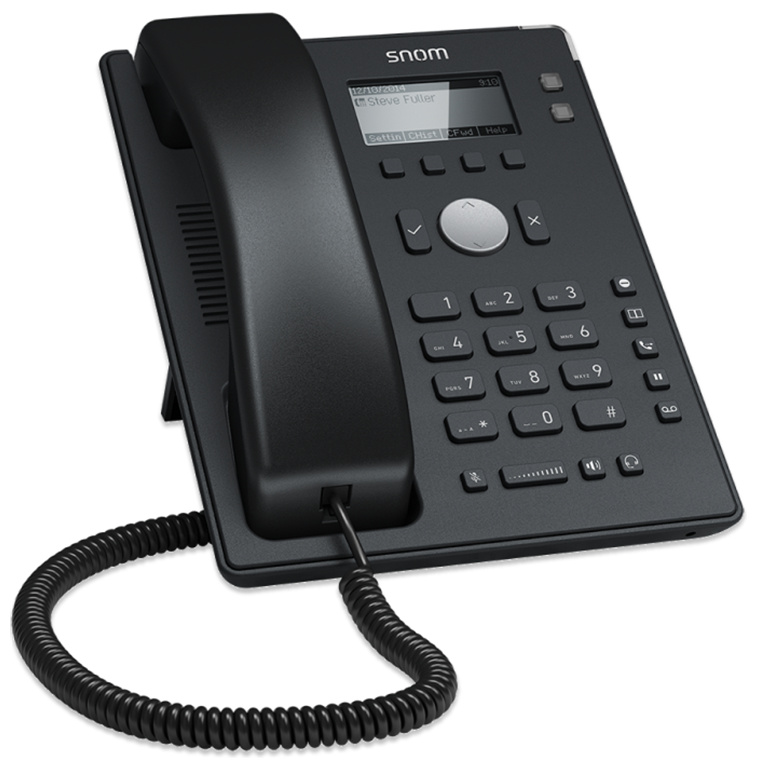

Snom D120 SIP Deskphone
- Brand: Snom
- MPN: 00004361
- Part #: MPHSNM1103

Product URL: https://www.pbtech.com/product/MPHSNM1103/Snom-D120-SIP-Deskphone
Features
Specially developed for large deployments
The Snom D120 IP phone was designed especially for large deployments in hotels, clinics, educational institutions, public administration or in the healthcare sector. It feels at home wherever efficiency and low costs are important.
Thanks to the highly visible LED backlit display, information about calls and functions can be easily monitored. For example, it is easy to see (even from a distance) whether a call is in progress, has been missed or there are unheard voice messages. In addition to five preassigned function keys for simple and intuitive operation, four programmable context-sensitive keys are available for frequently used functions.
360° notification indicator
The Indicator lamp shows from any point in the room if you have missed a call, for example.
Graphical display with backlight
The D120 is equipped with a high-resolution black-and-white display which ensures an optimal display at all times, not least because of its backlight.
4 context-sensitive + 5 preassigned function keys
Four programmable context-sensitive keys are available for frequently used functions; five preassigned function keys are available for simple and intuitive operation.
Specifications
Brand
Snom
Colour
Black
Operating system
Linux
Dimensions (L × W × H, approx.)
205 mm × 161 mm × 32 mm without footstand
205 mm × 161 mm × 120 mm with footstand
Inclination
35°
Display
TFT liquid crystal display (LCD), monochrome, graphical, 4 lines, 3 lines for menus or context area, backlit
Size (diagonal): 2.6? (66 mm)
Size (W × H): 62 mm × 22 mm
Resolution: 132 × 64 pixel
Audio devices and codecs
Corded handset
Microphone / Handset earpiece
Hearing aid compatible (HAC)
Audio codecs
G.711 (A-law, µ-law), G.722, G.726, G.729AB, GSM 6.10 (FR)
Dual-tone multi-frequency signalling (DTMF / RFC2833)
SIP-INFO, in-band, out-of-band
Interfaces and connections
Power options
Power over Ethernet (PoE): IEEE 802.3af, class 1
Power adapter: 100 - 240 V AC, 50 - 60 Hz
Wired interfaces
Power adapter: coaxial power connector (socket)Network connectivity: RJ45-8P8C socket ? Ethernet 10/100 Mbit/s
Corded handset: RJ9-4P4C socket
Headset: RJ9-4P4C socket
Networking technologies and protocols
VoIP related protocols and techniques
SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN
Secure VoIP protocols
SIPS (SIP over TLS), SRTP, SRTCP
Network protocols
IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP
Enivironment conditions
Operating ambient temperature
0°C- 35°C
Nonoperating (storage) temperature
-10°C - 45°C
Humidity (non-condensing)
5 % - 95 %
