Snom D715 4-Line 5-Button SIP Deskphone GIG PoE - Black
- Brand: Snom
- MPN: 00004039
- Part #: MPHSNM1106

Product URL: https://www.pbtech.com/product/MPHSNM1106/Snom-D715-4-Line-5-Button-SIP-Deskphone-GIG-PoE
Features
The small office phone with USB
The Snom D715 offers wideband audio in the best quality. It has a USB port. Therefore it supports the Snom A150 USB headset and the Snom D7 extension module as well as the Snom A230 DECT dongle and the Snom A210 WLAN dongle.
The Snom D715 has a four-line graphical display and 4 context-sensitive function keys to operate the intuitive, user-friendly menu. The 5 function keys with built-in LEDs for visual call or status indication can be freely programmed with a variety of telephone functions such as speed dial, extensions or presence indication, giving the user flexibility in selecting the functions available at the touch of a button.

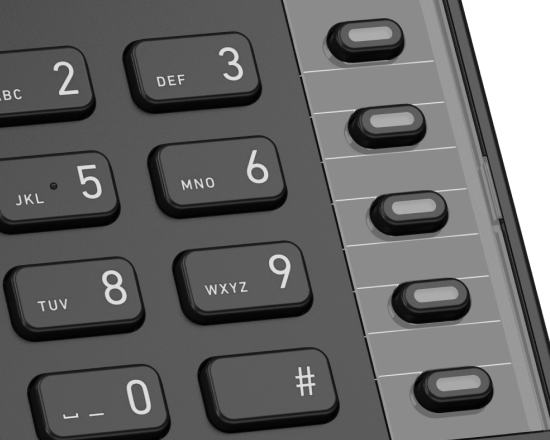

5 configurable LED function keys
The keys can be assigned functions available on the desk phone, e.g. speed dialling, direct dialling or extension. The multicolour LEDs indicate, for example, the call and presence status of a direct dialling.

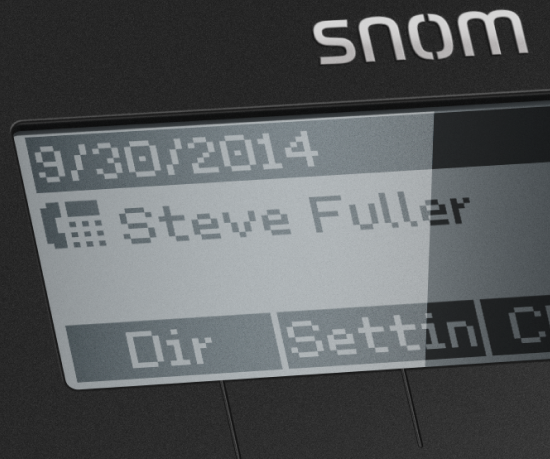

Graphic 3.2" B/W display
The monochrome display offers excellent contrast and visibility in all lighting conditions.
Specifications
General
Model No.
D715
Color
Black
Placement
Indoor, desktop, wall mounting
Operating system
Linux
Display
TFT liquid crystal display (LCD)
Monochrome, graphical, 4 lines, backlit
Size (diagonal)
3.2? (82 mm)
Size (W × H)
78 mm × 26 mm
Resolution
128 × 48 pixel
10 LED indicators
Call status indication
1 red LED
Message waiting indication (MWI)
1 red LED
Function key status indication
5 green LEDs
Audio key status indication
3 LEDs (1 red / 2 green)
Power options
Power over Ethernet (PoE)
IEEE 802.3af, class 3
Wired interfaces
Network connectivity
2 × RJ45-8P8C sockets ? Gigabit Ethernet (GbE)
Corded handset
RJ9-4P4C socket
Headset
1 RJ9-4P4C socket
Enviromental Conditions
Operating ambient temperature
0 °C - +35 °C
Nonoperating (storage) temperature
-10 °C - +45 °C
Humidity (non-condensing)
5 % - 95 %
