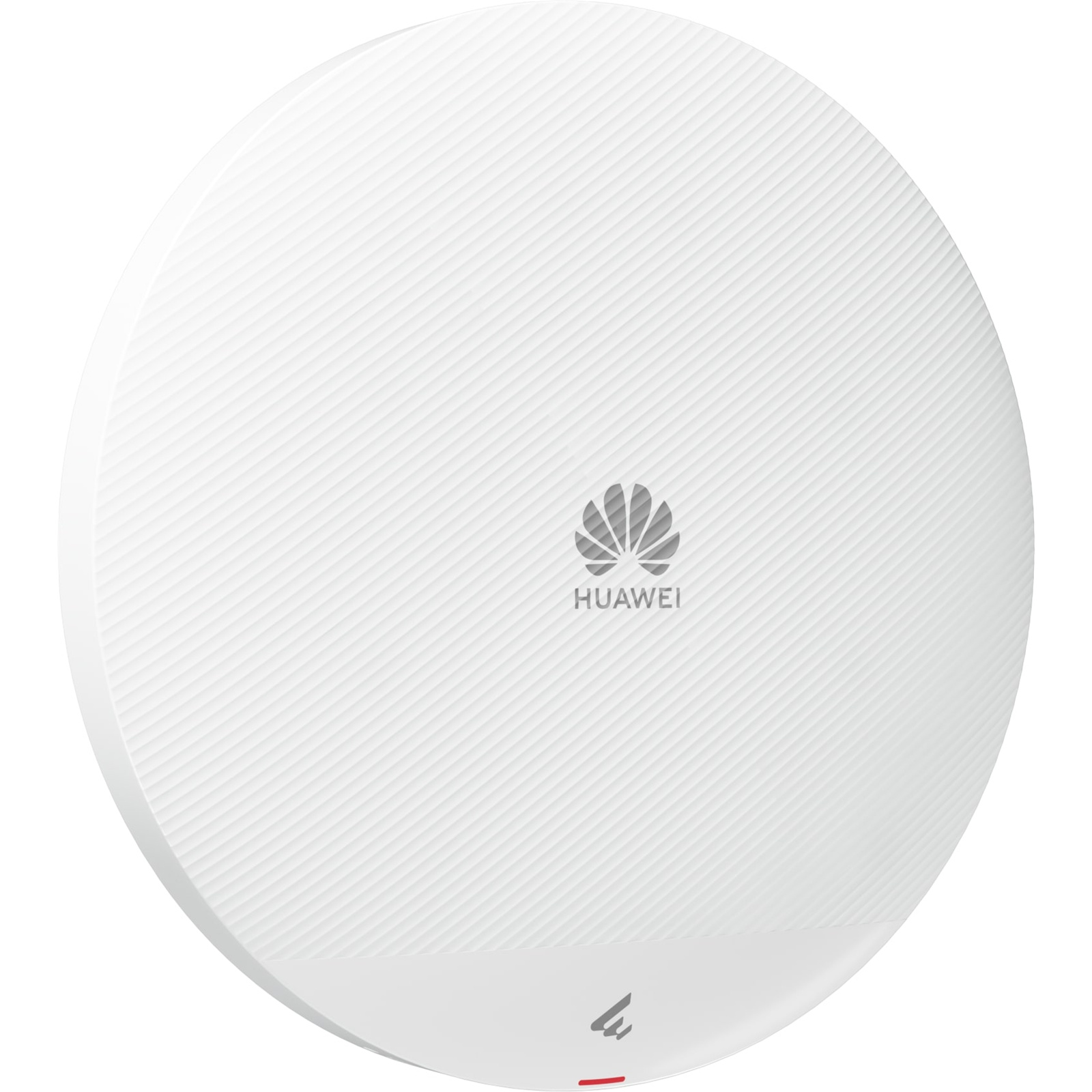

Huawei eKitEngine AP362E (AX3000) Dual-Band Wi-Fi 6 Access Point (PoE 9.4W)
- Brand: Huawei
- MPN: AP362E
- Part #: NAPHUA3621

Product URL: https://www.pbtech.com/product/NAPHUA3621/Huawei-eKitEngine-AP362E-AX3000-Dual-Band-Wi-Fi-6
Features
Wi-Fi 6 Technology (802.11ax)
- Supports dual-band concurrent operation (2.4 GHz and 5 GHz)
- Maximum data rate up to 1.775 Gbps
- OFDMA and MU-MIMO improve multi-user efficiency and reduce latency
- BSS Coloring and Target Wake Time (TWT) for optimized network efficiency and power savings
High Performance with Dual Spatial Streams
- Supports 2x2 MIMO for both frequency bands
- Up to 574 Mbps on 2.4 GHz and 1.201 Gbps on 5 GHz
Enterprise-Grade Hardware Design
- Compact and sleek white housing, suitable for wall or ceiling mount
- Passive PoE or 802.3af/at PoE support for flexible deployment
- Up to 256 users per AP, ideal for high-density environments
Robust Security and Access Control
- WPA3 encryption support
- Built-in firewall, rogue AP detection, and isolation mechanisms
- MAC address filtering and dynamic VLAN assignment
Simplified Management with Huawei Cloud
- Easily integrated into Huawei's EKit Cloud Management Platform
- Centralized configuration, firmware updates, and real-time monitoring
- Zero-touch provisioning enables plug-and-play deployment
Energy Efficient
- TWT (Target Wake Time) reduces power consumption for connected devices
- Compliant with environmental and safety standards for sustainable use
Specifications
Wireless Standards
802.11a/b/g/n/ac/ax (Wi-Fi 6)
Frequency Bands
2.4 GHz and 5 GHz
MIMO Configuration
2×2 MIMO (2 spatial streams per band)
Maximum Throughput
Up to 1.775 Gbps total
User Capacity
Up to 256 users
Ports
1 × 10/100/1000 Mbps Ethernet (PoE)
Power Supply
802.3af/at PoE or DC adapter (optional)
Security
WPA3, MAC filtering, ACLs, user isolation
Mounting Options
Ceiling, wall, or desktop
Dimensions
Approx. 150 mm × 150 mm × 36 mm
Weight
Approx. 350g
Operating Temperature
-10°C to +50°C
