Ubiquiti airFiber AF60-LR 60Ghz Long Range 1.8Gbps Wireless Link

Normally $713.50
Normally $713.50
You save $39
You save $39
AUD $ 673 .93
$ 673 .93
$673.93  +GST
$673.93  inc GST

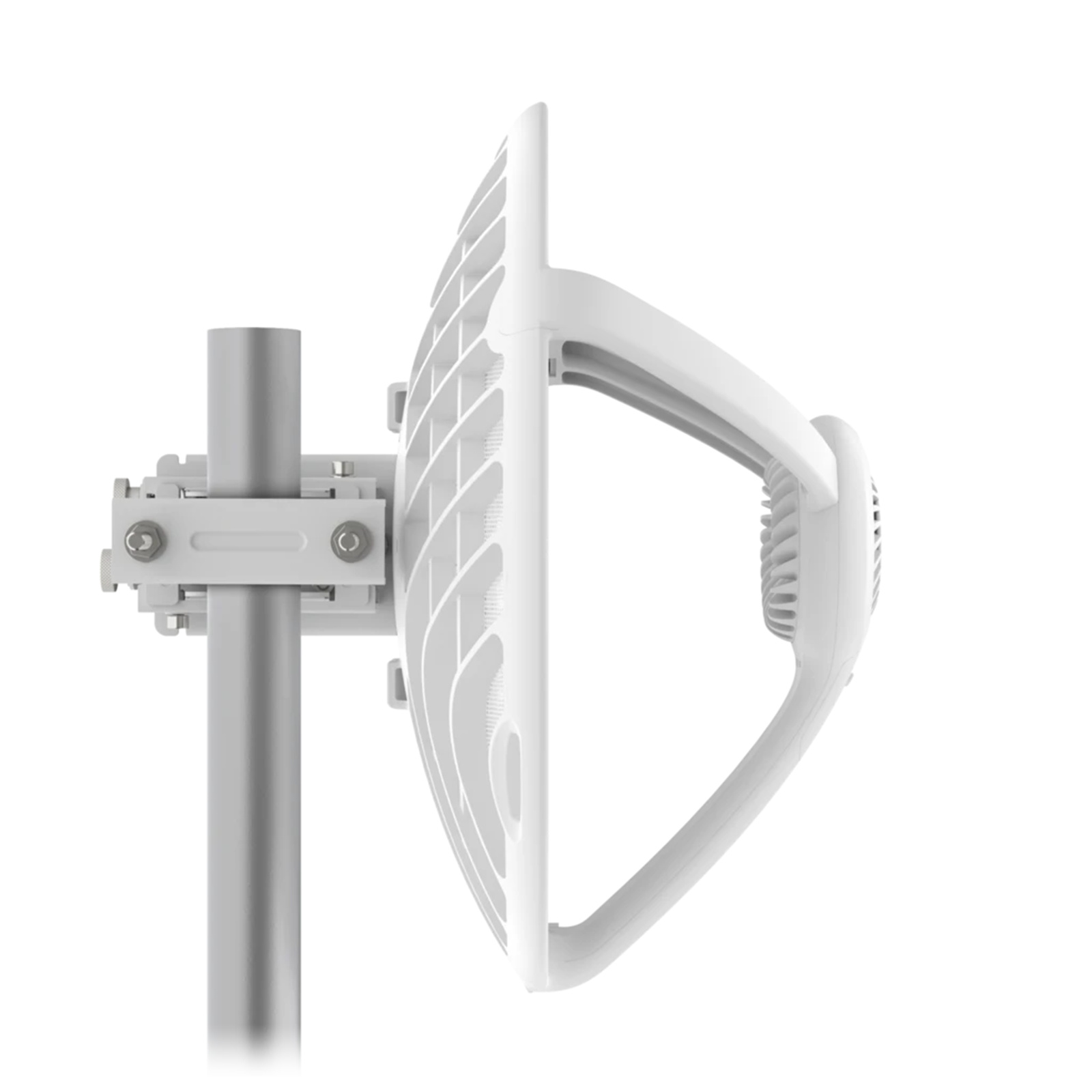

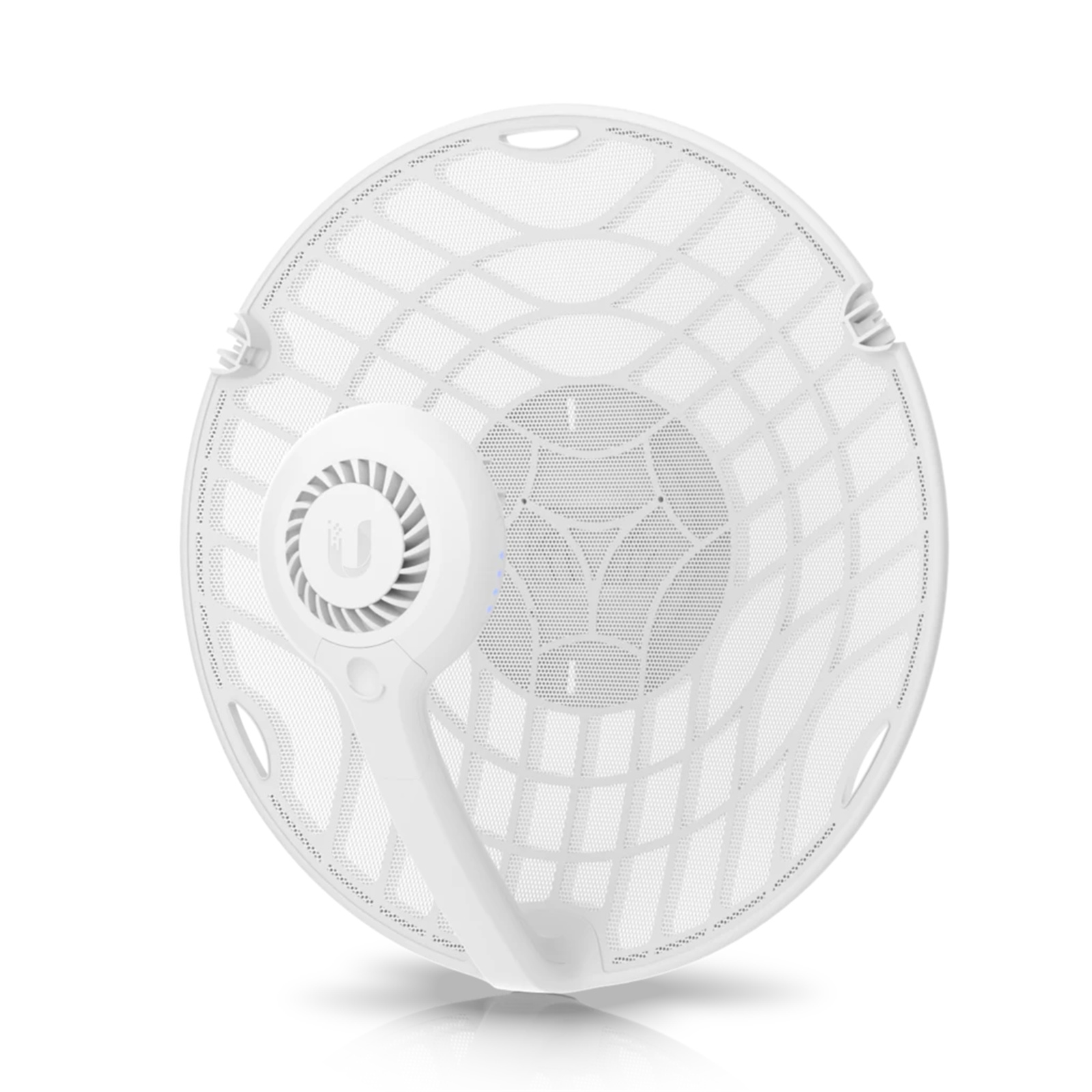

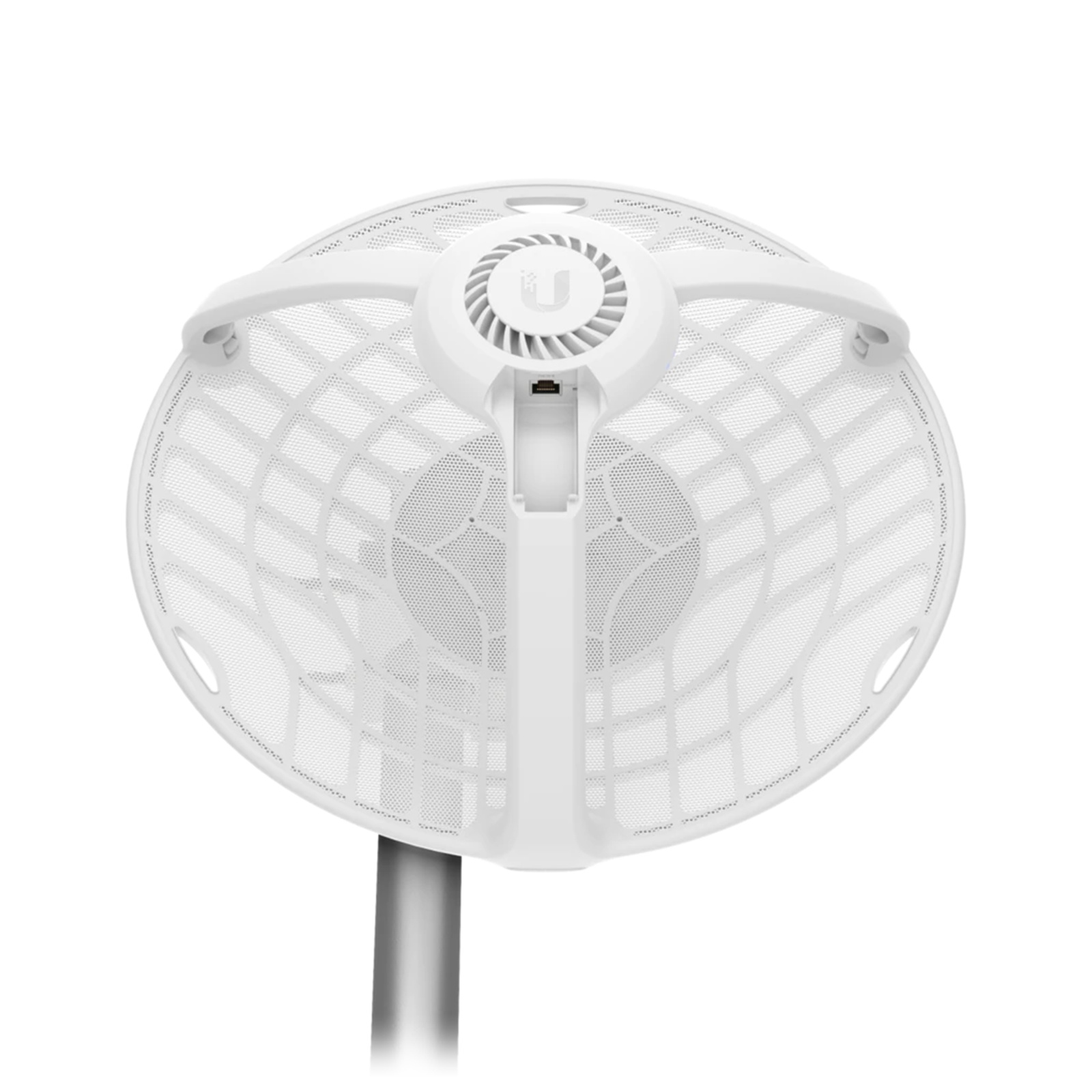

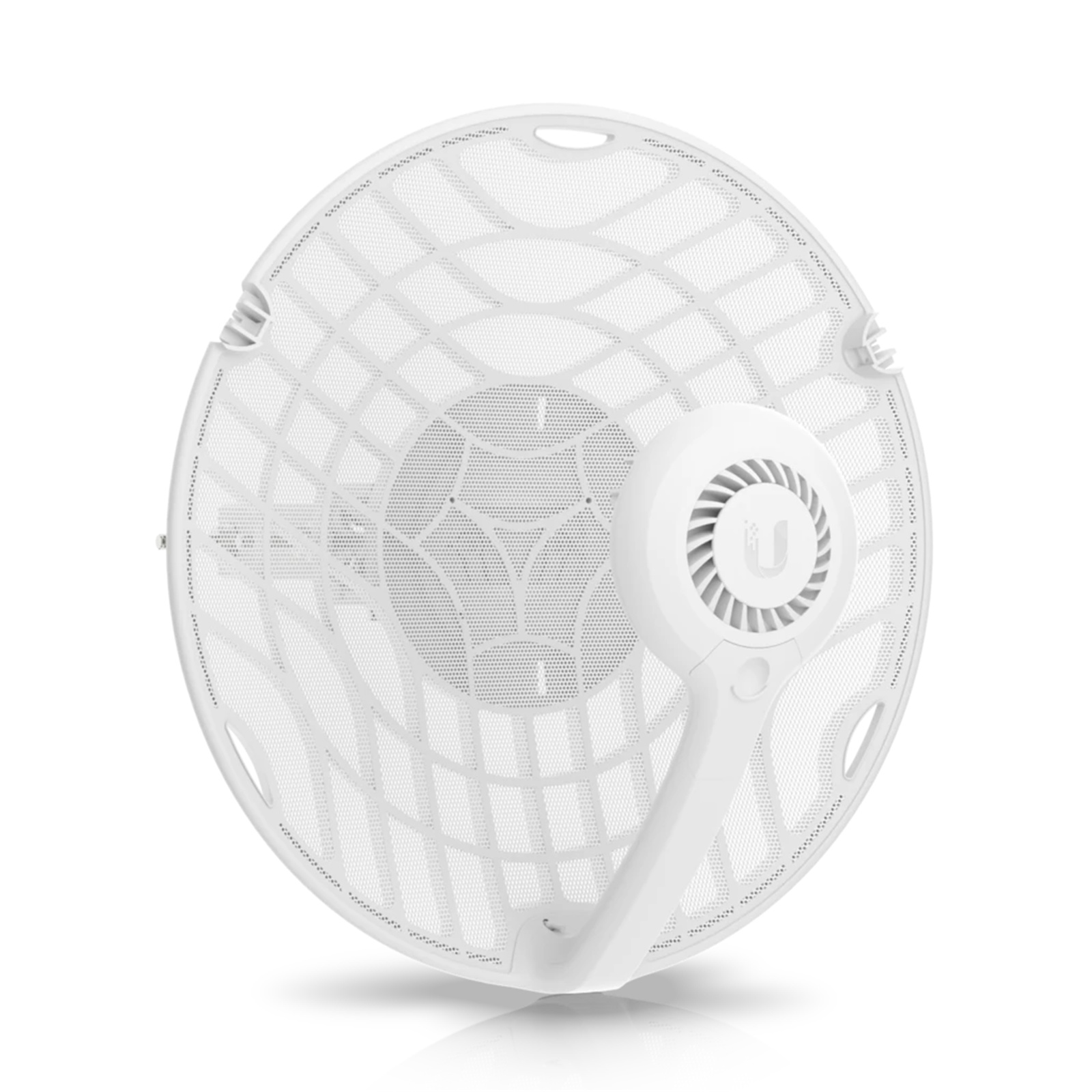

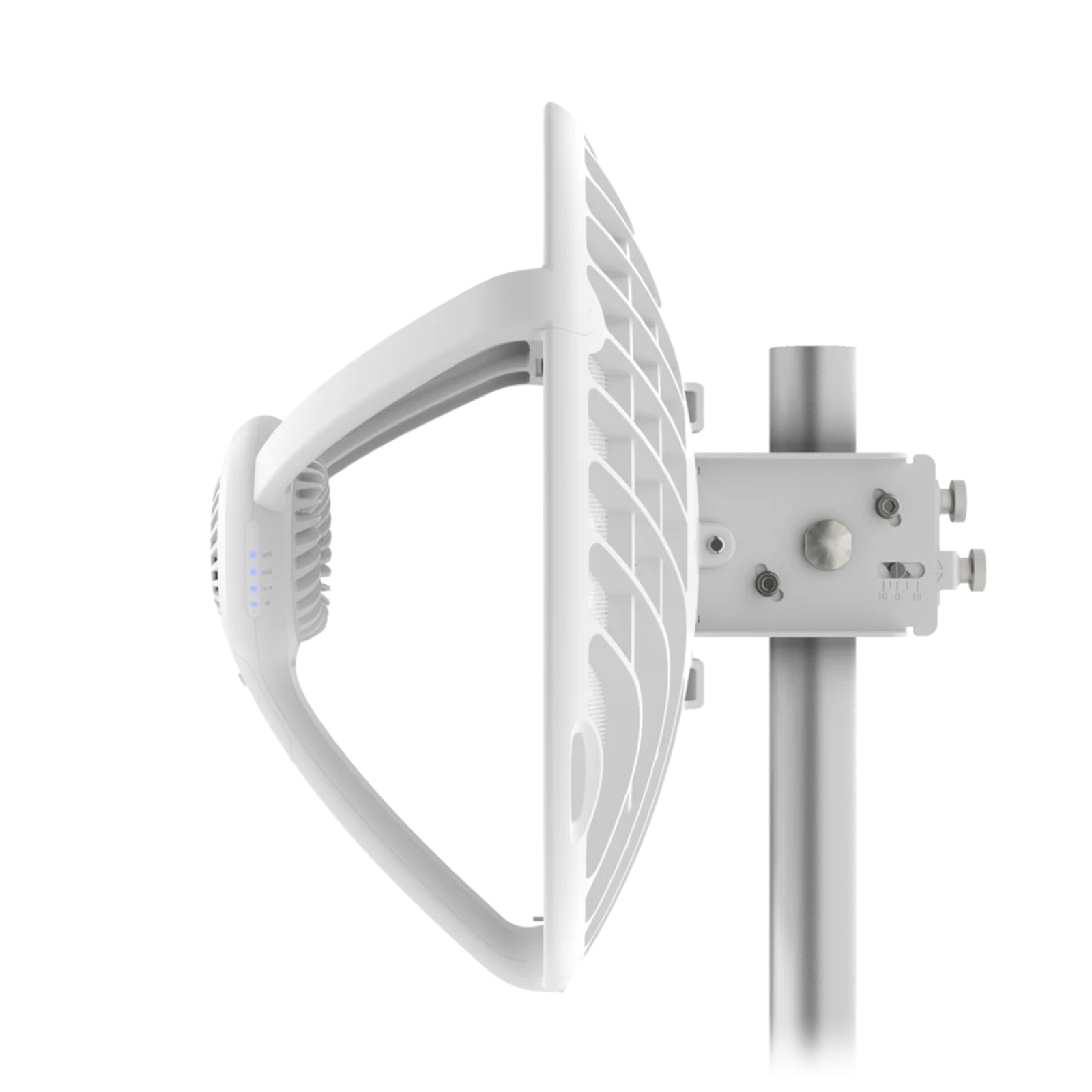

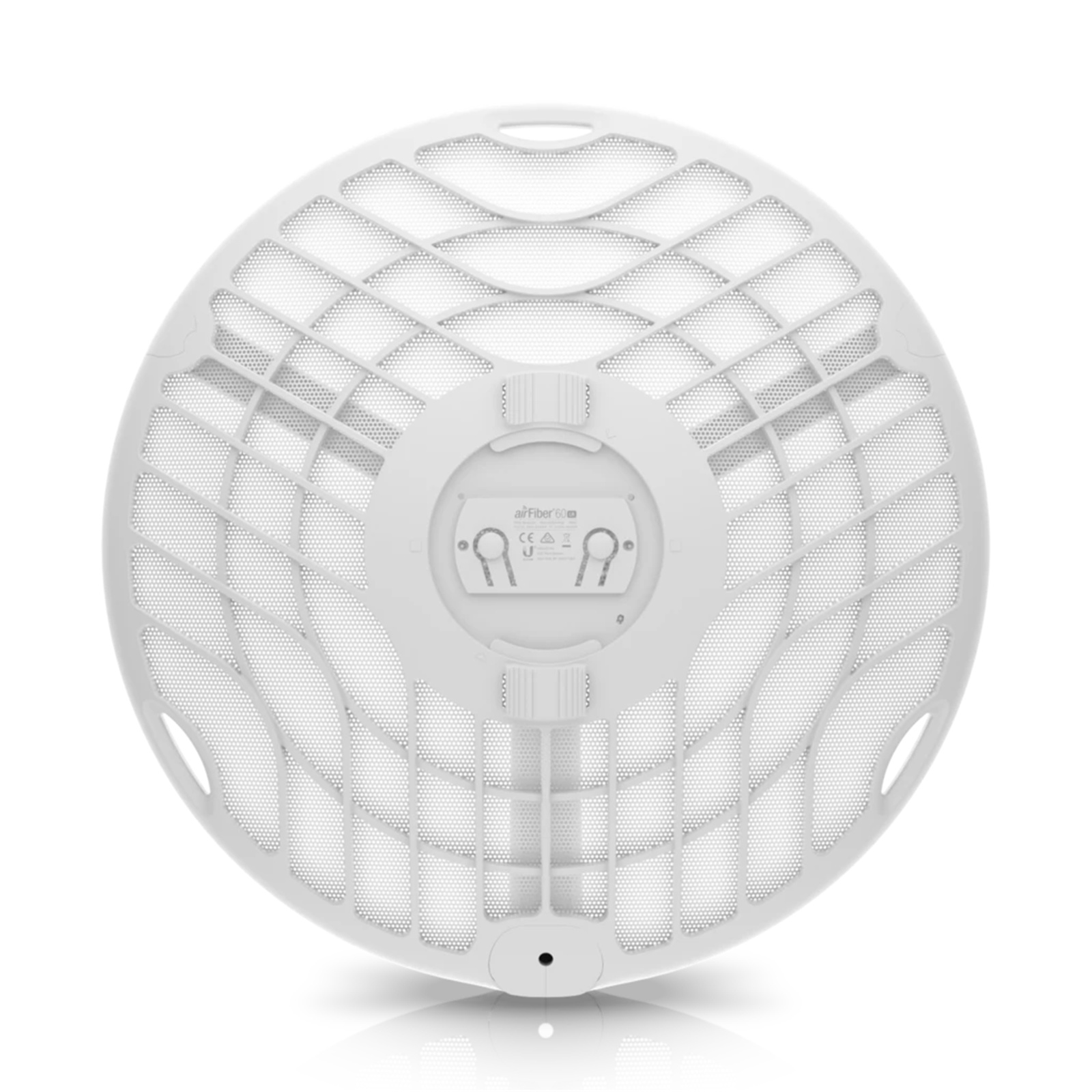

Ubiquiti airFiber AF60-LR 60Ghz Long Range 1.8Gbps Wireless Link

  • Brand: Ubiquiti
  • MPN: AF60-LR
  • Part #: NAPUBI201101
  • UPC: 810010073563
Normally $713.50
Normally $713.50
You save $39
You save $39
PB Tech price
AUD $ 673 .93 $ 673 .93


Delivery: Order now and it ships on 24 Apr
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$673.93  +GST
$673.93  inc GST
  • Brand: Ubiquiti
  • MPN: AF60-LR
  • Part #: NAPUBI201101
  • UPC: 810010073563

Ethernet Ports

1

USB Ports

Not Specified

Wi-Fi Bands

Triple

Wireless Transmission Speed

1800Mbps

Features

airFiber 60 LR

airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances.

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.

Includes a built-in Bluetooth management radio for easy setup.

- Low-Interference 60 GHz Spectrum
- Integrated GPS
- Long Range, over 12 km
- Precision Alignment Mount Included
- link.ui.com Planning Support
- Quick Setup Using the *UISP™ App via Bluetooth

*UNMS Application will change to UISP™ Application from version 1.3.0 onward.

View datasheet here: https://dl.ubnt.com/ds/af60-lr_ds

Specifications

Mechanical

Dimensions

Ø413 x 360 mm (Ø16.3 x 14.2")

Weight

Without mount: 1.5 kg (3.3 lb)
With mount: 2.7 kg (6 lb)

Enclosure materials

Aluminum, UV stabilized polycarbonate

Mount material

Galvanized steel

Mounting

Precision Alignment Kit (included)
Pole compatibility: Ø25.4-76.2 mm (Ø1-3")

Wind loading

420 N at 200 km/h (94.4 lbf at 125 mph)

Hardware

Processor

Quad-Core ARM® Cortex® A7

Memory

256 MB DDR3

Networking interface

GbE RJ45 port

RF Connections

Internal

Max. Power Consumption

18W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )

Power supply

48VDC, 0.65A gigabit PoE adapter (included)

Supported Voltage Range

48VDC ± 10%

ESD/EMP Protection

Air/Contact: ± 24kV

Operating Temperature

-40 to 60° C (-40 to 140° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

FCC, IC, CE

LEDs

Power

Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console

Ethernet

Flashing blue: ethernet activity

GPS

Blue: receiving at least (4) GPS satellite signals

60G

Blue: active connection

Software

OS

airOS®

Operating mode

PtP only

Ubiquiti specific features

Integrated 60 GHz radio, discovery protocol, Wave technology

Network

Bridge mode

Services

UISP, ping watchdog, NTP client, device discovery

Tools

Antenna alignment, discovery utility, ping, trace route, speed test

Software management

Bluetooth management for easy setup over UISP app
WEB UI

Minimum software requirements

Any modern WEB browser/iOS or Android based smartphone

System

Maximum throughput

1.95 Gbps

Maximum range

12+ km

Encryption

WPA2-PSK (AES)

RF

Operating Frequency*

57 to 71 Ghz
* Depends on regulatory region.

GPS

Yes

Channel Bandwidth

2160, 1080 MHz

Manufacturer Part No:
AF60-LR
Brand:
Product Type:
-
UPC
810010073563
Product Family:
airFiber
Shipping Weight:
6.11 kg
PB Part No:
NAPUBI201101
Product Model:
AF60-LR
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
