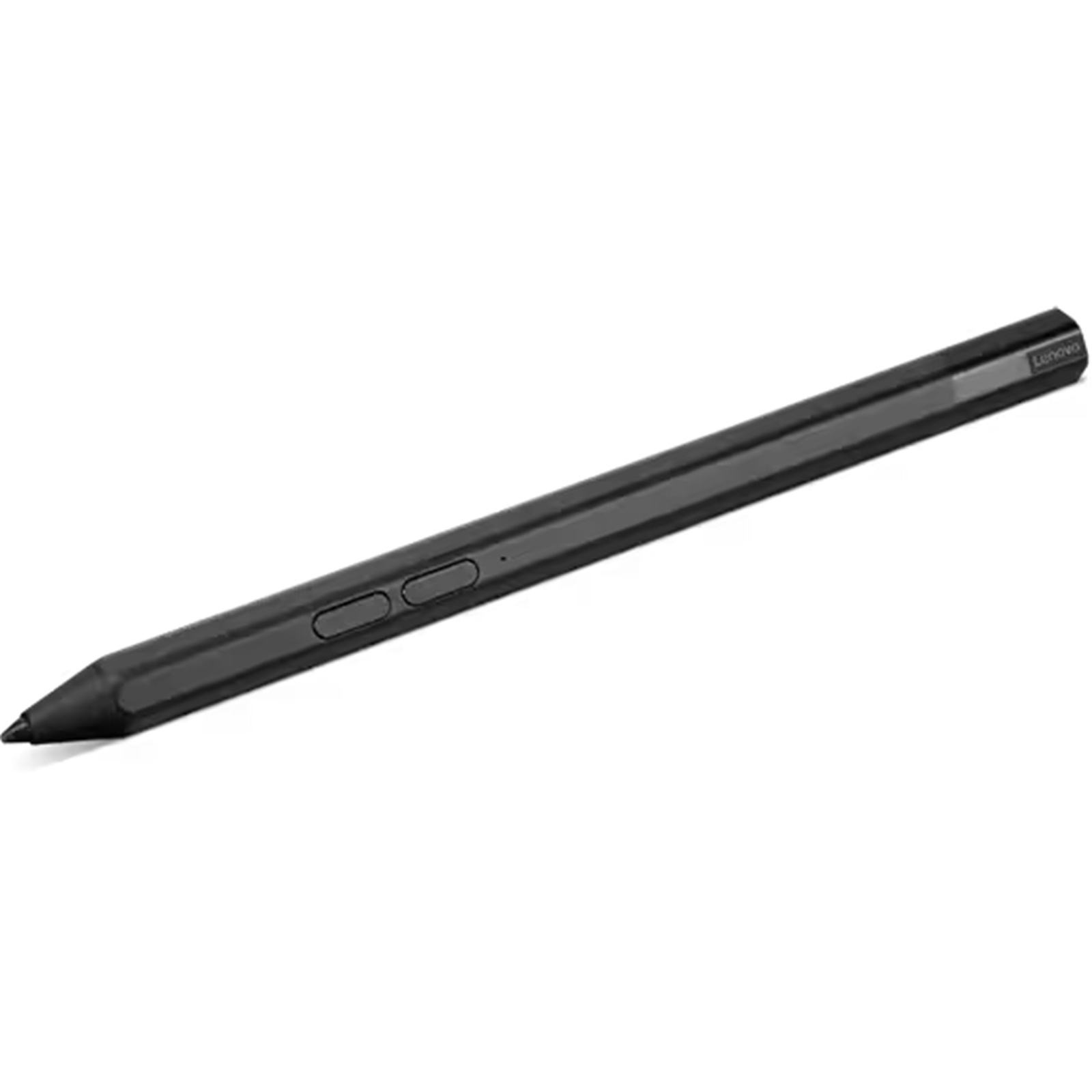

Lenovo Precision Pen 2 (Laptop)
Out of stock
- Brand: Lenovo
- MPN: 4X81H95637
- Part #: NBALEN30809
- UPC: 195892053316
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Laptop Accessories





Lenovo Precision Pen 2 (Laptop)
- Brand: Lenovo
- MPN: 4X81H95637
- Part #: NBALEN30809
- UPC:195892053316

Product URL: https://www.pbtech.com/product/NBALEN30809/Lenovo-Precision-Pen-2-Laptop
Features
Lenovo Precision Pen 2 (Laptop)
For those who need a versatile stylus to interact with designs, artwork, or documents, the Lenovo Precision Pen 2 (Laptop) is a welcome companion. With 4,096 levels of pressure sensitivity, traditional pens and pencils are no comparison. Plus with advanced tilt recognition, sketching and shading feel unbelievably natural and lifelike. Add up to 246 hours of battery life and two programmable buttons and you've got limitless creativity between your fingers.
- Lenovo Precision Pen 2 (Laptop) for Lenovo LAPTOPS ONLY
- 4,096 levels of pressure sensitivity
- Two short-cut buttons
- Up to 150 of usage time
- Tilt detection
- Supporting WGP, AES 2.0 and MPP 2.0 protocols
- USB Type-C charging
Specifications
Color
Black
Battery Life
246H-1754H
Weight
Including battery: Approximately 15.0 [g]
Power Requirement
Li-ion Polymer Battery (No replacement), Supply Voltage: 4.4~5.25[V], Supply current: 100[mA]
Brand
Lenovo
OS Requirements
Windows 10
Packed Weight
100g
Other Electrical Specifications
Pen tip output voltage WGP protocol: Nominal 20 [V], MPP2.0 protocol: Nominal 20 [V], AES 2.0/1.0 protocol: Nominal 17 [V]
Other Operating Environment
Storage environment (in packaged condition), Temperature: -10 ~ +55 C, Humidity: +30 ~ +80 % (no condensation
Agency Approvals
CE FCC VCCI RCM NCC BSMI KCC
Package Type
Brown Box
Packed Dimensions (L x D x H)
247 mm x 100 mm x 36 mm
Length
150±0.5 mm
Maximum Operating Temperature
40C
Minimum Operating Temperature
5C
Maximum Relative Humidity (%)
80%
Minimum Relative Humidity (%)
30%
Battery Charging Time
Approximately 150 [min.] at Room Temperature
Included Accessory
Common Warranty*1 User Guide*1 Lenovo Precision Pen 2
Diameter
9.65 mm
Input Rating Voltage
4.4V
Oscillating Frequency
AES 2.0/1.0 protocol: 1800 kHz ± 5%, MPP 2.0: 18 ~ 210 [kHz], WGP: 86 ~ 400 [kHz] / 8 channels
Presure Resolution
Up to 4096 levels, depends on touch IC's F/W setting
Shifting Time to Sleep
Condition: Tip switch/Side switch free, Shift to Sleep mode after approximately 10 [min.], Condition: Tip switch and/or Side switch press, Shift to Off mode after approximately 4 [min.]
