StarTech.com CC1M-40G-USB-CABLE USB-IF Certified - 40Gbps USB4 Cable - 1m (3ft)
USB-C
StarTech.com CC1M-40G-USB-CABLE USB-IF Certified - 40Gbps USB4 Cable - 1m (3ft)
USB-C
- Brand: StarTech.com
- MPN: CC1M-40G-USB-CABLE
- Part #: NBASTT5884959
- UPC:
- Brand: StarTech.com
- MPN: CC1M-40G-USB-CABLE
- Part #: NBASTT5884959
- UPC:
Similar in-stock products available at PB Tech right now
What PB Tech customers are saying about this product...
See More Reviews
"Can easily connect directly my newer C portable HDDs etc.
What can I say I like Belt & Braces Backup to different media.
As with all C items check specs carefully it supports what ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular USB-C Cables





StarTech.com CC1M-40G-USB-CABLE USB-IF Certified - 40Gbps USB4 Cable - 1m (3ft) USB-C
- Brand: StarTech.com
- MPN: CC1M-40G-USB-CABLE
- Part #: NBASTT5884959

Product URL: https://www.pbtech.com/product/NBASTT5884959/StarTechcom-CC1M-40G-USB-CABLE-USB-IF-Certified?is-review=1
Features
This 3ft (1m) USB4 Cable connects to USB Type-C® (USB 3.2), Thunderbolt™ 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.
Establish Fast and Stable Power/Data Connections
This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.
This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.
Experience 8K Video with DisplayPort 1.4 Alt Mode

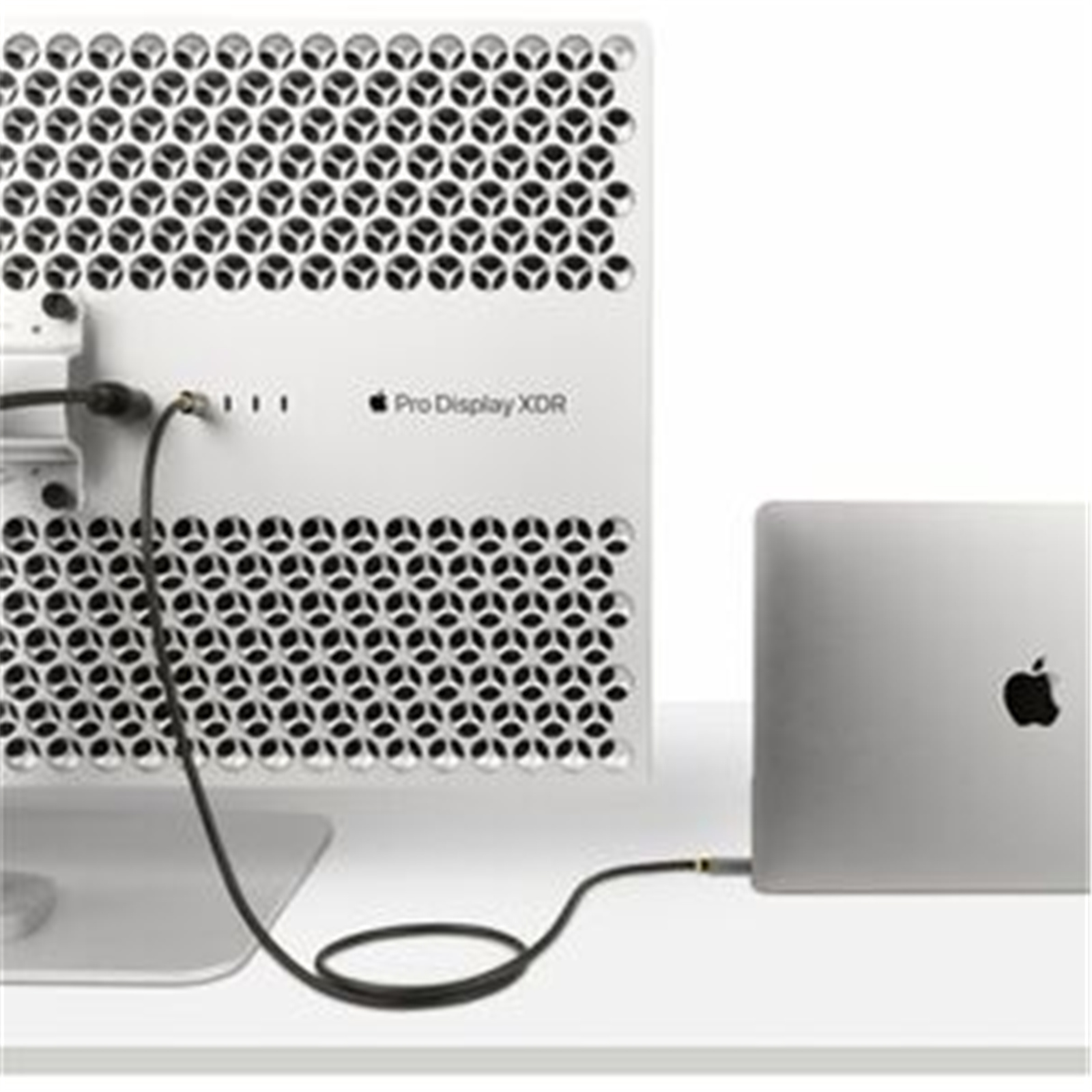

The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.
Power a USB-C Laptop

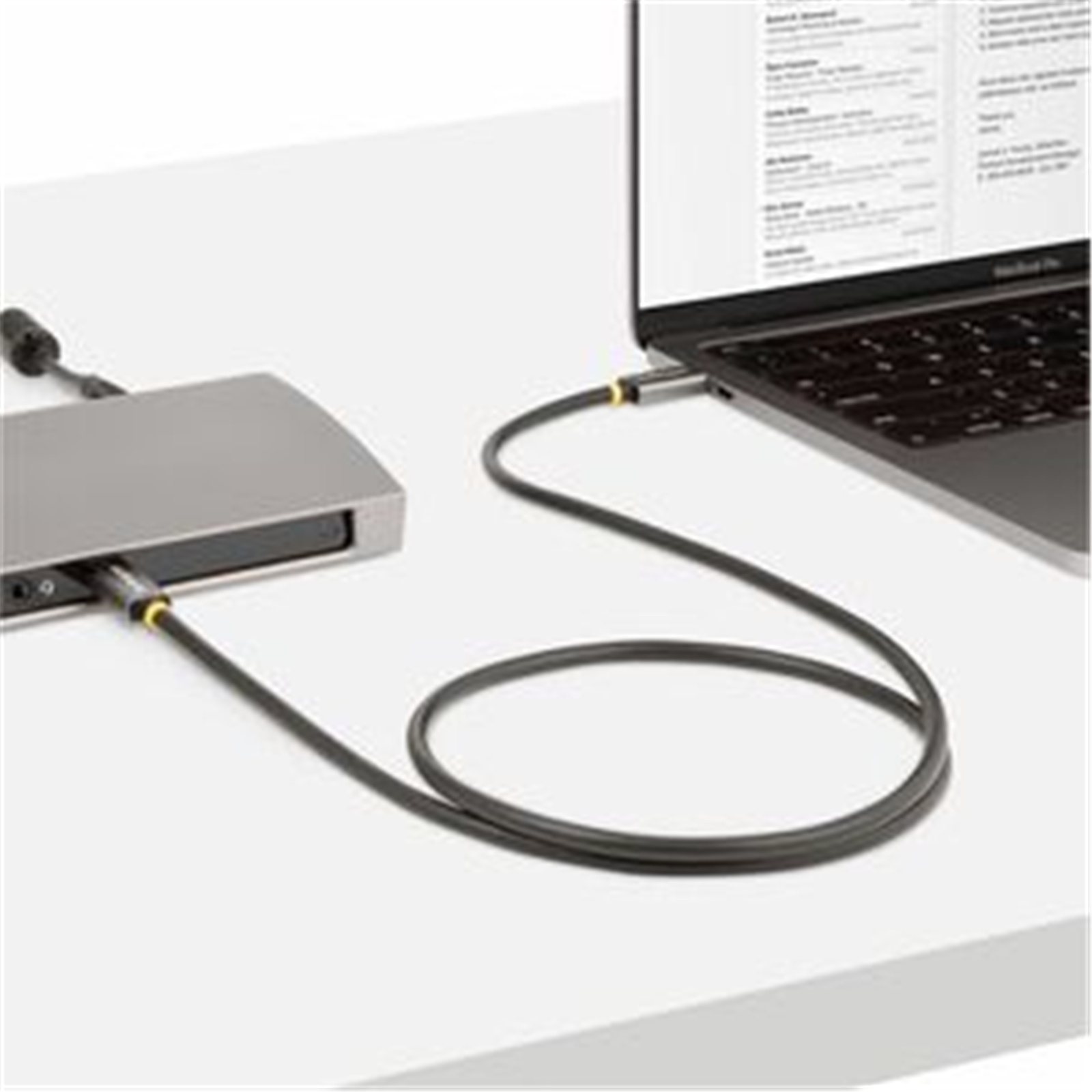

Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.

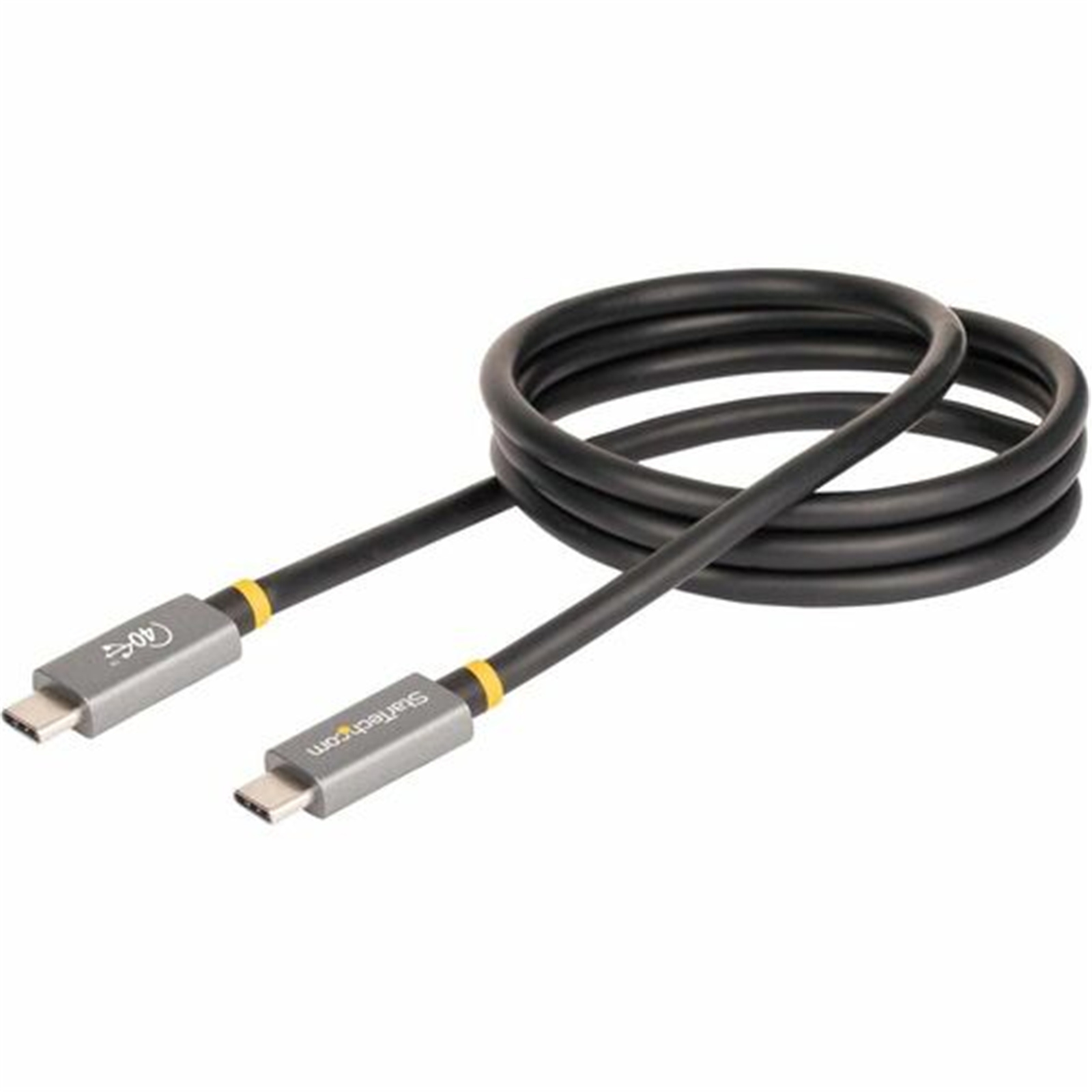

HIGH PERFORMANCE: 3.3ft/1m USB4 cable supports 40 Gbps, 4K/8K video, and 100W power; USB Type-C connectors offer universal compatibility with USB-C and Thunderbolt 4/3 laptops, docking stations, UHD monitors, and portable USB-C devices
USB-IF CERTIFIED: USB4 cable is USB-IF certified with E-Marker chip, for reliable and consistent Power Delivery output to USB-C hosts and devices; Supports DisplayPort 1.4 with DSC; Compliant with PCIe 3.0 for external PCIe chassis/storage

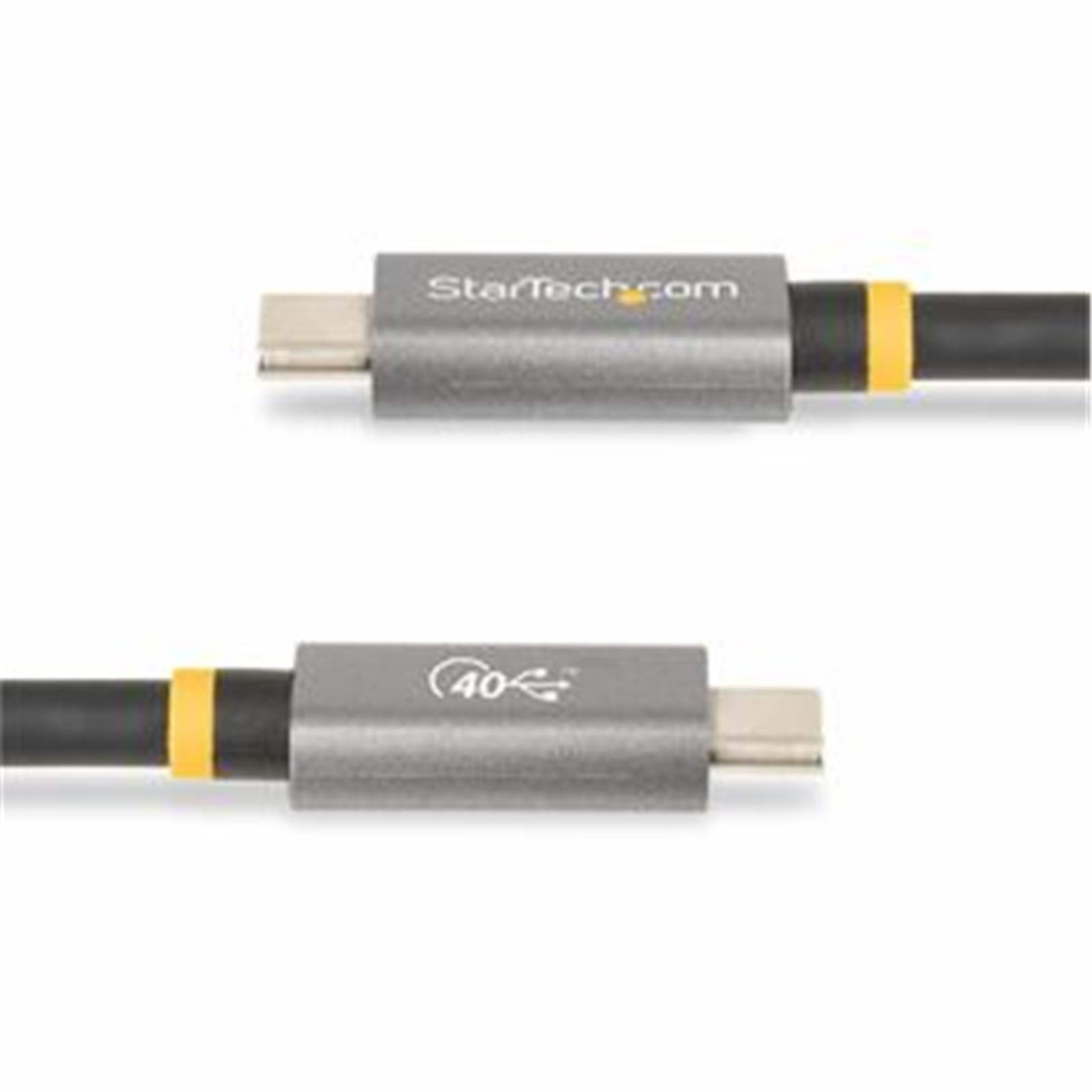

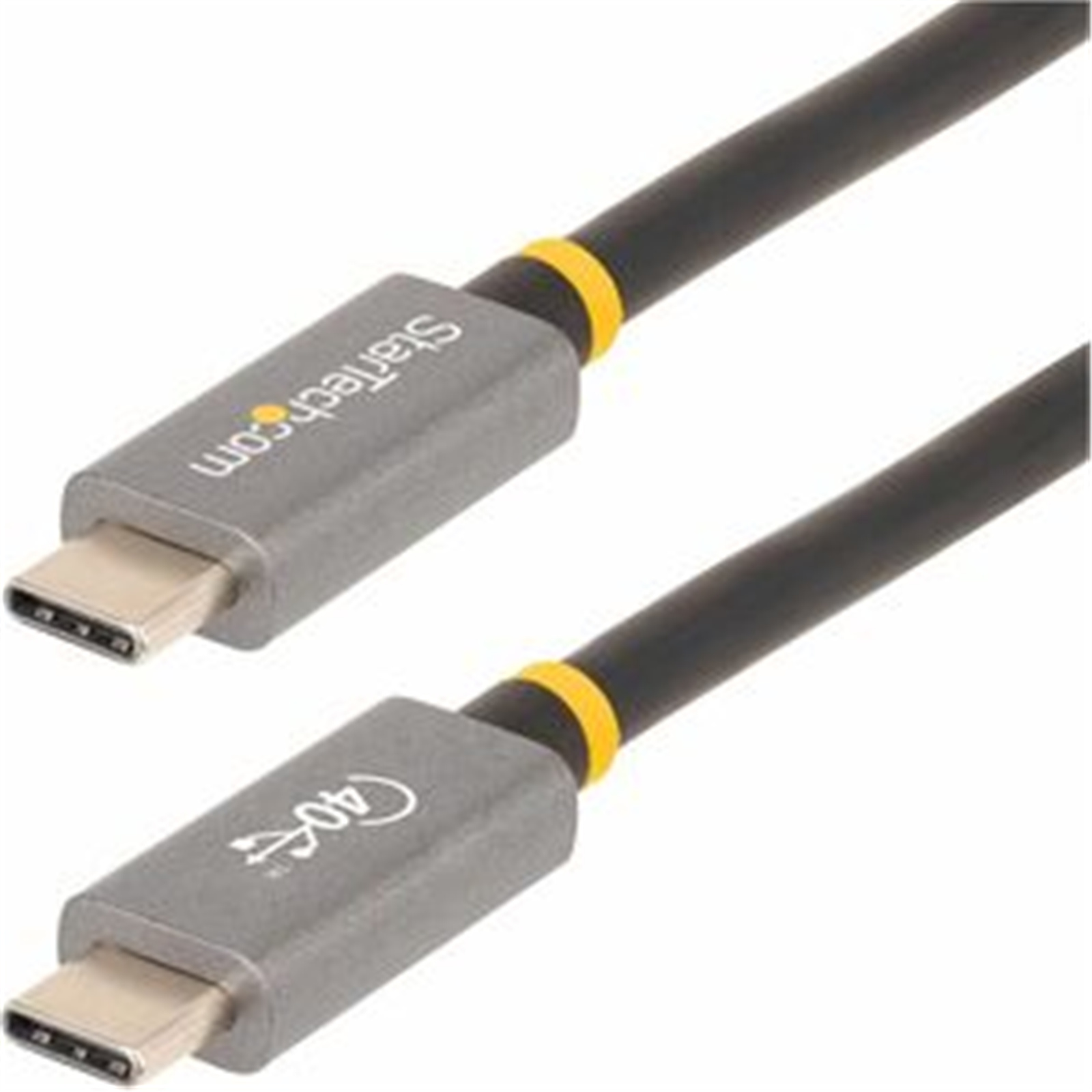

QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant

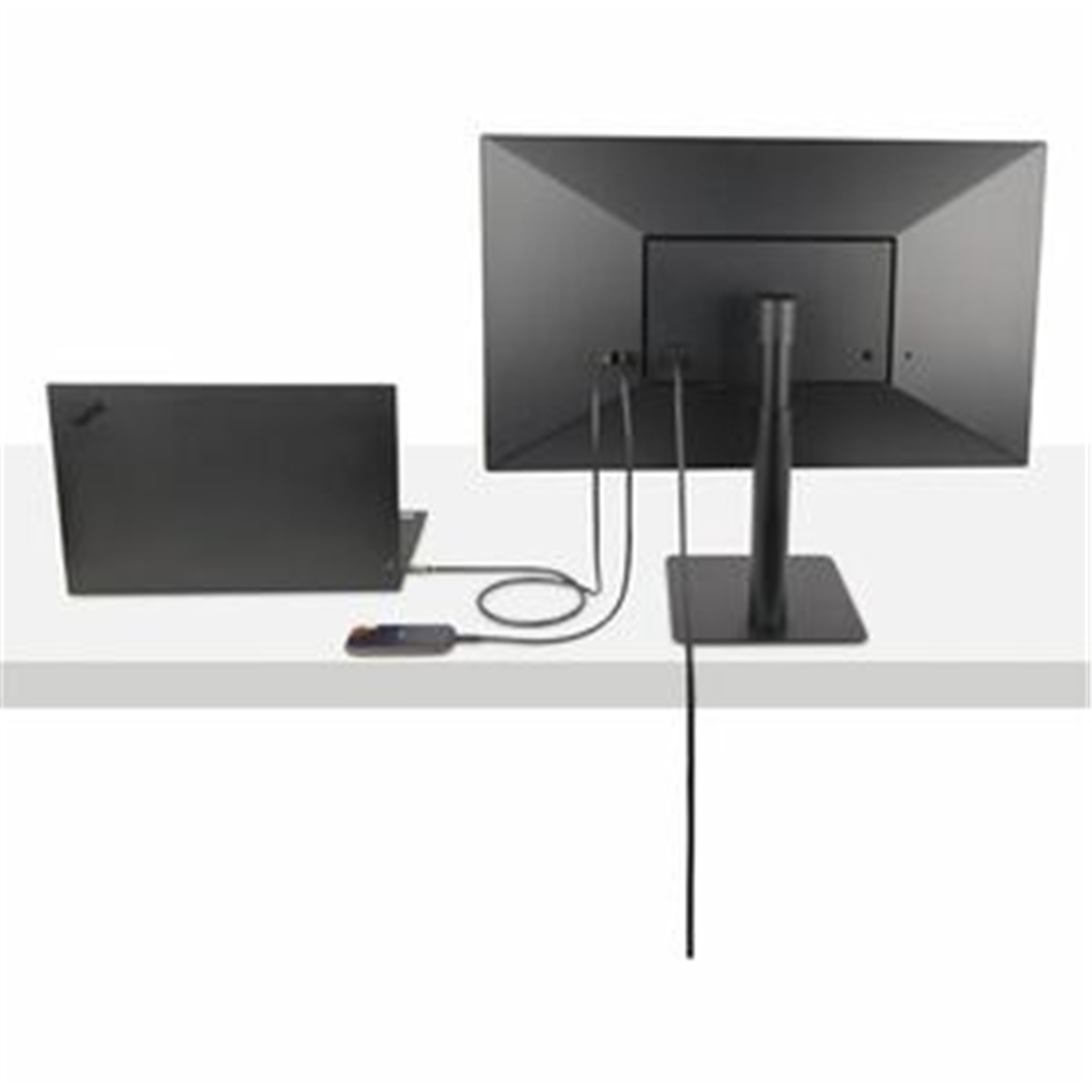

APPLICATIONS: This versatile USB-C cable enables connectivity and charging across compatible USB, Thunderbolt 4/3, and DP Alt Mode devices; Ideal for high speed data transfer or docking stations; Dock and charge a USB-C laptop over a single connection
SPECS: 3.3ft (1m); USB4 (40 Gbps); Backward Compatible with USB 3.2/3.0/2.0; DisplayPort 1.4 DP Alt Mode w/DSC/HDR/HBR3; Up to 8K 60Hz, 4K 120Hz; PCIe 3.0 (32 Gbps); 100W PD; 30/34 AWG; Cable Outer Diam.: 0.19in (4.95mm)
Specifications
Connector(s)
Connector A
1 - USB-C (DP Alt-Mode)
Connector B
1 - USB-C (DP Alt-Mode)
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
5% ~ 90% RH
Hardware
Active or Passive Adapter
Passive
Connector Plating
Nickel
Cable Jacket Material
TPE - Thermoplastic Elastomers
Packaging Information
Package Length
8.9 in [22.5 cm]
Package Width
4.9 in [12.5 cm]
Package Height
0.6 in [1.5 cm]
Shipping (Package) Weight
1.1 oz [30.0 g]
Package Quantity
1
Performance
Maximum Data Transfer Rate
40 Gbps
Maximum Cable Length
3.3 ft [1 m]
Maximum Digital Resolutions
8K 60Hz
Type and Rate
USB4 - 40 Gbit/s
USB 3.2 Gen 2 - 10 Gbit/s
USB 3.2 Gen 1 - 5 Gbit/s
USB 3.0 - 5 Gbit/s
USB 2.0 - 480 Mbit/s
Thunderbolt 4 - 40 Gbit/s
Thunderbolt 3 - 40 Gbit/s
Physical Characteristics
Color
Black
Product Length
3.3 ft [1.0 m]
Product Width
0.5 in [1.2 cm]
Product Height
0.3 in [6.4 mm]
Weight of Product
1.9 oz [53.0 g]
Connector Style
Straight
Wire Gauge
34 AWG
Cable Length
3.3 ft [1 m]
Cable OD
0.2 in [5.0 mm]
Power
Power Delivery
100W
What's in the Box
Included in Package
1 - USB4 Cable
