Dynabook Thunderbolt 4 Quad 4K Docking Station, with 90W Power Delivery, DP x2, HDMI x2, USB-C x2, USB 3.2 x4, Thunderbolt 4 x2, RJ45 x1, 3.5mm Audio jack x1, support Microsoft Windows, 1yr warranty

PB Tech price
PB Tech price
AUD $ 407 .43
$ 407 .43
$407.43  +GST
$407.43

Dynabook Thunderbolt 4 Quad 4K Docking Station, with 90W Power Delivery, DP x2, HDMI x2, USB-C x2, USB 3.2 x4, Thunderbolt 4 x2, RJ45 x1, 3.5mm Audio jack x1, support Microsoft Windows, 1yr warranty

  • Brand: Dynabook
  • MPN: PS0120AA1PRP
  • Part #: NBDDYB5507780
  • UPC:
2
PB Tech price
AUD $ 407 .43 $ 407 .43


Delivery: Order now and it ships on 10 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$407.43  +GST
$407.43
  • Brand: Dynabook
  • MPN: PS0120AA1PRP
  • Part #: NBDDYB5507780
  • UPC:

4K Support

Yes

DisplayPorts

2

HDMI Ports

2

Google Chrome Support

Not Specified

Intel Driven Apple Support

Not Specified

M1 Driven Apple Support

Not Specified

Microsoft Windows Support

Quad 4K Display

What PB Tech customers are saying about this product...

See More Reviews

"Was very pleasantly surprised - I just unwrapped it, plugged it in to my lenovo laptop and it worked. Added dual monitors - it worked. Added printer - it worked. No problems, no me ...view more"

SM
By: SallyM6 11/08/23
Verified Owner

"i found this item very easy to set up, very portable and reliable i would highly recommend this to a future purchaser"

G
By: Guest 26/06/23

Features

One cable. A world of possibilities.

Unleash extensive possibilities with Thunderbolt™ 4 dock - for comprehensive, flexible connectivity for the devices you need most.

Benefit from the combination of a full set of ports and Thunderbolt™ 4 connectivity, output from up to four 4K displays via 2x HDMI® and 2x DisplayPort™ outputs, transfer at high speeds of up to 40 Gbps (eight times faster than USB 3.0), and turn your desk into the ultimate, clutter-free workstation.

The dock even comes equipped for security with a slim lock slot.

- One cable connection

- Connect up to 4 displays simultaneously

- Up to 8K single video resolution

- Dual HDMI™ and DisplayPort™ video output

- Charges your laptop up to 90W

- Additional Thunderbolt™ 4 USB-C DFP port

- Supports PXE Boot and MAPT for compatible Dynabook laptops

Specifications

PC connection

Thunderbolt™ 4/USB Type-C™

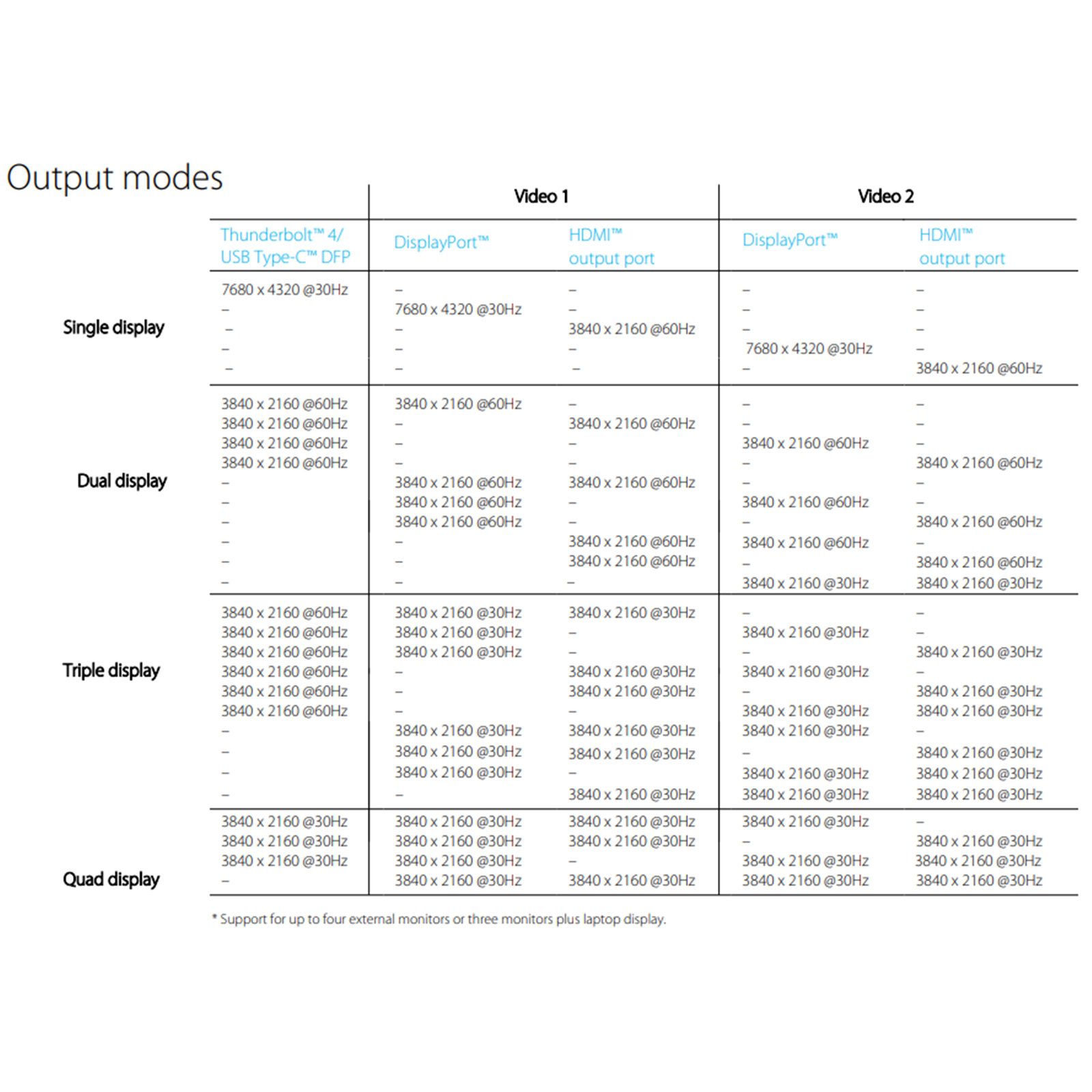

Resolution

Single output: up to 8K @30Hz via Thunderbolt™ 4/USB-C monitor or DisplayPort™
Dual output: up to 4K @60Hz
Triple output: up to 4K
Quad output: up to 4K @30Hz

Supported video mode

PC screen only, duplicate, extend, second screen only

Video interface

2x HDMI™, 2x DisplayPort™

Audio interface

1x headphone/microphone combo jack

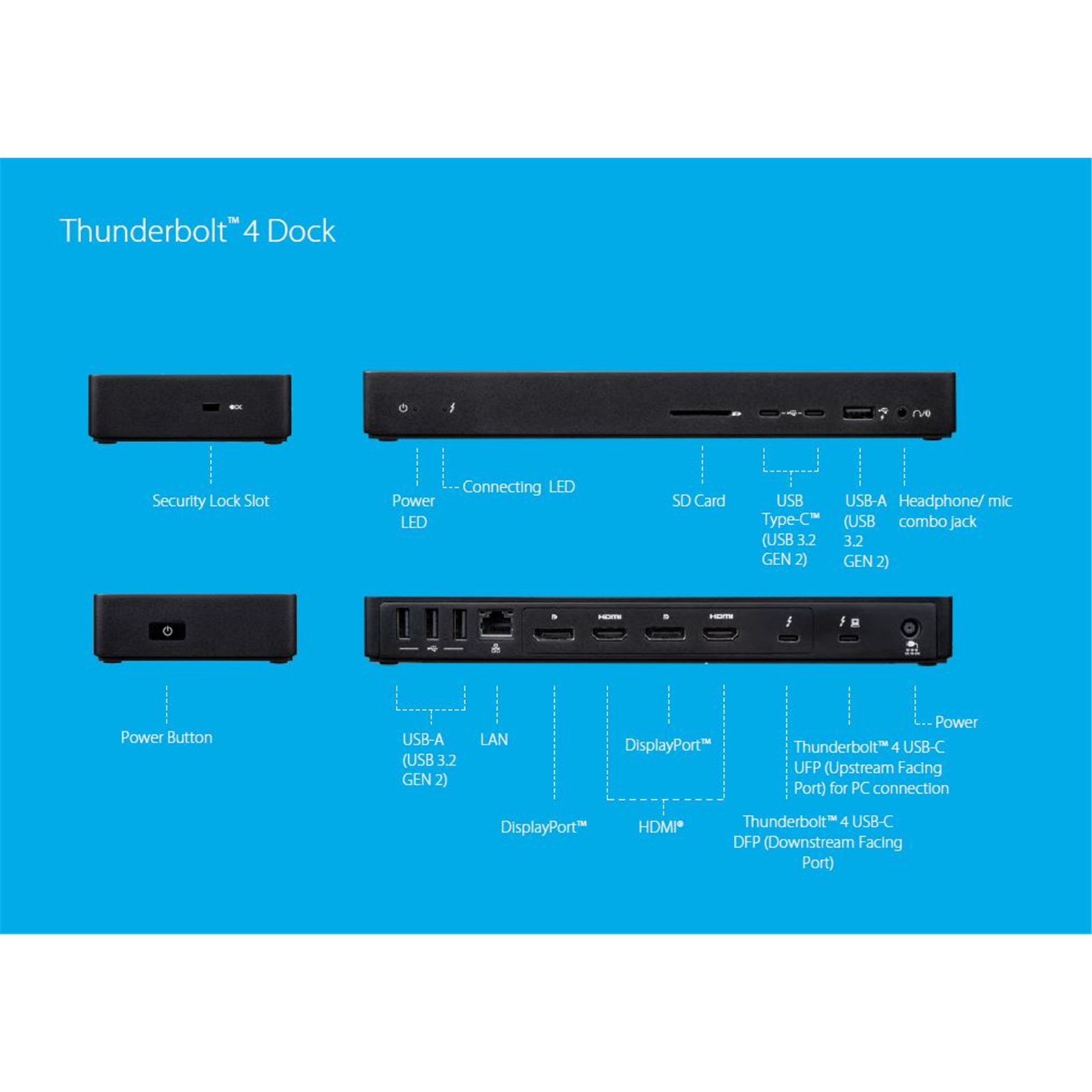

Other interface

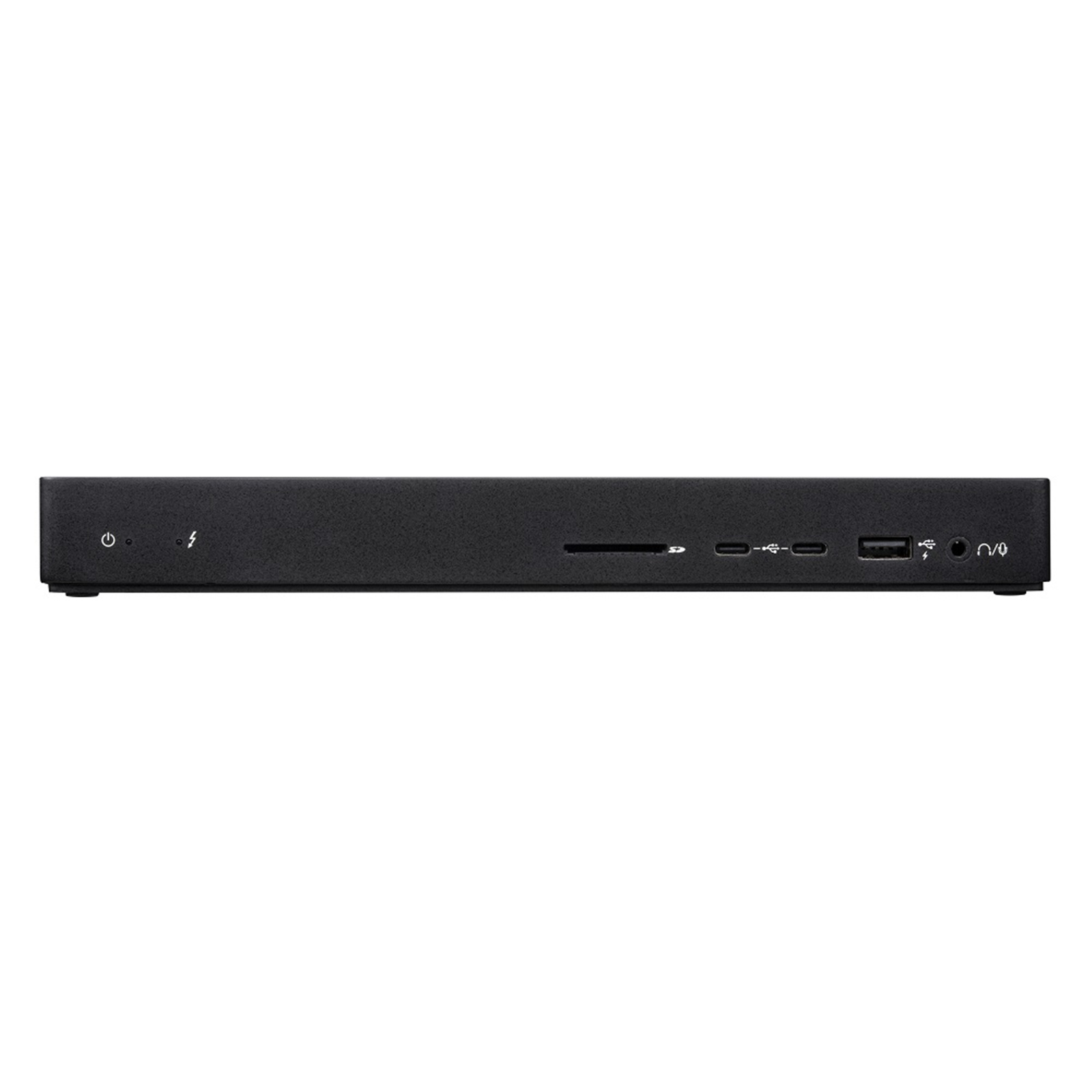

Front:1x USB-A (USB Sleep and Charge function), 2x USB-C

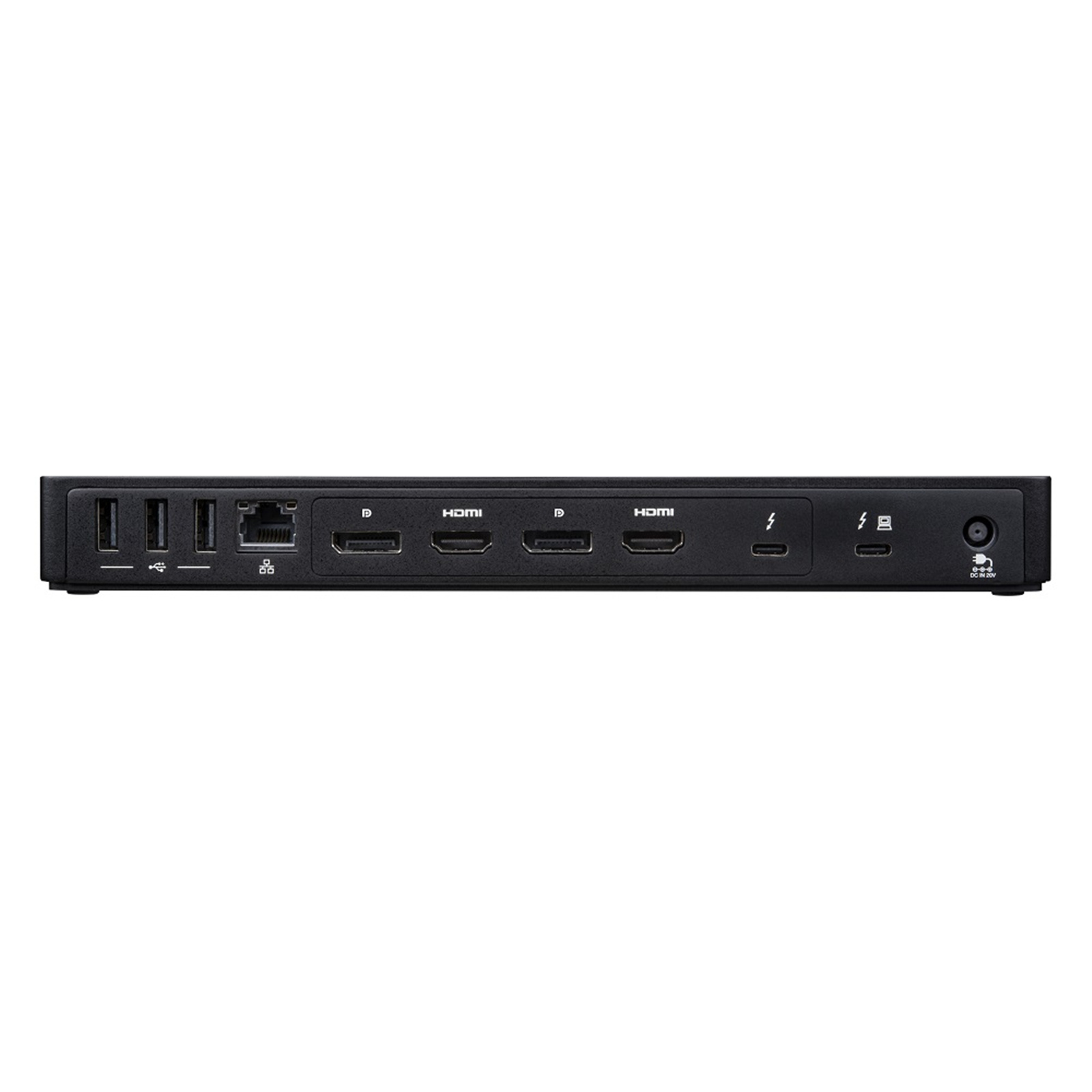

Rear: 1x Thunderbolt™ 4 USB-C DFP, 3x USB-A, DC-in jack

LAN

Gigabit LAN

SD card reader

yes

Additional features

Security lock slot, power button, LED indicators (power and Thunderbolt™ 4 connection)

Thunderbolt™ 4 cable length

80 cm

Power supply

20V DC, 6.75A, 135W

Power cord

3 pin

System requirements

A Dynabook computer with a Thunderbolt™ 4/USB Type-C™ port which supports video output and power delivery, Microsoft Windows 10 or 11

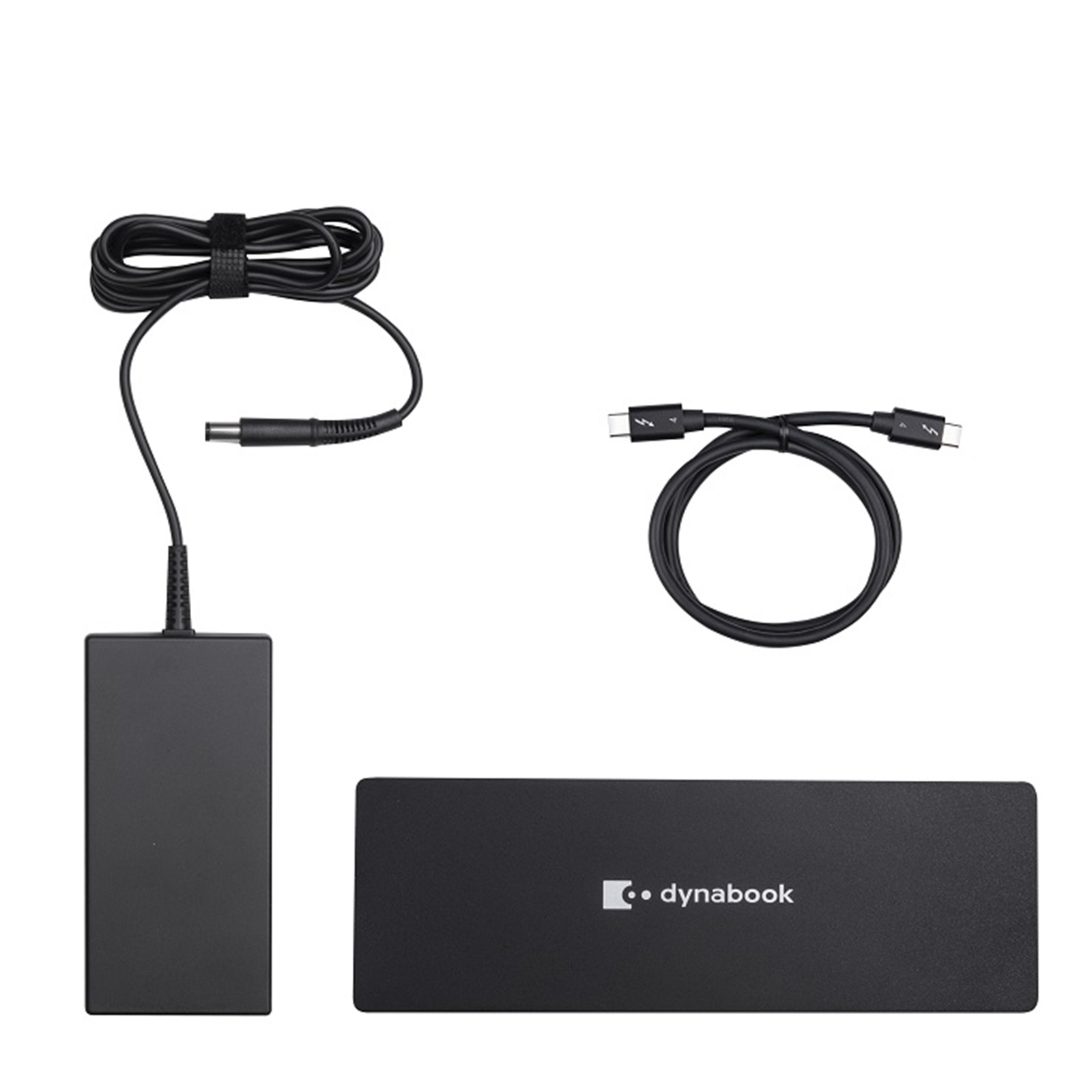

Box content

Dynabook Thunderbolt™ 4 Dock
Thunderbolt™ 4/USB Type-C™ cable (80 cm)
AC adaptor and power cord
Quick Start Guide
Warranty Leaflet

Dimensions (mm)

About 84 (w) x 245 (d) x 27 (h) mm

Weight (g)

~440g

Colour

black

Manufacturer Part No:
PS0120AA1PRP
Brand:
Product Type:
Docking Station,
UPC
-
Product Family:
-
Shipping Weight:
1.25 kg
PB Part No:
NBDDYB5507780
Product Model:
Thunderbolt 4 Quad 4K
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
