Allied Telesis AT-MMC2000/LC-960 10/100/1000T TO 1000SX/LC MM MEDIA RATE CONVERTER MULTI-REGION PSU TAA FEDERAL
- Brand: Allied Telesis
- MPN: AT-MMC2000/LC-960
- Part #: NETATS4694570

Product URL: https://www.pbtech.com/product/NETATS4694570/Allied-Telesis-AT-MMC2000LC-960-101001000T-TO-1000
Features

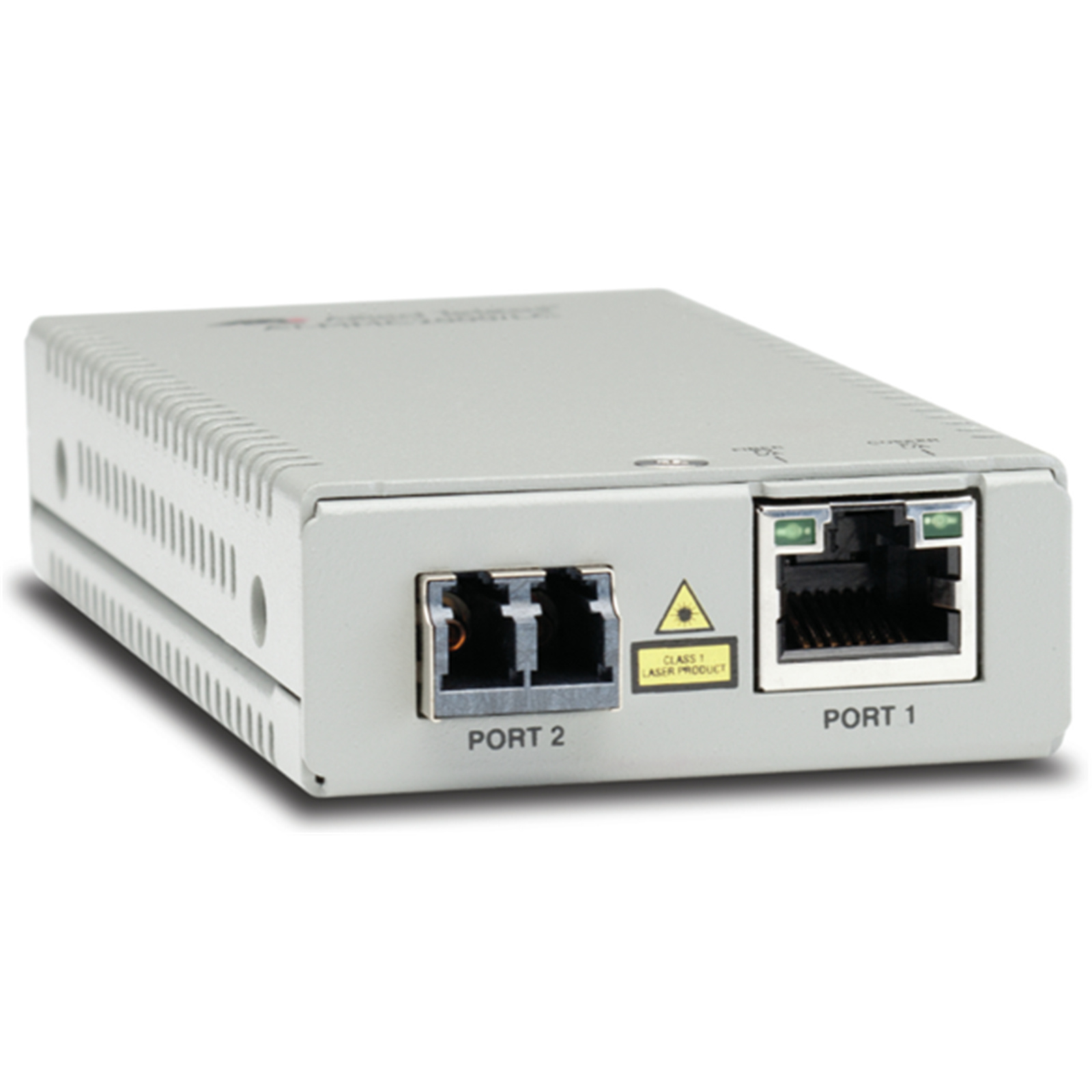

The MMC2000LC-960 mini media converter converts 10Mb, 100Mb and gigabit copper to multimode fibre (LC connector). Its small size saves space, reduces carbon footprint but offers all the features of full size alternatives.
-Convert speed as well as media type
-2K MAC address tables
-Store-and-forward switching mode
-Transparent to IEEE 802.1Q packets
-Auto Negotiation and Auto MDI/MDIX on copper port
-IEEE support on copper
-Far End Fault on Fiber
-10K byte Jumbo packets
-Link/Activity LED per port
-Smart MissingLink
-Fixed SC/ST/LC or SFP (100MB or 1000MB) optics
-12VDC power supply
-Wall-mountable using MMCWLMT
-Locking power supply jack to prevent accidental power disconnects
-Available in Trade Agreement Act (TAA) models
Specifications
Design
LED indicators
Activity, Link
Product colour
Grey
Safety
FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Certification
CE, EN55024, EN61000-3-2, EN61000-3-3
Power
Input voltage
12 V
Input current
0.14 A
Power consumption (typical)
1.7 W
Power over Ethernet (PoE)
Yes
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Network
Maximum data transfer rate *
1000 Mbit/s
Converter input interface
10Base-T,100Base-T,1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber ethernet cabling technology
1000BASE-SX
Jumbo frames support
Yes
VLAN support
Yes
Duplex system
Full
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector *
LC
DC-in jack
Yes
Performance
Maximum transfer distance *
2000 m
Wavelength *
1310 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-20 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
