Features

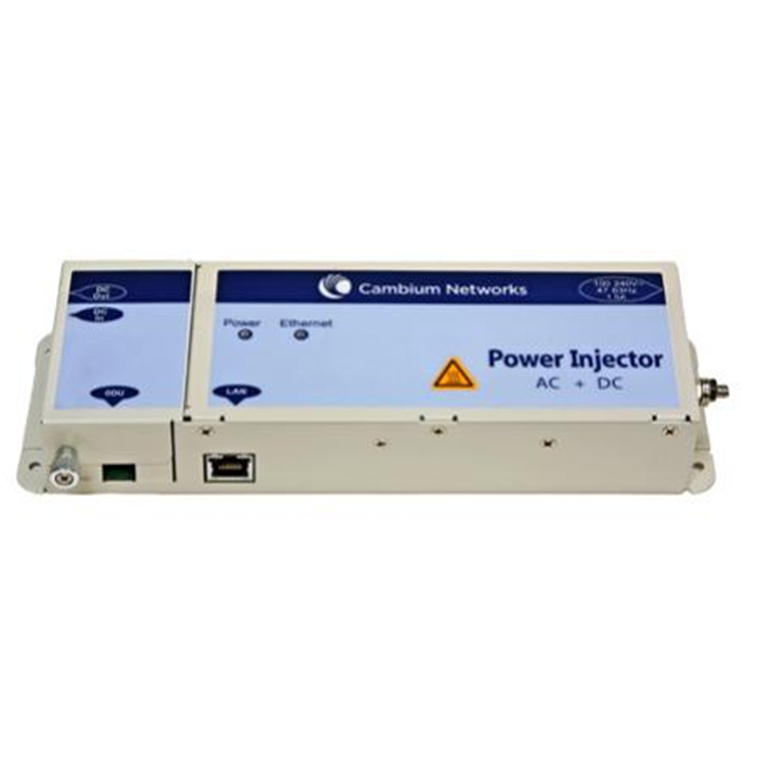

Cambium PTP650/670 AC+DC Enhanced Power Injector
This is an enhanced power injector that accepts either 100-240VAC or 48VDC input. It also tolerates a greater temperature range (-40° to 140° F or -40° to 60° C) and can power a device such as a video camera or wireless access point on the Auxiliary port of the ODU. The AC+DC injector can also be configured in redundant configurations for high availability requirements.
Specifications
Manufacturer
Cambium Networks
Manufacturer's Product Code
C000065L002
Product Type
AC+DC Enhanced Power Injector
Input Voltage
AC: 100-240V, DC: 48VDC
Output Voltage
DC Output 48-60V / 1.7A; ODU 48-60V / 1.7A
Operating Temperature
-40° to 60° C
Rating
Indoor
Input Connector 1
Figure 8 Power Cord
Input Connector 2
Wire Trminal (DC Input)
Output Connector 1
RJ45 Female
Output Connector 2
Wire Trminal (DC Output)
