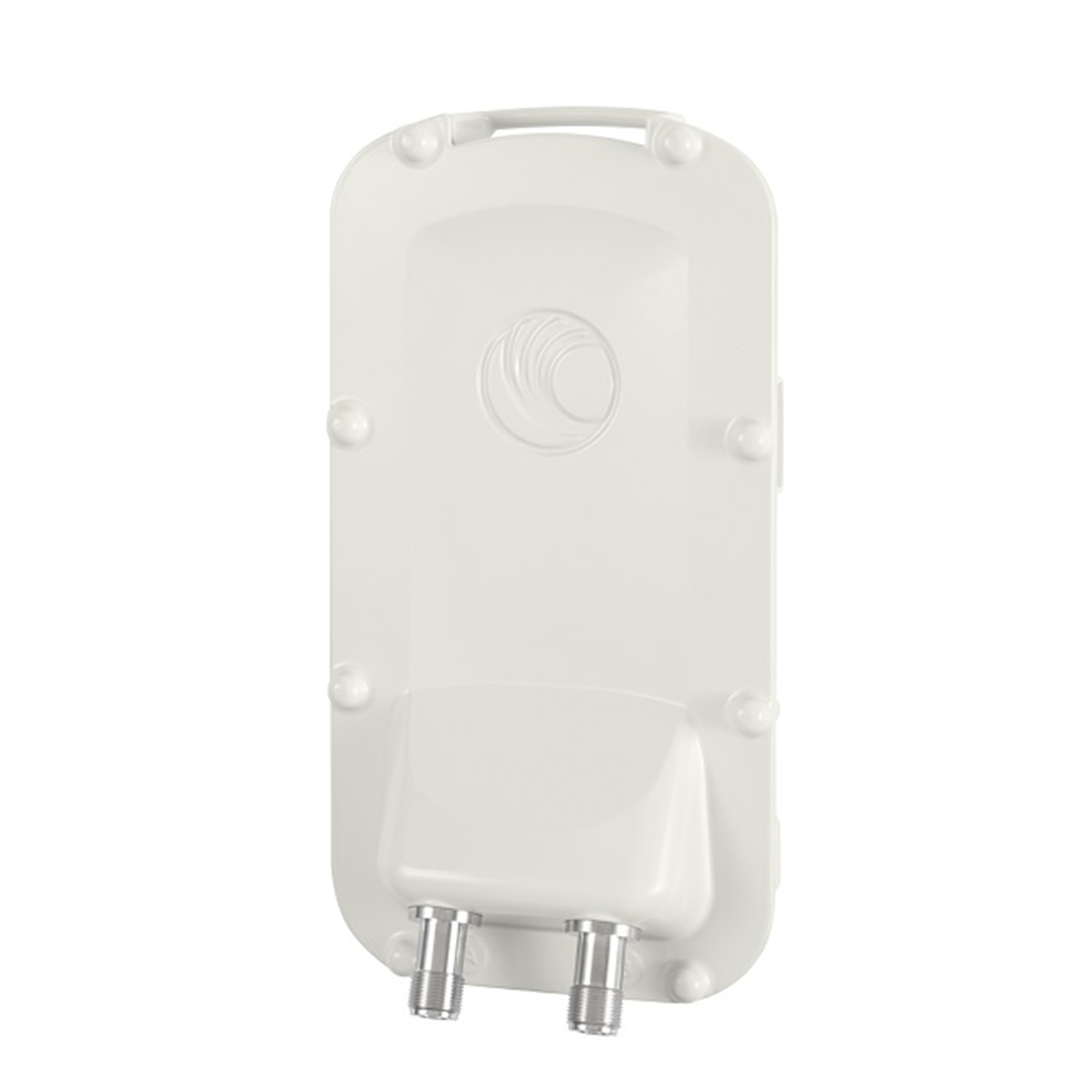

Cambium Networks C030045AL01 Cambium 3 GHz PMP 450i Connectorized Access Point, LITE

PB Tech price
PB Tech price
AUD $ 2,260 .59
$ 2,260 .59

Out of stock

Cambium Networks C030045AL01 Cambium 3 GHz PMP 450i Connectorized Access Point, LITE

PB Tech price
AUD $ 2,260 .59 $ 2,260 .59
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
Click or hover over image to enlarge

Ethernet Ports

1

Power Option

PoE

USB Ports

None

WiFi Bands

N/A

Wireless Technology

N/A

Wireless Transmission Speed

300Mbps

Pack Size

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

Features

- Operates in the 3 GHz regional licensed band
- Limited to 20 Subscribers, upgradeable via License Key
- GPS Synchronization compatible with LTE/4G/5G
- Ultra-wide band radio (3300-3900 MHz)
- IP66/67 Rugged metal enclosure
- 2x2 OFDM MIMO radio capable of up to 300 Mbps per sector

Ultra-wide band radios

Supports the entire band, whether in 5 GHz or 3 GHz. Advanced radio design improves transmit power and increases receive sensitivity.

Rugged metal enclosure

Designed to meet IP-66 and IP-67 standards to withstand harsh environments. Optional ATEX/HAZLOC certified models available for hazardous deployments.

Dynamic Interference Filtering

Provides industry leading noise isolation for improved performance.

Updated FPGA and SoC architecture

Triples the processing power compared to PMP 450.

Multifunction AUX Port

Allows for greater flexibility for deployment by adding a camera or other PoE directly.

Options for Integrated 90°/120º sector antenna

Optimized for frequency re-use (>35 dB F/B), high gain, null fill and predictable performance.

Increase Throughput

Now capable of up to 300 Mbps per sector in a 40 MHz channel.

Specifications

Channel Spacing

Configurable on 2.5 MHz increments, 3 GHz customizable to 50 KHz

Frequency Range

3 GHz: 3300-3900 MHz

Channel Width

5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz or 40 MHz

MAC (Media Access Control) Layer

Cambium Networks proprietary

Physical Layer

2x2 MIMO OFDM

Ethernet Interface

100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)

Protocols Used

IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP

Network Management

IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestroTM

MTU

1700 bytes

VLAN

802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID

Subscriber Per Sector

Up to 238 *Lite models limited to 20 Subscribers, License Key (C000045K010A) available to remove this limit

ARQ

Yes

Maximum Deployment Range

Approx. 10km with NZ Default Technical Conditions

Latency

3 - 5 ms, typical

GPS Synchronization

Yes, via Autosync (CMM5 or UGPS)

Quality of Service

Diffserve QoS

Integrated Sector Antenna

90° Azimuth (3dB rolloff), 120° Azimuth (6dB rolloff) 8° Elevation (3dB rolloff), 2° Electrical Downtilt, Dual polarity

Antenna Gain

17 dBi ± 1 dBi integrated 90/120° sector

Maximum Transmit Power

+28 dBm (MIMO, Combined H+V) (+25 dBm for 3 GHz) (may be limited by regulations)

Maximum EIRP

+43 dBm combined output (may be limited by regulations)

VSWR

1.5, Reflection Coefficient 0.2, Reflected Power 4%, Return Loss 14 dB

Power Control

ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC

Antenna Connection

50 ohm, N-Type

Surge Suppression (LPU fitted)

EN61000-4-5: 1.2us/50us, 500V voltage waveform
Recommended external surge suppressor: Cambium Networks Model # C000000L033A

Mean Time Between Failure

>40 Years

Dust and Water Ingress Protection Rating

IP67, IP66

Temperature / Humidity

-40°C to +75°C (-40°F to +167°F), 0-100% condensing

Weight

Approx. 2 kg (4.5 lbs)

Wind Survival

322 km/h (200 mi/h)

Vibration

NEMA TS2 Section 2.1.9 and Section 2.2.3

Shock

NEMA TS2 Section 2.1.10 and Section 2.2.4

External Icing

NEMA 250-2003 Section 5.6

Dimensions (H x W x D)

Connectorized 26.0 x 13.4 x 6.4 cm (10.3" x 5.3" x 3.3")

Power Consumption

15W typical, 18W max, Using Aux port PoE for another device will increase power draw

Input Voltage

48-59V DC, 802.3at compatible

Encryption

FIPS-197 128-bit AES, 256-bit AES (Requires Optional License)

Manufacturer Part No:
C030045AL01
Brand:
Cambium Networks
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.5 kg
PB Part No:
NETCBN010195
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake please let us know.
