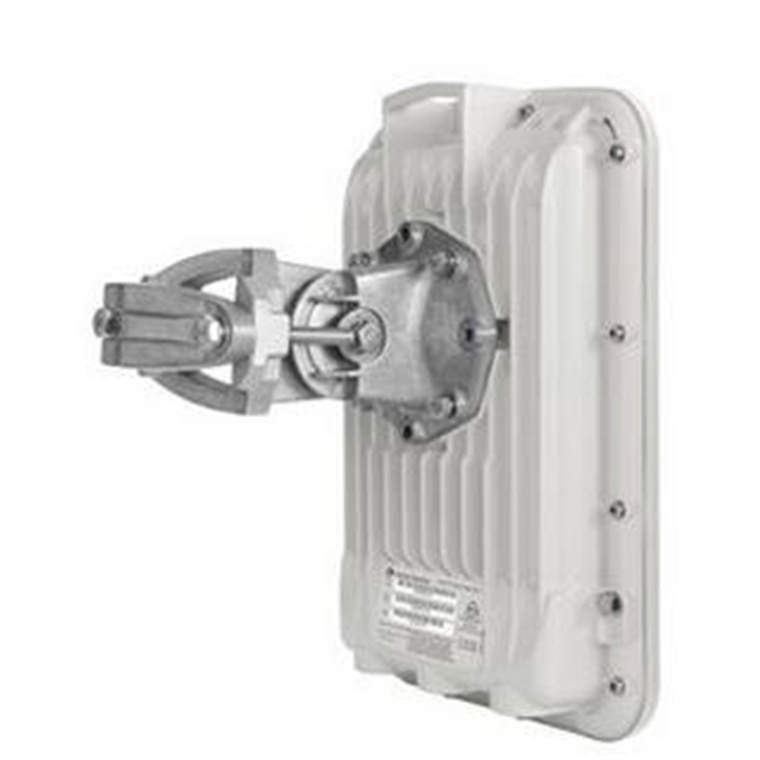

Cambium Networks C050065B016A Cambium PTP 650S 4.9 to 6.05 GHz ODU

PB Tech price
PB Tech price
AUD $ 713 .57
$ 713 .57
$713.57  +GST
$713.57

Cambium Networks C050065B016A Cambium PTP 650S 4.9 to 6.05 GHz ODU

PB Tech price
AUD $ 713 .57 $ 713 .57


Delivery: Order now and it ships on 26 Jun
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$713.57  +GST
$713.57

Features

Cambium PTP 650S 4.9-6.05 GHz ODU High Reliability Wireless Point to Point Radio

Network operators have experienced massive growth in data, voice, and video traffic over the past few years. This growth has imposed new requirements for high bandwidth and secure, reliable connectivity in areas not previously covered. Heterogeneous networks of small cells are increasingly being deployed in traffic "hotspot" areas to address these increasing capacity demands. In addition, data "not spots" are being addressed in suburban and rural areas with lower capacity small cell deployments. Cambium Networks disrupts the performance-reliability continuum with the Cambium Point-to-Point (PTP) 650S Small Cell backhaul solution. With up to 450 Mbps aggregate throughput, small form factor, and support for 3G and 4G/LTE network timing, PTP650S links let you reliably and securely handle today's needs with scalability to meet future requirements.

Specifications

MPN

C050065B016A

Output Power

Up to 27 dbm at bPsK; up to 23 dbm at 256 QaM

Channel Width

5, 10, 15, 20, 30, 40, and 45 MHz channels

Spectral Efficiency

10 bps/Hz maximum

Frequency Range

Wide-band operation 4.9 to 6.05 GHz (allowable frequencies and bands are dictated by individual country regulations.

Network Management

iPv6/iPv4 dual-stack management support, Web access via browser using HTTP or HTTPs/Tls4, snMP v1, v2c and v3, Mib-ii and proprietary PTP Mib Cambium Wireless Manager, WM 4.0/sP4 or higher, online spectrum analyzer (no impact on payload traffic or network operation)

Interfaces

Gigabit Port 1: data + Poe power input; Gigabit Port 2: 802.3at Poe output port (optional); sFP port (single-mode fiber, multi-mode fiber, and copper Gigabit ethernet options available)

PoE In

55V 1.2A

Antenna gain dBi

Integrated: Flat panel - 19 dbi

Max Power consumption

30W

Wind Loading

200 mph (322 kph)

IP Rating

IP66 and IP67

Manufacturer Part No:
C050065B016A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETCBN010198
Product Model:
C050065B016A
Warranty: 12 months *
