Cambium Networks C050910C801A Cambium ePMP 5 GHz Force 300-25 High Gain Radio (ROW) (ANZ cord)

Normally $339.13
Normally $339.13
You save $18
You save $18
AUD $ 320 .32
$ 320 .32

Out of stock

Cambium Networks C050910C801A Cambium ePMP 5 GHz Force 300-25 High Gain Radio (ROW) (ANZ cord)

Normally $339.13
Normally $339.13
You save $18
You save $18
PB Tech price
AUD $ 320 .32 $ 320 .32


Features

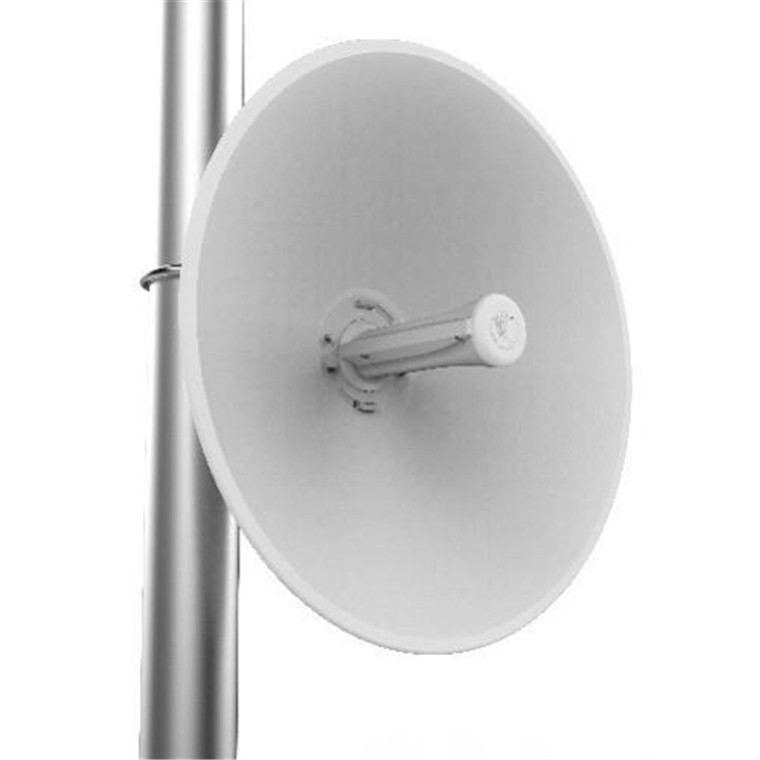

Cambium ePMP 5 GHz Force 300-25 High Gain Radio (ANZ cord). The Cambium Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyser.

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.



Key Features

- Cambium Networks' ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 - ms.
- QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.

Specifications

Manufacturer's Code

C050910C801A

Channel Spacing

Configurable in 5 MHz increments

Frequency Range

Wide Band Operation 5.150 - 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)

Channel Width

20/40/80 MHz

Antenna Gain

25dBi

Ethernet Interfaces

10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts

Network Management

HTTPs, SNMPv2c, SSH

VLAN

802.1Q with 802.1p priority

Transmit Power Range

0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)

Surge Suppression

1 Joule Integrated

Environmental

IP55

Temperature

-22°F to +140°F (-30°C to +60°C)

Weight

2.4 kg (5.3 lbs)

Wind Survival

180 km/hour (112 mi/hour)

Dimensions (Dia x Depth)

47 cm x 31 cm (18.5 in x 12.2 in)

Pole Diameter Range

64mm - 76mm (2.5 in - 3 in)

Power Consumption

12 Watts

Input Voltage

30 Volts

Encryption

128-bit AES (CCMP mode)

Manufacturer Part No:
C050910C801A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
5 kg
PB Part No:
NETCBN1057
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
