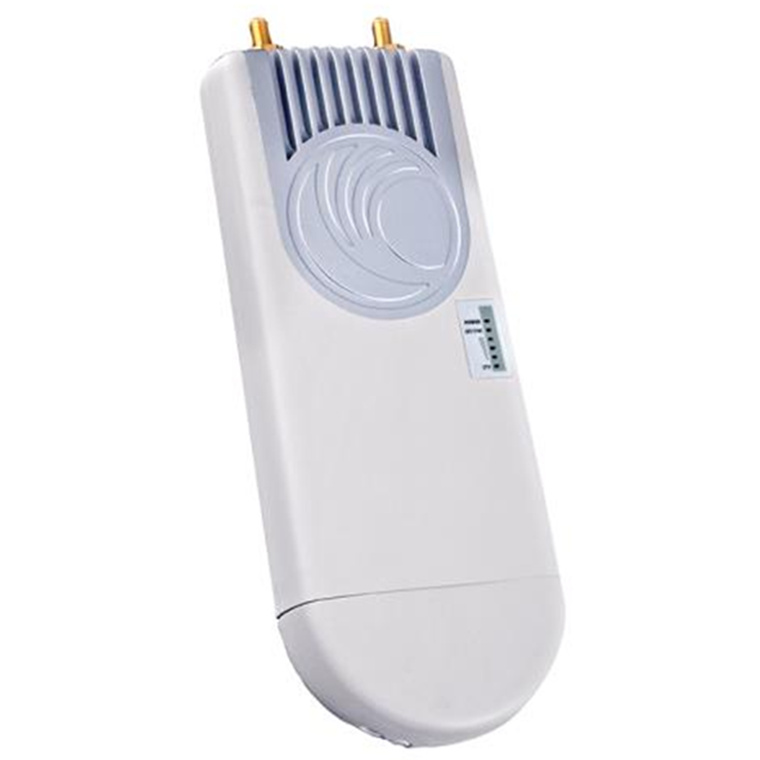

Cambium Networks C025900A621A Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW)

Normally $83.48
Normally $83.48
You save 6%
You save 6%
AUD $ 78 .31
$ 78 .31
$78.31  +GST
$78.31  inc GST

Cambium Networks C025900A621A Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW)

Normally $83.48
Normally $83.48
You save 6%
You save 6%
PB Tech price
AUD $ 78 .31 $ 78 .31


Delivery: Order now and it ships on 30 Apr
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$78.31  +GST
$78.31  inc GST

Features

ContentsWireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP architecture provides highly scalable broadband access solution that will allow you to build and expand your network with a faster return on investment. Cambium Networks' radios deliver bandwidth-intensive services such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability. Using the 2.5 GHz frequency spectrum, the ePMP architecture is the most effective connectivity solution for reaching the under and unconnected around the world.

Cambium Networks' ePMP 1000 Connectorised Radio provides more than 150 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.

The ePMP 1000 Connectorised Radio has the exibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni and high-gain panel or dish antennas. This versatility allows service providers to con gure their network using high gain antennas to satisfy the most challenging environments.

The ePMP 1000 Connectorised Radio can be configured as a Subscriber Module, an unsynchronised Access Point, or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronised Radio in either a PMP or PTP deployment forming a GPS Synchronised solution.

- Suitable for Managed Spectrum Park (MSP) 2.6GHz
- Covers 2580 - 2620 MHz frequencies

Specifications

Manufacturer's Code

C025900A621A

Output Power

-17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)

Channel Width

5 / 10 / 20 / 40 MHz

Frequency Range

2570 - 2620 MHz

Protocols Used

IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Interfaces

100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)

Temperature Range

-30°C to +60°C (-22°F to +140°F)

PoE In

10 - 30V

Max Power consumption

7 W Maximum, 5 W Typical

Polarisation

2x2 MIMO/OFDM

Wind Loading

145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas

Dimensions

29.1 x 14.5 x 8.3 cm

IP Rating

IP55

Manufacturer Part No:
C025900A621A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETCBN1068
Product Model:
-
Warranty: 12 months *
