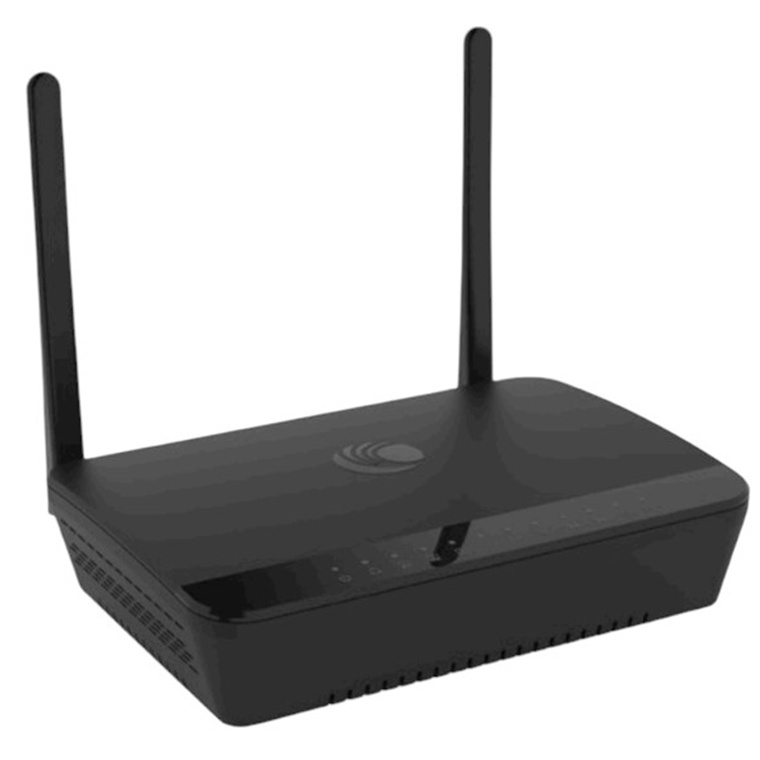

Cambium Networks PL-R195PANA-RW DUAL BAND 2X2 WLAN AP
Cambium Networks PL-R195PANA-RW DUAL BAND 2X2 WLAN AP
- Brand: Cambium Networks
- MPN: PL-R195PANA-RW
- Part #: NETCBN5116995
- UPC:
- Brand: Cambium Networks
- MPN: PL-R195PANA-RW
- Part #: NETCBN5116995
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Indoor Access Points





Cambium Networks PL-R195PANA-RW DUAL BAND 2X2 WLAN AP
- Brand: Cambium Networks
- MPN: PL-R195PANA-RW
- Part #: NETCBN5116995

Product URL: https://www.pbtech.com/product/NETCBN5116995/Cambium-Networks-PL-R195PANA-RW-DUAL-BAND-2X2-WLAN
Features
The Cambium PL-R195PANA-RW is a Residential 802.11ac Dual-Band Access Point with Integrated ATA and PoE Out.
The Cambium r195 series provides robust Wi-Fi performance to match and exceed the expectations of the modern family anywhere on the globe. As social media, streaming media, work-from-home and school-from-home increase, the need for high-performance Wi-Fi is here today. Don't be trapped by old 802.11n technology.
With five Gigabit Ethernet ports and dual WLAN radios, the r195 series easily connects all the devices in a home, providing full home coverage from a single Wi-Fi router. For larger homes, extend coverage with WDS MESH to link two Wi-Fi routers together; for example, one r195P can extend Wi-Fi coverage to a remote r195W.
r195P delivers two ATA ports for VoIP, and Cambium 30 V power out for a Cambium PMP or ePMP fixed wireless subscriber module.
- Gigabit fibre (UFB) capable router
- Auto-sensing Cambium 30V PoE-Output on WAN port
- Integrated ATA (2x FXS ports) for VOIP
- Dual-radio, 802.11ac (5 GHz/2.4 GHz)
- High-gain duplex antennas for extended range
- Hardware accelerated NAT Firewall
- Managed by cnMaestro; Cloud, MSP, On-Premises
Specifications
Brand
Cambium Networks
Supported Bands
2400 - 2500 MHz, 5150 - 5850 MHz
Max EIRP
2.4 GHz: 27 dBm, 5 GHz: 20 dBm
Antenna
External duplexed antenna, 5dBi
Max Phy Rate
2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps
WLAN
Supports 64 clients, up to 8 SSIDs
Interfaces
(4) 10/100/1000Mbps LAN Ports; (1) 10/100/1000Mbps WAN Port; (2) FXS Ports; (1) USB Port
Power
12VDC, 1a. 2.1mm x 5.5mm DC barrel connector
Dimensions
200 mm x 140 mm x 50 mm
Weight
0.900g
LEDs
Power, WLAN, Port status LEDs
Ambient Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 70°C
Humidity
95% RH non-condensing
Certifications
FCC, ETSI, CE, EN 60601-1-2, IEC60950
